01 / 05Drying · ZPG series
Vacuum Rake Dryer
A vacuum rake dryer for slurry, paste, grain, powder and fibre. A jacketed cylinder heats while a rake stirrer turns the material.
- Working volume
- 300 L to 4,500 L, 7 models
- Heating area
- 6 m² to 18.08 m²
- Stirring
- 6 to 30 rpm, stepless
- Vacuum
- -0.09 to -0.096 MPa
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Large heat area, constant stirring

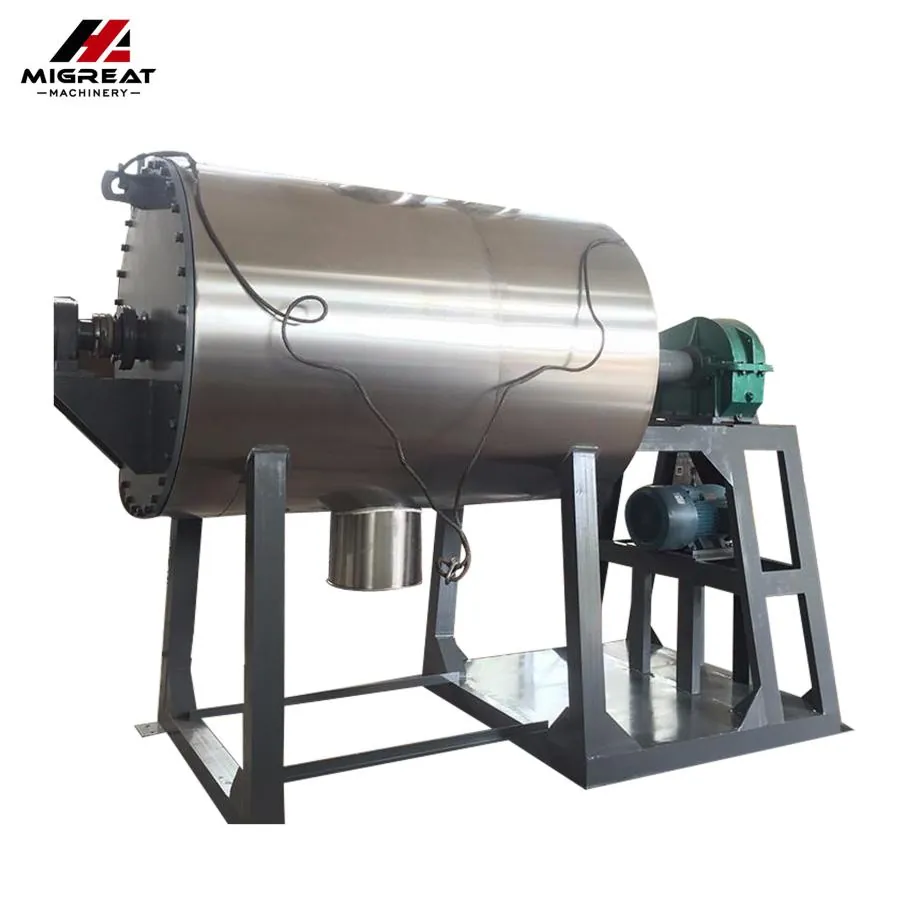

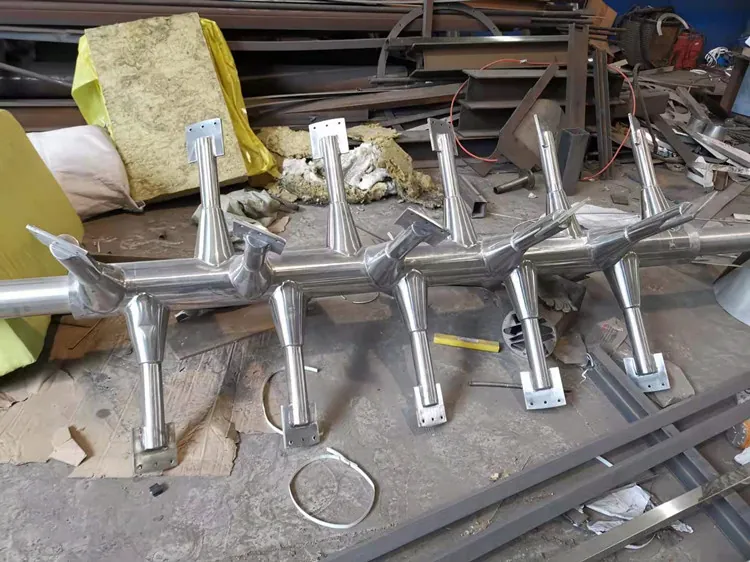

The ZPG rotary rake dryer dries materials shaped like slurry, paste, grain, powder and fibre. The drive uses a column gear reducer, the drive shaft is thick solid stainless steel, and the rake teeth are high strength stainless steel.
Two or four impact rods can be added inside the shell for high speed drying and smashing.
Heat
Steam, heat conducting oil or hot water heats the jacket.
Stir
The rake keeps the material circulating, so heat spreads evenly.
Vacuum
Under vacuum, moisture is pulled out at low temperature.
The range in numbers
- 7Models
From ZPG-500 to ZPG-8000
- 300 to 4,500L
Working volume
- 6 to 30rpm
Stepless stirring speed
- ≤0.3MPa
Jacket pressure, hot water

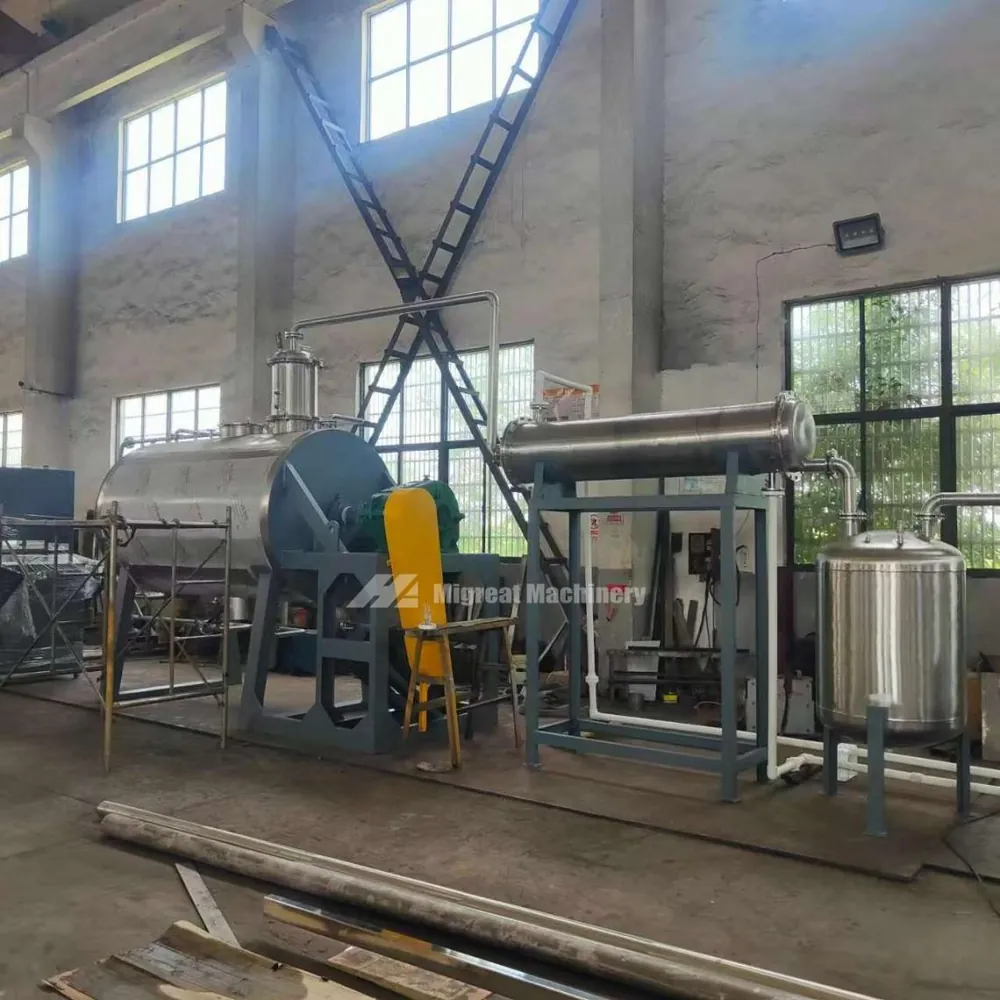

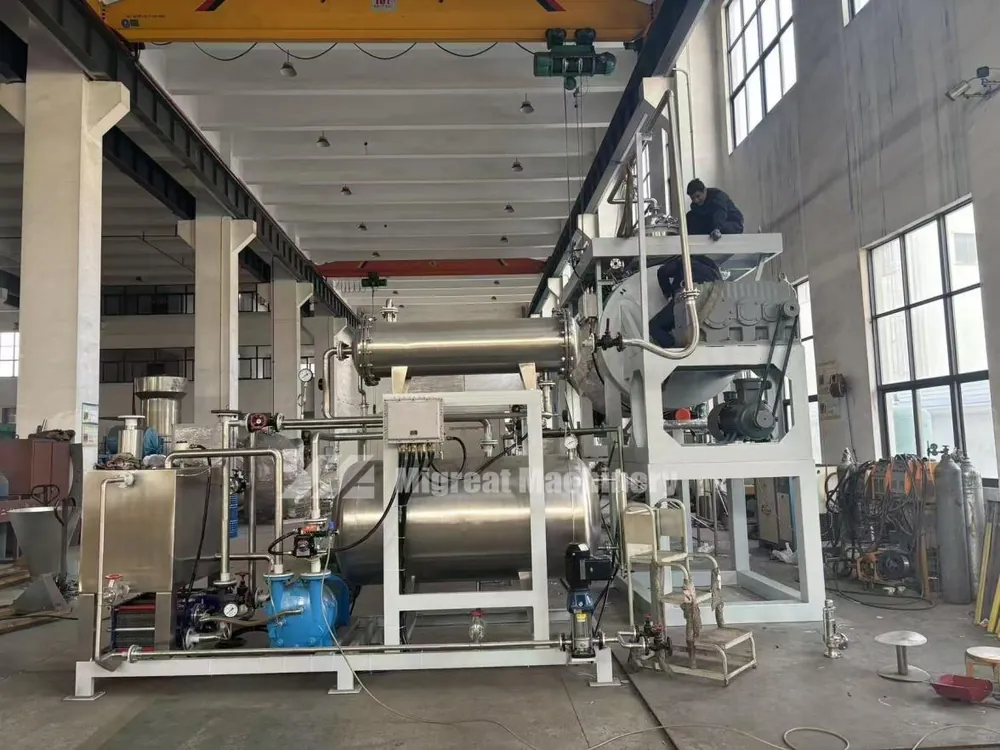

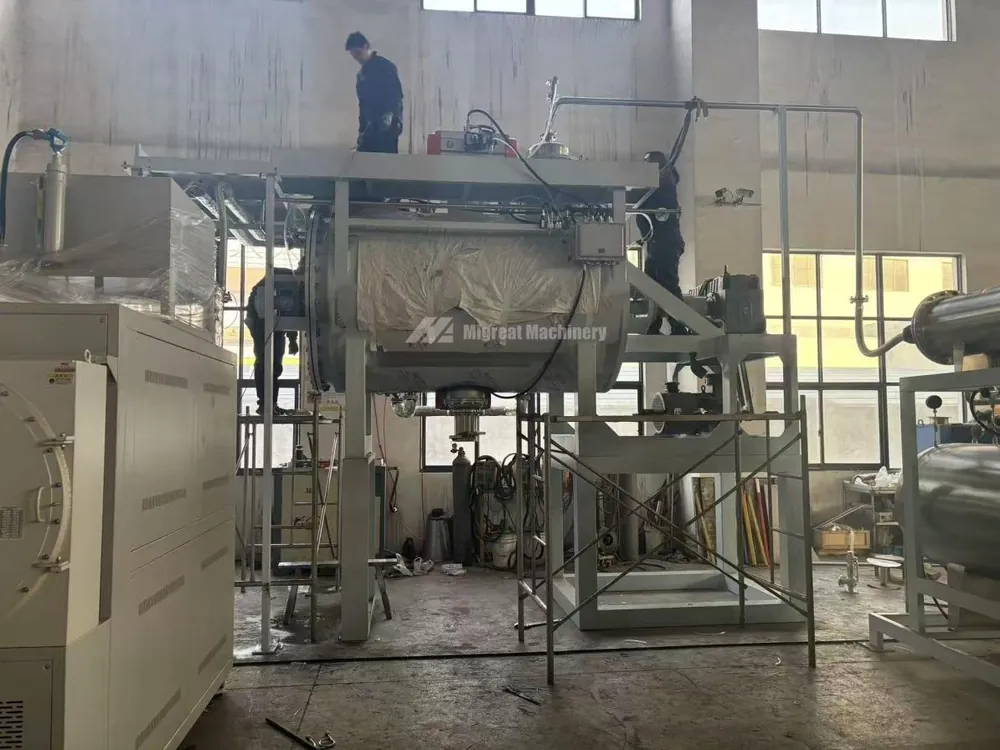

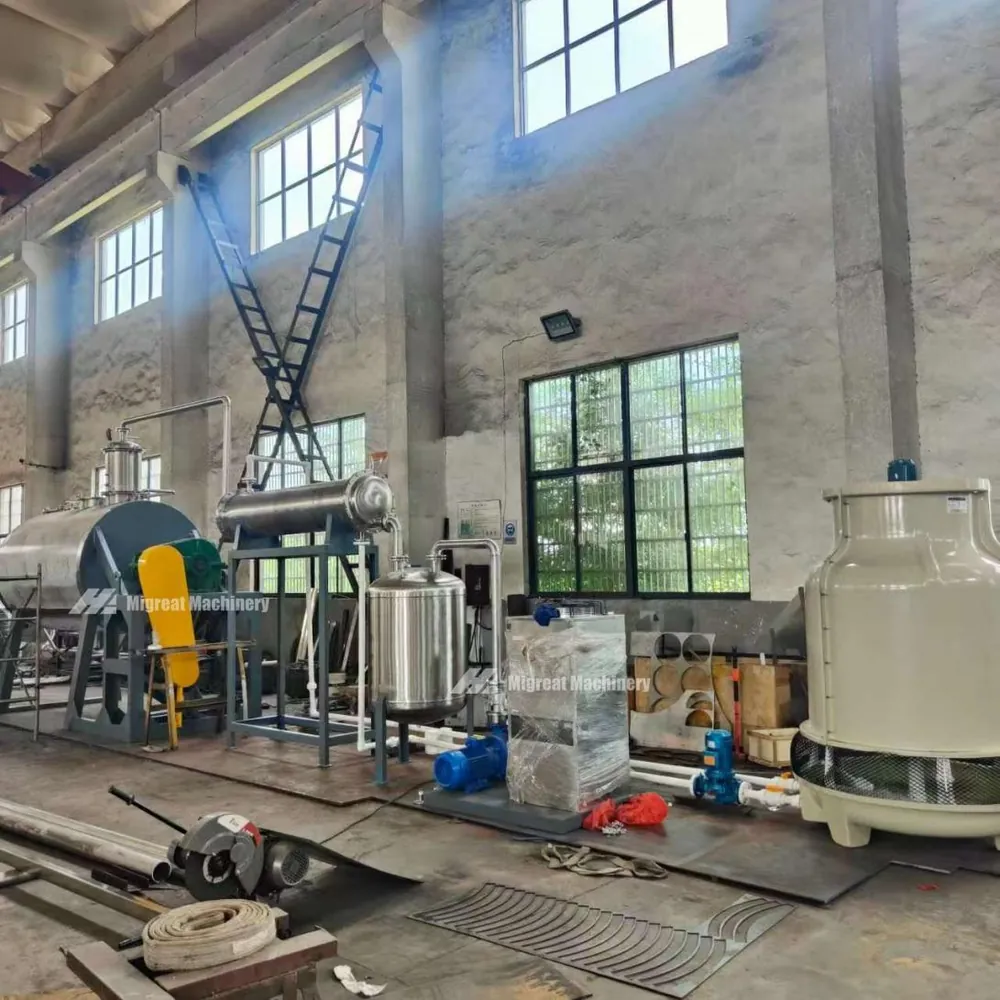

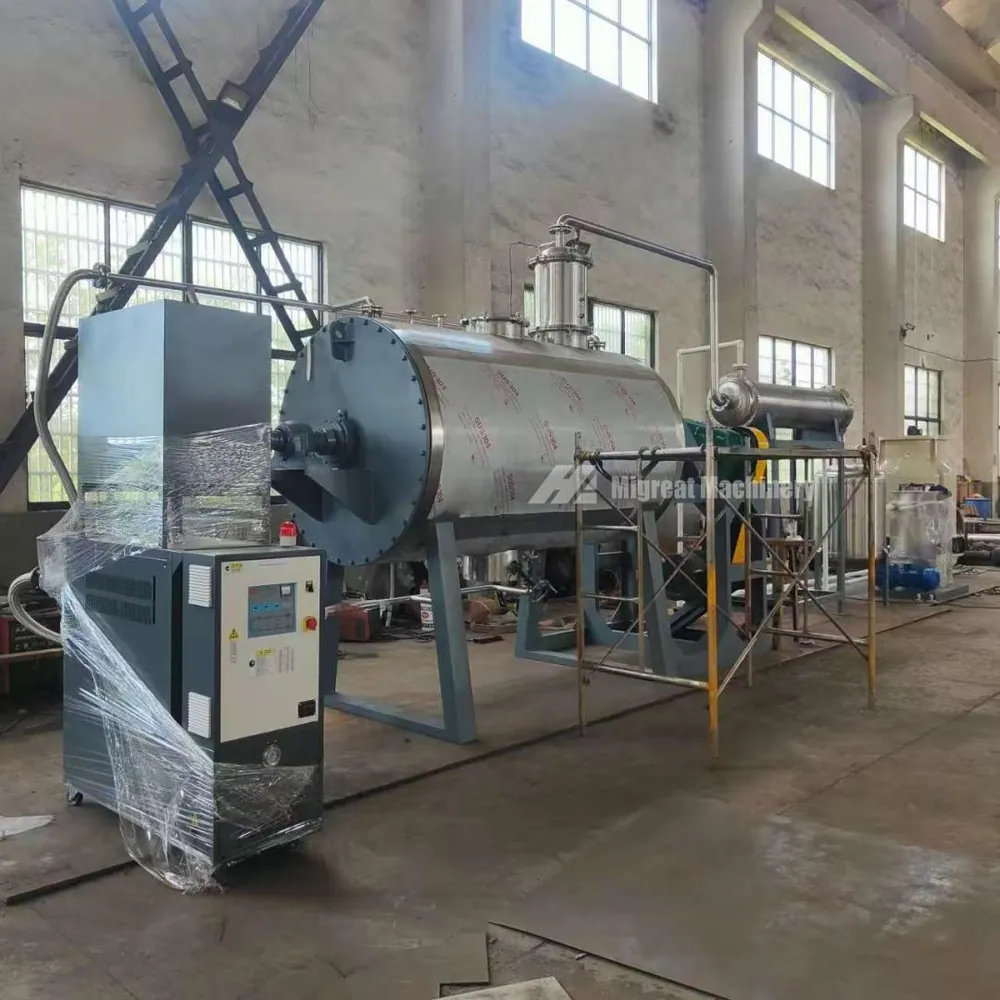

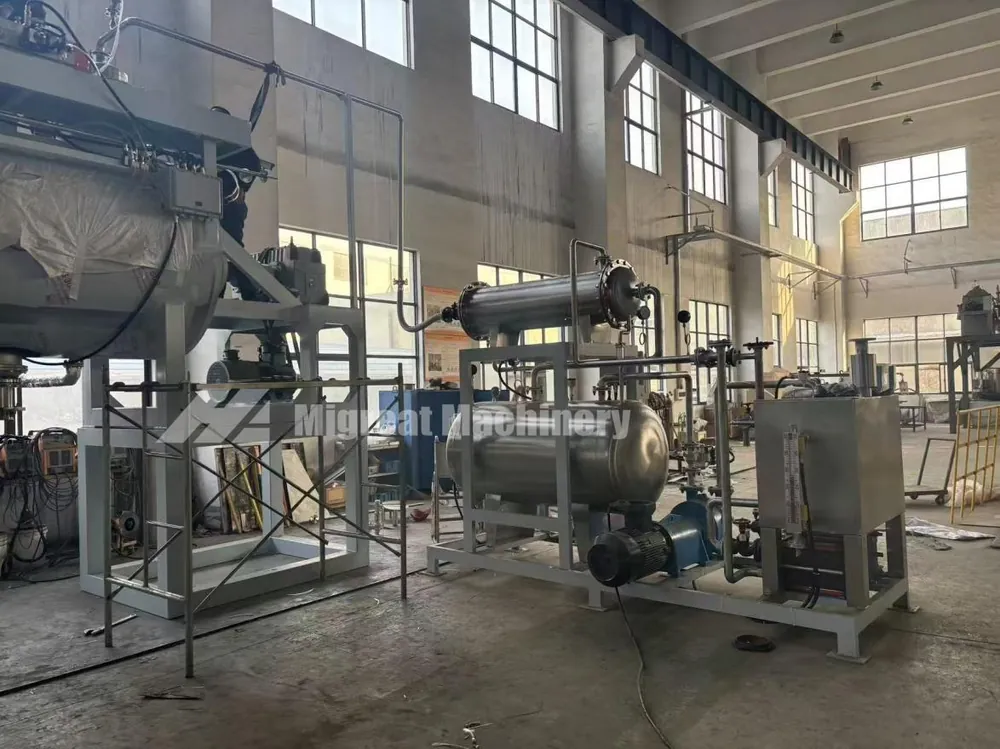

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Strong drive, even heat
The rake and shaft are built from high strength stainless steel.
- 01
Large heat area
Interlayer heating gives a large heat conducting area and high heat efficiency.
- 02
Even heating
The stirring device keeps the material circulating inside the cylinder, so heating is much more uniform.
- 03
Handles paste
With stirring, it easily dries pulpy, paste-like and powder material.
- 04
Strong parts
Column gear reducer, solid stainless steel shaft and high strength rake teeth.
- 05
Impact rods
Two or four impact rods add high speed drying and smashing.
- 06
Flexible heating
Steam, heat conducting oil or hot water.
Build it your way
Size
Seven models from ZPG-500 to ZPG-8000.
Heating medium
Steam, heat conducting oil or hot water.
Impact rods
Add two or four.
Stirring
6 to 30 rpm stepless.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by working volume
Stirring is 6 to 30 rpm (stepless), jacket design pressure is ≤0.3 MPa (hot water) and vacuum inside the cylinder is -0.09 to -0.096 MPa on all models.
| Model | Working volume (L) | Heating area (m²) | Power (kW) |
|---|---|---|---|
| ZPG-500 | 300 | 6 | 4 |
| ZPG-750 | 450 | 7.6 | 5.5 |
| ZPG-1000 | 600 | 9.3 | 5.5 |
| ZPG-1500 | 900 | 12.3 | 7.5 |
| ZPG-2000 | 1200 | 14.6 | 11 |
| ZPG-3000 | 1800 | 15.3 | 15 |
| ZPG-8000 | 4500 | 18.08 | 22 |
Showing 7 of 7 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It dries slurry, paste, grain, powder and fibre.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does the rake dryer dry?
Material shaped like slurry, paste, grain, powder and fibre.
02How is the material heated?
Through a jacketed cylinder with steam, heat conducting oil or hot water.
03Why is the heating even?
The stirring device keeps the material circulating in the cylinder.
04Can it smash lumps?
Yes. Two or four impact rods can be added inside the shell for high speed drying and smashing.
05What vacuum does it reach?
-0.09 to -0.096 MPa inside the cylinder.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Inquiry
Not sure which dryer fits?
Tell us your material and batch size. We reply with a suitable model.
