01 / 05Drying · LPG series

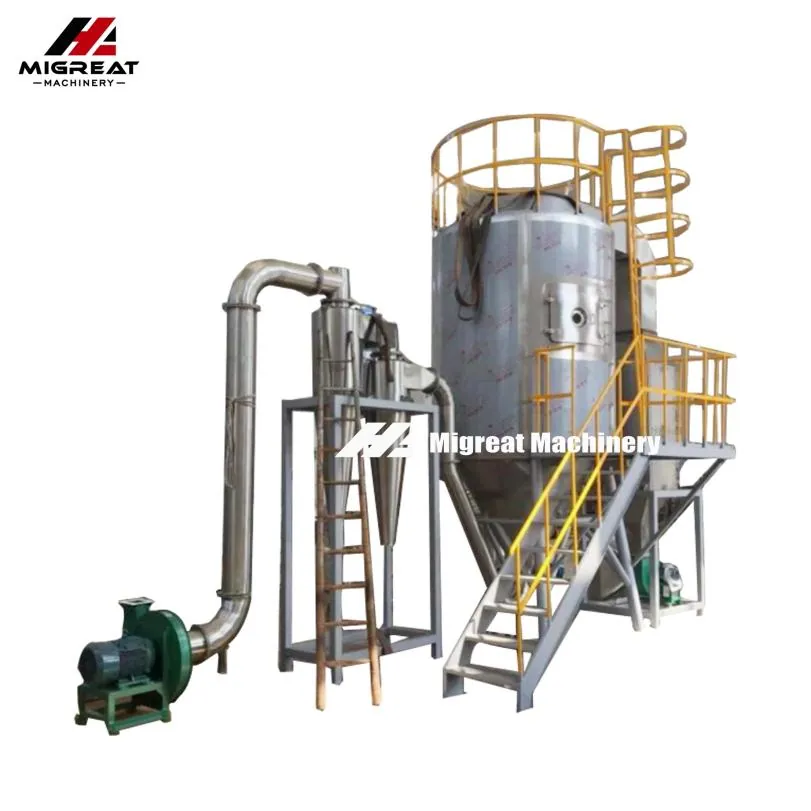

Spray Dryer
A high speed centrifugal spray dryer. It dries liquid into powder or granule in a few seconds.
- Evaporation
- 5 to 2,000 kg/h
- Inlet air
- 140 to 350 °C
- Outlet air
- 80 to 90 °C
- Heat source
- Electricity, steam, oil, gas or hot air furnace
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Liquid in, powder out
Spray drying turns solutions, emulsions, suspensions and pumpable paste into powder, granule or lumps. It is the right process when particle size, residual moisture, bulk density and particle shape must meet a tight standard.

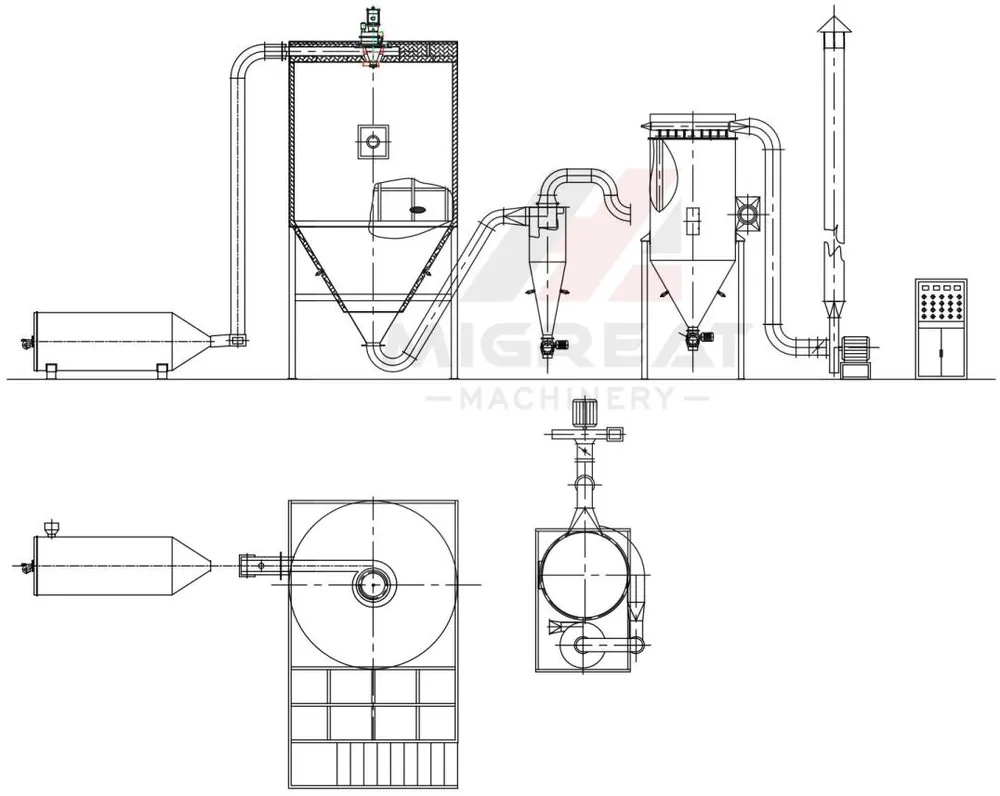

A high speed centrifugal atomizer at the top of the tower breaks the liquid into very fine droplets. Hot air dries them in seconds.
Heat
Air is filtered and heated, then enters the air distributor at the top and flows into the chamber in a spiral.
Atomize
The rotating atomizer sprays the liquid into fine mist, which dries in parallel contact with the hot air.
Collect
Product leaves continuously from the bottom of the tower and the cyclone. A fan exhausts the air.
The range in numbers
- 5 to 2,000kg/h
Water evaporation range
- 95 to 98%Water
Evaporated at once in the hot air
- 40 to 60%Moisture
Of the liquid feed, up to 90% for special material
- SecondsDrying time
Suited to heat sensitive material
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Fast, gentle on heat sensitive material
The dried product needs no crushing or screening.
- 01
Very fast drying
The surface area grows greatly after atomization, and 95 to 98 percent of the water evaporates at once. Drying takes only a few seconds.
- 02
Heat sensitive material
The short drying time suits material that cannot take long heat.
- 03
Good powder quality
The product has good uniformity, flow and solubility, with high purity.
- 04
Fewer steps
Liquid with 40 to 60 percent moisture dries straight to powder with no crushing or screening.
- 05
Adjustable particle
Particle size, bulk density and moisture can be adjusted by changing operating conditions.
- 06
Simple control
The process is simple and easy to control.
Build it your way
Size
Water evaporation from 5 to 2,000 kg/h.
Heat source
Electricity, steam, oil, gas or a hot air furnace.
Atomizer drive
Compressed air on the smallest model, mechanical on the others.
Inlet temperature
Self controlled from 140 to 350 °C.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by evaporation rate
Inlet temperature is self controlled at 140 to 350 °C and outlet temperature is 80 to 90 °C on all models.
| Model | Evaporation (kg/h) | Spray head drive | Max speed (r/min) | Spray disk (mm) | Heat source | Max electric heating (kW) | Size L x W x H (m) |
|---|---|---|---|---|---|---|---|
| LPG-5 | 5 | Compressed air | 25000 | 50 | Electricity | 9 | 1.8 x 0.93 x 2.2 |
| LPG-25 | 25 | Mechanical | 18000 | 120 | Steam + electricity | 36 | 3 x 2.7 x 4.26 |
| LPG-50 | 50 | Mechanical | 18000 | 120 | Steam + electricity | 72 | 3.5 x 3.5 x 4.8 |
| LPG-150 | 150 | Mechanical | 15000 | 150 | Steam + electricity, oil, gas or hot air furnace | 99 | 5.5 x 4 x 7 |
| LPG-200 to 2000 | 200-2000 | Mechanical | 8000-15000 | 180-240 | Steam + electricity, oil, gas or hot air furnace | - | Set by actual layout |
Showing 5 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It forms powder, granule or solid product from liquid raw material.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What can a spray dryer dry?
Solutions, emulsions, suspensions and pumpable paste, into powder, granule or solid product.
02How fast is the drying?
Atomization makes the surface area very large, and 95 to 98 percent of the water evaporates at once. Drying takes a few seconds.
03Is it good for heat sensitive material?
Yes. The very short drying time suits heat sensitive material.
04What moisture can the feed have?
Liquid with 40 to 60 percent moisture, and up to 90 percent for special material.
05Can I adjust the product?
Yes. Particle size, bulk density and moisture can be adjusted within a range by changing the operating conditions.
