01 / 05Drying · FZG series

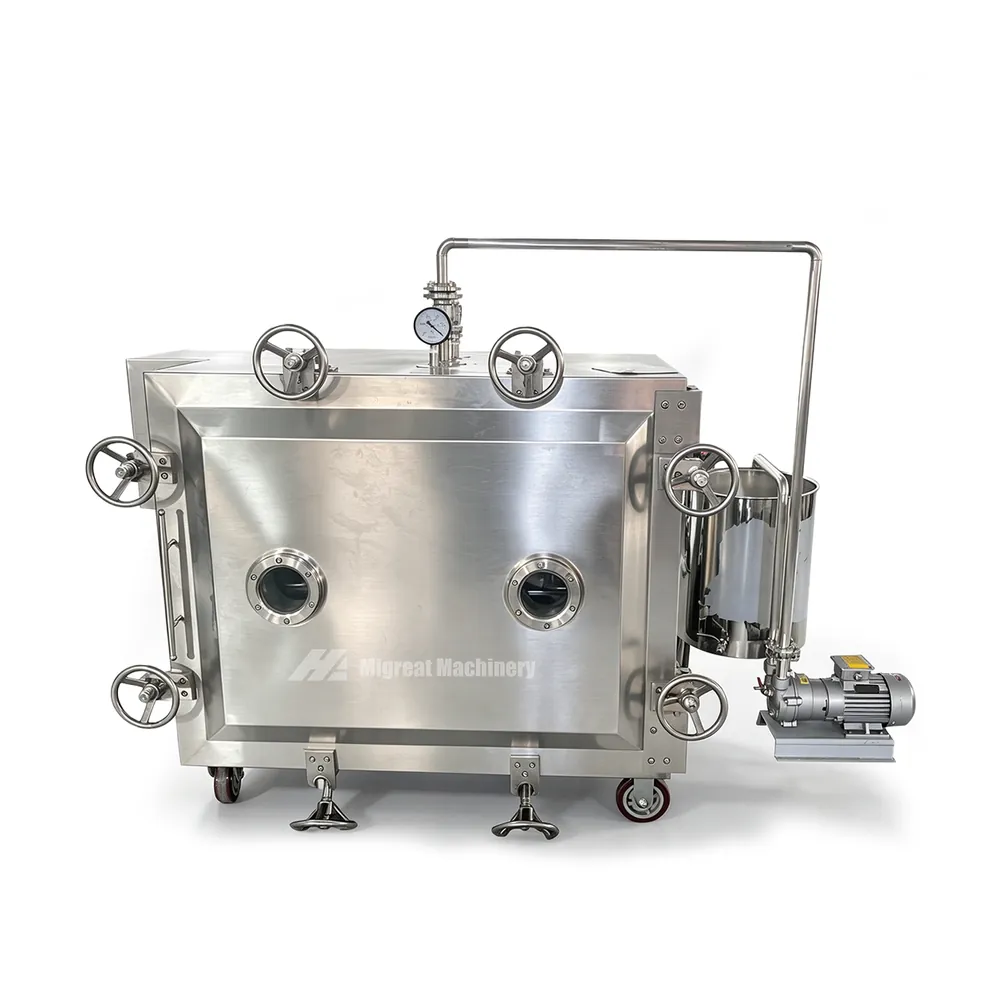

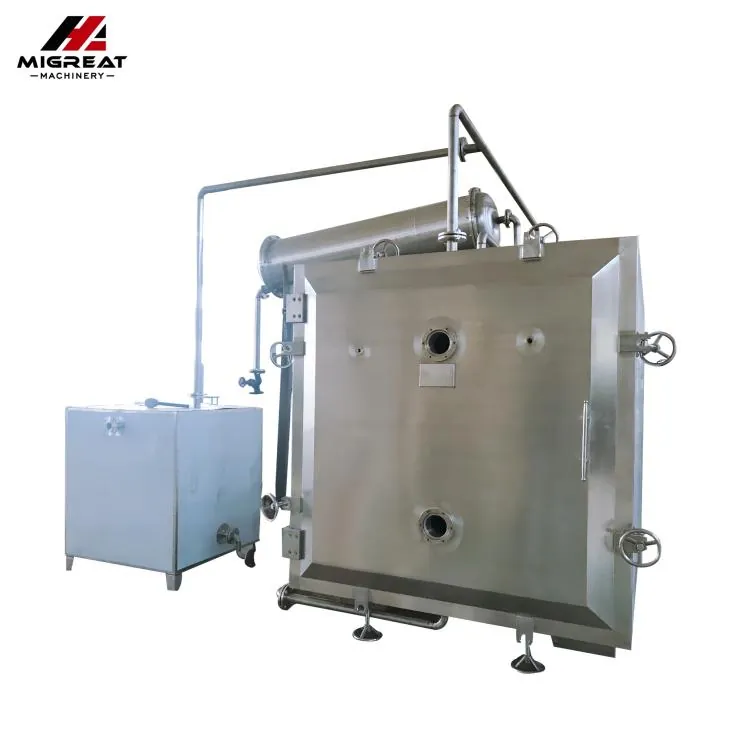

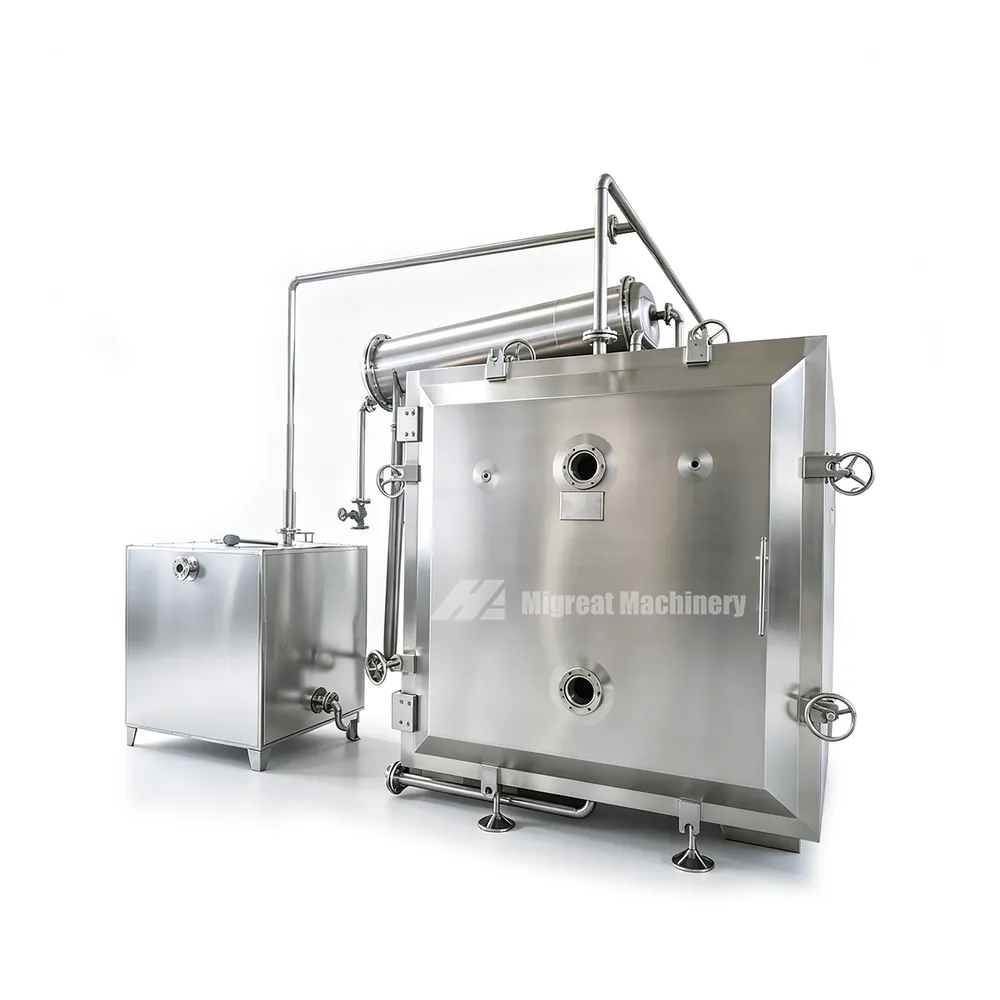

Vacuum Tray Dryer
A square static vacuum dryer. Vacuum lowers the boiling point of the solvent, so heat sensitive material dries at low temperature.
- Drying capacity
- 50 kg to 120 kg, 3 models
- Shelves
- 5, 8 or 10 layers
- Trays
- 460 x 640 x 45 mm
- Shelf temperature
- Up to 150 °C
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Dry it under vacuum, without moving it
The FZG square vacuum dryer is a static vacuum dryer. Under vacuum, the boiling point of the solvent falls, so unstable or heat sensitive material can be dried.
Its tight seal also suits material that needs solvent recovery, or material with poisonous gas.
Load
Trays go on heated shelves inside the chamber.
Vacuum
A vacuum pump removes air and moisture, which speeds up drying.
Dry
Heat reaches the trays through the shelves, and the solvent evaporates at low temperature.
The range in numbers
- 3Models
FZG-10, FZG-15, FZG-20
- 50 to 120kg
Drying capacity
- 20 to 48Trays
Per dryer
- ≤0.784MPa
Pressure in the shelf pipe
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Static drying, shape kept
The dryer meets GMP requirements.
- 01
Low temperature, fast
A static vacuum dryer gets a relatively high drying rate at low temperature and makes full use of the heat.
- 02
Shape kept
Static drying does not damage the shape of the material.
- 03
Disinfection before drying
The chamber can be disinfected before drying, and the process has no impurity.
- 04
Solvent recovery
The seal allows drying with solvent recovery.
- 05
Poisonous gas
The seal suits material that gives off poisonous gas.
- 06
GMP
The design meets GMP requirements.
Build it your way
Size
Three models with 5, 8 or 10 shelf layers.
Heating
Shelf temperature up to 150 °C.
Tray
460 x 640 x 45 mm.

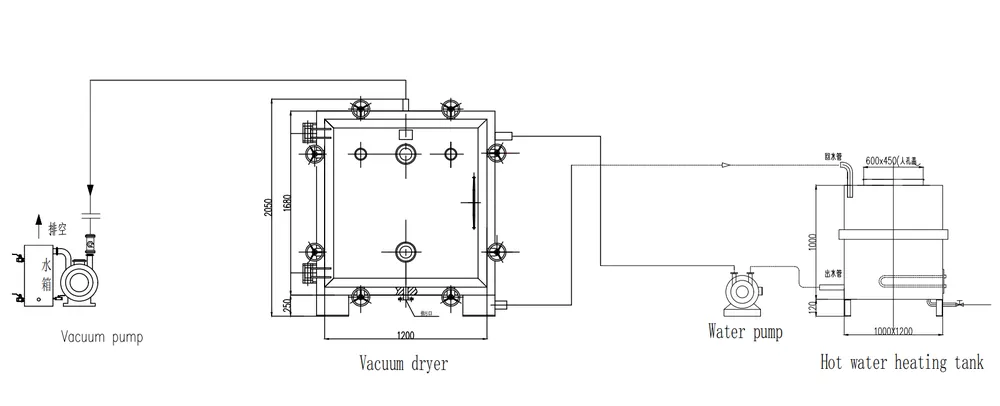

Vacuum system
Vacuum pump and condenser to suit your solvent.
GMP
The vacuum drying machines meet GMP standards.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by shelf layers
Shelf interval is 122 mm and tray size is 460 x 640 x 45 mm on all models. The exterior size of FZG-15 is as listed in our data and should be confirmed before quoting.
| Model | Chamber interior (mm) | Chamber exterior (mm) | Shelf layers | Trays | Drying capacity (kg) | Weight (kg) |
|---|---|---|---|---|---|---|
| FZG-10 | 1500 x 1060 x 1220 | 1924 x 1720 x 1513 | 5 | 20 | 50 | 1400 |
| FZG-15 | 1500 x 1400 x 1220 | 1513 x 1924 x 2060 | 8 | 32 | 80 | 2100 |
| FZG-20 | 1500 x 1800 x 1220 | 1924 x 2500 x 1513 | 10 | 48 | 120 | 3200 |
Showing 3 of 3 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It dries heat sensitive and unstable material in pharmaceutical, food, chemical and other industries.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01Why dry under vacuum?
Vacuum lowers the boiling point of the solvent, so unstable or heat sensitive material dries at low temperature and faster.
02Does it change the shape of the material?
No. A static vacuum dryer does not damage the shape of the material.
03Can it recover solvent?
Yes. The vacuum dryer seals well, so it also suits solvent recovery and material with poisonous gas.
04Which industries use it?
Pharmaceutical, nourishment, food, chemical, dyes, electronics and others.
05Does it meet GMP?
Yes. The vacuum drying machines meet GMP requirements.
