Vibrating Fluid Bed Dryer
A vibrating fluid bed dryer for continuous production. Vibration moves the material along the bed while hot air dries it.
- Bed area
- 0.9 m² to 14.4 m², 14 sizes
- Evaporation
- 20 to 420 kg/h
- Inlet air
- 70 to 140 °C
- Energy saving
- About 30%
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Vibration moves it, hot air dries it
The ZG vibrating fluid bed dryer suits pharmaceutical, chemical, food and construction material plants. It dries tablets and granule, boric acid, monosodium glutamate, edible sugar, salt, beans, seeds and similar material.

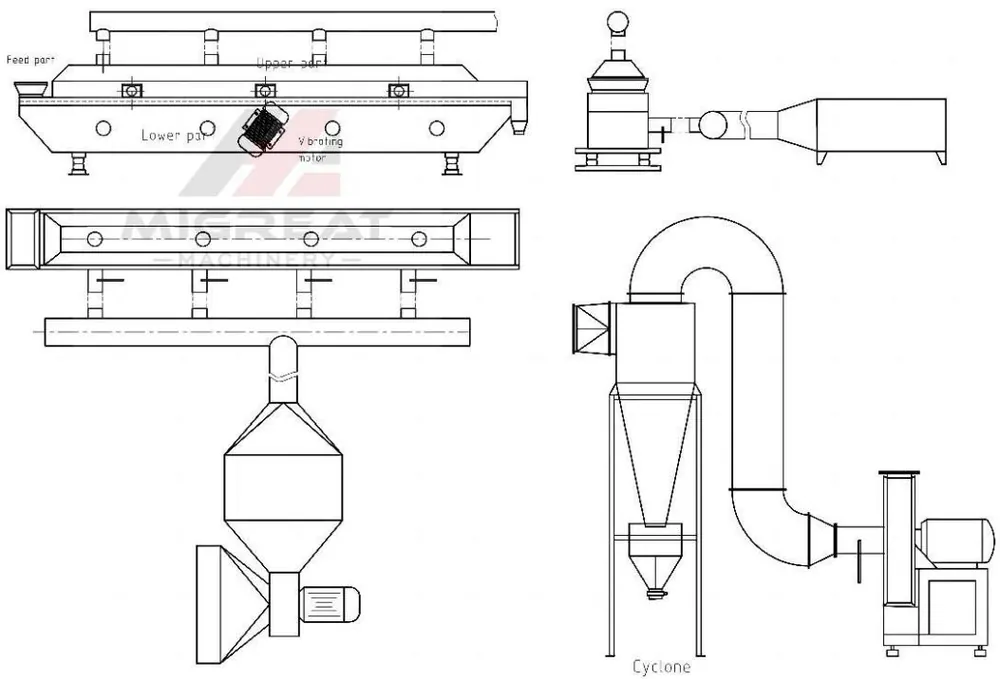

Material enters at the feed port. Vibration throws it along the bed while hot air rises through the fluid bed and exchanges heat.
Feed
Material enters the machine from the feed port.
Dry
Vibration moves the material forward continuously, and hot air passes up through the bed.
Discharge
A cyclone separator removes the damp air at the exhaust. Dry material leaves through the discharge port.
The range in numbers
- 14Sizes
From 3 x 0.3 m to 8 x 1.8 m
- 20 to 420kg/h
Water evaporation
- About 30%Energy saving
Versus ordinary dryers
- 70 to 140°C
Inlet air

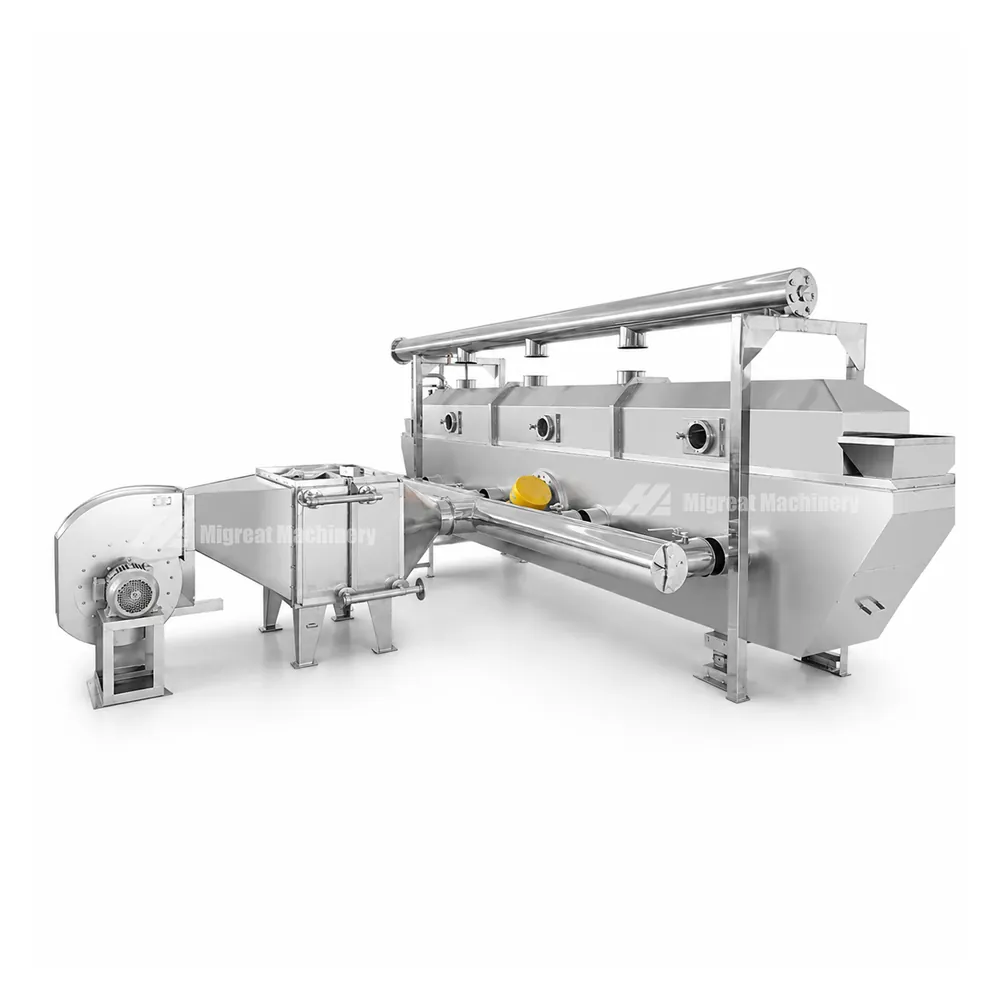

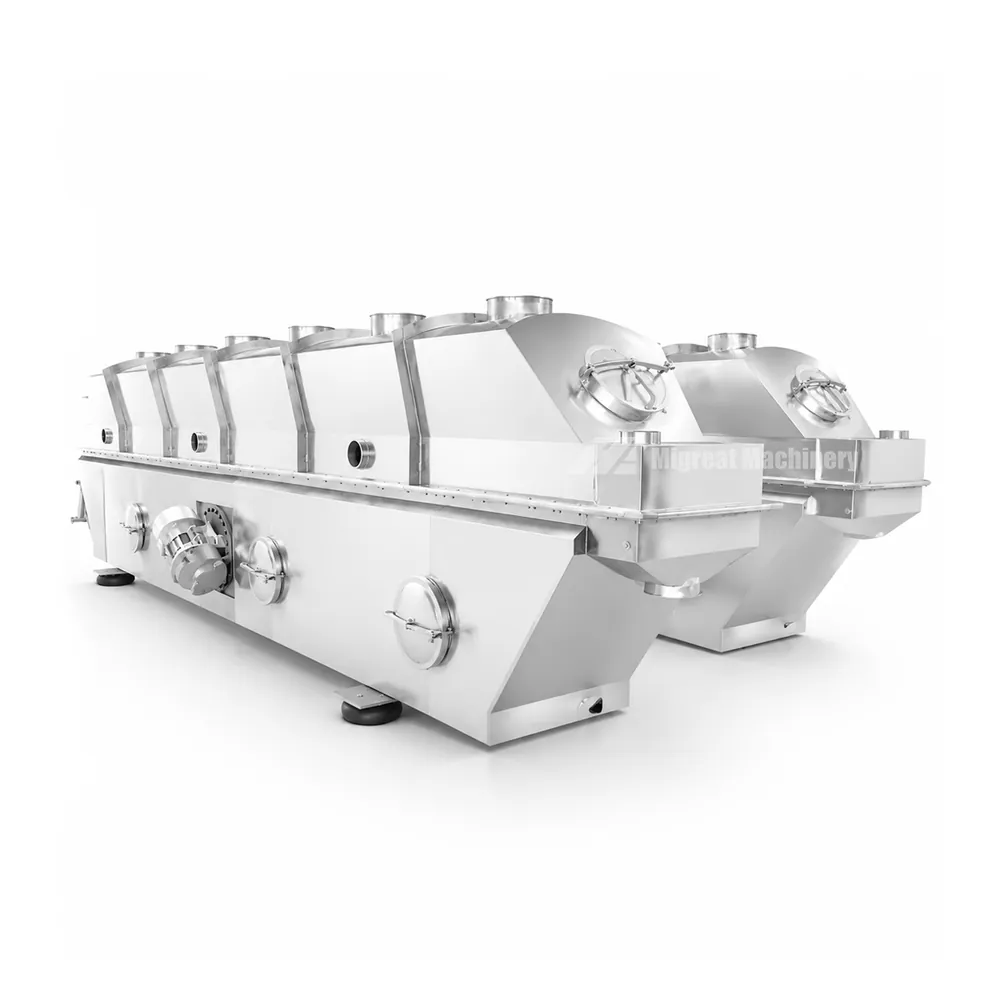

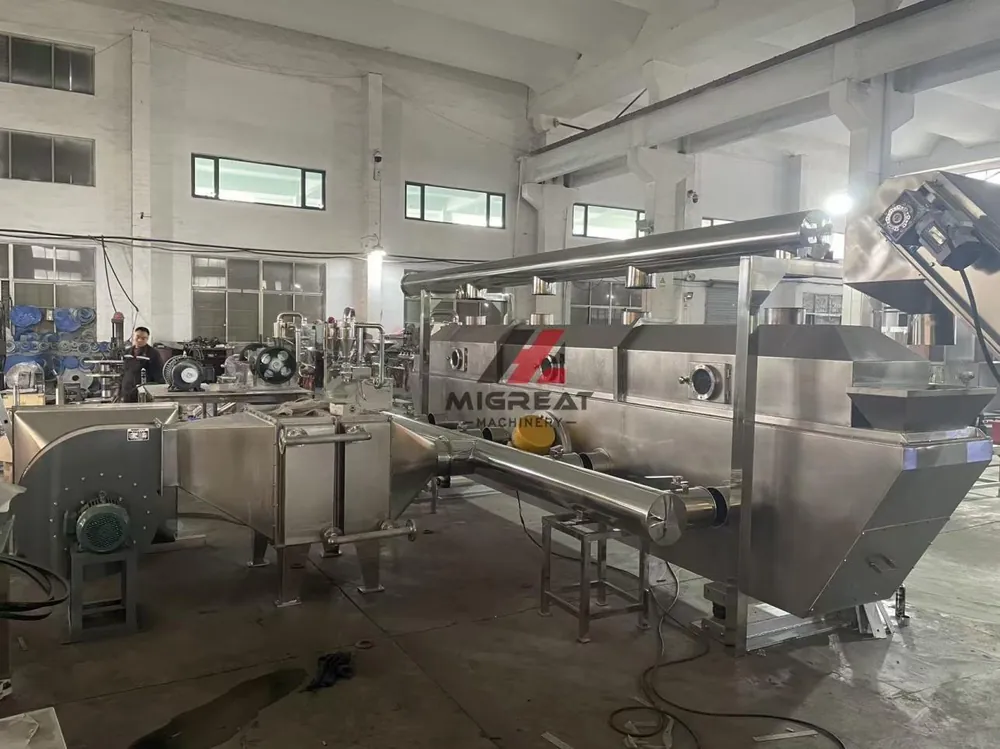

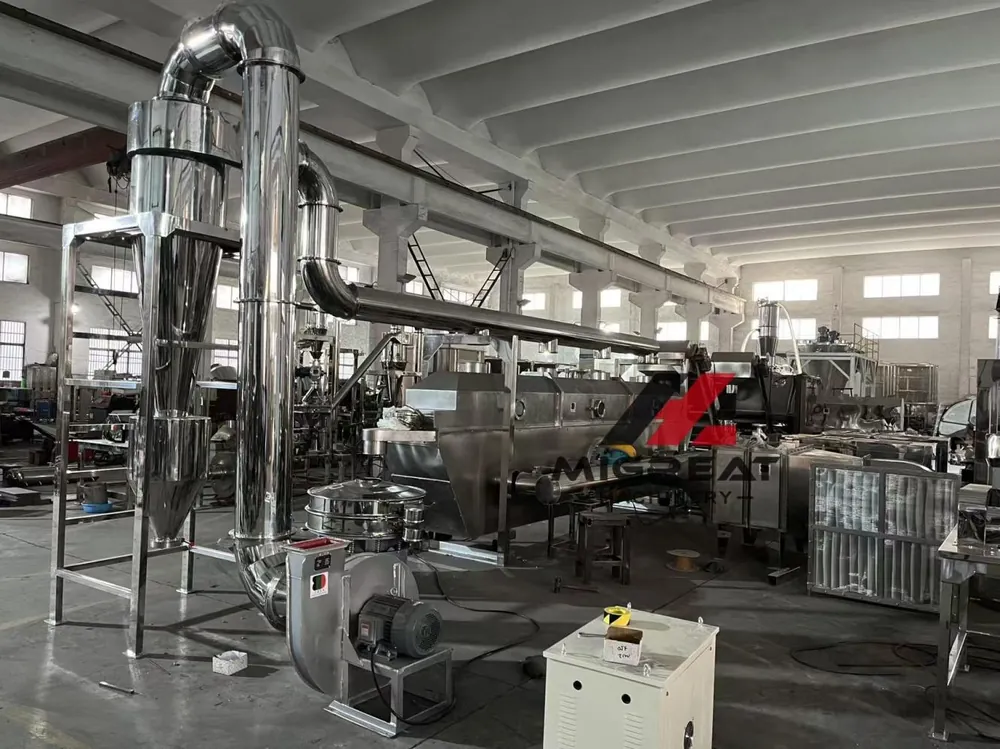

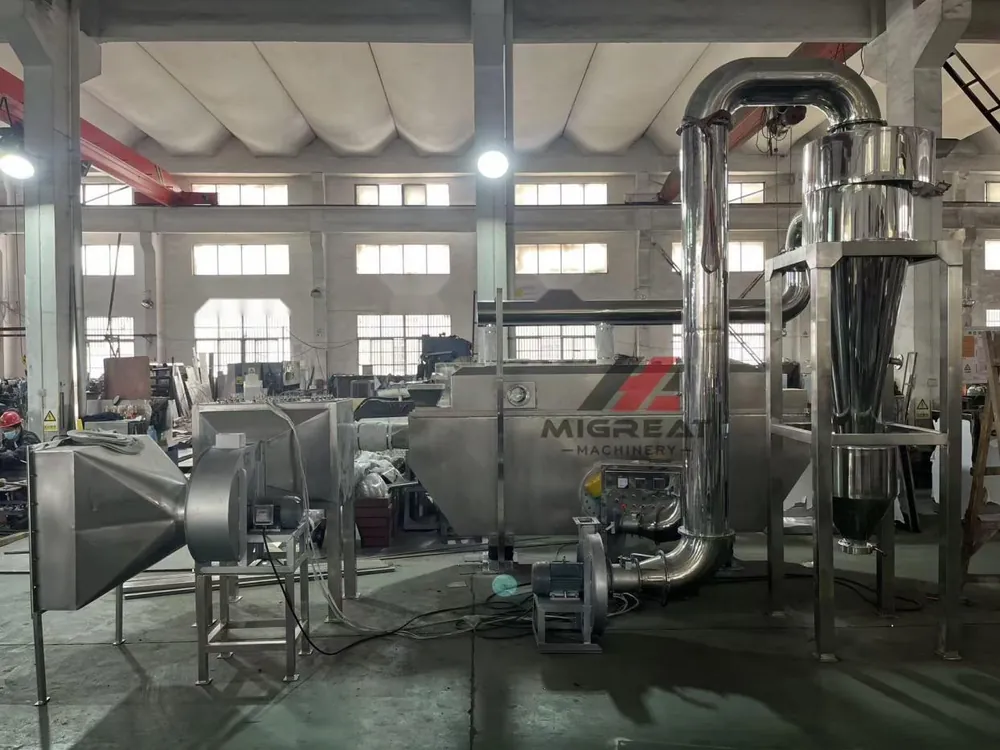

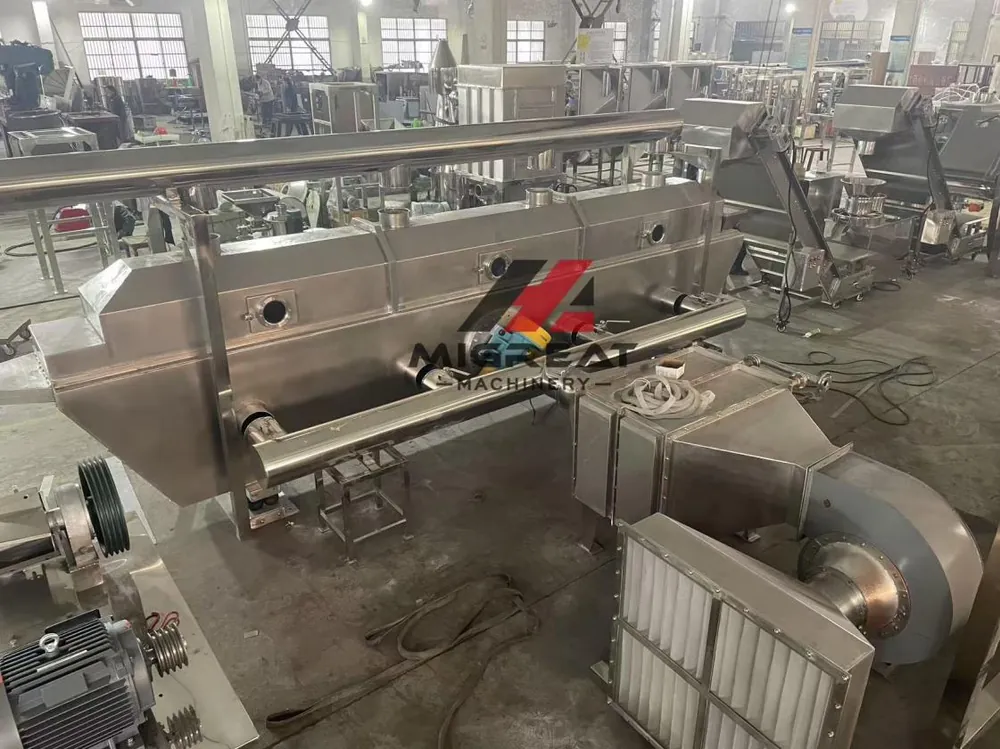

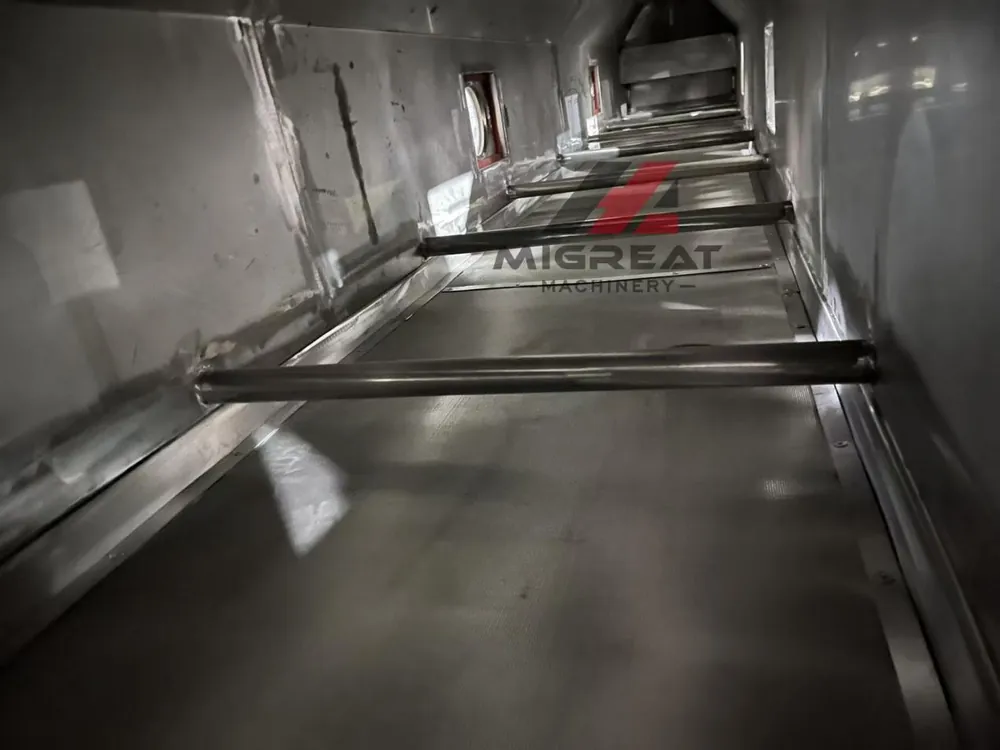

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Gentle on the material, closed and continuous
The vibration comes from a motor, so it is stable, quiet and easy to maintain.
- 01
Stable vibration
A vibration motor gives stable operation, easy maintenance, low noise and a long life.
- 02
High efficiency
Material is heated evenly. Energy use is about 30 percent lower than an ordinary dryer.
- 03
Adjustable
Material thickness, moving speed and amplitude can be adjusted.
- 04
Gentle drying
It does little damage to the material surface, so it suits easily broken and irregular material.
- 05
Closed operation
The closed system protects material from cross contamination and runs continuously.
- 06
Configurable
Fluidizing chamber height and dust collection are set to your requirement.
Build it your way
Size
Fourteen sizes, from 3 x 0.3 m to 8 x 1.8 m.
Vibration
Vibration motors from 0.8 kW x 2 to 5.5 kW x 2.
Air temperature
Inlet 70 to 140 °C, outlet 40 to 70 °C.
Chamber height
Set to your drying requirement.
Dust collection
Cyclone and dust collection to suit.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by bed size
Inlet air is 70 to 140 °C and outlet air is 40 to 70 °C on all sizes.
| Bed size L x W (m) | Fluidized area (m²) | Evaporation (kg/h) | Vibration motor | Motor power (kW) |
|---|---|---|---|---|
| 3 x 0.3 | 0.9 | 20-35 | ZDJ31-6 | 0.8 x 2 |
| 4.5 x 0.3 | 1.35 | 35-50 | ZDJ31-6 | 0.8 x 2 |
| 4.5 x 0.45 | 2.025 | 50-70 | ZDJ32-6 | 1.1 x 2 |
| 4.5 x 0.6 | 2.7 | 70-90 | ZDJ32-6 | 1.1 x 2 |
| 6 x 0.45 | 2.7 | 80-100 | ZDJ41-6 | 1.5 x 2 |
| 6 x 0.6 | 3.6 | 100-130 | ZDJ41-6 | 1.5 x 2 |
| 6 x 0.75 | 4.5 | 120-140 | ZDJ42-6 | 2.2 x 2 |
| 6 x 0.9 | 5.4 | 140-170 | ZDJ42-6 | 2.2 x 2 |
| 7.5 x 0.6 | 4.5 | 130-150 | ZDJ42-6 | 2.2 x 2 |
| 7.5 x 0.75 | 5.625 | 150-180 | ZDJ51-6 | 3.0 x 2 |
| 7.5 x 0.9 | 6.75 | 160-210 | ZDJ51-6 | 3.0 x 2 |
| 7.5 x 1.2 | 9.0 | 200-260 | ZDJ51-6 | 3.0 x 2 |
| 7.5 x 1.5 | 11.25 | 230-330 | ZDJ52-6 | 3.7 x 2 |
| 8 x 1.8 | 14.4 | 290-420 | ZDJ52-6 | 5.5 x 2 |
Showing 7 of 14 models
