Solutions
Industrial Powder
Processing Solution
A real grinding and packing line, from the mill to the 25 kg bag.
One line for grinding and packing
After the ultrafine grinder, a screw conveyor carries the powder into a 500 L transfer hopper.
A second screw conveyor under the hopper delivers the powder to a packing machine that fills 25 kg bags.
From the mill to the bag
The steps of this line, in the order the material moves through it.
The powder leaves the ultrafine grinder.
A screw conveyor carries the powder into the transfer hopper.
The 500 L hopper holds the powder before packing.
A second screw conveyor under the hopper delivers the powder to the packing machine.
The packing machine fills 25 kg bags.

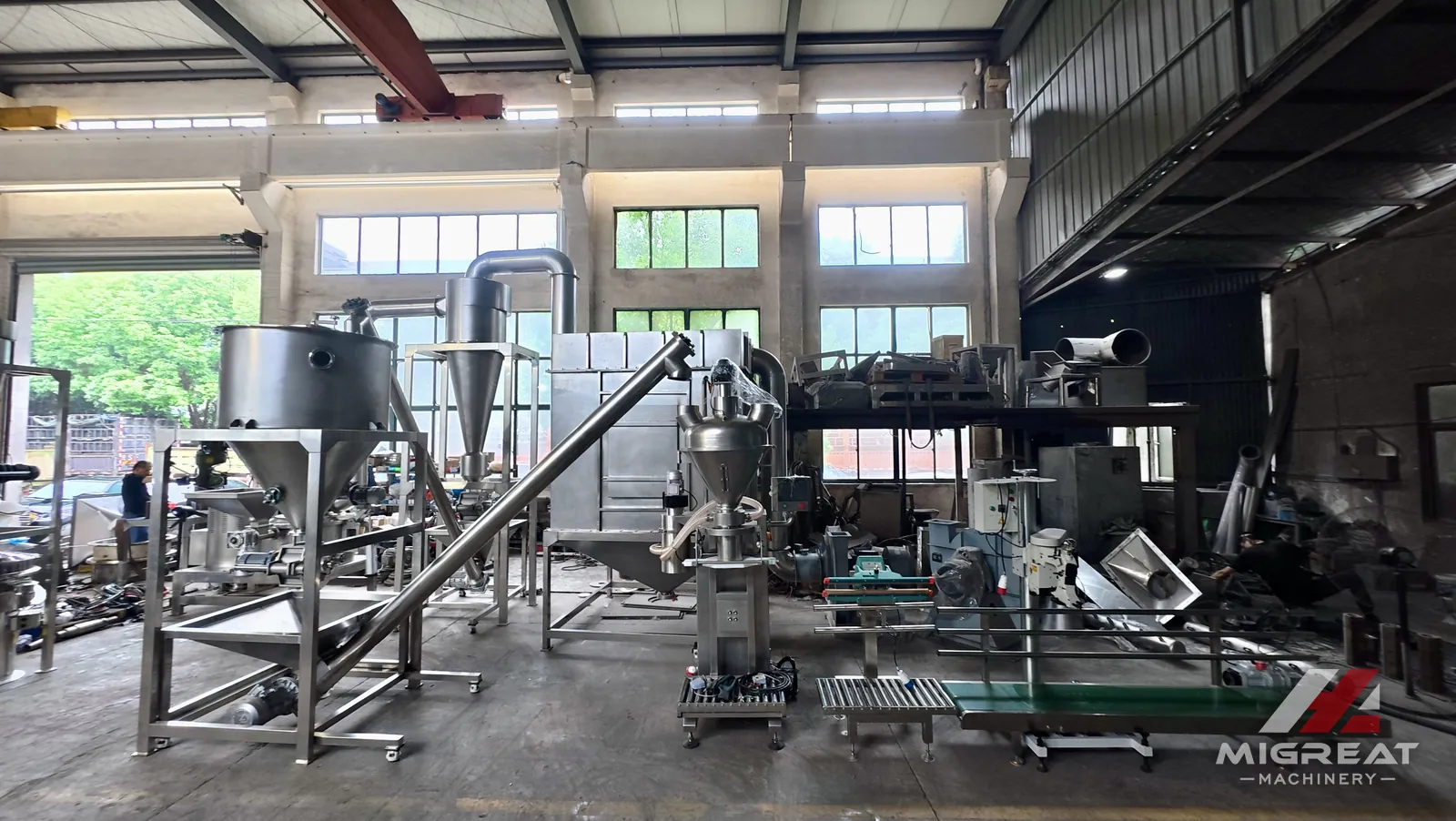

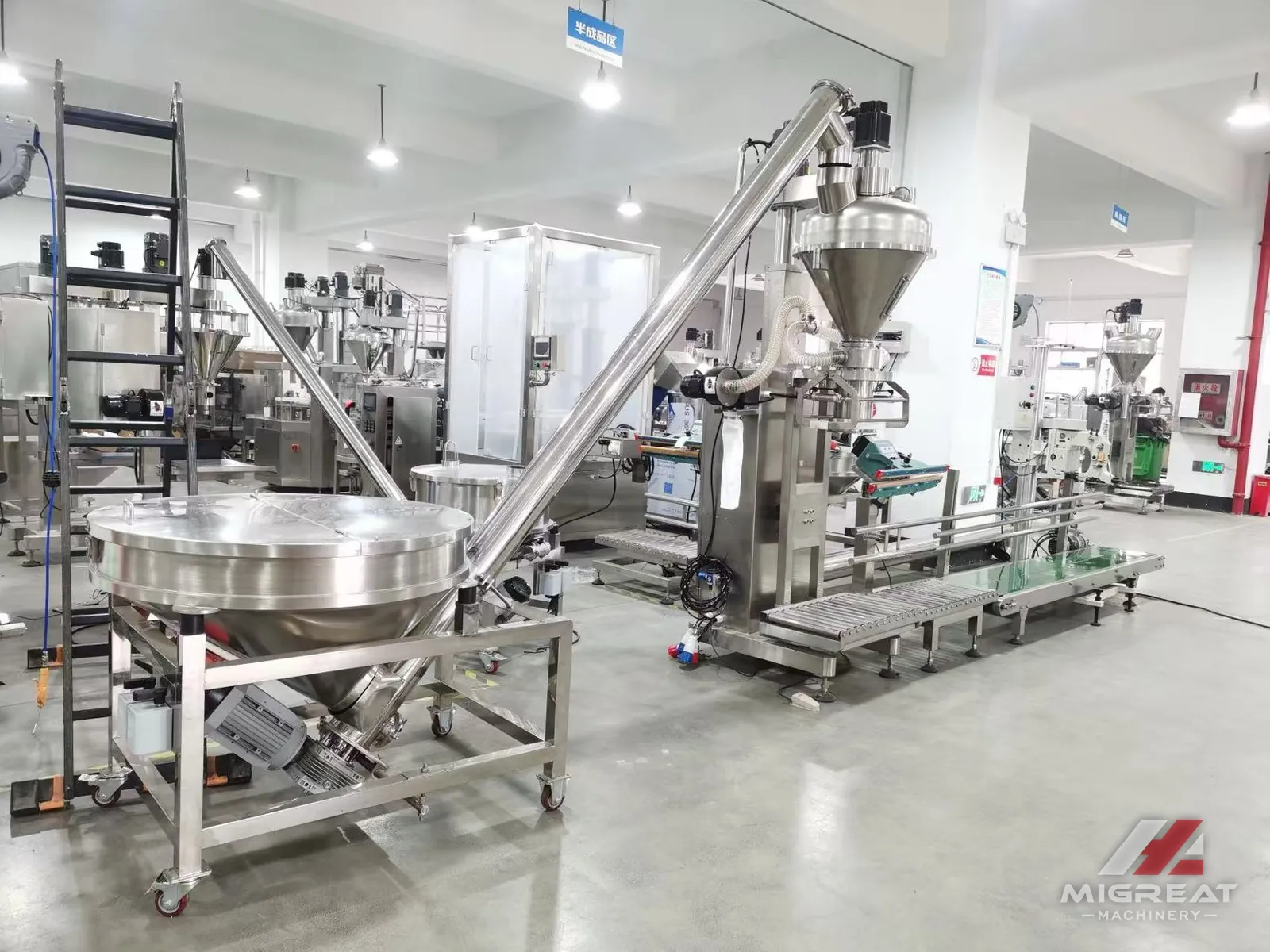

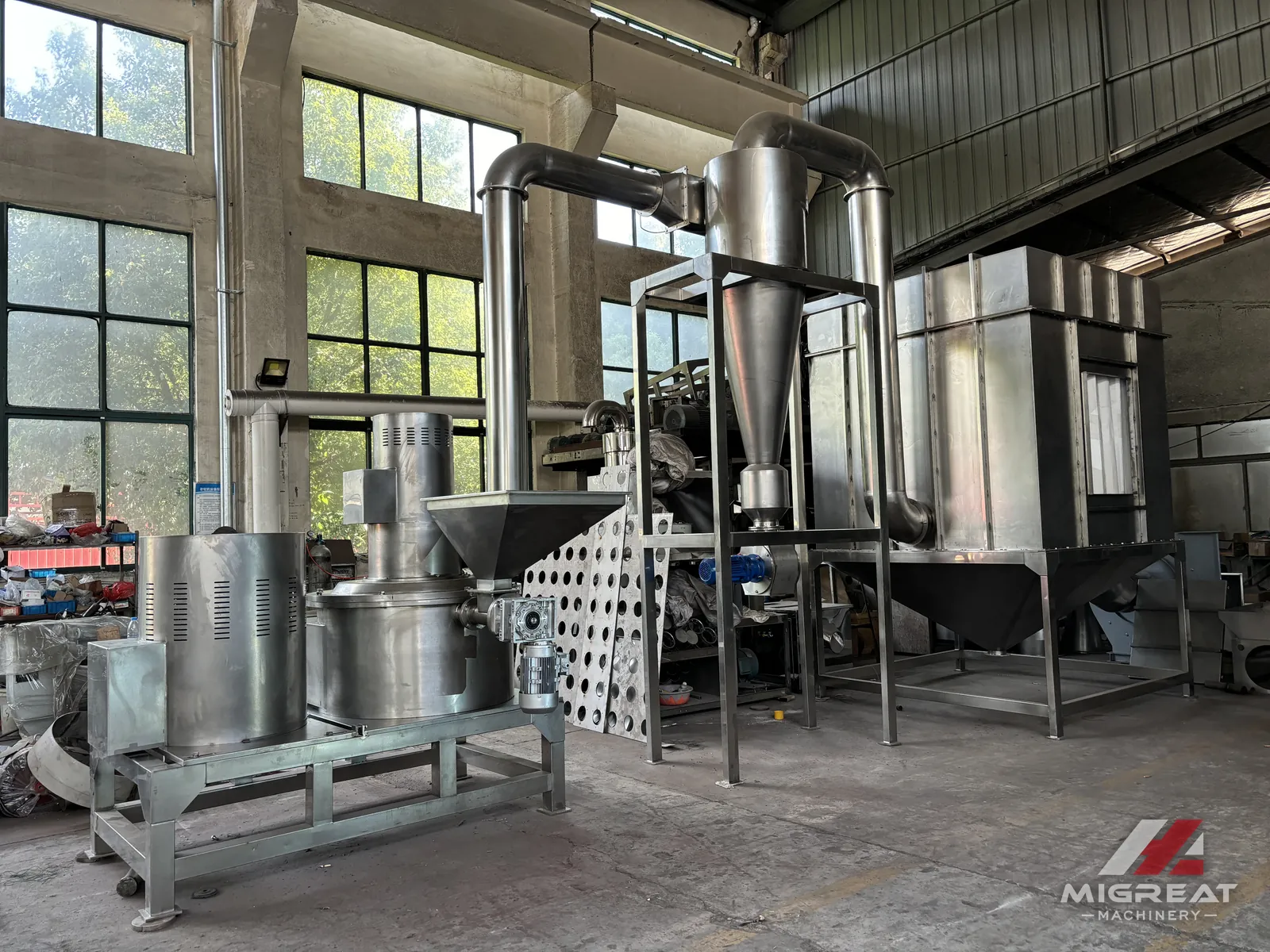

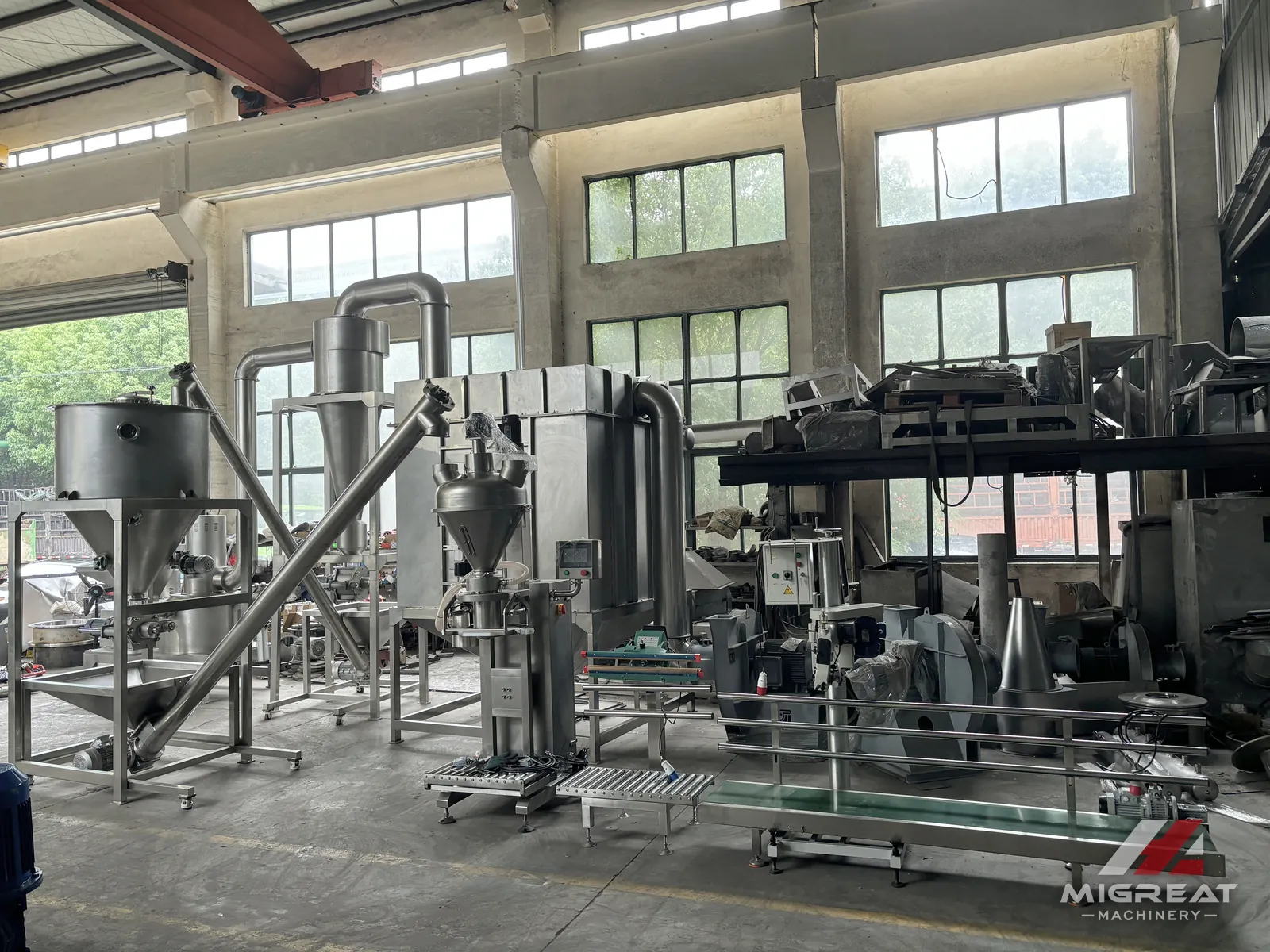

The line in our workshop
The line

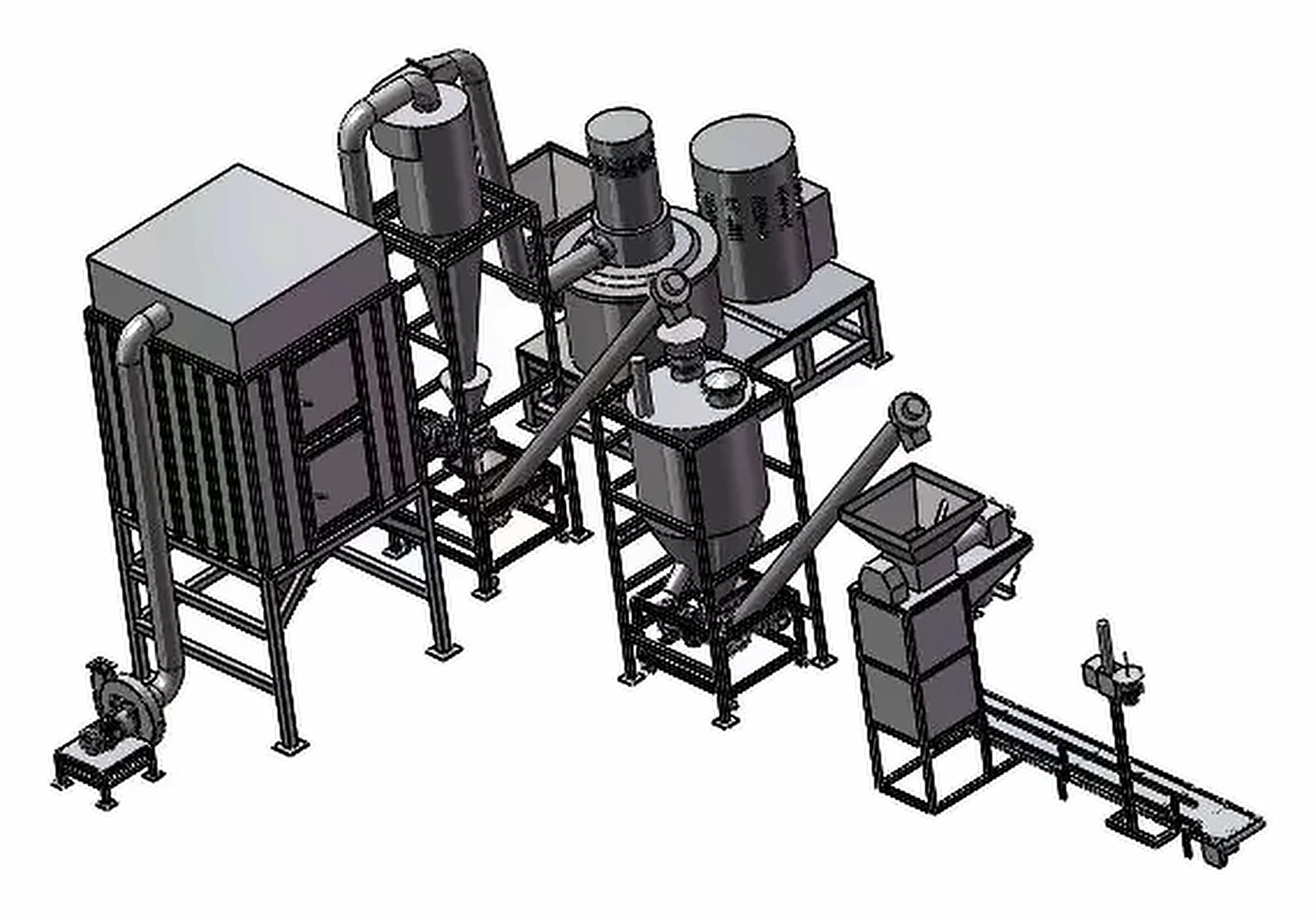

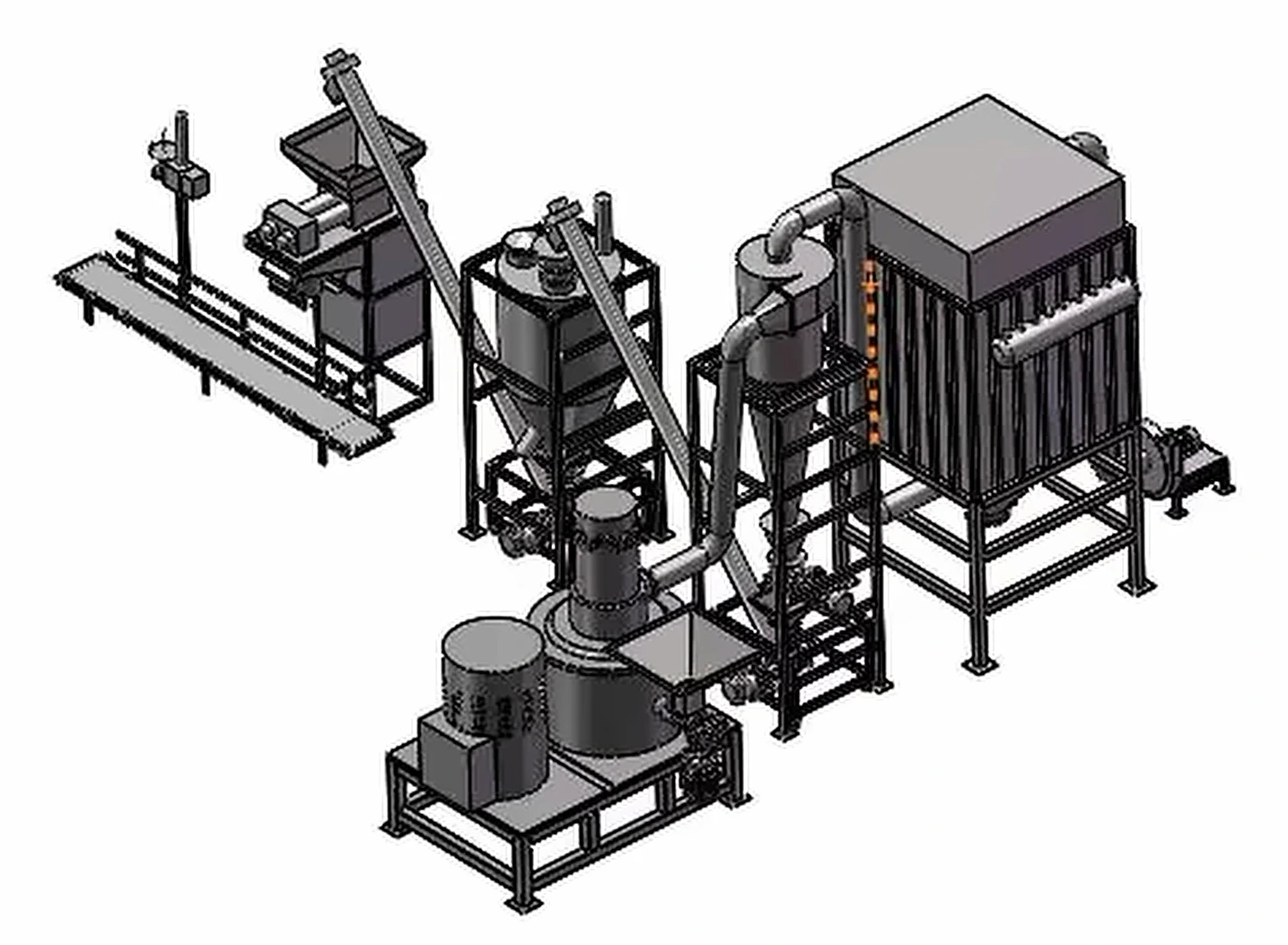

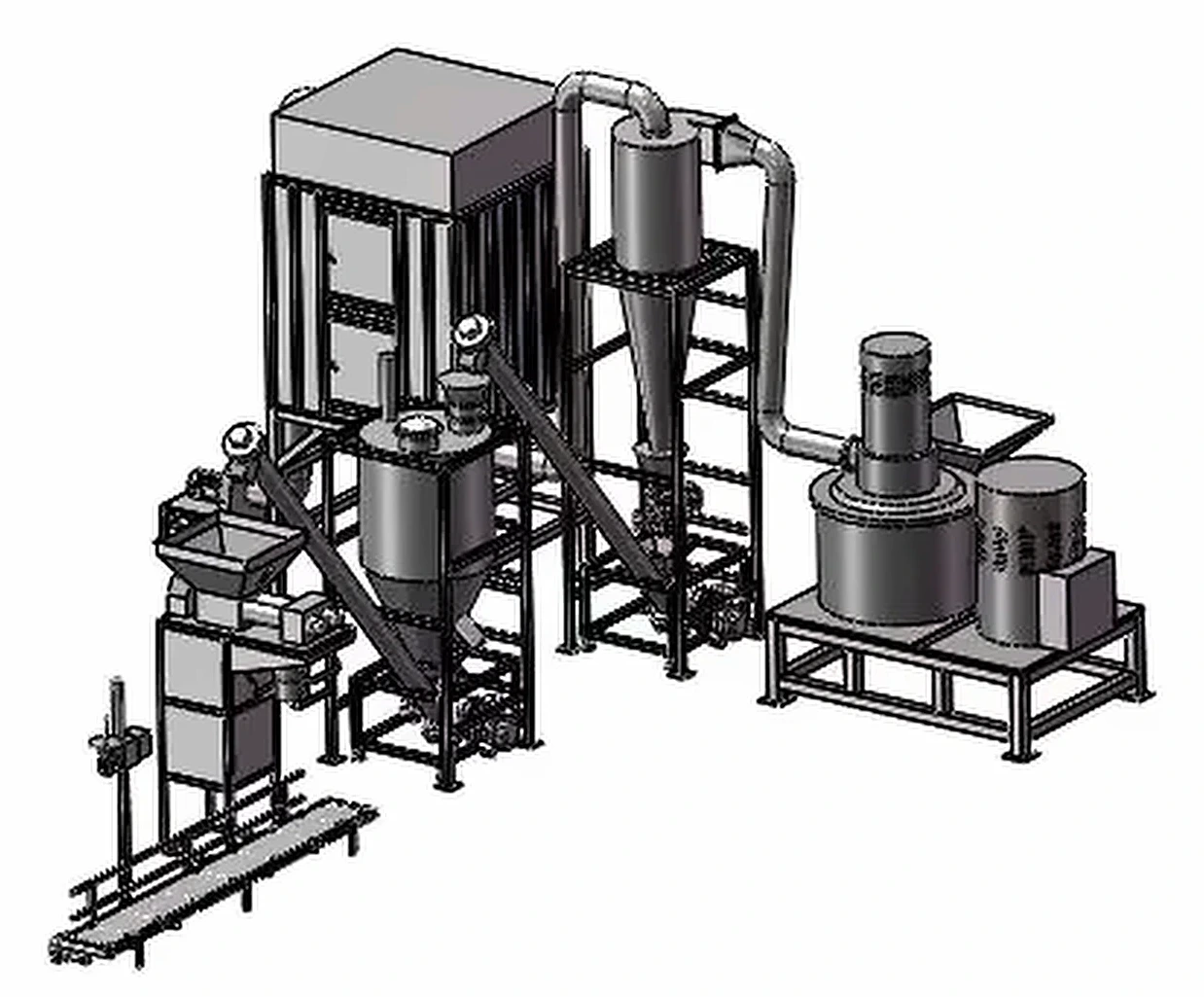

The line, drawn out
