01 / 05Drying · DW series

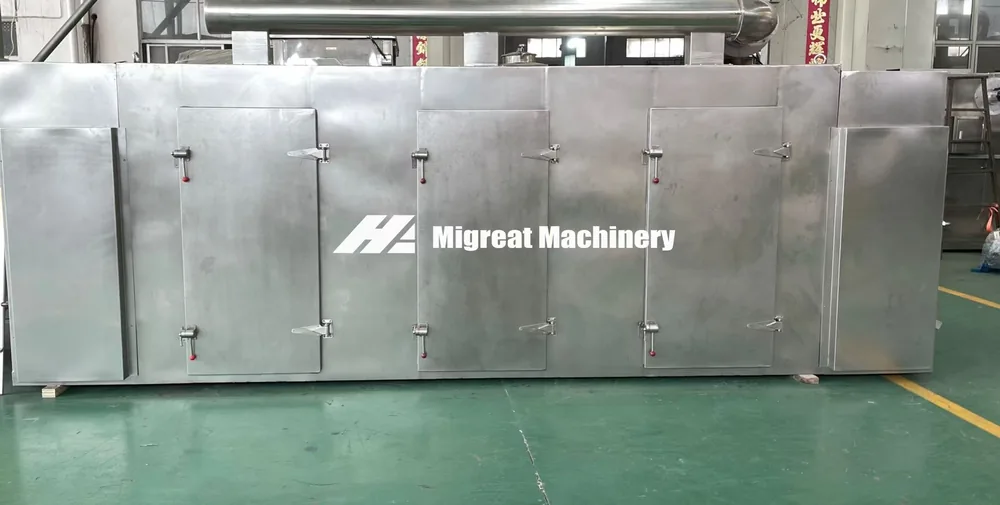

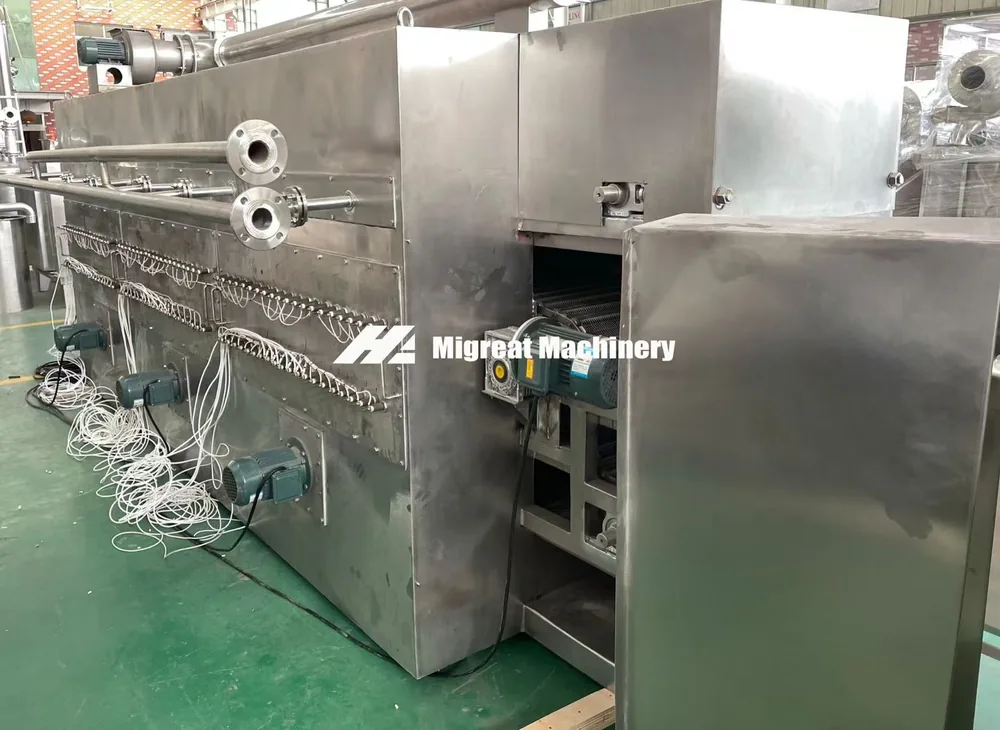

Mesh Belt Dryer
A continuous through-flow dryer for flakes, strips and granular material. Hot air passes through material carried on a slow mesh belt.
- Belt width
- 1.2 m to 2 m, 7 models
- Dry section
- 8 m to 20 m long
- Drying strength
- 60 to 600 kg H₂O/h
- Temperature
- 50 to 140 ℃
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Continuous drying on a mesh belt
The DW mesh belt dryer is through-flow continuous drying equipment. It dries flakes, strips and granular material with good permeability, and suits dehydrated vegetables, Chinese medicine tablets and other material with high water content and high temperature.
It dries quickly, has high evaporation intensity and gives good product quality. It can also dry filter cake paste that has been pelletized or made into sticks.

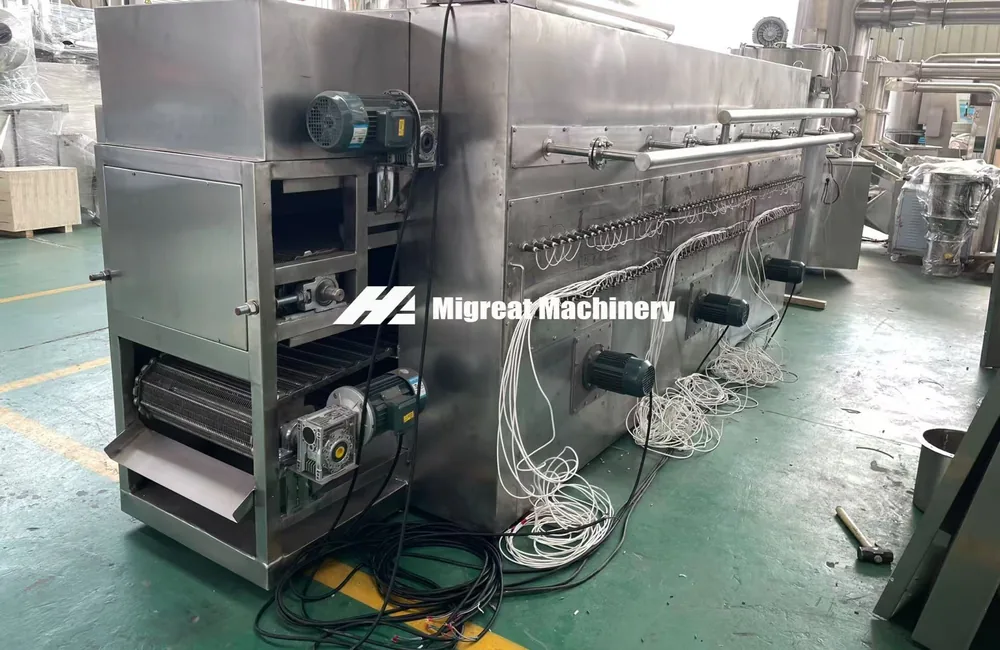

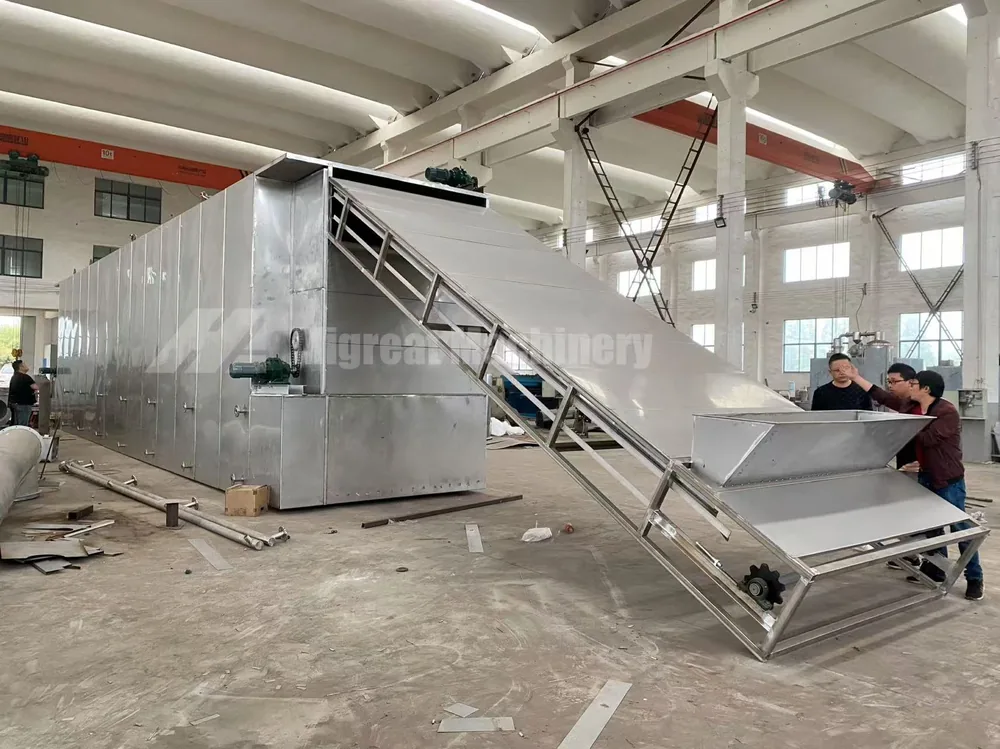

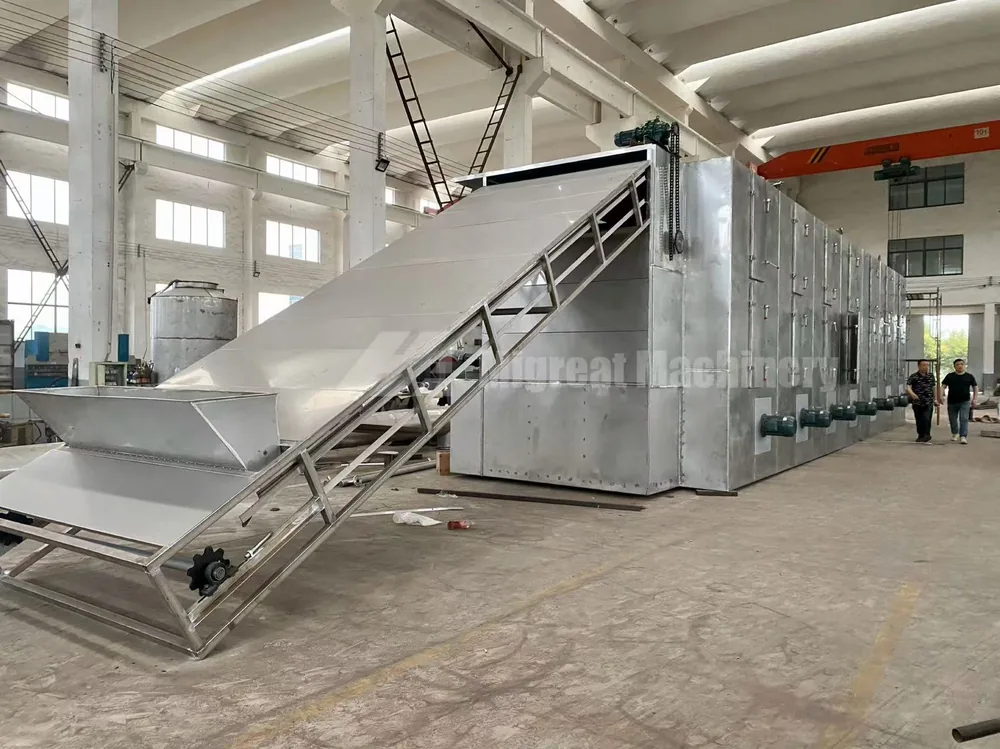

Feed
A feeder spreads the material evenly on the mesh belt.
Dry
Hot air passes through the material on the belt, from the bottom up or from the top down, and carries the moisture away.
Collect
The belt moves slowly and the dried product falls into the collector.
The range in numbers
- 7Models
From DW-1.2-8 to DW-2-20
- 1.2 to 2m
Belt width
- 8 to 20m
Dry section length
- 50 to 140℃
Operating temperature
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Fast, even and energy saving
Air volume, temperature and belt speed are adjustable.
- 01
Adjustable
Air volume, heating temperature, material residence time and feeding speed can be adjusted for a better drying effect.
- 02
Flexible set-up
The equipment configuration is flexible. A mesh belt flushing system and a material cooling system can be fitted.
- 03
Recycled air
Most of the air is recycled, which saves energy.
- 04
Even hot air
A unique air distribution device spreads the hot air evenly and keeps product quality consistent.
- 05
Heat source
Steam, thermal oil, electricity, or a coal or oil hot air furnace.
- 06
Units to suit
Each unit has its own hot air circulation. The number of units, and the upper and lower circulation units, are chosen as needed.
Build it your way
Size
Seven models from DW-1.2-8 to DW-2-20.
Units
Select the number of drying units.
Heat source
Steam, thermal oil, electricity or a hot air furnace.
Options
Mesh belt flushing and material cooling.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by belt width and length
On all models the material thickness is 10 to 80 mm, the operating temperature is 50 to 140 ℃ and the vapor pressure is 0.2 to 0.8 MPa. The mesh belt is usually 12 to 60 mesh stainless steel wire mesh.
| Model | Units | Belt width (m) | Dry section length (m) | Steam consumption (kg/h) | Drying time (h) | Drying strength (kg H₂O/h) | Total power (kW) | Dimensions L x W x H (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| DW-1.2-8 | 4 | 1.2 | 8 | 120-300 | 0.2-1.2 | 60-160 | 11.4 | 9.56 x 1.49 x 2.3 | 4500 |
| DW-1.2-10 | 5 | 1.2 | 10 | 150-375 | 0.25-1.5 | 80-200 | 13.6 | 11.56 x 1.49 x 2.3 | 5600 |
| DW-1.6-8 | 4 | 1.6 | 8 | 150-400 | 0.2-1.2 | 85-220 | 14.6 | 9.56 x 1.9 x 2.4 | 5300 |
| DW-1.6-10 | 5 | 1.6 | 10 | 180-500 | 0.25-1.5 | 100-260 | 18.7 | 11.56 x 1.9 x 2.4 | 6400 |
| DW-2-8 | 4 | 2 | 8 | 180-500 | 0.2-1.2 | 100-260 | 19.7 | 9.56 x 2.32 x 2.5 | 6200 |
| DW-2-10 | 5 | 2 | 10 | 225-600 | 0.25-1.5 | 120-300 | 24.5 | 11.56 x 2.32 x 2.5 | 7500 |
| DW-2-20 | 10 | 2 | 20 | 450-1200 | 0.5-3 | 240-600 | 51 | 21.56 x 2.32 x 2.5 | 14000 |
Showing 7 of 7 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It dries flakes, strips and granular material with good permeability.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does the mesh belt dryer dry?
Flakes, strips and granular material with good permeability, such as dehydrated vegetables and Chinese medicine tablets. It can also dry filter cake paste that is pelletized or made into sticks.
02How does the material move?
A feeder spreads it on a stainless steel mesh belt that moves slowly through the dryer. Dried product falls into a collector.
03How is the material heated?
Each unit circulates its own hot air through the belt. The heat source can be steam, thermal oil, electricity, or a coal or oil hot air furnace.
04Can I change the drying time?
Yes. The belt speed, air volume, temperature and feeding speed can all be adjusted.
05How many units can it have?
The number of units can be chosen as needed. The standard models have 4, 5 or 10 units.
