01 / 05Granulation · ZLG series

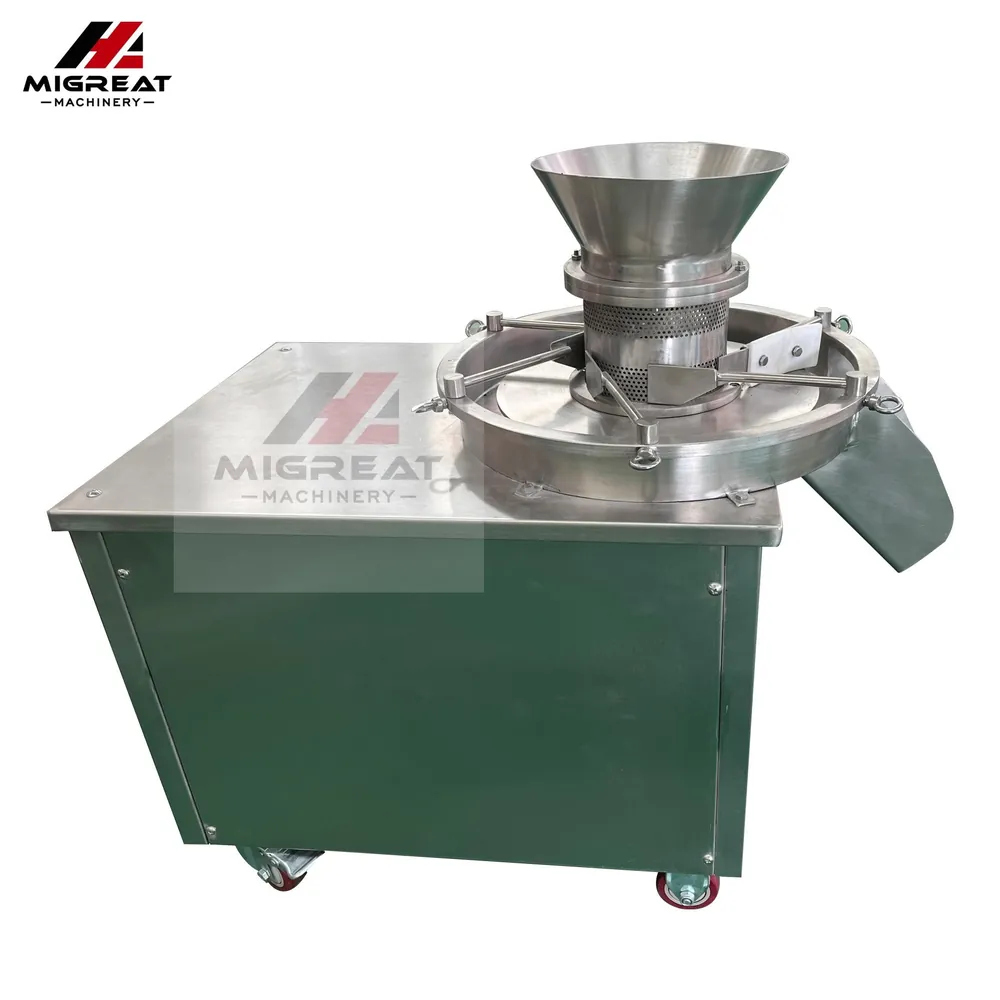

Rotary Granulator
A rotary granulator that presses wet mixed material through a screen cylinder and cuts it into cylindrical granules.
- Capacity
- 30 to 1,500 kg/h, 4 models
- Granule diameter
- φ1.2 to φ3 mm
- Motor power
- 3 kW to 18.5 kW
- Contact material
- SUS304
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Wet mix in, hard granules out

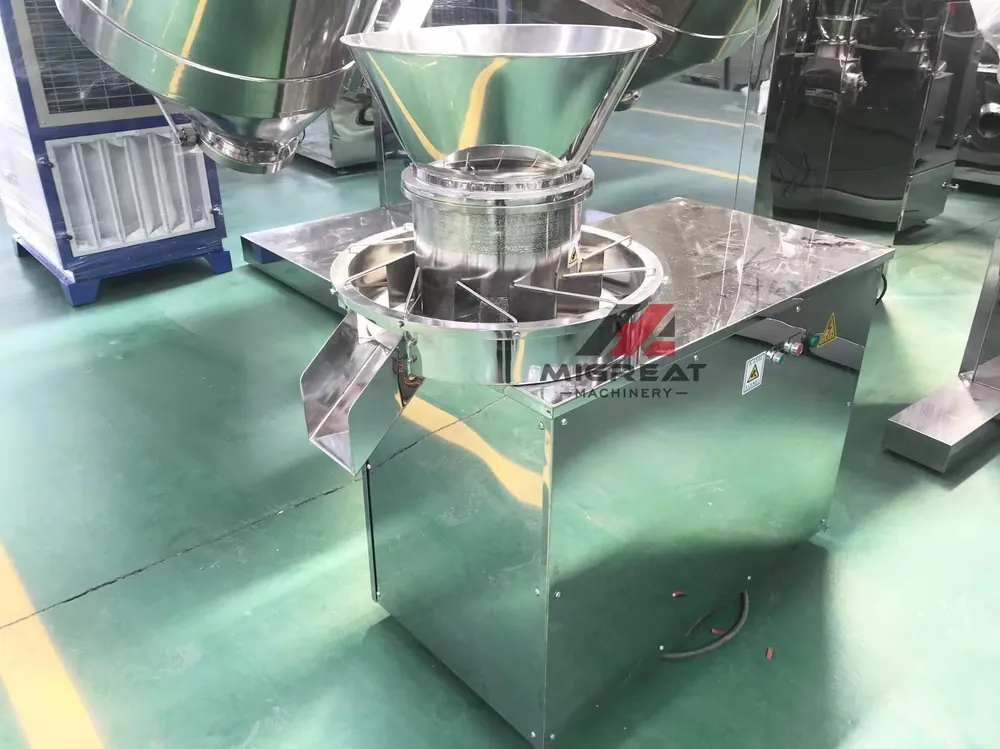

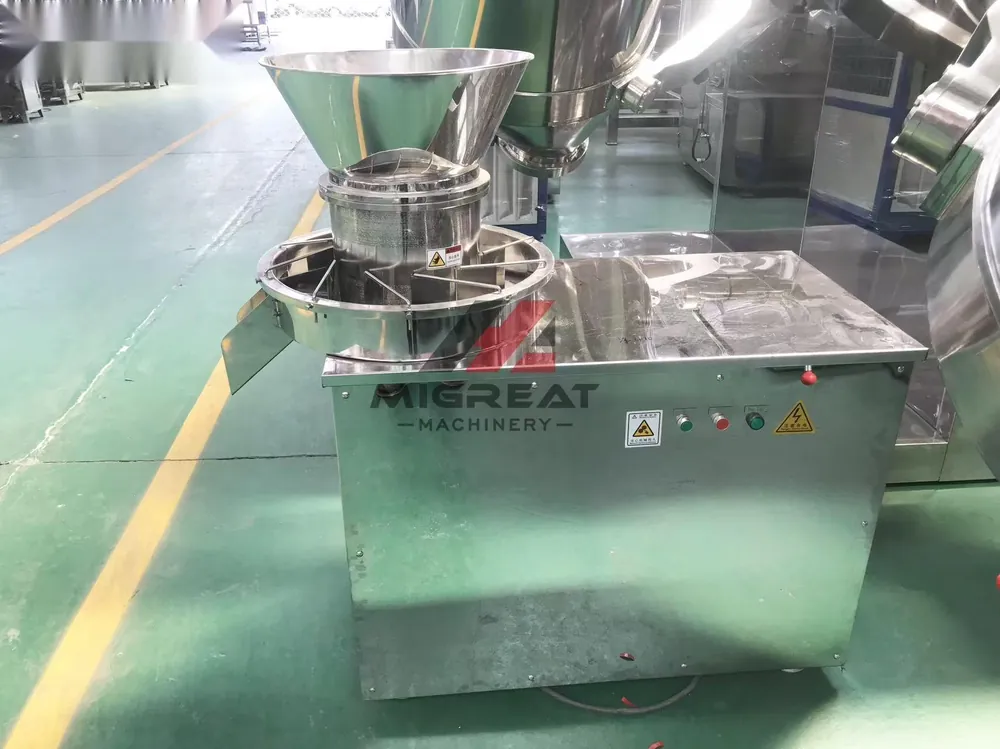

The ZLG rotary granulator turns wet mixed material into cylindrical granules. It moves in three directions at once, and works continuously.
Granule diameter is φ1.2 to φ3 mm. You change it with a different sieve size.
Feed
Add the mixed wet material to the screen cylinder at the top of the machine.
Extrude

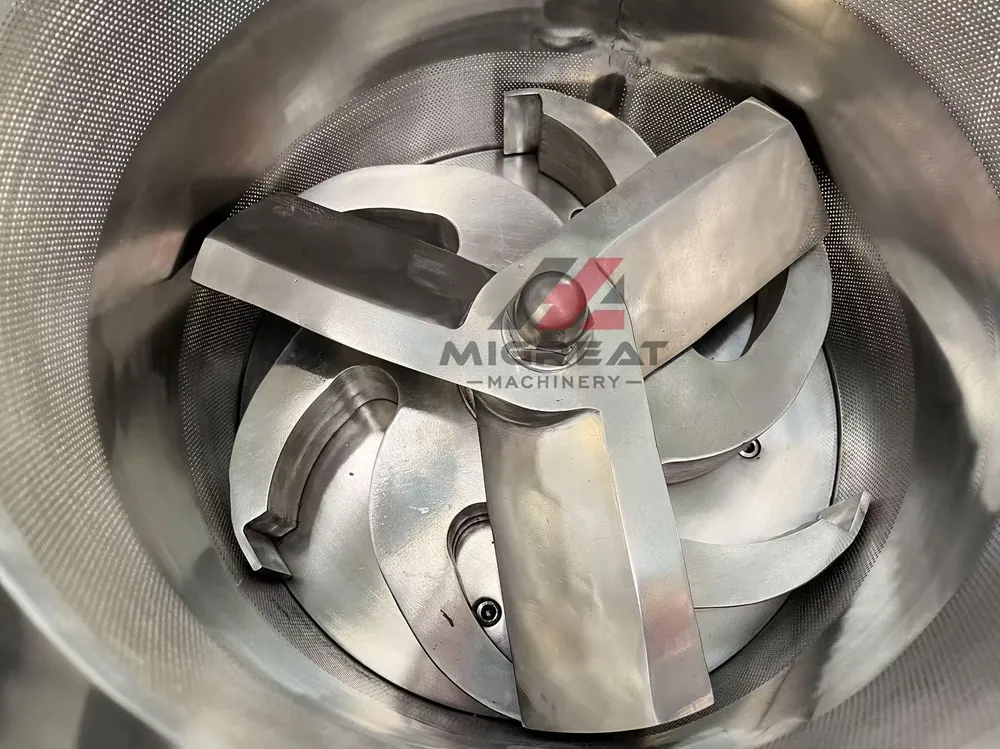

The milling knife pushes the material against the cylinder wall. It is drawn through the holes and forms cylindrical strands.
Cut

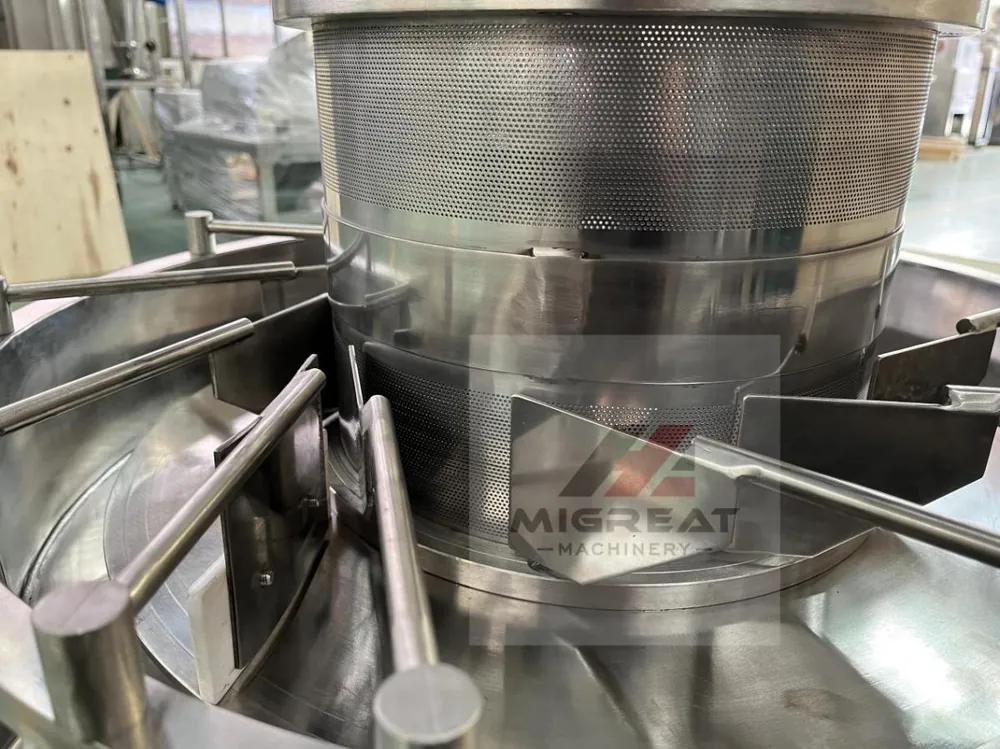

The screen cylinder also turns. Cutters outside it cut the strands into granules.
The range in numbers
- 4Models
From ZLG-150 to ZLG-500
- 30 to 1,500kg/h
Capacity range
- φ1.2 to φ3mm
Granule diameter
- 3 to 18.5kW
Motor power
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Built for uniform, hard granules
Change the sieve or the cutters to change the granule.
- 01
Hard, well formed granules
The output granule is hard and has a good shape.
- 02
Uniform extrusion
Granules are extruded evenly.
- 03
Adjustable diameter
Use a different size of sieve to change the granule diameter.
- 04
Adjustable length
Add cutters outside the sieve holes to change the granule length.
- 05
Reusable sieve
The sieve can be used twice. It is easy to change and clean.
- 06
Continuous running
The machine works continuously, so it suits a production line.
Build it your way
Contact material
All parts that touch raw material are SUS304 stainless steel.
Speed control
An inverter (VFD) can be added on request.
Discharge
Automatic, which avoids damage from manual handling.
Sieve
Different stainless steel sieves give different granule sizes.
Size
Four models from ZLG-150 to ZLG-500.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Granule diameter is φ1.2 to φ3 mm on all models. A frequency converter can be added to change the speed.
| Model | Power (kW) | Cylinder diameter (mm) | Capacity (kg/h) | Speed (r/min) | Overall size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| ZLG-150 | 3 | 150 | 30-100 | 60 | 700 x 400 x 700 | 200 |
| ZLG-250 | 5.5 | 250 | 50-300 | 50 | 1200 x 700 x 1100 | 400 |
| ZLG-300 | 7.5 | 300 | 100-500 | 36 | 1350 x 800 x 1200 | 600 |
| ZLG-500 | 18.5 | 500 | 1000-1500 | 36 | 2500 x 1500 x 2000 | 1000 |
Showing 4 of 4 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It makes granules for pharmaceutical, foodstuff and chemical plants.
What goes in and out
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does the rotary granulator make?
Cylindrical granules from stirred, wet mixed material. It is mainly used in the pharmaceutical, foodstuff and chemical industries.
02How do I change the granule size?
Change the sieve for a different diameter. Add cutters outside the sieve holes for a different length.
03Can it run continuously?
Yes. The machine works continuously, so it suits a production line.
04Can it handle sticky material?
No. The machine is not suitable for raw material that is sticky or adhesive.
05What is it made of?
Parts that touch the material are SUS304 stainless steel.
