01 / 05Granulation · GK series

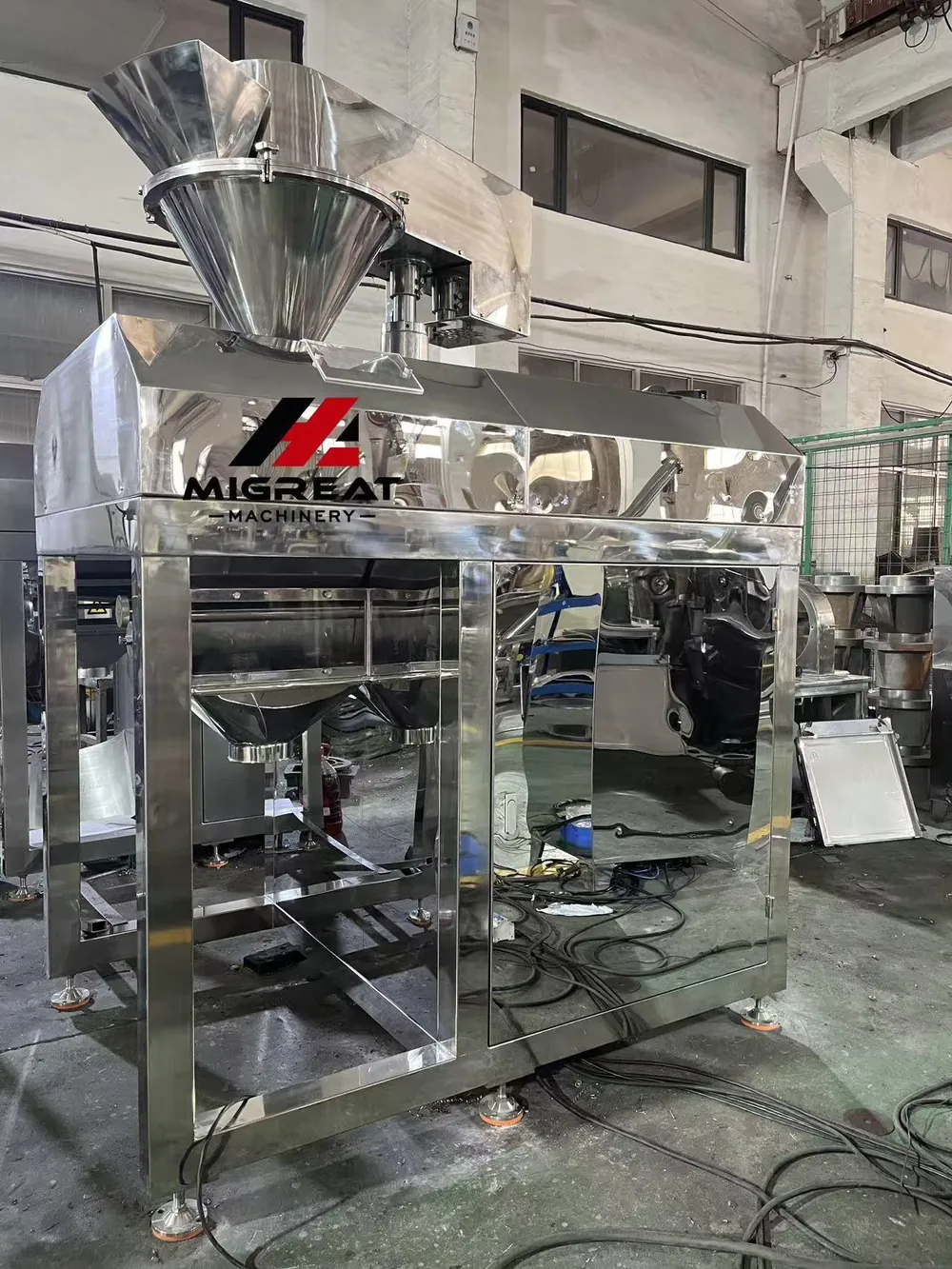

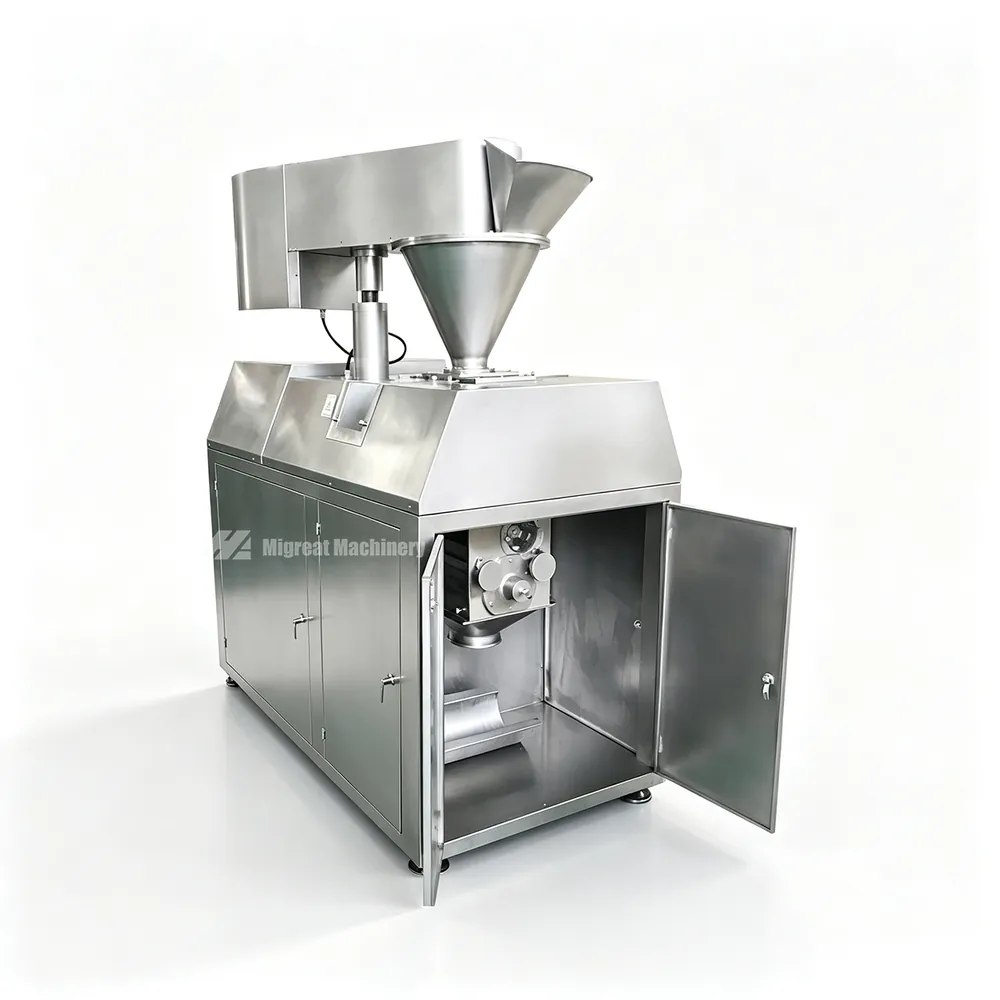

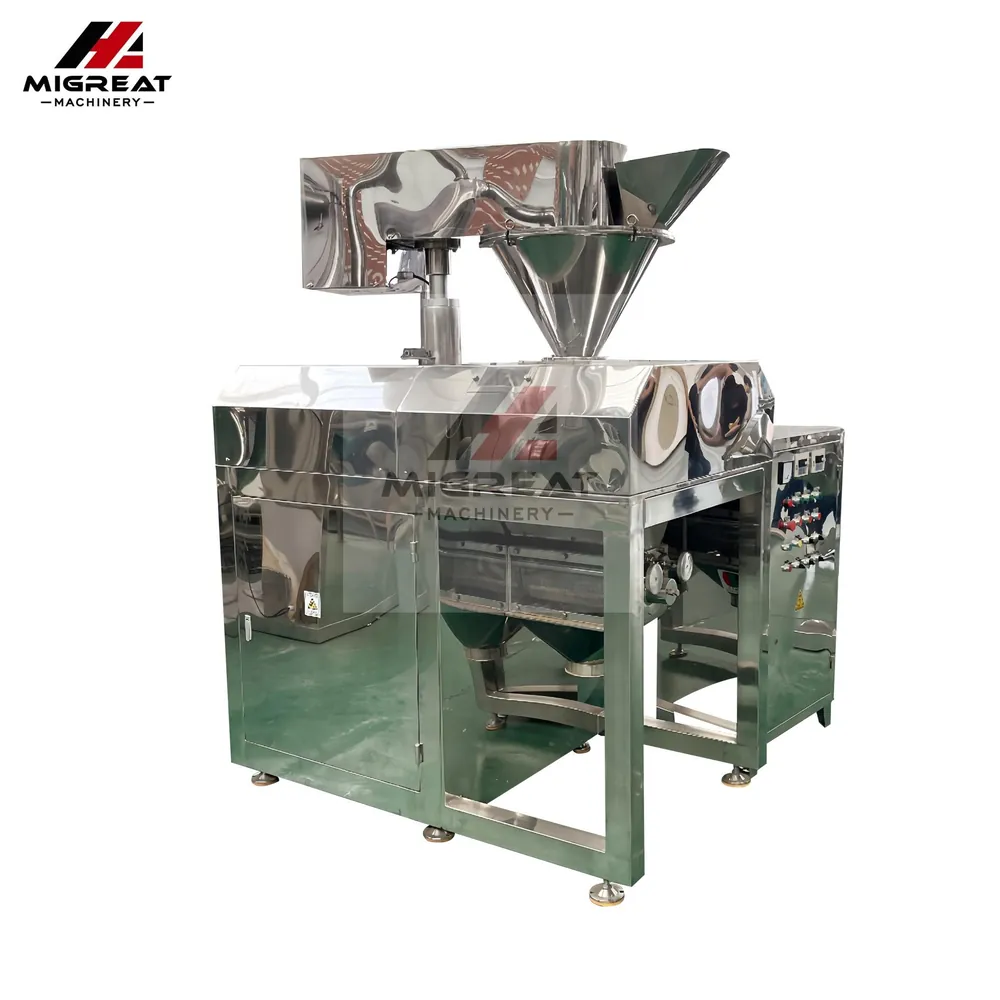

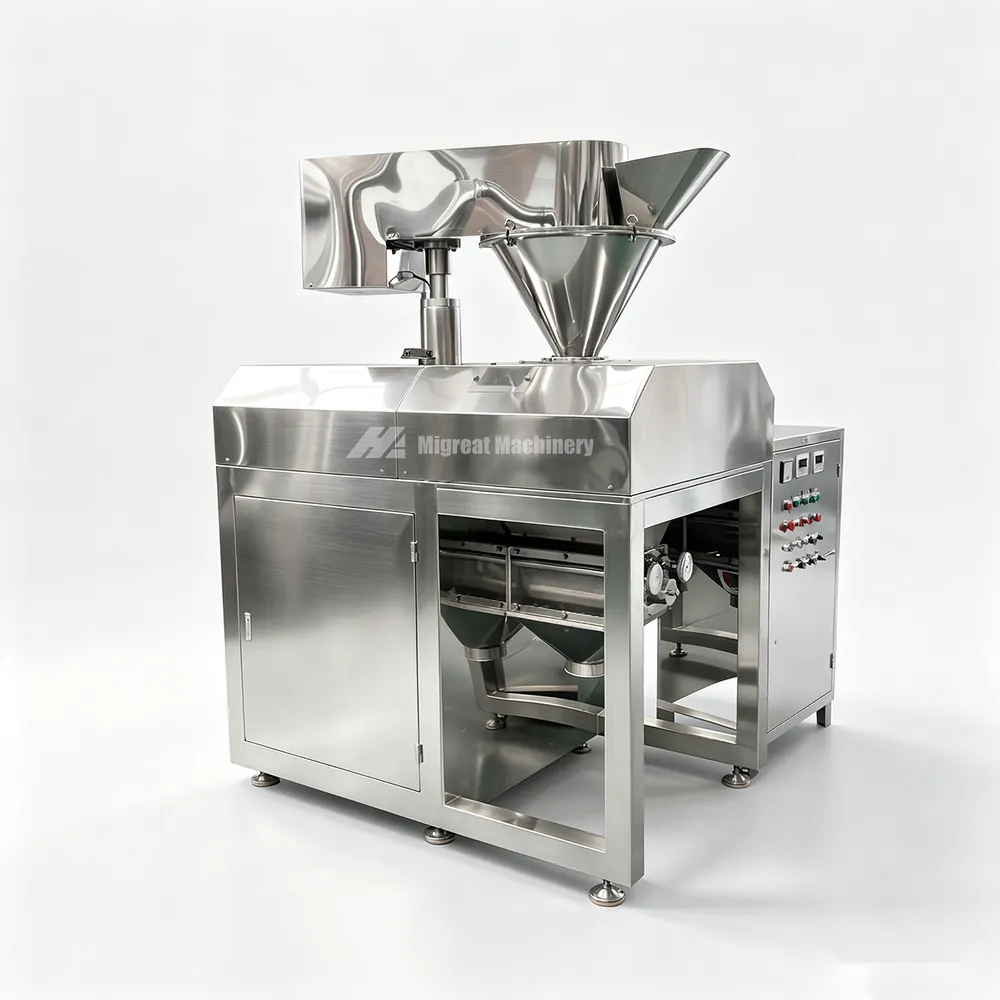

Dry Roller Granulator
A dry granulator. Two rollers press powder into a sheet, which is crushed and sifted into granules.
- Capacity
- 2 to 200 kg/h
- Models
- GK25 to GK200
- Roll pressure
- 5 to 25 T
- Speed control
- Variable frequency
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Press, crush, sift

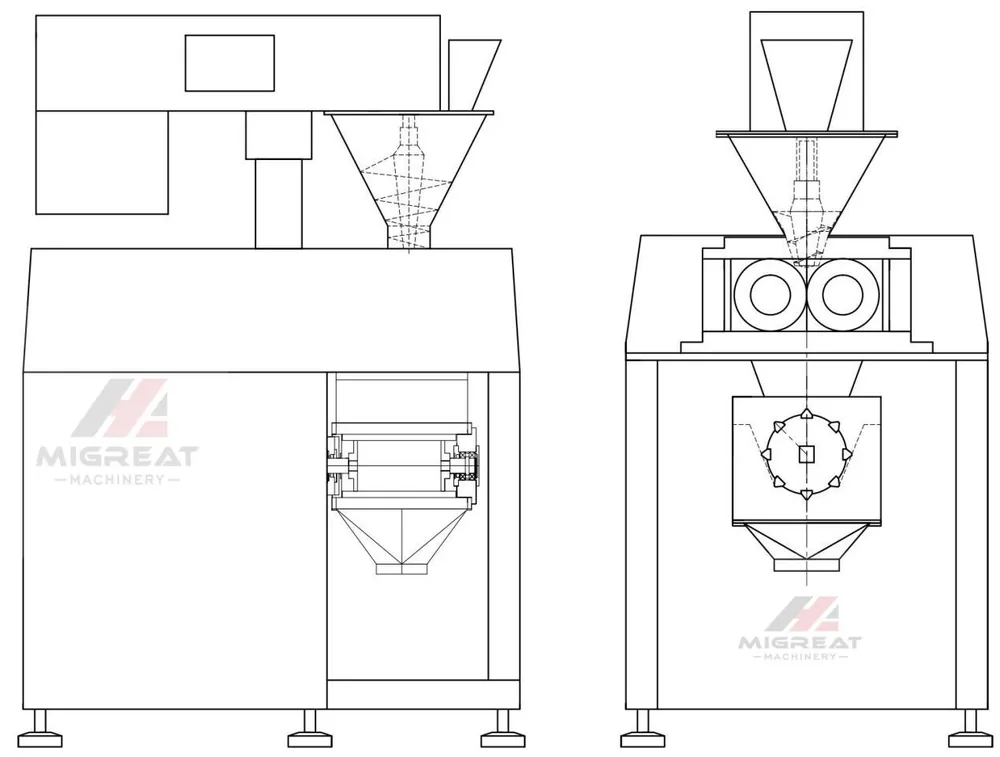

The GK dry granulator suits material that fears damp and heat. A screw feeder pushes powder between two vertically arranged rollers on cantilever shafts. The pressed sheet is crushed and sifted in two levels.
The machine is closed. A PLC with touch screen is optional.
Feed

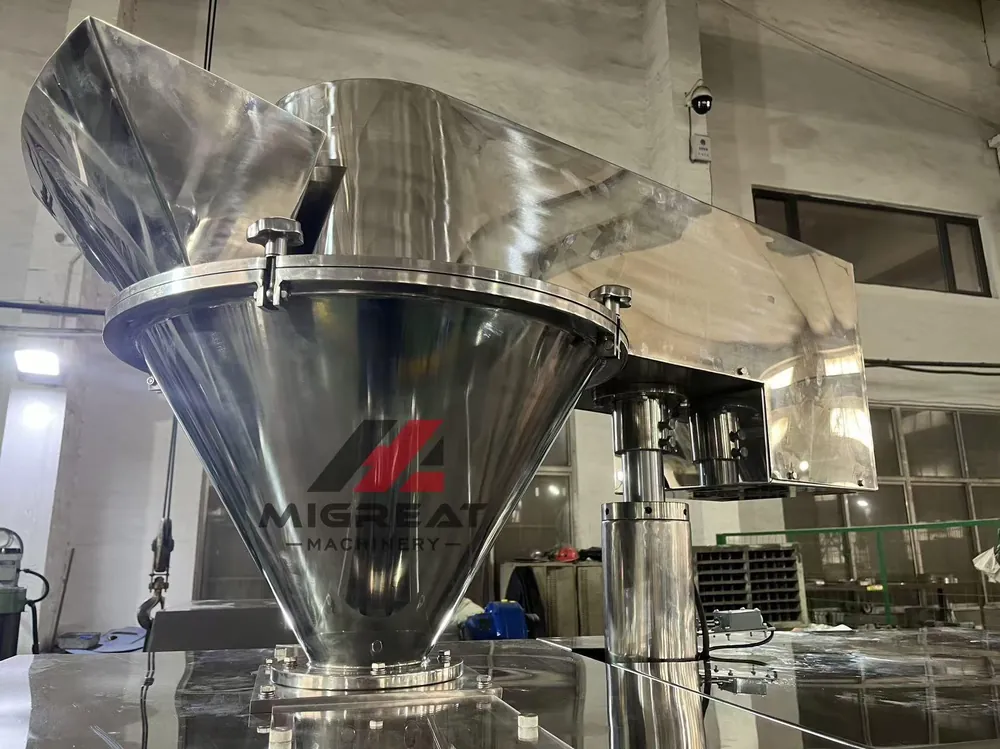

A vertical screw feeder pushes powder into the rollers.
Compact

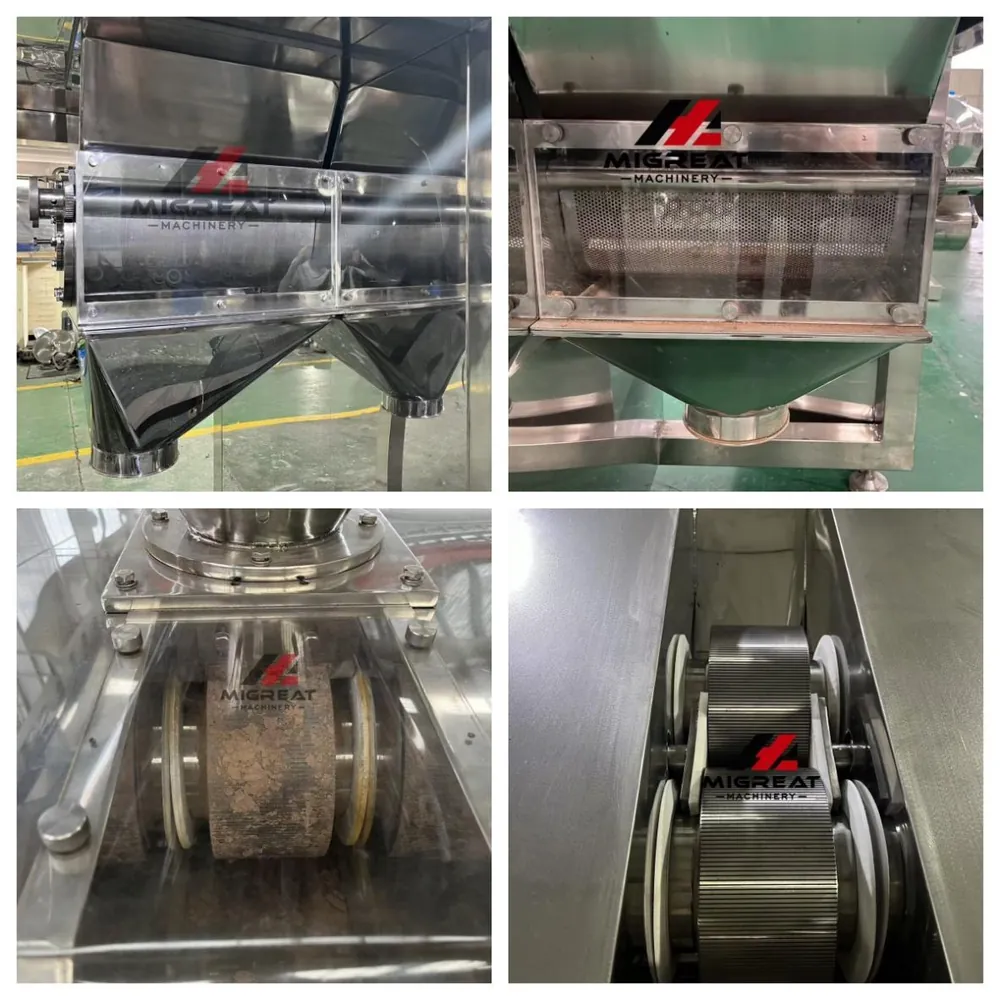

Two rollers press it into a sheet under set pressure.
Sift

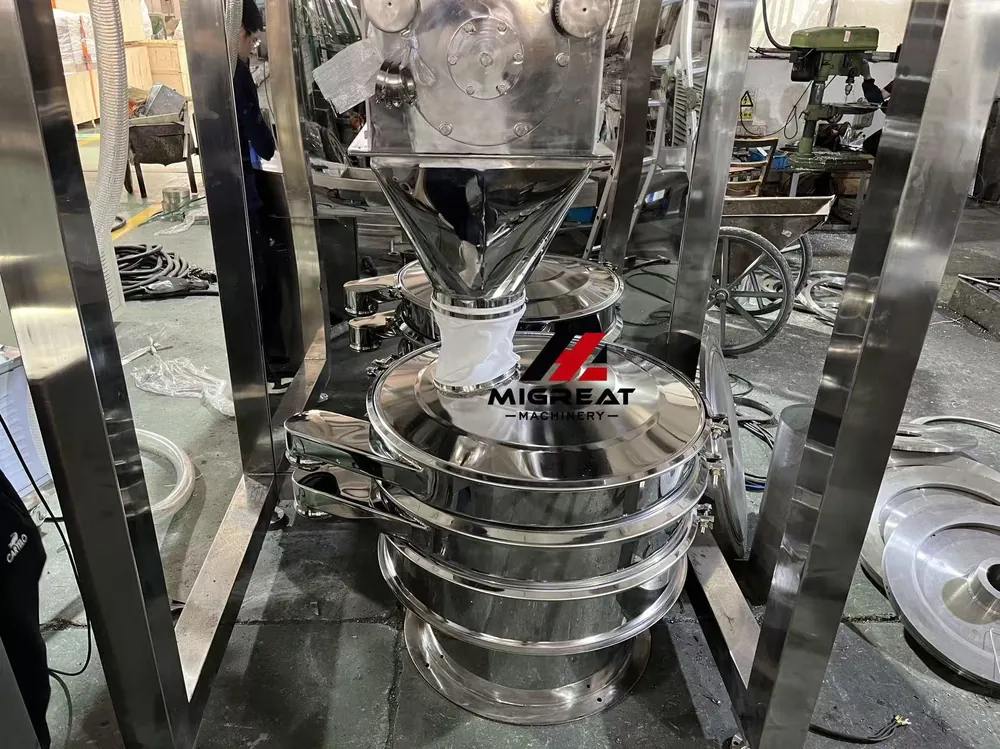

The sheet is crushed and sifted in two levels. Fines return.
The range in numbers
- 5Models
GK25 to GK200
- 2 to 200kg/h
Capacity
- 5 to 25T
Max roll pressure
- ClosedOperation
Dust under control

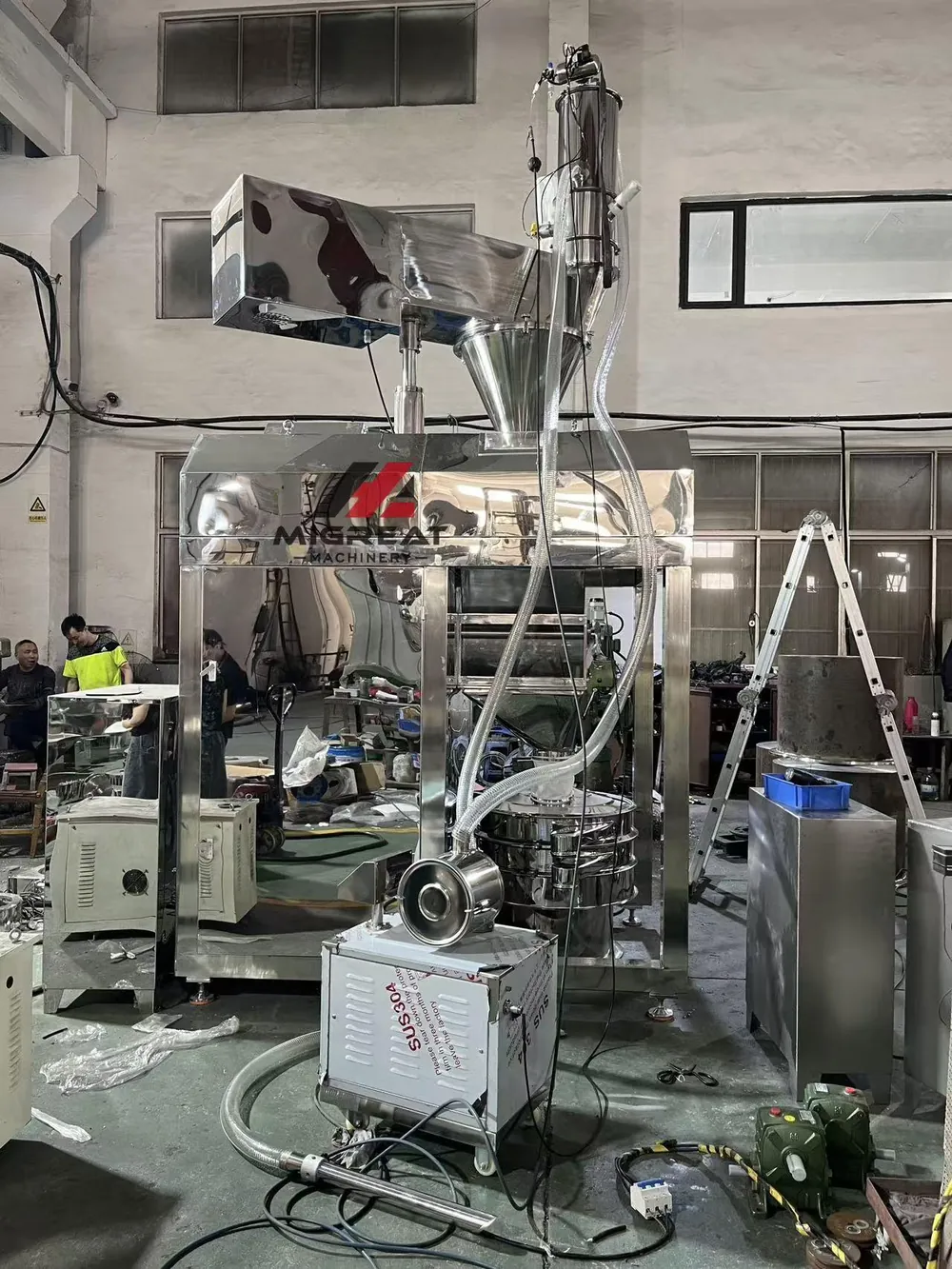

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
No liquid, no drying
It suits damp and heat sensitive material.
- 01
No binder liquid
Dry compaction means no wetting and no drying.
- 02
Vertical feeding
Screw feeder gives steady feeding.
- 03
Cantilever rollers
Two rollers on cantilever shafts, arranged vertically.
- 04
Two level sifting
Crushing and sifting happen in two levels.
- 05
Closed operation
Closed machine keeps dust in.
- 06
Optional PLC
PLC and touch screen are optional.
Build it your way
Size
Five models.
Control
PLC and touch screen optional.
Speed
Electromagnetic or variable frequency.
Closed operation
The machine works closed, which avoids dust pollution.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Roll speed is 2 to 20 rpm and feed speed is 6 to 60 rpm.
| Model | Capacity (kg/h) | Roll size (mm) | Max roll pressure (T) | Roll motor (kW) | Feed motor (kW) | Granule motor (kW) | Oil pump (kW) | Hydraulic (MPa) |
|---|---|---|---|---|---|---|---|---|
| GK25 | 2-10 | 200 x 25 | 5 x 2 | 4 | 0.75 | 0.75 | 0.5 | 10 |
| GK80 | 20-60 | 200 x 80 | 10 x 2 | 4 | 1.1 | 1.1 | 0.75 | 20 |
| GK100 | 30-80 | 200 x 100 | 10 x 2 | 7.5 | 2.2 | 2.2 | 1.1 | 25 |
| GK120 | 50-100 | 200 x 120 | 15 x 2 | 11 | 2.2 | 2.2 | 1.1 | 30 |
| GK200 | 80-200 | 250 x 200 | 25 x 2 | 15 | 3 | 3 | 2.2 | 50 |
Showing 5 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It makes granules from powder that fears damp or heat.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does it do?
It presses powder between two rollers and sifts it into granules without liquid.
02What material suits it?
Material that fears damp and heat.
03Is it closed?
Yes.
04Can it be automated?
A PLC and touch screen are optional.
05How is speed controlled?
Electromagnetic or variable frequency speed control.
