01 / 05Granulation · FL series

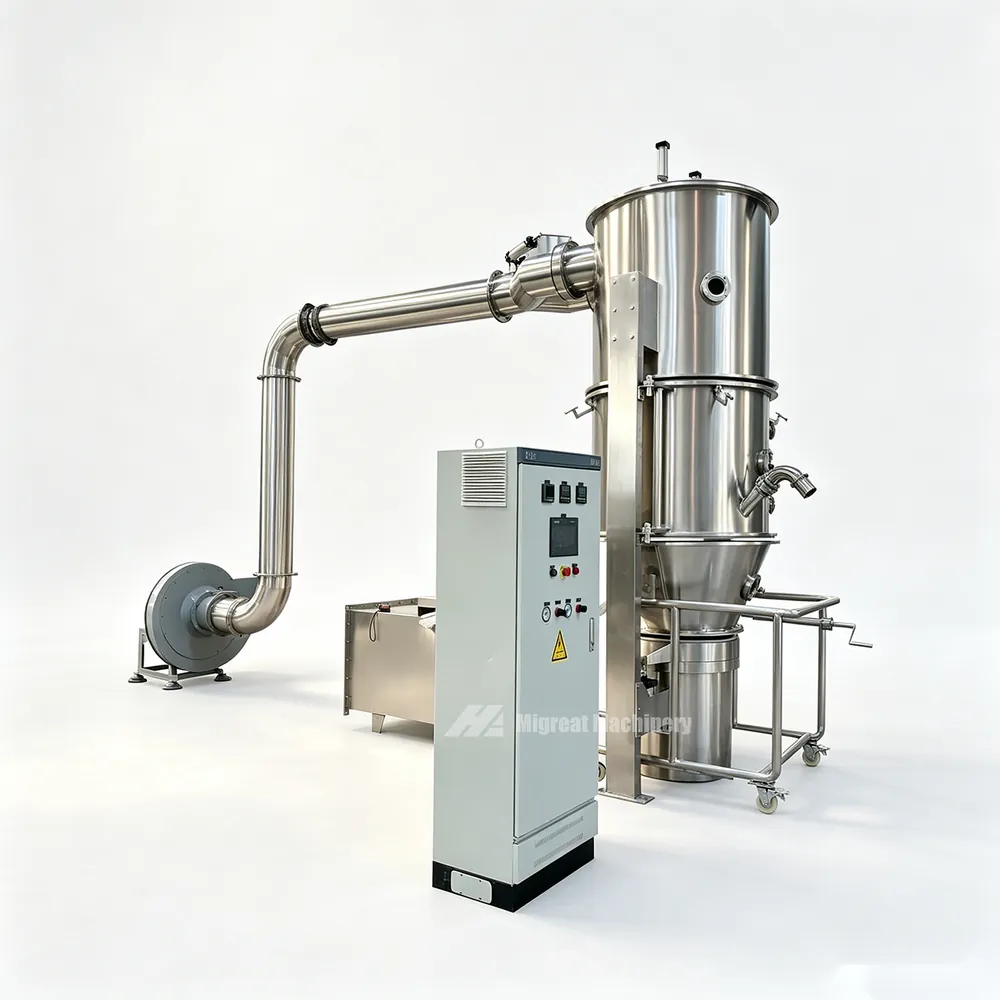

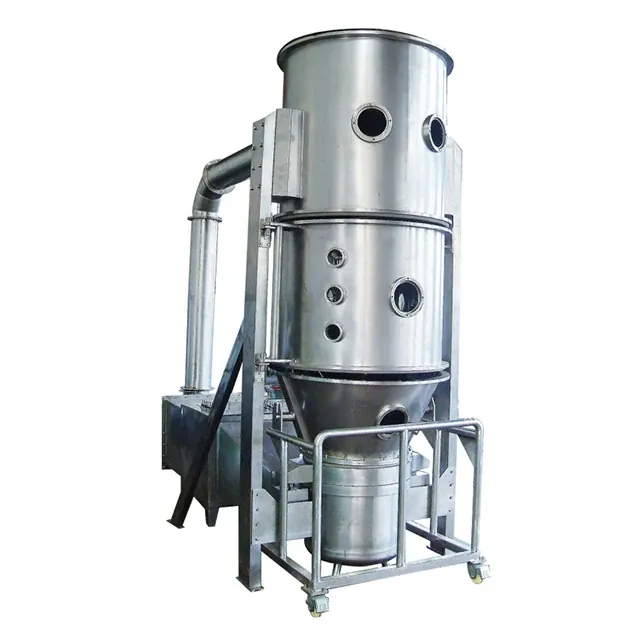

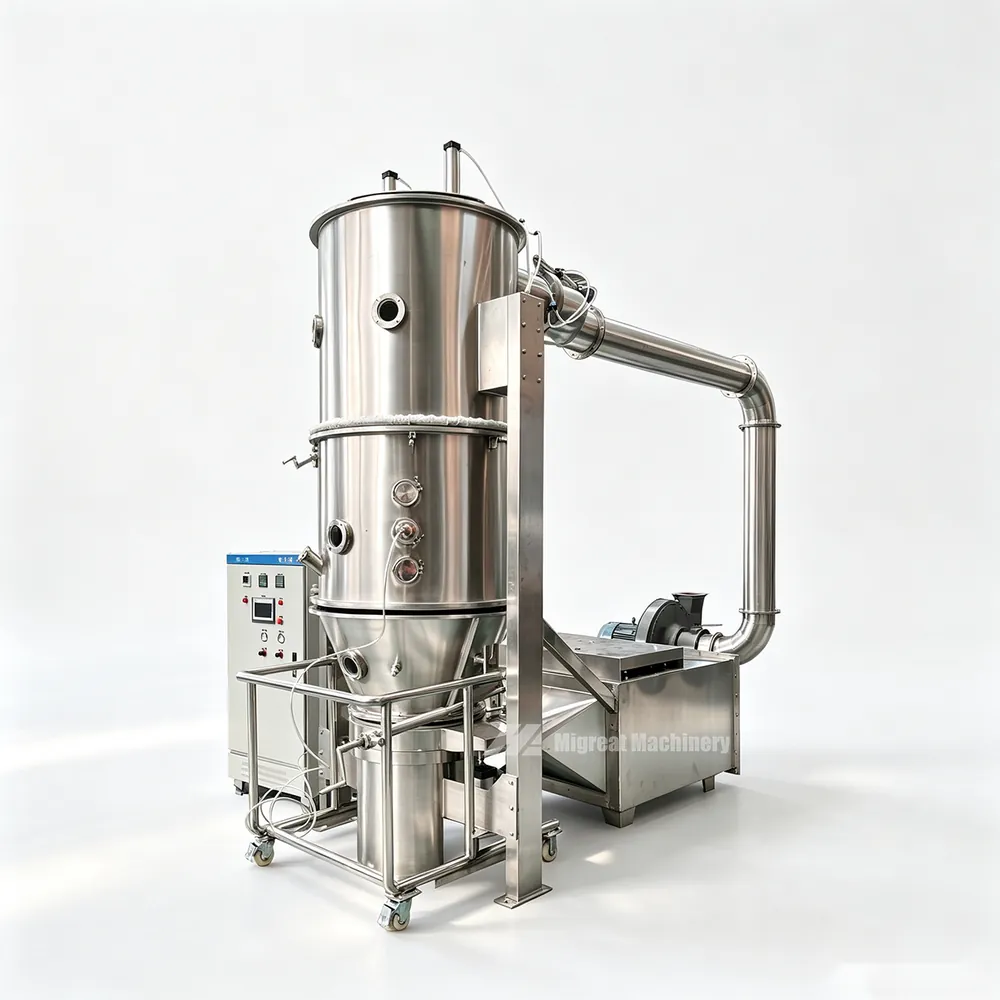

Fluid Bed Granulator Dryer
A closed fluid bed machine. It fluidizes powder with hot air, sprays binder to form granules and dries them in the same bed.
- Models
- 10 sizes, FL-5 to FL-500
- Process
- Granulate and dry in one bed

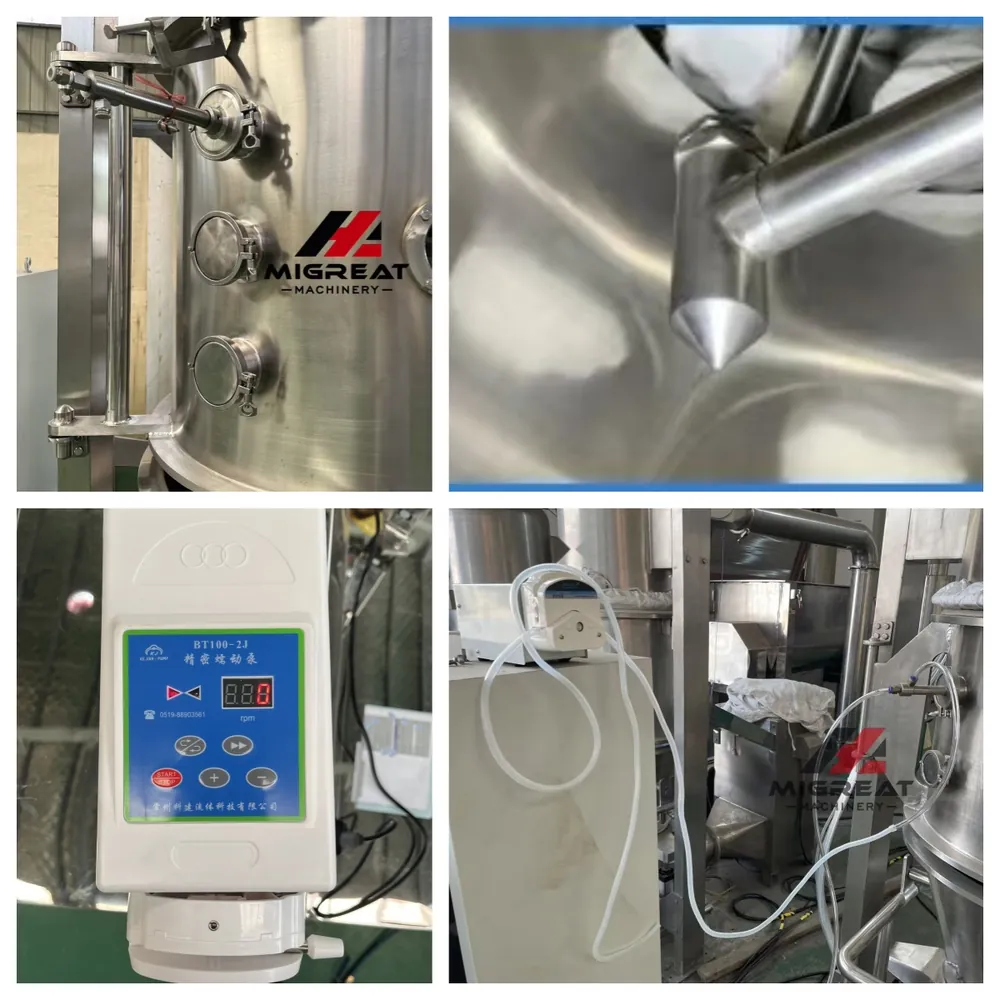

- Spray system
- Peristaltic pump and spray nozzle
- Noise
- Below 75 dB
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Granulate and dry in one closed bed
In the FL fluid bed granulator, powder is lifted by hot air and a nozzle sprays binder onto it. The particles stick together into granules and dry in the same bed.
The whole process is closed. A three dimensional oblique discharge empties the bowl, and the machine meets GMP.
Fluidize
Hot air lifts the powder in the bowl.
Spray
A nozzle sprays binder, and the powder forms granules.
Dry
The granules dry in the same bed and leave by oblique discharge.
The range in numbers
- 10Models
FL-5 to FL-500
- 1Machine
Mix, granulate, dry
- ClosedProcess
Meets GMP
- <75dB
Noise
More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Closed, easy to control

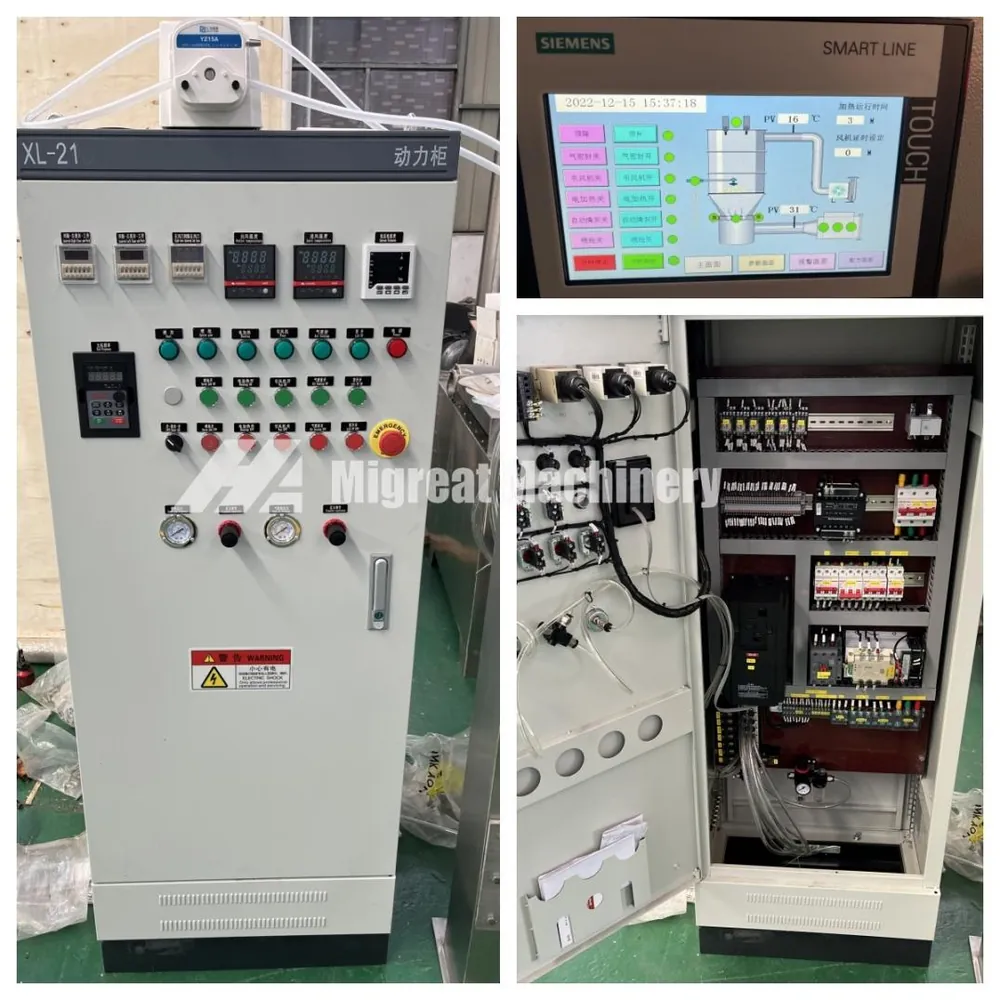

Control can include terminal control, data recording and management levels.
- 01
Three steps, one machine
Mixing, granulating and drying share one bed.
- 02
Closed process
The system is closed, which protects the product and the operator.
- 03
Oblique discharge
Three dimensional oblique discharge empties the bowl cleanly.
- 04
GMP
The design meets GMP.
- 05
Data control
Terminal control, data recording and management levels are available.
- 06
Low noise
Noise is below 75 dB.
Build it your way
Size
Ten models from FL-5 to FL-500.
Control
Terminal control and data recording.
GMP
Small floor space and no dead corner. The structure meets GMP.
Spray system
Peristaltic pump and spray nozzle.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by model
Units follow our standard FL series. Please confirm container volume and batch capacity before quoting.
| Model | Container volume (L) | Batch capacity, min / max (kg) | Fan power (kW) | Steam (kg/h) | Compressed air (m³/min) | Size L x W x H (m) |
|---|---|---|---|---|---|---|
| FL-5 | 22 | 4 / 6 | 3 | 23 | 1.3 | 1.2 x 0.6 x 2.1 |
| FL-15 | 45 | 10 / 20 | 4 | 42 | 0.3 | 1.25 x 0.9 x 2.1 |
| FL-30 | 100 | 15 / 45 | 5.5 | 70 | 0.4 | 1.6 x 0.9 x 2.3 |
| FL-60 | 220 | 40 / 80 | 11 | 141 | 0.6 | 1.85 x 1.25 x 3 |
| FL-100 | 300 | 60 / 120 | 15 | 169 | 0.6 | 1.85 x 1.25 x 3 |
| FL-120 | 420 | 80 / 160 | 18.5 | 211 | 0.9 | 2.2 x 1.65 x 3.1 |
| FL-150 | 530 | 90 / 200 | 18.5 | 251 | 0.9 | 2.27 x 1.72 x 3.1 |
| FL-200 | 660 | 100 / 300 | 22 | 282 | 0.9 | 2.34 x 1.9 x 3.5 |
| FL-300 | 1000 | 150 / 450 | 30 | 366 | 1.3 | 2.8 x 1.9 x 3.8 |
| FL-500 | 1500 | 300 / 300 | 37 | 451 | 1.5 | 3 x 2.55 x 4.2 |
Showing 7 of 10 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It makes granules for tablets and capsules in pharmaceutical, food and chemical plants.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does the machine do?
It fluidizes powder, sprays binder to make granules and dries them in one bed.
02Is it closed?
Yes. The whole process is closed.
03Does it meet GMP?
Yes.
04How does it discharge?
By three dimensional oblique discharge.
05Can it record data?
Terminal control, data recording and management levels are available.
