01 / 05Granulation · YK series

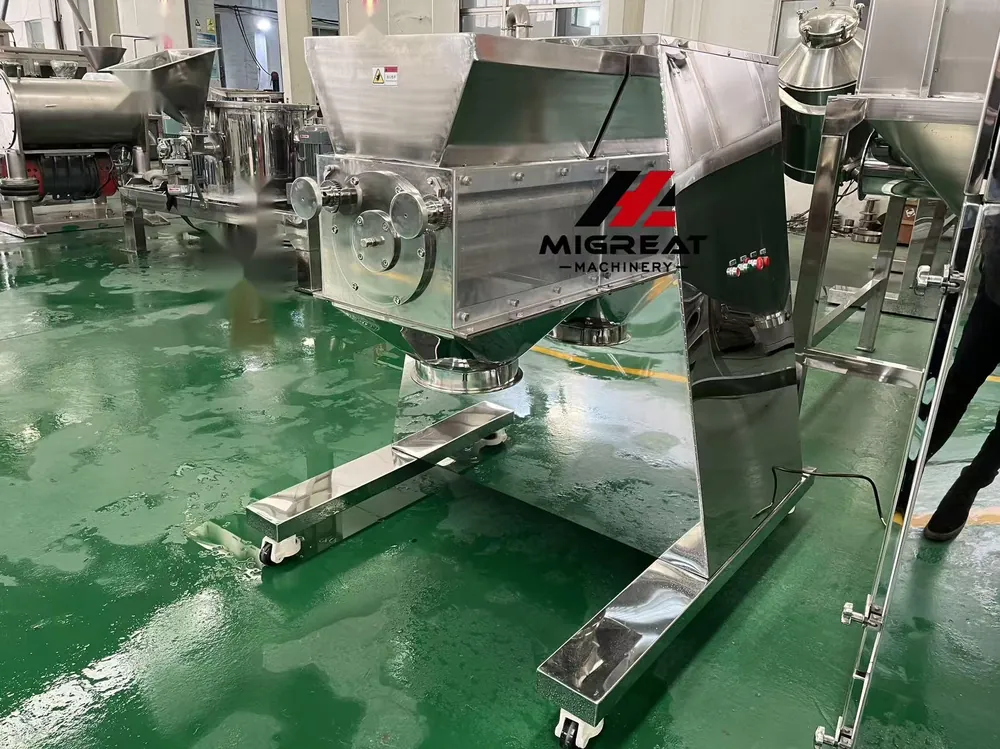

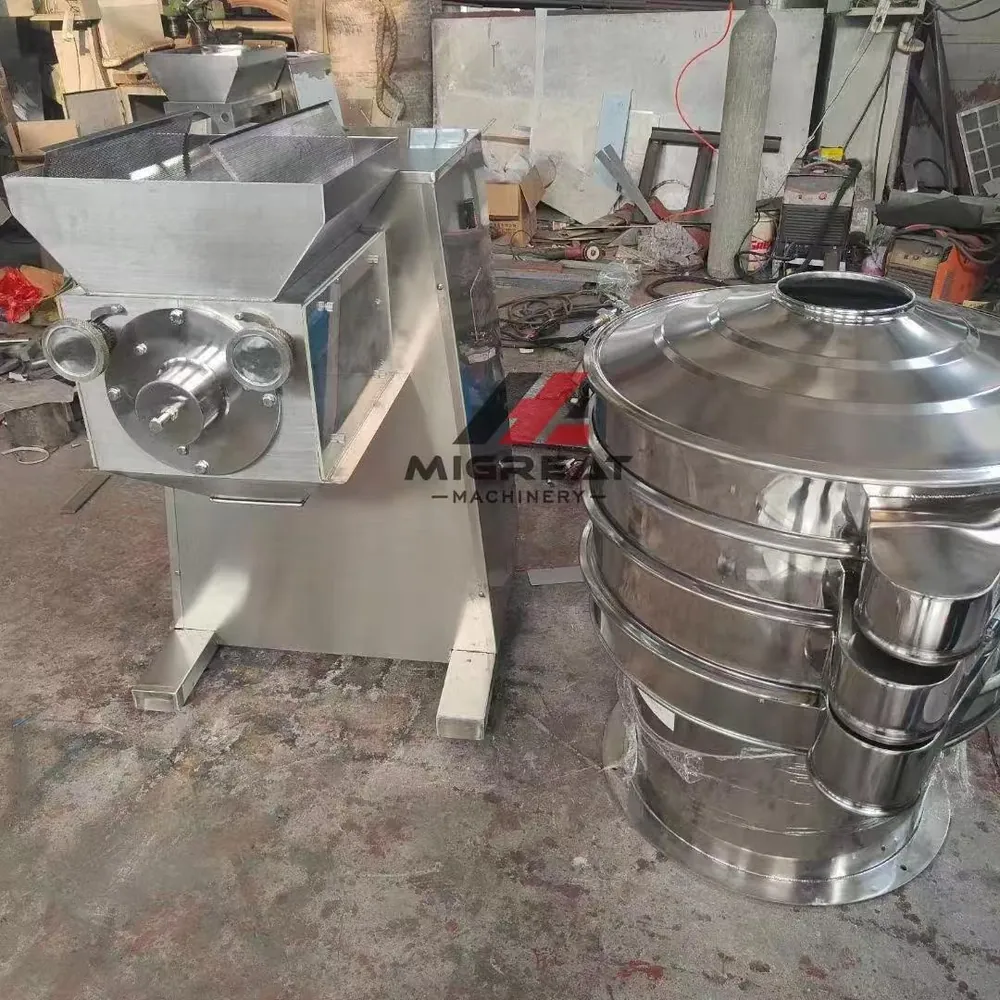

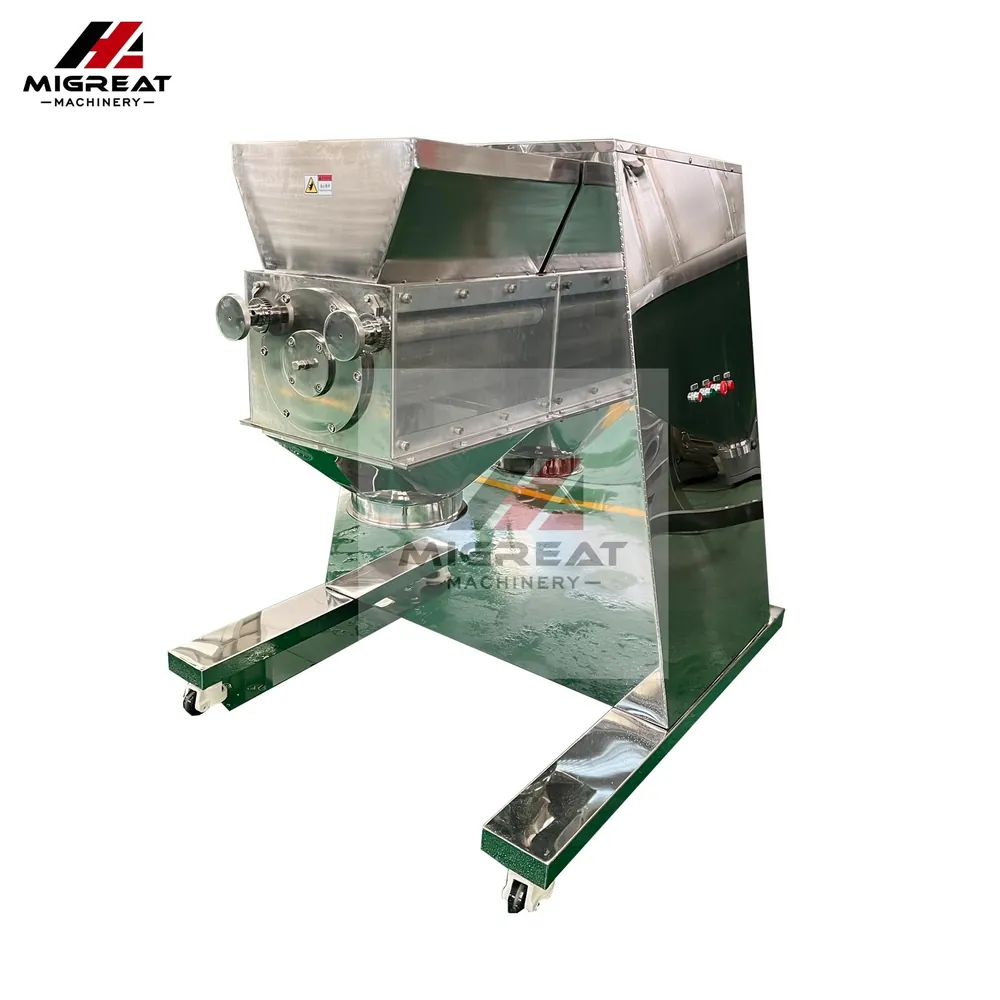

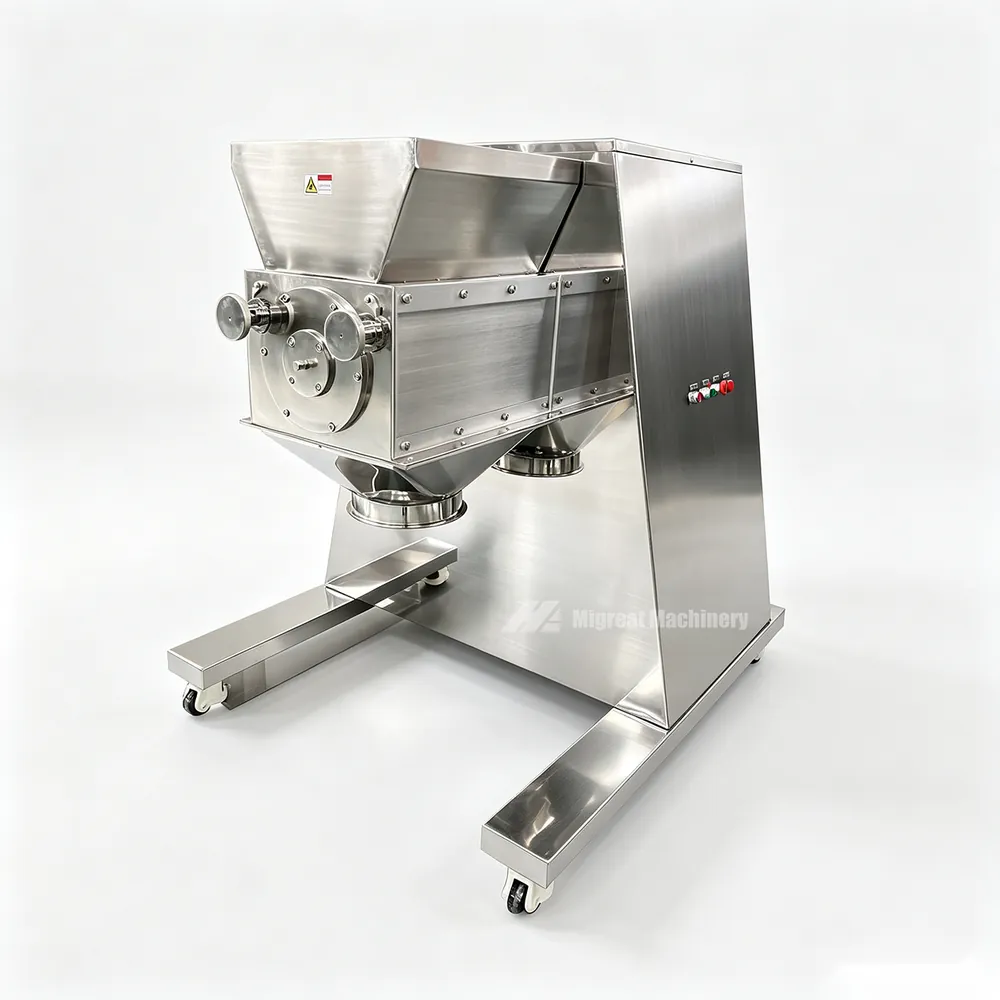

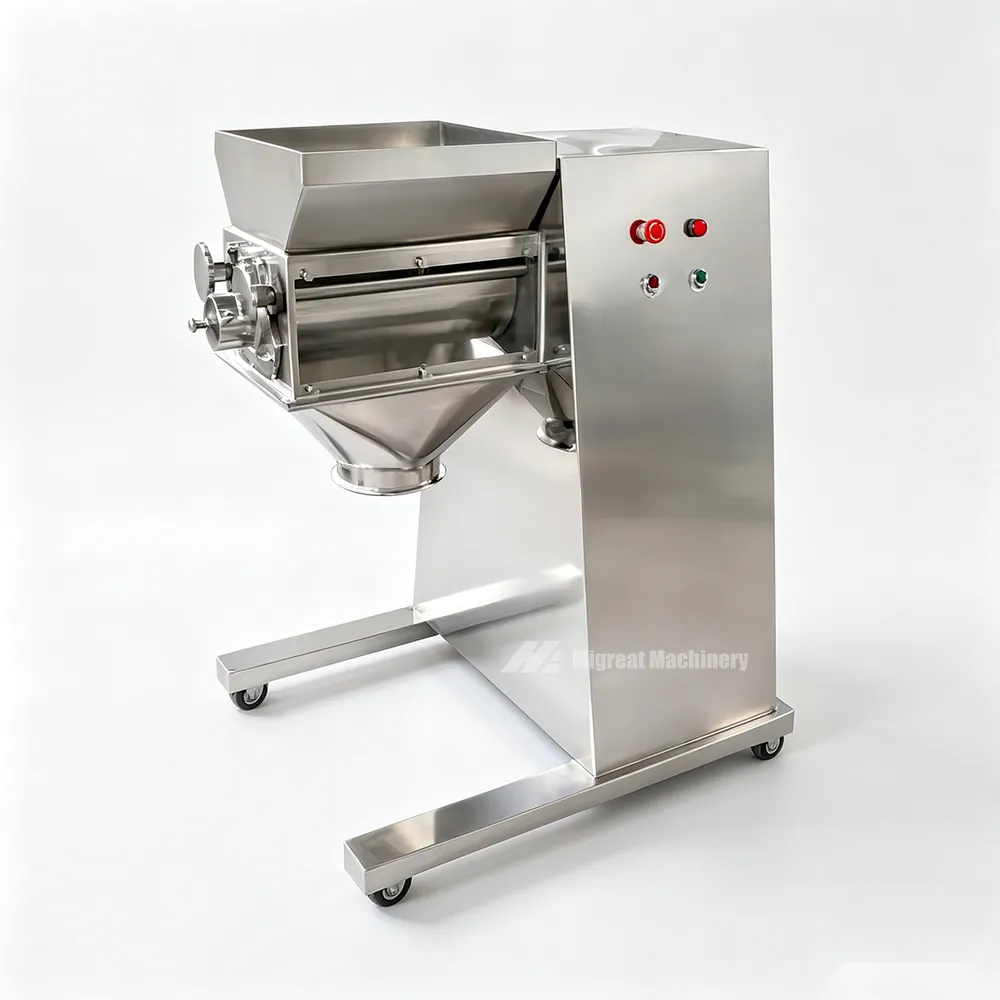

Swing Granulator
An oscillating granulator. A swinging rotor presses wet material through a screen to form granules, or crushes dried lumps.
- Capacity
- 30 to 600 kg/h
- Models
- YK-100 to YK-320
- Rotor
- Ø120 to Ø320 mm
- Swing angle
- 360°
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Press through a screen, get granules
The YK swing granulator forms granules from wet material, or crushes dried lumps into particles. A rotor with a pentagon hob turns back and forth and presses material through a screen.
The screen is held by a clamp, and a hand wheel sets the tension. You can pick the sieve size to suit your granule.
Feed
Wet material or dried lumps enter the hopper.
Press
The swinging rotor forces them through the screen.
Collect
Granules fall from below. Change the screen for another size.
The range in numbers
- 4Models
YK-100 to YK-320
- 30 to 600kg/h
Capacity
- 1.1 to 7.5kW
Motor power
- 360°
Swing angle
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Simple, quick screen change
The screen clamp and hand wheel make changes quick.
- 01
Two jobs
Wet granulating and crushing dried lumps.
- 02
Pentagon hob
The rotor carries a pentagon hob that presses material through the screen.
- 03
Quick change
Screen clamp and hand wheel make screen changes easy.
- 04
Size choice
Sieve size is chosen for your granule.
- 05
Easy to install and clean
Hopper and granulating device are designed for convenient installation, cleaning and use.
- 06
Stainless contact parts
Parts that touch the material are made of stainless steel.
Build it your way
Size
Four models.
Screen
Sieve size to suit.
Material
Stainless steel contact parts.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Swing angle is 360° on all models. The rotor speed of YK-160 needs confirmation.
| Model | Rotor Ø (mm) | Capacity (kg/h) | Motor (kW) | Rotor speed (r/min) | Size L x W x H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| YK-100 | 120 | 30-200 | 1.1 | 55 | 700 x 400 x 1500 | 280 |
| YK-160 | 160 | 100-300 | 3 | To confirm | 1000 x 800 x 1500 | 380 |
| YK-250 | 250 | 150-400 | 5.5 | 55 | 1200 x 950 x 1500 | 540 |
| YK-320 | 320 | 200-600 | 7.5 | 55 | 1200 x 1050 x 1500 | 890 |
Showing 4 of 4 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It makes granules in pharmaceutical, food and chemical plants.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does it do?
It forms granules from wet material or crushes dried lumps.
02How does it work?
A rotor with a pentagon hob swings and presses material through a screen.
03Can I change the granule size?
Yes. Change the screen to another sieve size.
04How is the screen held?
By a clamp. A hand wheel sets the tension.
05What capacity?
30 to 600 kg/h depending on the model.
