01 / 05Granulation · QZL series

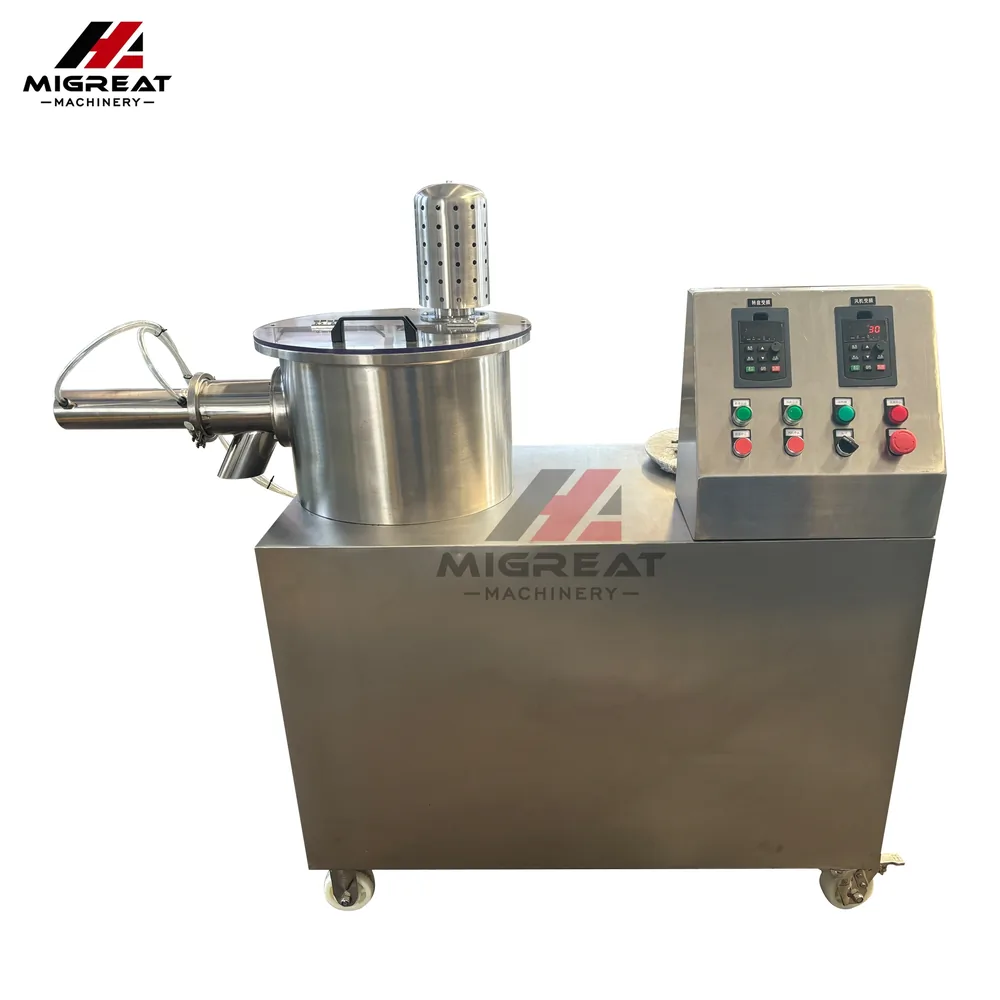

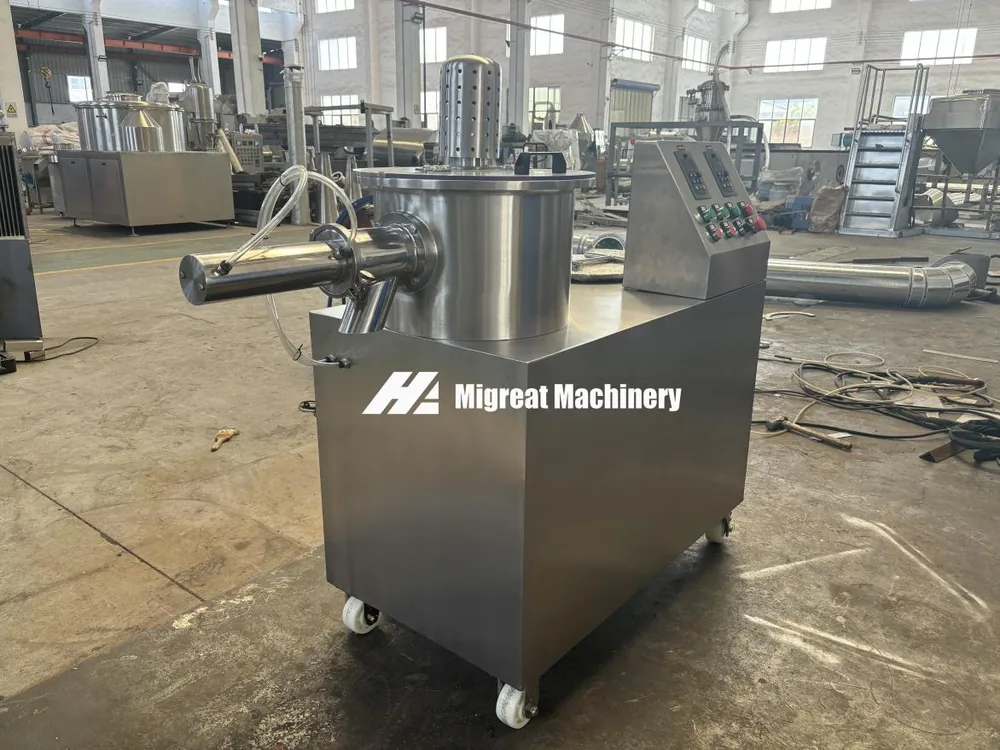

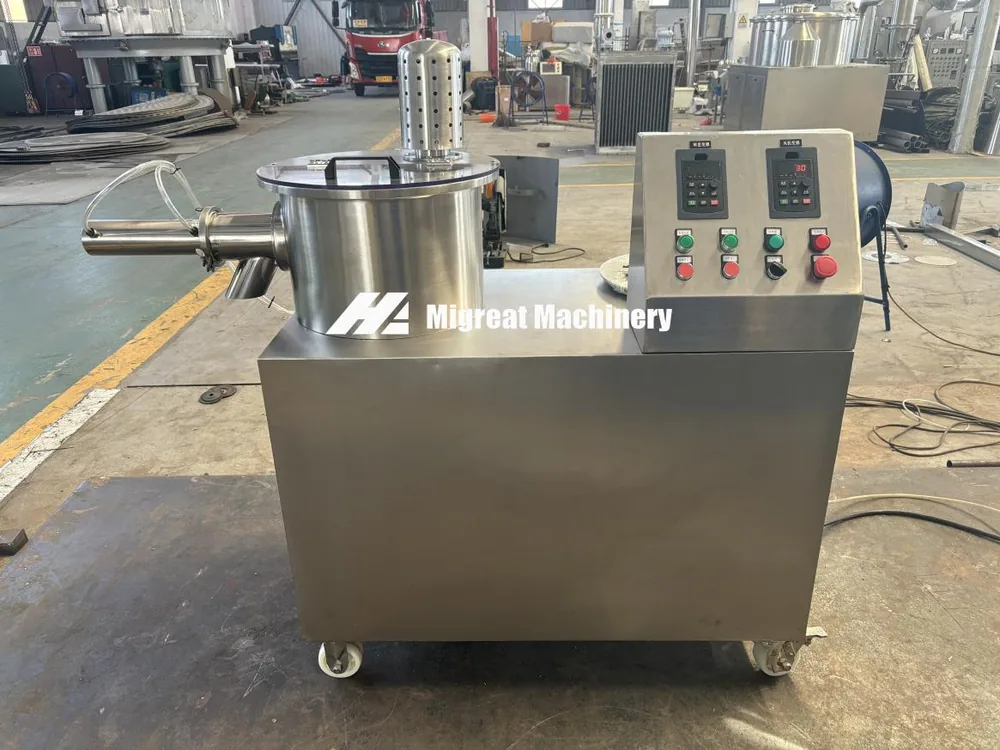

Spheronizer Granulator
A high speed spheronizer that turns extruded particles or moist granules into round pellets.
- Capacity
- 2.5 to 300 kg/h, 6 models
- Power
- 0.55 kW to 7.5 kW
- Models
- QZL-230 to QZL-1300
- Bulk density
- Up to 25% higher
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
From rough granules to round pellets
The QZL multi function high speed spheronizer is widely used in the food and chemical industries to turn extruded particles or moist granules from a mixer or granulator into round spheres.

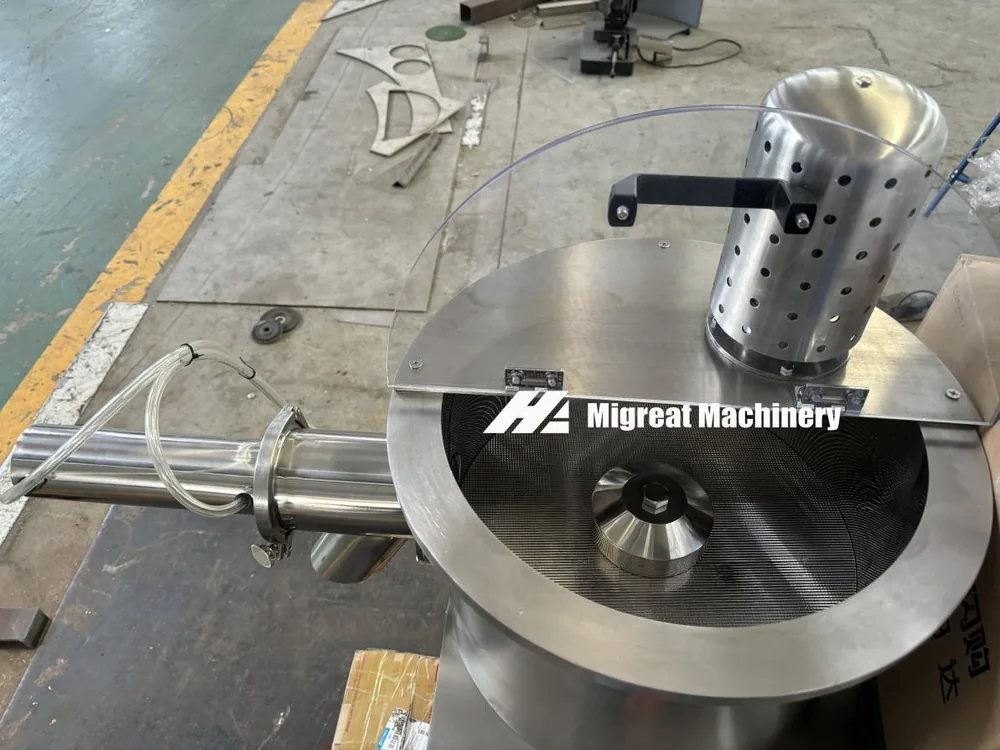

Particles are fed onto a spinning friction plate that throws them against the inside wall of the cylinder. Extruded particles are broken into pieces about one diameter long, and collisions with the wall, the plate and each other round each granule.
Feed
Damp granules are fed onto the rotating centrifugal disk.
Spin

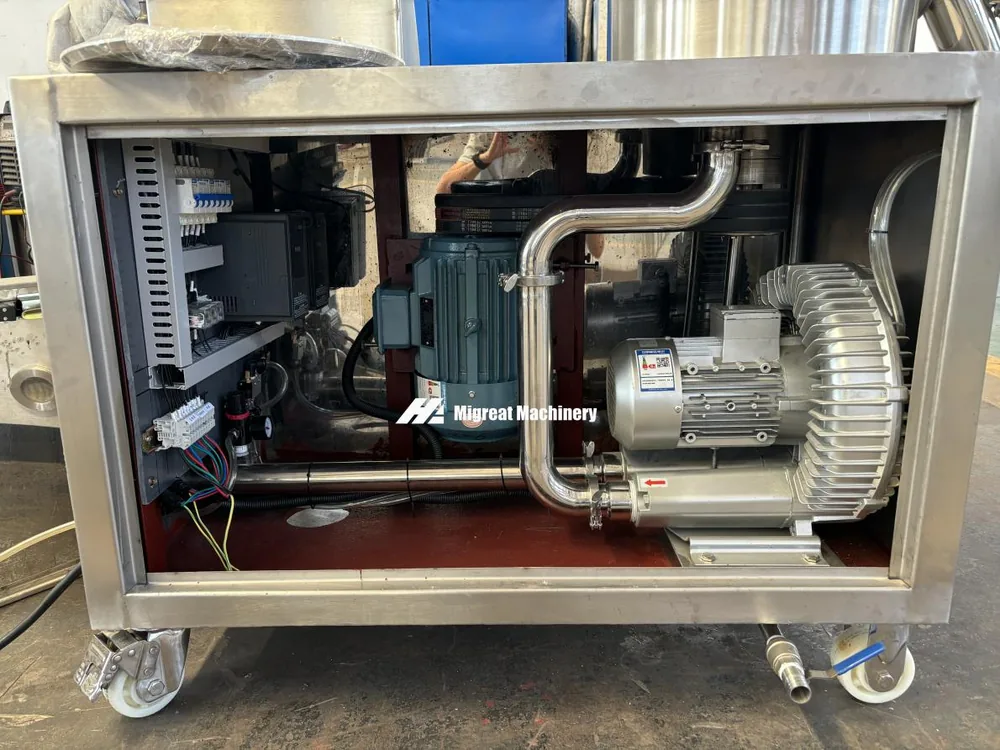

Air from the fan, centrifugal force and gravity keep the particles in a ring of rope-turning motion.
Round
The collisions shape each granule into a high-degree ball. The time needed depends on the formulation.
The range in numbers
- 6Models
From QZL-230 to QZL-1300
- 2.5 to 300kg/h
Capacity
- 0.55 to 7.5kW
Power
- Up to 25%
Higher apparent bulk density
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Smooth, round and dust free
Five effects on the finished particle.
- 01
Smooth surface
A smooth particle surface suits thin layer coating.
- 02
Specific shape
Forms granules with a specific, bio-consumable shape.
- 03
Less dust
Conditions particles so they make less dust and fines in use and shipping.
- 04
Better flow
Removes sticking and bridging points, so flowability improves.
- 05
Higher density
Raises the apparent bulk density by up to 25% compared with extruded material.
- 06
Repeatable
The shape for a given formulation is reached predictably and repeatedly in a brief spheronization time.
Build it your way
Size
Six models from QZL-230 to QZL-1300.
Formulation
Spheronization time is set to your formulation.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Pick the model from the capacity you need.
| Model | Power (kW) | Capacity (kg/h) |
|---|---|---|
| QZL-230 | 0.55 | 2.5~4 |
| QZL-400 | 0.55 | 5~8 |
| QZL-500 | 0.75 | 8~16 |
| QZL-700 | 3 | 40~80 |
| QZL-1000 | 4 | 120~200 |
| QZL-1300 | 7.5 | 150~300 |
Showing 0 of 6 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It rounds extruded particles and moist granules in the food and chemical industries.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does the spheronizer do?
It turns extruded particles or moist granules from a mixer or granulator into round spheres.
02How does it work?
Damp granules go onto a rotating centrifugal disk. Air from a fan, centrifugal force and gravity move them in a ring until they become round pellets.
03What does rounding improve?
The surface is smoother for thin layer coating, dust and fines are reduced, flowability improves and the apparent bulk density rises by up to 25%.
04How long does spheronizing take?
The time depends on the formulation. The shape you want is reached predictably and repeatedly in a brief period.
05Which models are there?
Six models, QZL-230, 400, 500, 700, 1000 and 1300, with capacity from 2.5 to 300 kg/h.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
