01 / 05Grinding · MMJ series
Hammer Mill
A hammer mill system for spices, oily material and fibre. It has a main engine, an auxiliary engine, a dust collector and an electric cabinet.
- Capacity
- 50 to 500 kg/h, 4 models
- Crush size
- 20 to 100 mesh
- Grinding motor
- 18.5 kW to 55 kW
- Design
- GMP, stainless steel
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
A spice mill for oil and fibre

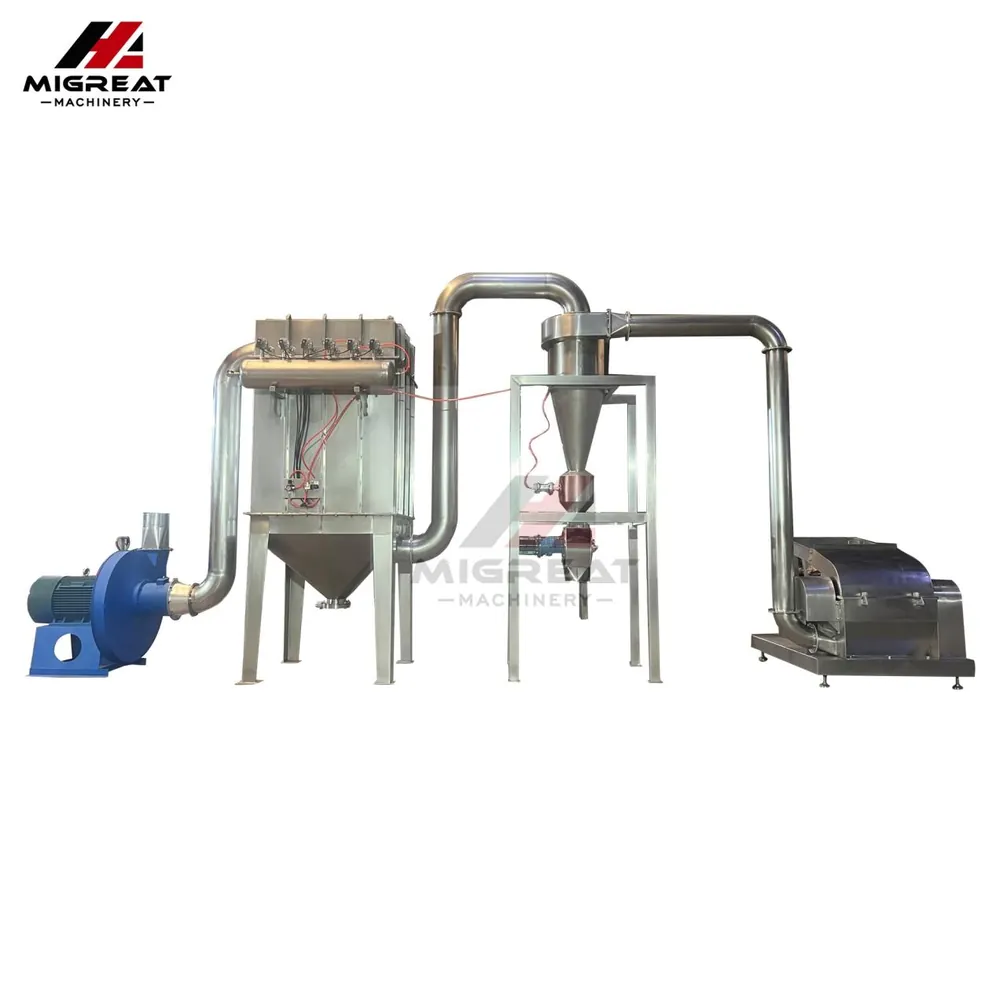

The MMJ hammer mill has four parts: main engine, auxiliary engine, dust collector and electric cabinet. It crushes spices with 10 to 20 percent oil, oily material and fibrous material.
It is mainly used for cumin, caraway seed, pepper, cardamom, dried apple and similar material.
Crush
The fixed disc and the moving hammer work against each other, and the material is crushed by impact in the machine cavity.
Collect
Centrifugal force sends the crushed material into the collecting bag.
Filter
The cloth bag filters dust, and the vacuum box recovers it.
The range in numbers
- 4Models
From MMJ-400 to MMJ-1200
- 50 to 500kg/h
Capacity range
- 20 to 100Mesh
Crush size
- 18.5 to 55kW
Grinding motor

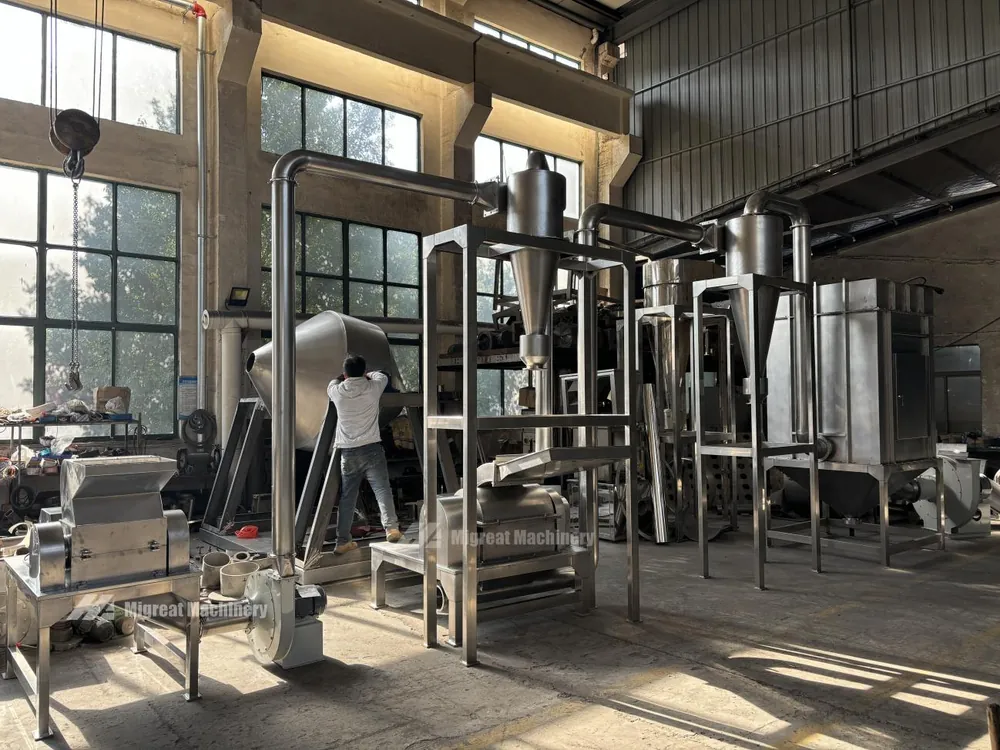

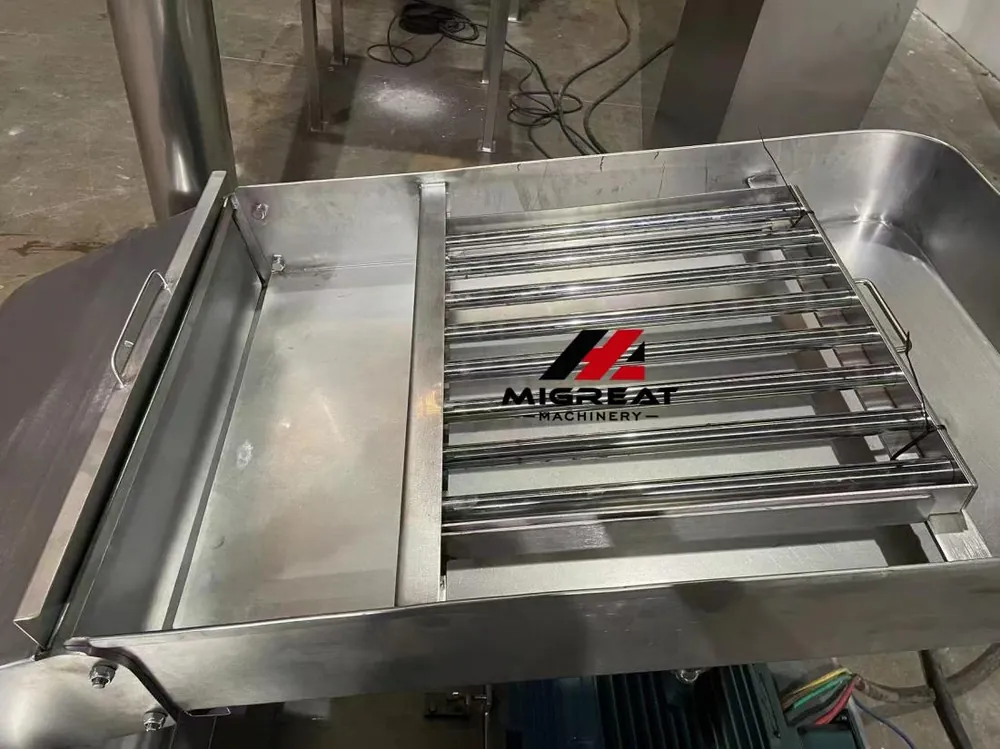

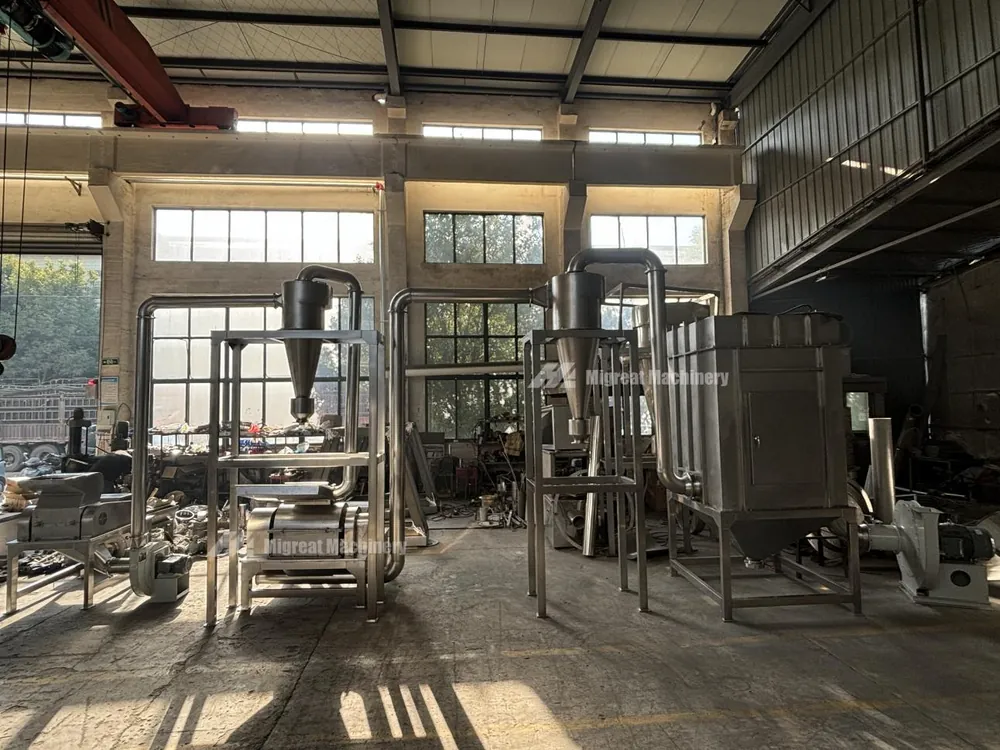

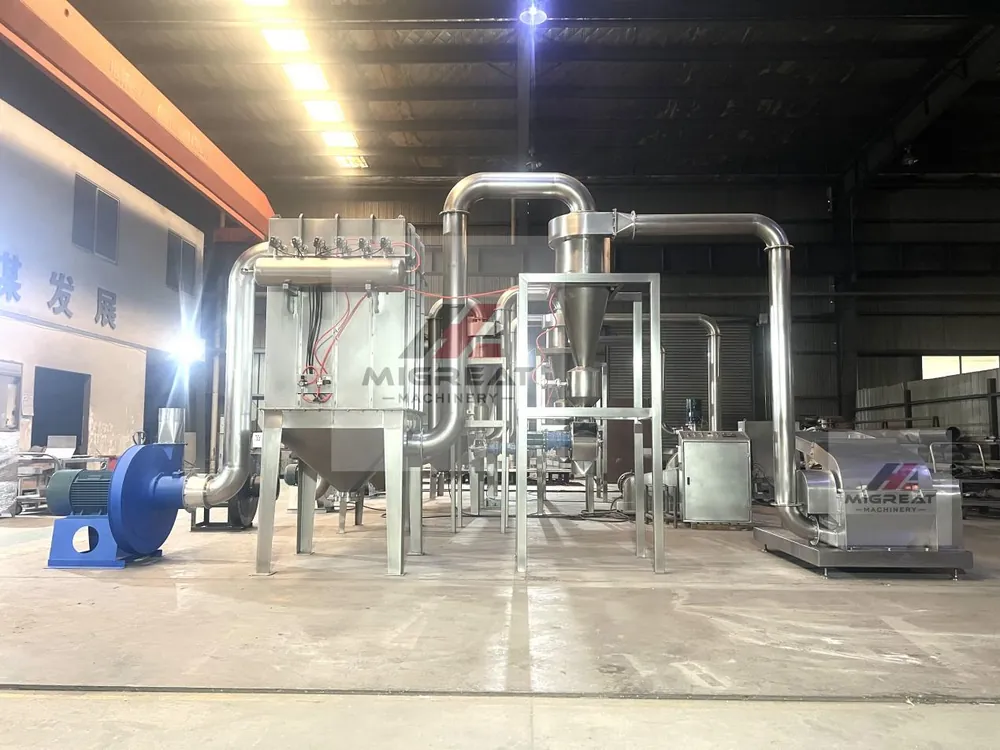

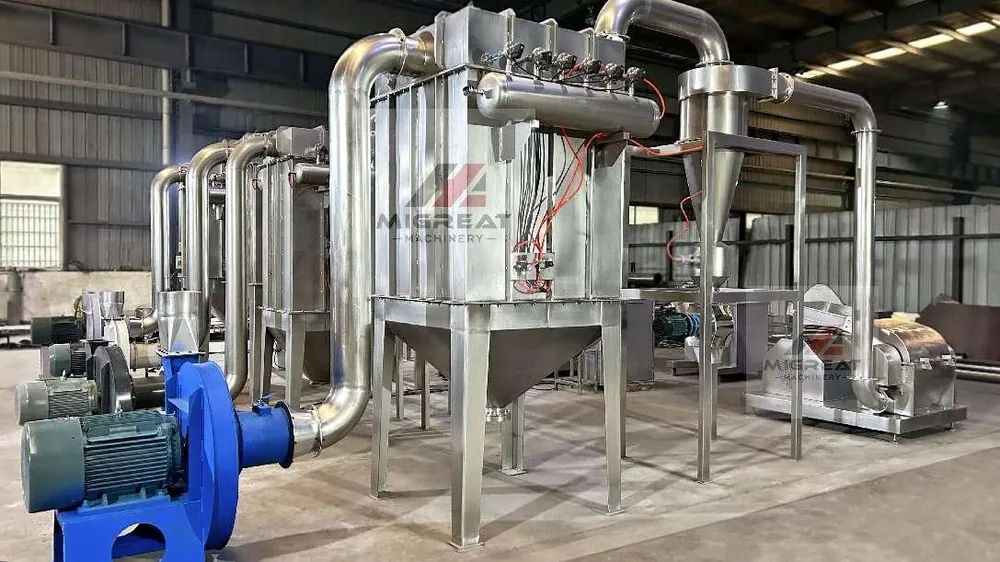

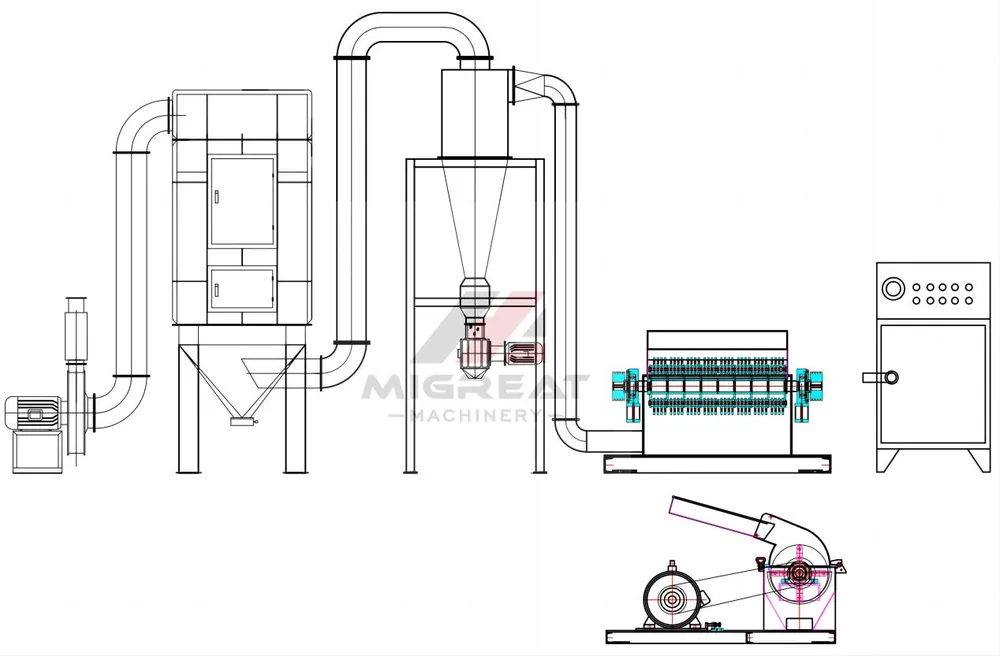

A complete system
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Colour and aroma kept
The mill is designed to GMP standard and is made of stainless steel.
- 01

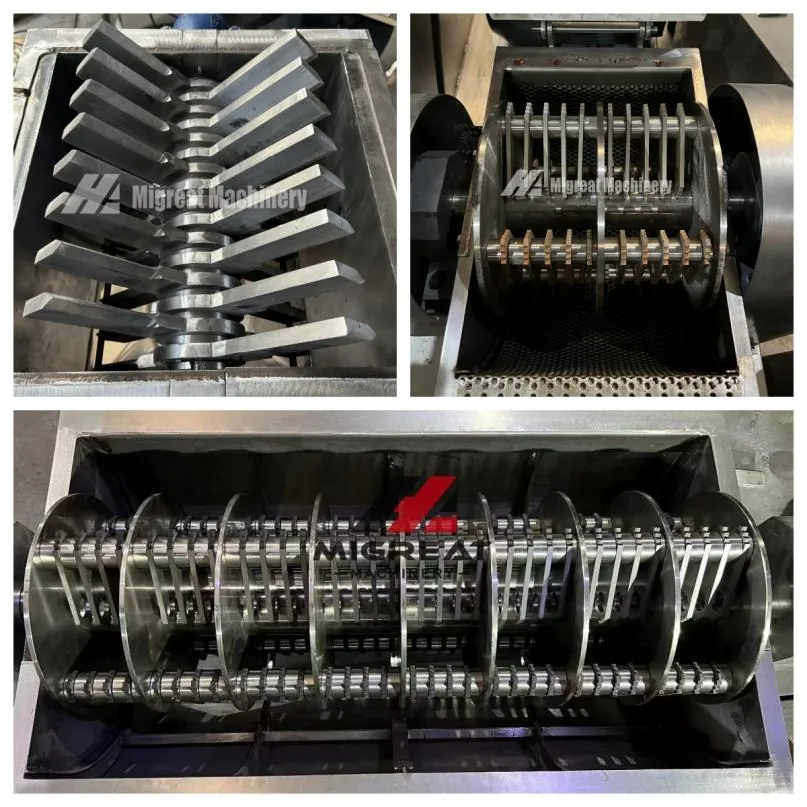

Hammer blades cut fibre
The hammer type blade cuts fibres effectively and does not let fibres block the screen.
- 02
Colour and odour kept
Spices keep their colour and odour during processing.
- 03

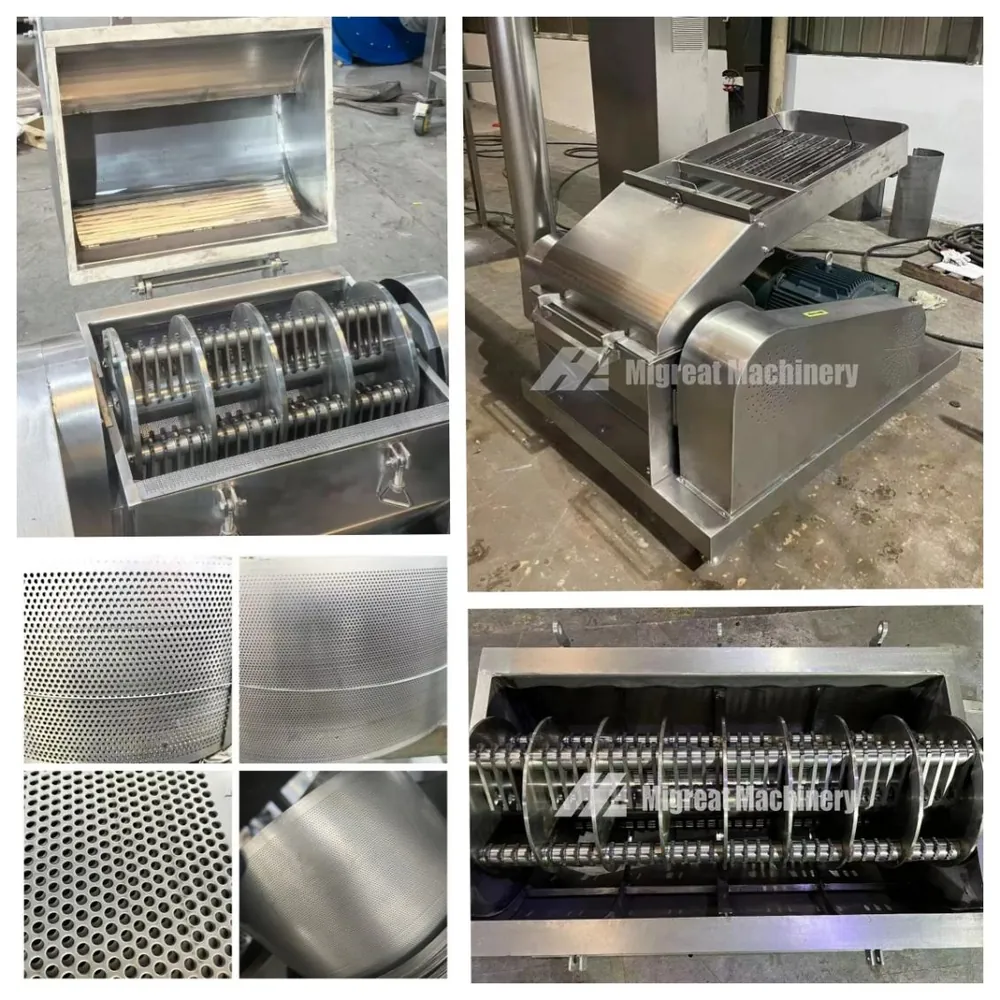

Plug-in screens
Easy screen installation with reliable positioning. The plug-in screen lasts longer than a ring screen.
- 04
No flying dust
Fully enclosed with a dust collector, so there is no flying dust during production.
- 05
Low centre of gravity
The internally mounted motor lowers the centre of gravity and the noise.
- 06
Continuous production
Fineness follows the screen, and production can run continuously.
Build it your way
Fineness
Screens of 20, 40, 60, 80 and 100 mesh.
Size
Four models from MMJ-400 to MMJ-1200.
Material
Stainless steel build to GMP.
System
Main engine, auxiliary engine, dust collector and electric cabinet.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Each system has a grinding motor, a discharge motor and a fan motor.
| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mesh) | Grinding motor (kW) | Discharge motor (kW) | Fan motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| MMJ-400 | 50-150 | ≤20 | 20-100 | 18.5 | 0.75 | 11 | 4500 | 5400 x 1100 x 2700 | 900 |
| MMJ-630 | 80-300 | ≤25 | 20-100 | 30 | 0.75 | 15 | 4300 | 6800 x 1300 x 2900 | 1500 |
| MMJ-1000 | 100-400 | ≤30 | 20-100 | 45 | 1.5 | 22 | 3500 | 7800 x 1600 x 3200 | 1900 |
| MMJ-1200 | 150-500 | ≤30 | 20-100 | 55 | 1.5 | 37 | 3000 | 8800 x 2000 x 3500 | 2500 |
Showing 4 of 4 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It is made for spices, oily materials and fibrous materials.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01Can it grind oily spices?
Yes. It crushes spices with 10 to 20 percent oil, plus oily and fibrous material.
02Will the spices change colour?
No. The colour and odour of the spices do not change during processing.
03Why do fibres not block the screen?
The hammer type blade cuts fibres effectively, so fibres do not block the sieve.
04How do I change the fineness?
Change the screen. Sizes are 20, 40, 60, 80 and 100 mesh.
05How is dust handled?
The dust is filtered by a cloth bag and recovered by the vacuum box, so there is no flying dust.
