01 / 05Grinding · WMF series
Pulse Suction Grinder
A universal grinder with suction discharge, a cyclone collector and a pulse dust collector.
- Capacity
- 50 to 500 kg/h, 4 models
- Crush size
- 20 to 120 mesh
- Grinding motor
- 4 kW to 15 kW
- Output
- 2 to 3 times a universal crusher
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
More output, less dust

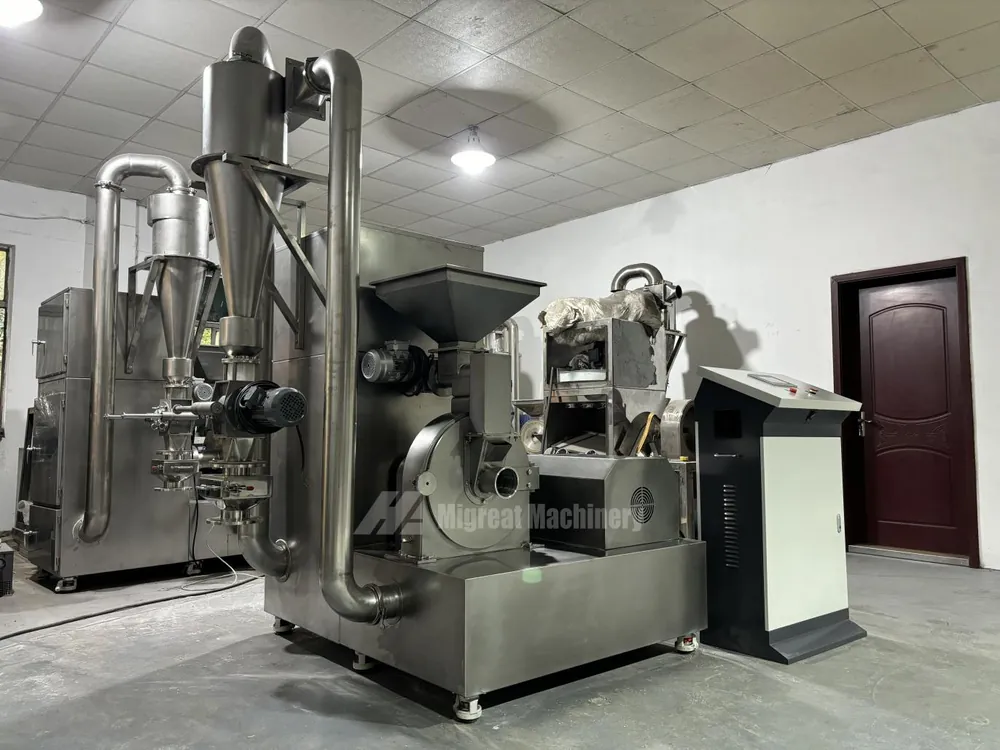

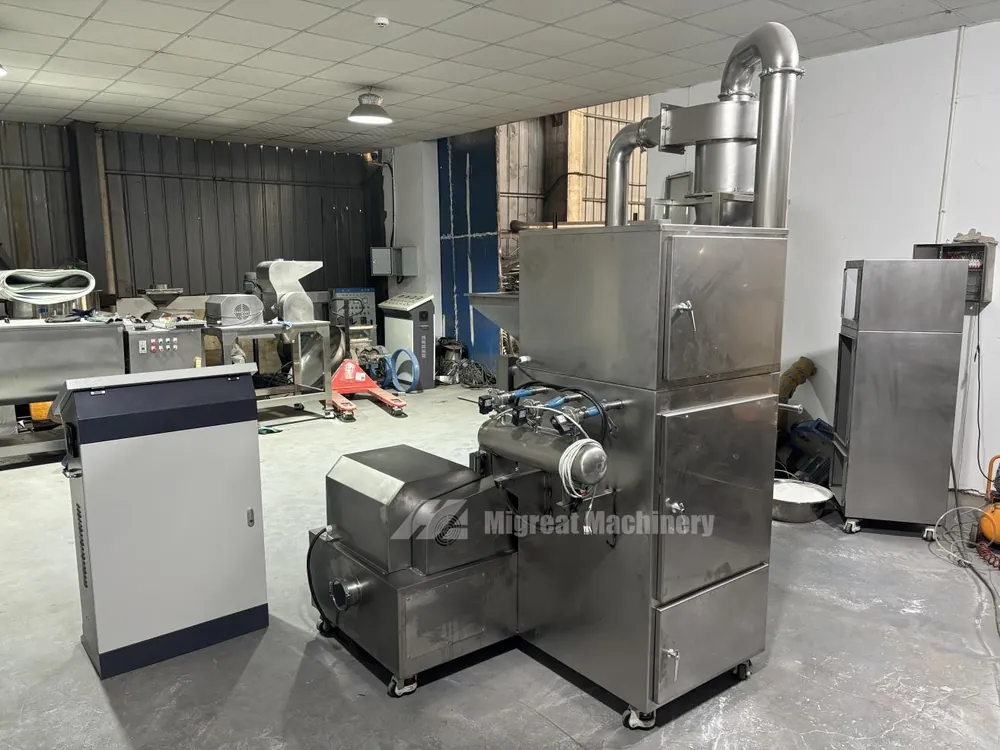

The WMF pulse suction grinder has a crushing chamber, suction device, discharge device, pulse dust collector, induced fan and electrical cabinet. The crushed material is discharged at room temperature, which keeps the material cells intact.
Output is 2 to 3 times that of a universal crusher of the same type.
Crush

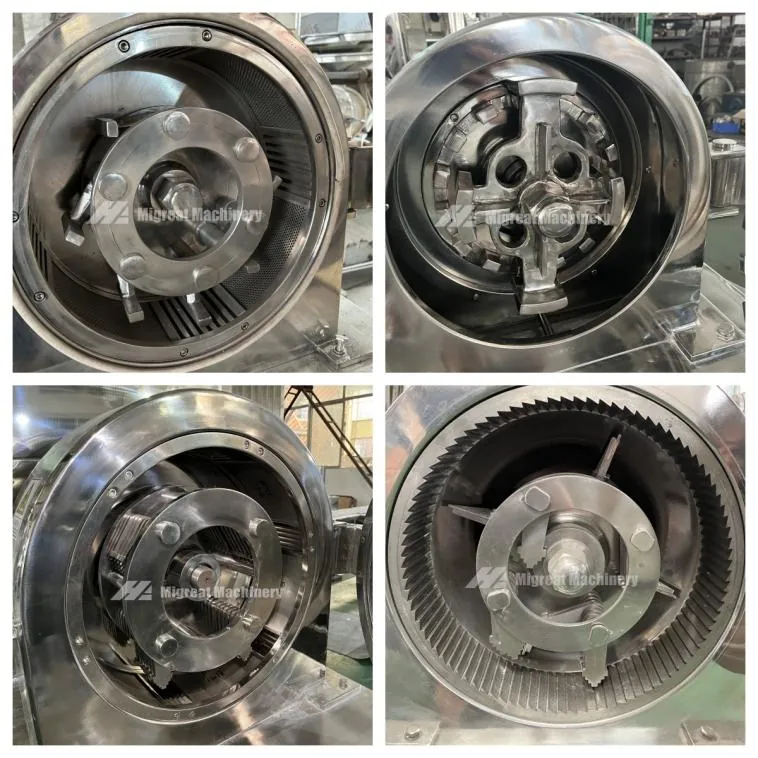

Blades in the crushing chamber throw the material at the gear ring. Impact, shear and friction crush it.

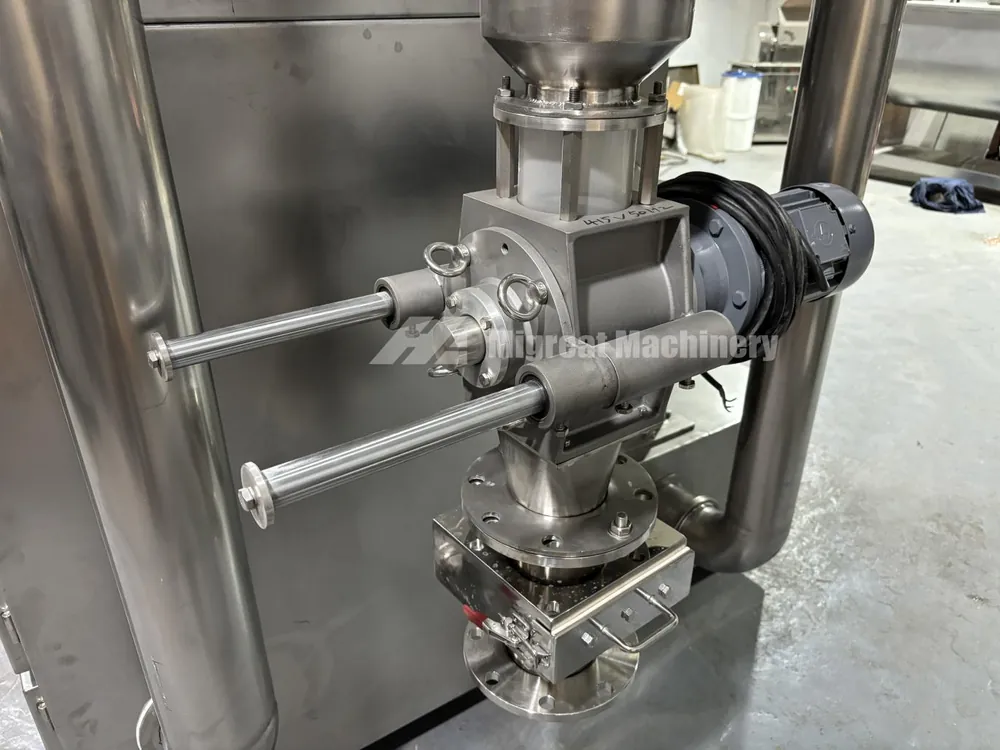

Discharge
Positive pressure airflow from the blades carries fine powder across the screen into the cyclone collector.
Collect

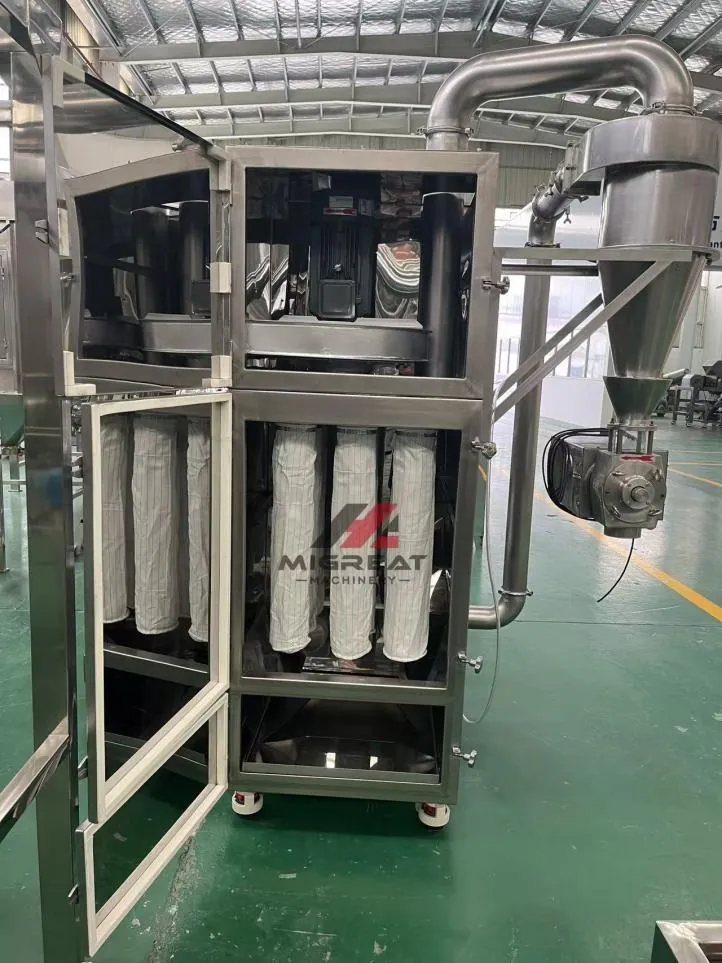

Ultrafine dust is absorbed by the pulse dust collector, and the powder in the bags is recovered.
The range in numbers
- 4Models
From WMF-20 to WMF-50
- 50 to 500kg/h
Capacity range
- 2 to 3 timesOutput
Compared with a universal crusher
- 20 to 120Mesh
Crush size

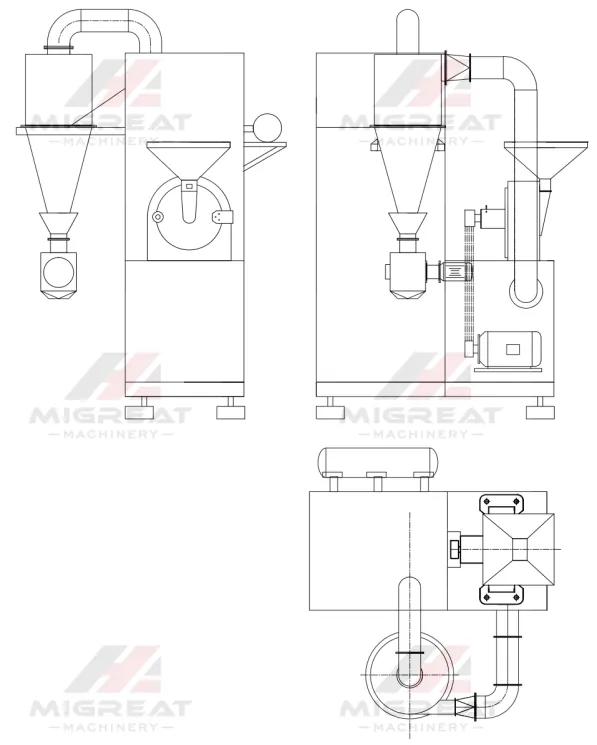

The system
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Room temperature discharge, cleaner air
The system keeps waste discharge within environmental requirements and reduces material loss.
- 01
Higher output
Output is 2 to 3 times that of the same type universal crusher.
- 02
Room temperature discharge
The material cells stay intact.
- 03
Pulse dust collector
Ultrafine dust is collected, so waste discharge meets environmental requirements.
- 04
Less material loss
Fine powder caught in the dust collector bag is recovered.
- 05
Plug-in screens
Easy screen installation with reliable positioning, and a longer life than a ring screen.
- 06
Quiet and stable
The internally mounted motor lowers the centre of gravity and the noise.
Build it your way
Fineness
Screens of 20 to 120 mesh.
Size
Four models, WMF-20 to WMF-50.
Dust control
Pulse dust collector and induced fan.
Material
Stainless steel build.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Each model has a grinding motor, a discharge motor and a fan motor.
| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mesh) | Grinding motor (kW) | Discharge motor (kW) | Fan motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| WMF-20 | 50-150 | ≤10 | 20-120 | 4 | 0.75 | 2.2 | 4500 | 1400 x 1300 x 2000 | 400 |
| WMF-30 | 80-300 | ≤15 | 20-120 | 5.5 | 0.75 | 2.2 | 4300 | 1500 x 1400 x 2000 | 550 |
| WMF-40 | 100-400 | ≤15 | 20-120 | 7.5 | 0.75 | 3 | 3500 | 1600 x 1450 x 2100 | 680 |
| WMF-50 | 150-500 | ≤15 | 20-120 | 15 | 0.75 | 3 | 3000 | 1650 x 1550 x 2100 | 750 |
Showing 4 of 4 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It crushes dry material into powder, from oily and sugary food material to spices and grain.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01How much more does it produce?
Output is 2 to 3 times that of the same type universal crusher.
02Does it make dust?
Ultrafine dust is absorbed by the pulse dust collector, so waste discharge meets environmental requirements.
03Is the powder heated?
The crushed material is discharged at room temperature, which keeps the material cells intact.
04How do I change the fineness?
Change the screen, 20 to 120 mesh.
05What can it grind?
Oily and sugary material such as cooked soybean, chickpea, sugar, salt, star anise, cinnamon, pepper, curry, ginger, rice and tea.
