01 / 05Grinding · MXG series
Impulsive Suction Grinder
A suction grinder with a larger dust collect area, more air volume and faster discharge.
- Capacity
- 100 to 1,500 kg/h, 5 models
- Crush size
- 20 to 120 mesh
- Grinding motor
- 7.5 kW to 45 kW
- Output gain
- 20 to 30 percent
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Faster discharge, 20 to 30 percent more output
The MXG impulsive suction grinder is one of our most recommended grinders. Its dust collect area is larger, the air volume is larger, and discharge is faster. The crushing effect is better than a compact crusher.
An ordinary crusher relies on fans to discharge powder. The MXG has a turbine that speeds up powder discharge and increases air volume.
Crush

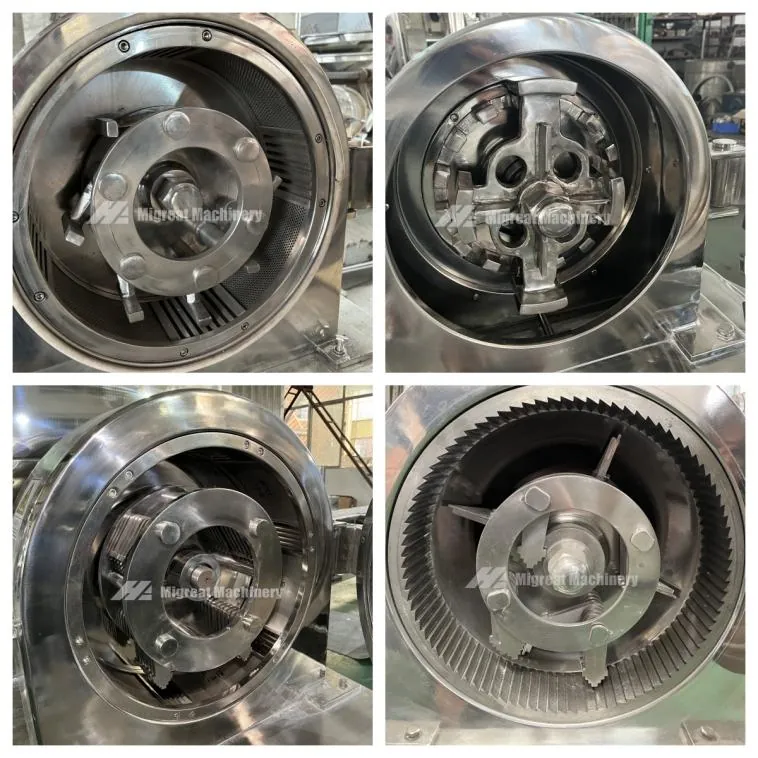

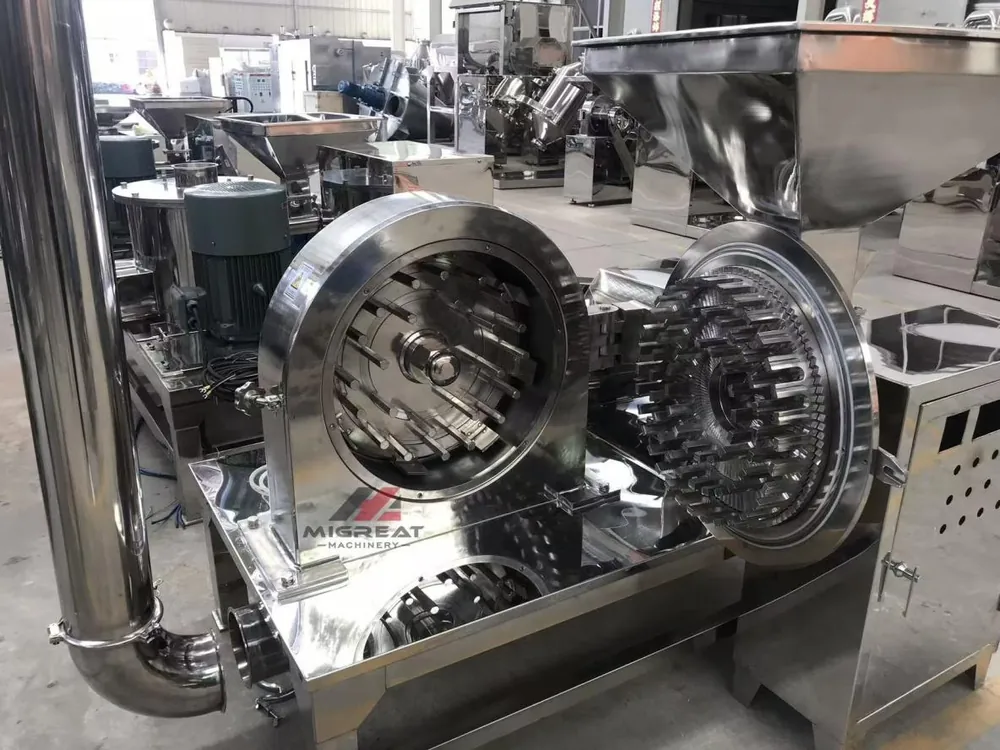

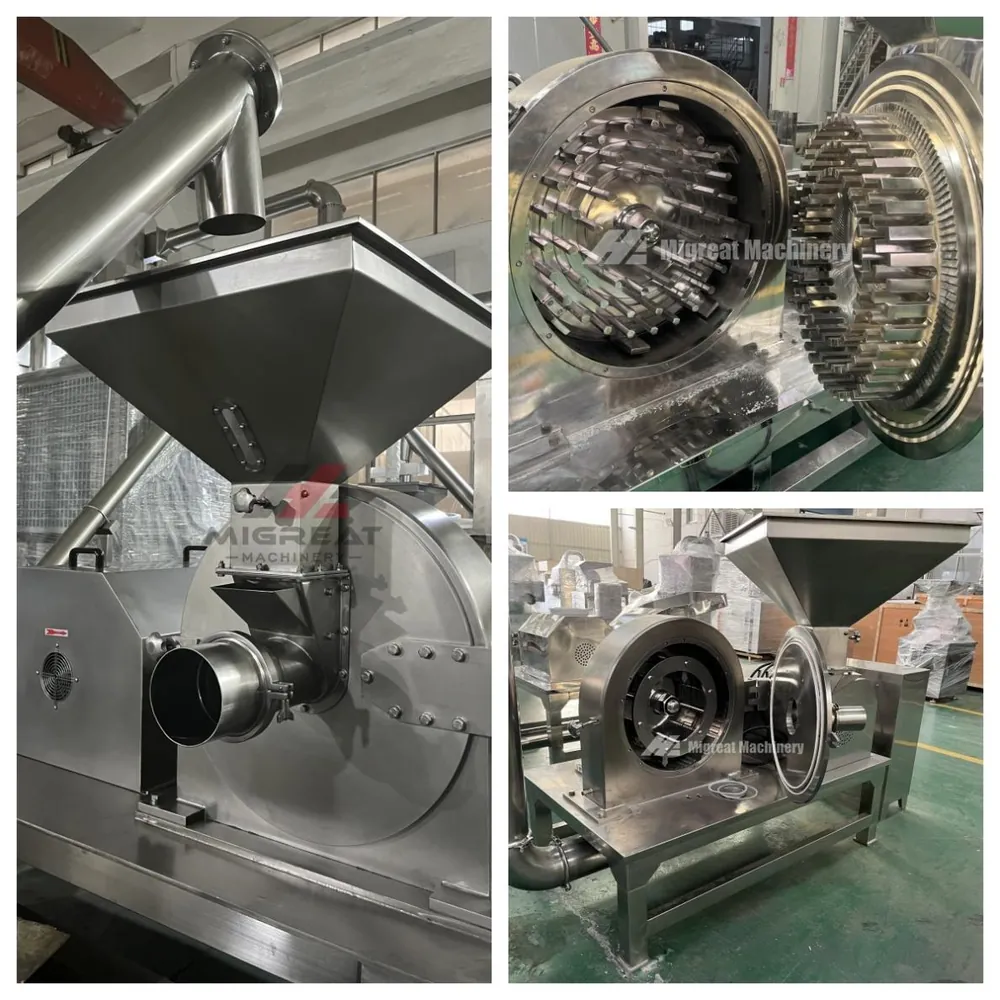

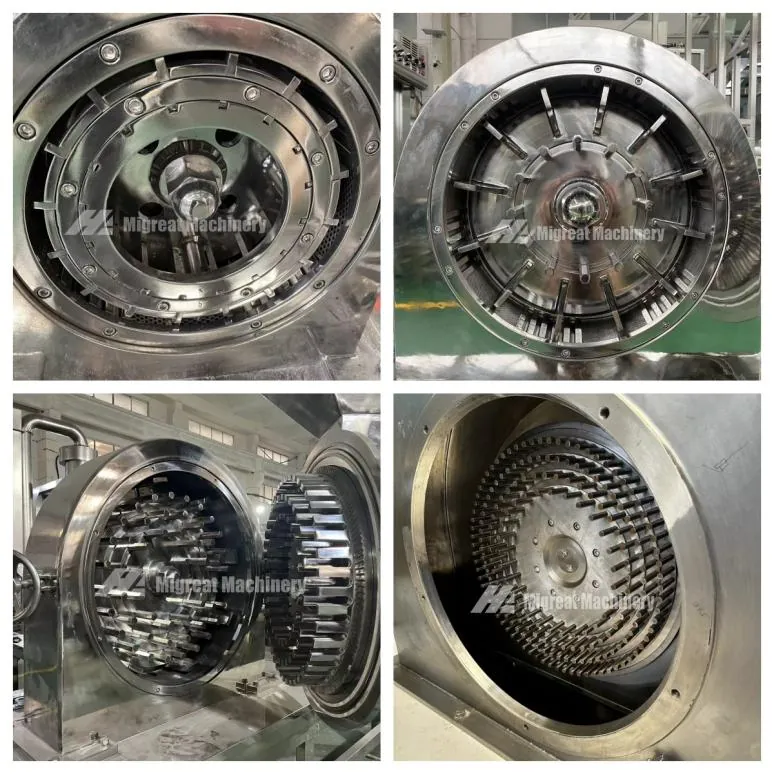

The toothed disc rotating knife and the fixed knife crush by impact and shear.
Suction
The turbine accelerates the discharge of powder from the chamber.
Collect

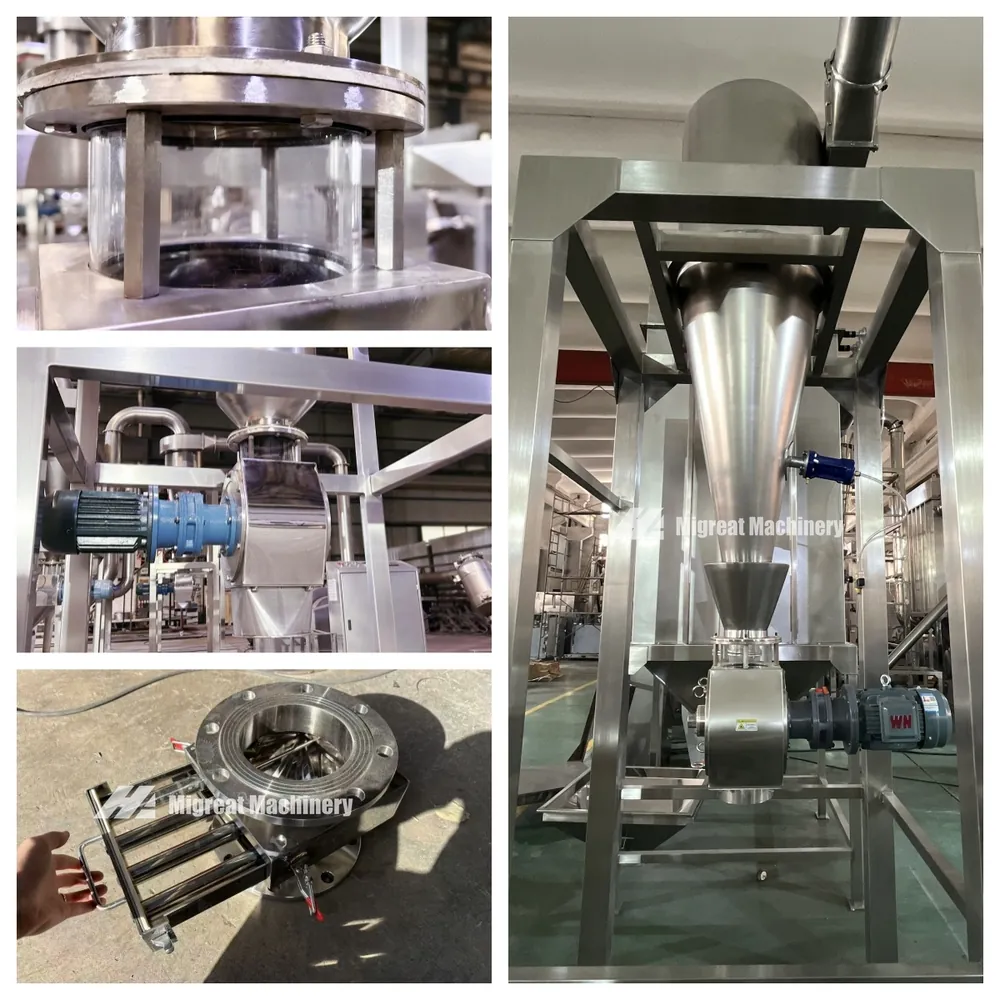

Material enters the capture bag by centrifugal force. A bag filter box recycles the dust.
The range in numbers
- 5Models
From MXG-400 to MXG-1000
- 100 to 1,500kg/h
Capacity range
- 20 to 30%More output
Than a regular crusher
- 20 to 120Mesh
Crush size

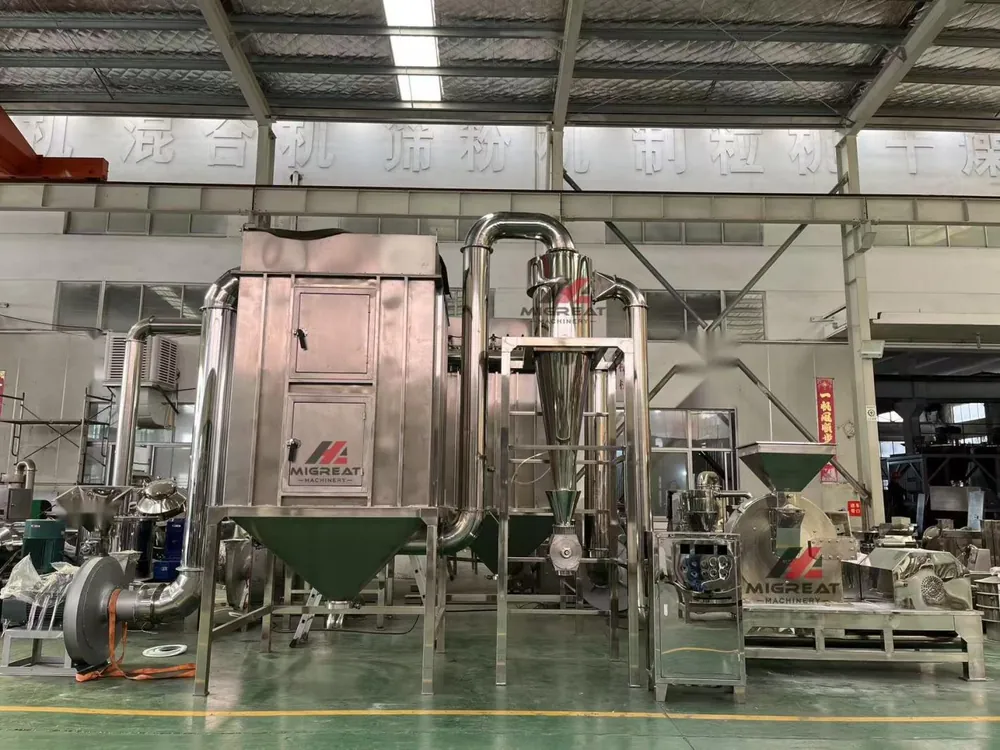

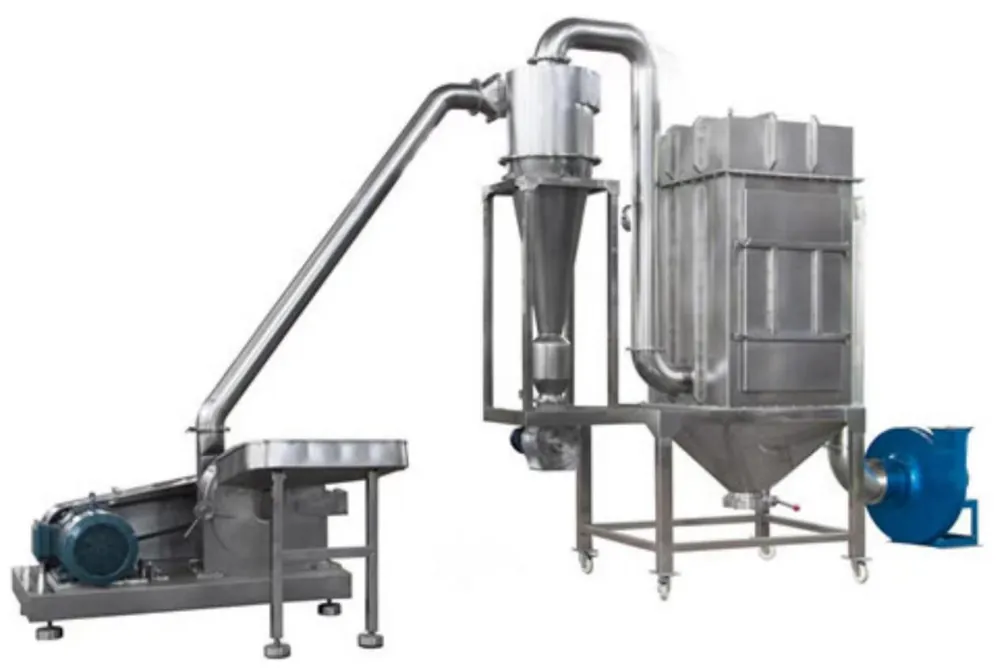

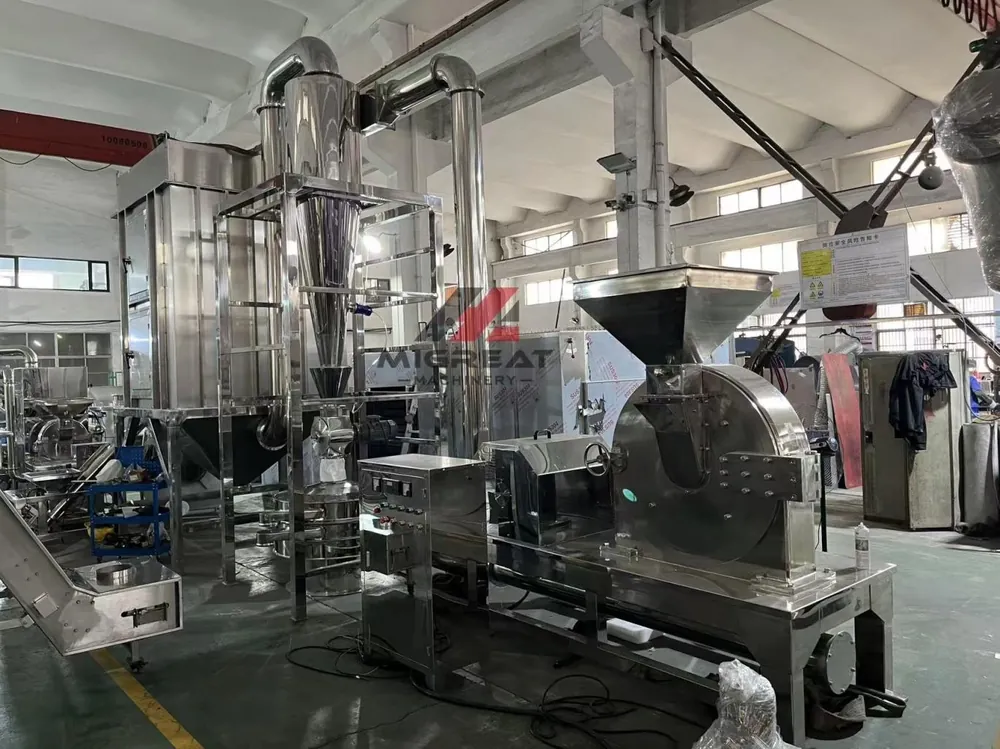

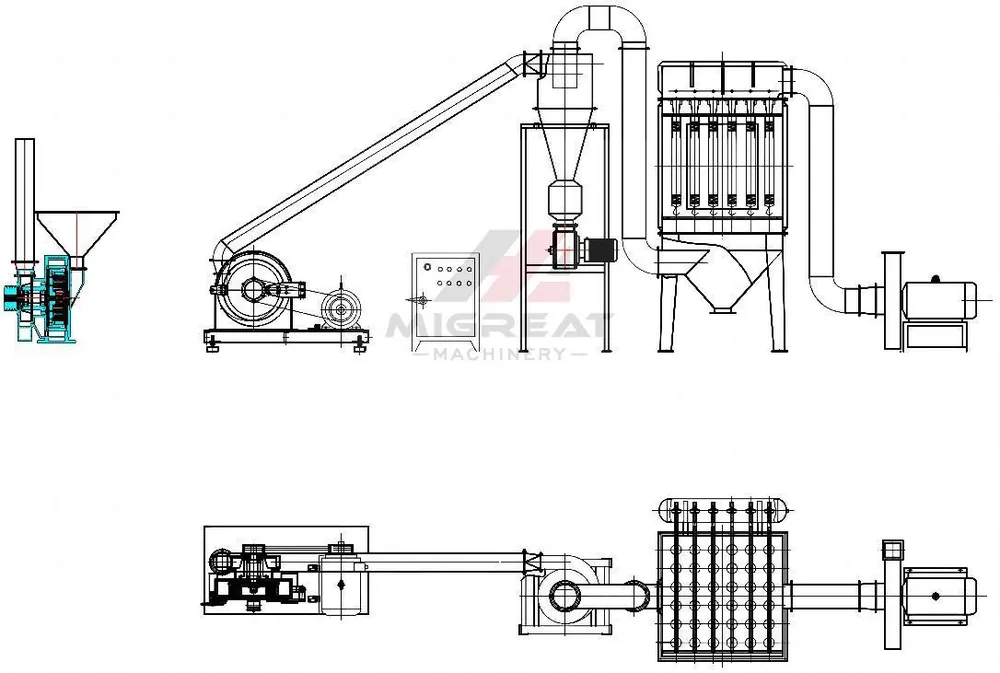

The system
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Built for higher output
The machine is designed to GMP standard and is made of stainless steel.
- 01
Suction turbine
The turbine speeds up powder discharge and raises air volume, so output is 20 to 30 percent higher than a regular crusher.
- 02
Output 2 to 3 times
Output is 2 to 3 times that of the same type universal crusher.
- 03
Room temperature discharge
Material cells stay intact.
- 04
Pulse dust collector
The set includes a pulse dust collector and induced fan.
- 05
Plug-in screens
Easy screen installation with a longer life than a ring screen.
- 06
Quiet running
The internally mounted motor lowers the centre of gravity and the noise.
Build it your way
Fineness
Screens of 20 to 120 mesh.
Size
Five models, MXG-400 to MXG-1000.
Dust control
Pulse dust collector.
Material
Stainless steel build.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Each model has a grinding motor, a discharge motor and a fan motor.
| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mesh) | Grinding motor (kW) | Discharge motor (kW) | Fan motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| MXG-400 | 100-400 | ≤10 | 20-120 | 7.5 | 0.75 | 2.2 | 4500 | 5000 x 1000 x 2700 | 900 |
| MXG-500 | 200-500 | ≤15 | 20-120 | 15 | 0.75 | 7.5 | 4300 | 5500 x 1200 x 2800 | 1200 |
| MXG-600 | 300-600 | ≤15 | 20-120 | 22 | 0.75 | 11 | 3500 | 6500 x 1400 x 2900 | 1500 |
| MXG-800 | 400-800 | ≤15 | 20-120 | 37 | 1.5 | 22 | 3000 | 7500 x 1600 x 3500 | 2000 |
| MXG-1000 | 500-1500 | ≤15 | 20-120 | 45 | 1.5 | 30 | 3000 | 8500 x 2000 x 4300 | 2500 |
Showing 5 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It crushes dry material into powder, from oily and sugary food material to spices and grain.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What makes the MXG different?
A turbine speeds up the discharge of powder from the crushing chamber and raises air volume. Output is 20 to 30 percent higher than a regular crusher.
02How big is the dust collection?
The dust collect area is larger, the air volume is larger and discharge is faster than on a compact crusher.
03Is the powder heated?
The crushed material is discharged at room temperature, which keeps the material cells intact.
04How do I change the fineness?
Change the screen, 20 to 120 mesh.
05Which model should I pick?
Choose by capacity. MXG-400 handles 100 to 400 kg/h and MXG-1000 handles 500 to 1,500 kg/h.
