01 / 03Grinding · MHC series

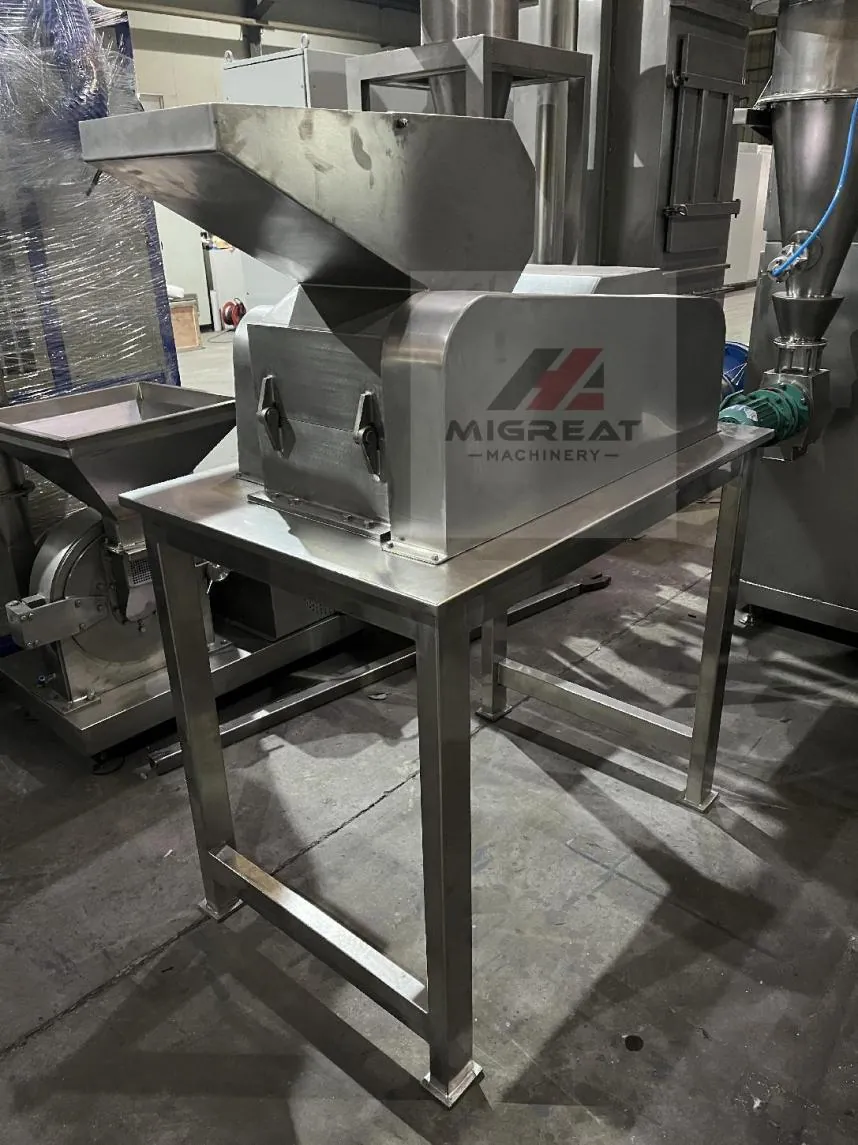

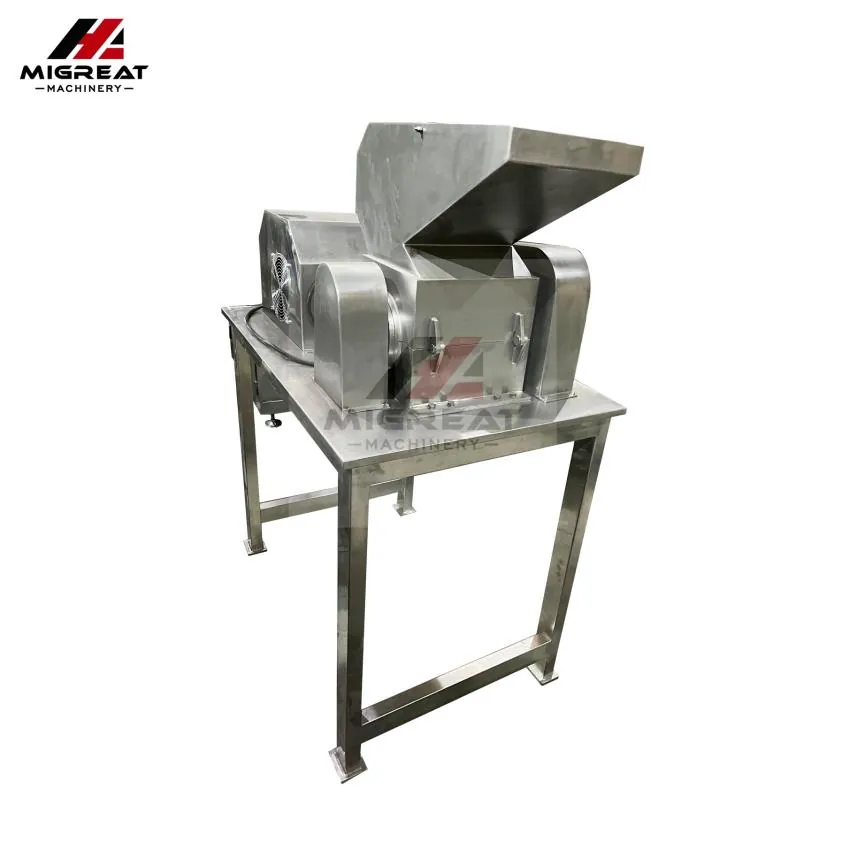

Horizontal Coarse Crusher
A horizontal coarse crusher with rotary and fixed knives. It crushes large pieces to 2 to 20 mm before fine grinding.
- Capacity
- 10 to 800 kg/h, 5 models
- Output size
- 0.5 to 20 mm
- Motor
- 1.5 kW to 37 kW
- Screen
- 2, 3, 6 or 10 mm
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Horizontal crushing for rough work
The MHC horizontal coarse crusher crushes large pieces of material into small particles of 2 to 20 mm, such as spices, Himalayan salt and herbs.
It is a complete set of equipment before the micro grinding process, and it can crush any material well.
Feed
Material enters the horizontal crushing chamber from the hopper.
Crush
The rotary knife and the fixed knife crush it by impact and shearing.
Discharge
Centrifugal force moves the crushed material to the outlet through the screen.
The range in numbers
- 5Models
From 80 to 1000
- 10 to 800kg/h
Capacity range
- 0.5 to 20mm
Output size
- 1.5 to 37kW
Motor
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Strong cut, simple to clean
The machine is wholly made of stainless steel with a simple structure.
- 01
Any material
It is not limited by the viscosity, hardness, softness or fibre of the material.
- 02

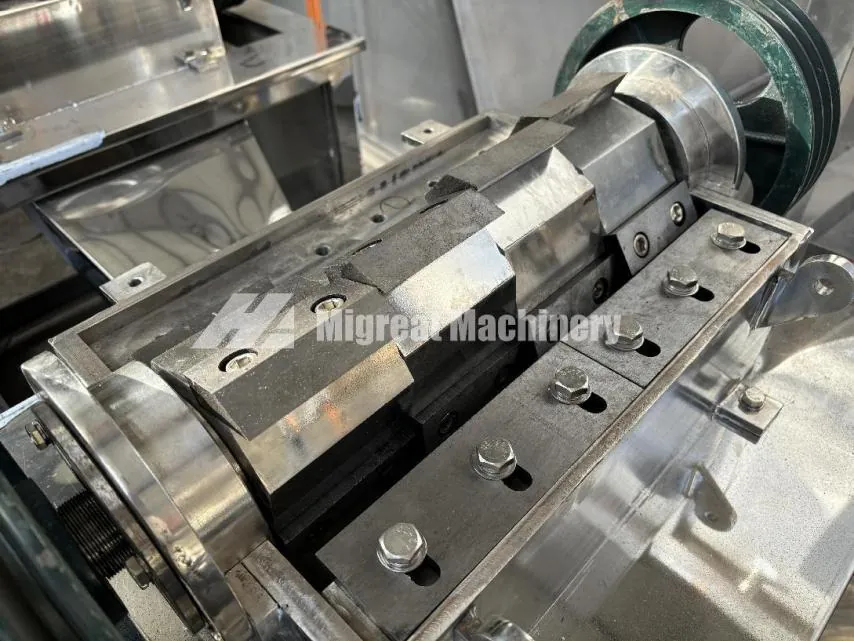

Rotary and fixed knives
Material is crushed by the impact and shearing of the rotary knife and the fixed knife.
- 03
Screen sets output size
Change the screen to get 2 mm, 3 mm, 6 mm or 10 mm pieces.
- 04
Stainless steel
The whole machine is stainless steel.
- 05
Easy to clean
Simple structure and convenient cleaning.
- 06
Low noise
Low noise while crushing.
Build it your way
Output size
Screens of 2, 3, 6 and 10 mm.
Size
Five models by capacity.
Contact material
SS304 crushing chambers and blades.
Next step
Pair it with a fine grinder for micro grinding.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity

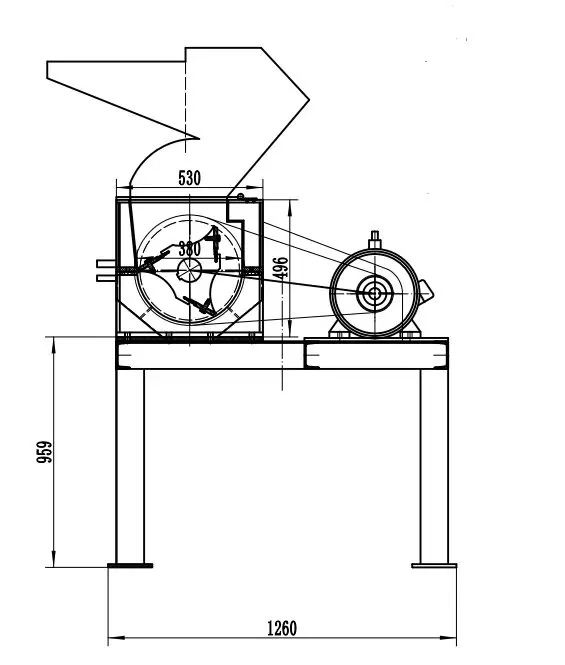

Model numbers follow the data sheet we hold for this machine.
| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mm) | Motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| MHC-80 | 10-80 | ≤50 | 0.5-20 | 1.5 | 500 | 510 x 450 x 980 | 180 |
| MHC-200 | 50-200 | ≤100 | 0.5-20 | 5.5 | 500 | 650 x 500 x 1100 | 280 |
| MHC-300 | 100-400 | ≤100 | 0.5-20 | 11 | 400 | 900 x 700 x 1400 | 380 |
| MHC-800 | 200-600 | ≤150 | 0.5-20 | 22 | 400 | 1200 x 1200 x 1700 | 450 |
| MHC-1000 | 300-800 | ≤150 | 0.5-20 | 37 | 400 | 1500 x 1500 x 2200 | 650 |
Showing 5 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It crushes large pieces of spices, Himalayan salt and herbs into small particles of 2 to 20 mm. It is used in pharmaceutical, chemical and food industries, and is a complete set of equipment before the micro grinding process.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01How big are the pieces?
The machine crushes large pieces into particles of 2 to 20 mm, depending on the screen.
02What material can it crush?
It is not limited by the viscosity, hardness, softness or fibre of the material, and is suited to spices, Himalayan salt and herbs.
03How do I change the output size?
Change the screen. Screens of 2, 3, 6 and 10 mm are available.
04How does it crush?
The rotary knife and the fixed knife crush the material by impact and shearing. Centrifugal force moves the crushed material to the outlet.
05What is it used for?
It is a complete set of equipment before the micro grinding process.
