01 / 05Grinding · GFS series

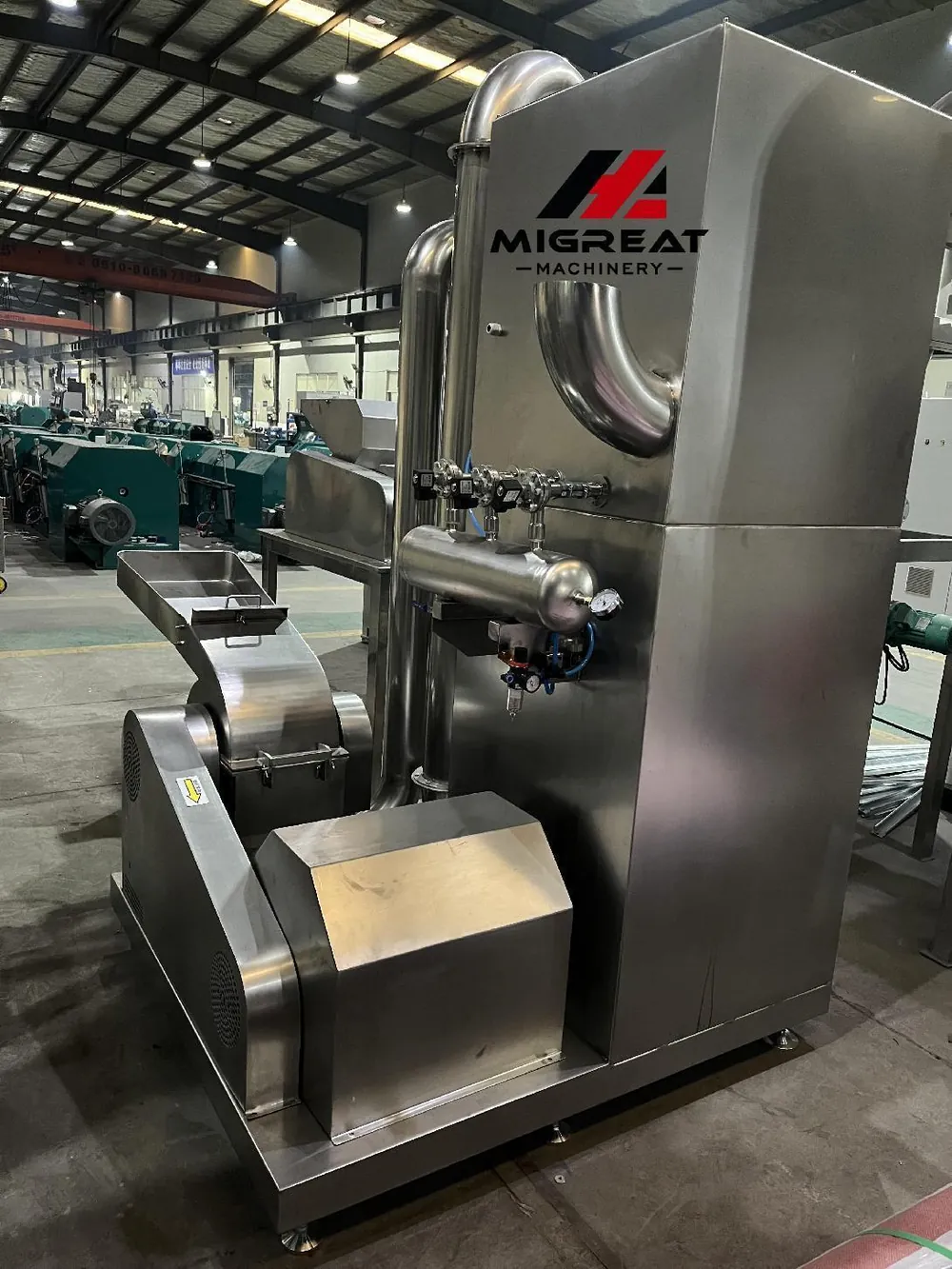

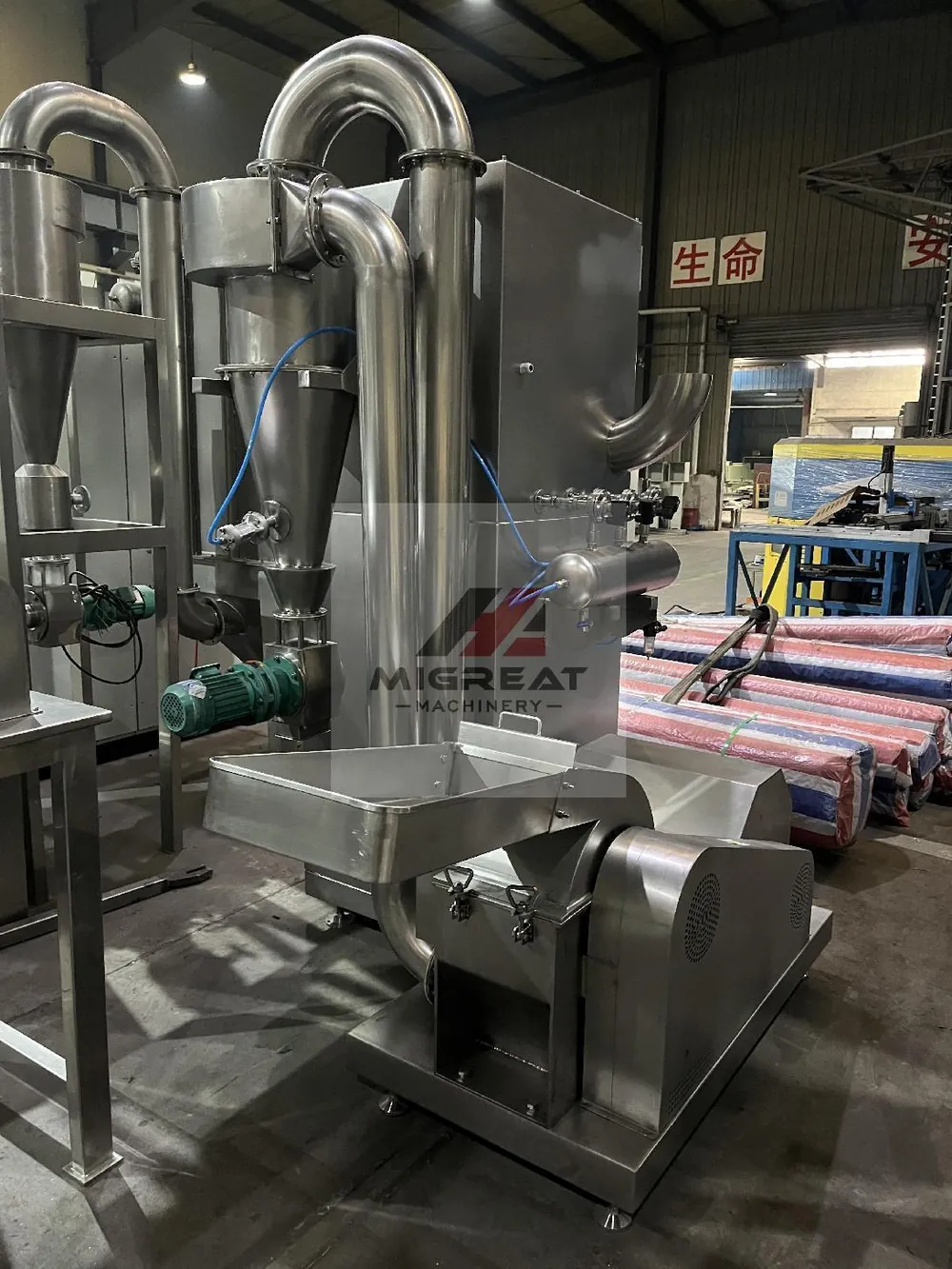

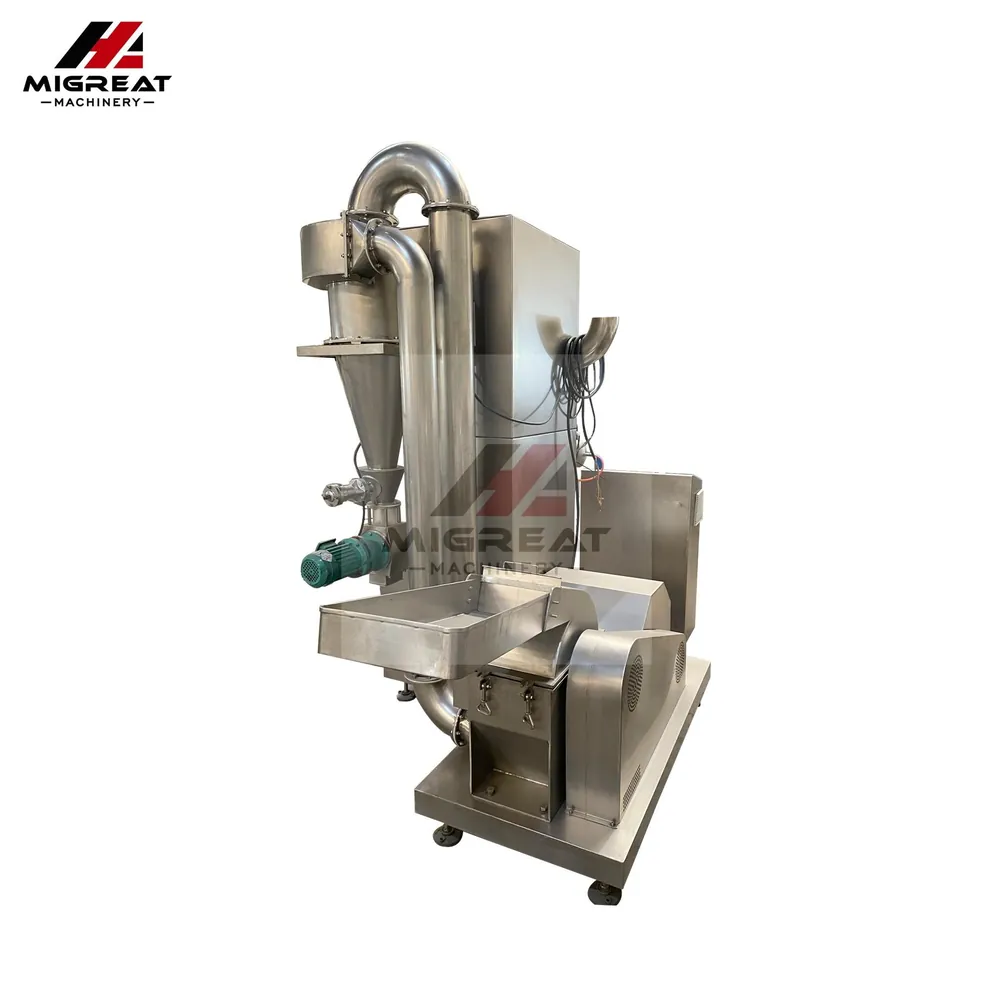

Hammer Mill with Dust Collector
A hammer mill for spices and herbs with a pulse dust collector and cyclone discharge, so no dust gets into the air.
- Capacity
- 10 to 300 kg/h, 2 models
- Crush size
- 5 to 100 mesh
- Grinding motor
- 4 kW or 11 kW
- Dust control
- Pulse collector and cyclone
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Spice grinding without dust in the air
This GFS hammer mill adds a pulse collector and a cyclone discharge part. There is no dust in the air while it works, and the discharge is continuous.
It is especially suited to spices and herbs. With stimulating flavours, the dust removal system keeps dust from flying into the air.
Cut

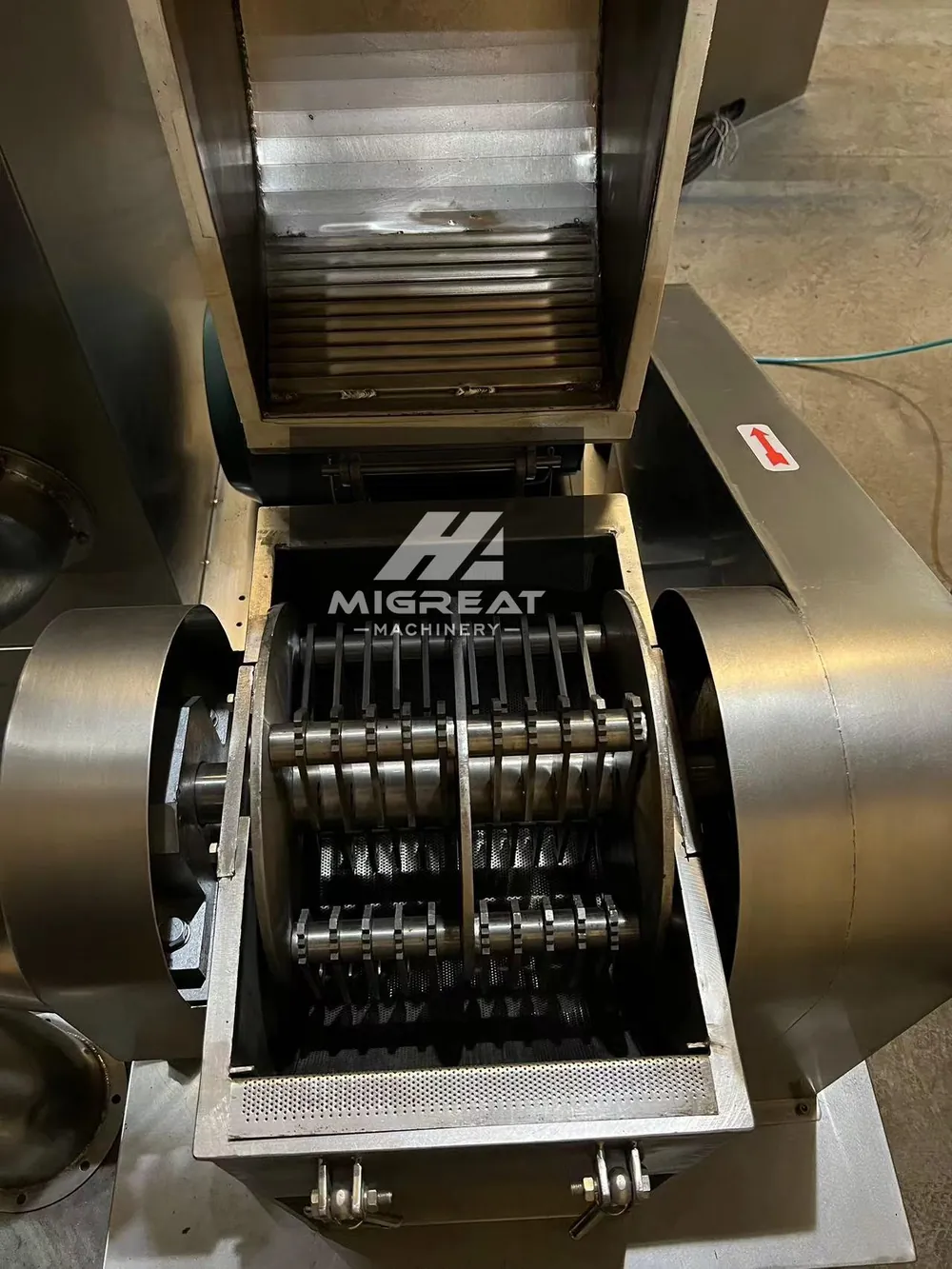

The hammer blades crush the raw material at high speed.
Screen
Powder passes through the screen. Screens run from 10 to 100 mesh.
Collect

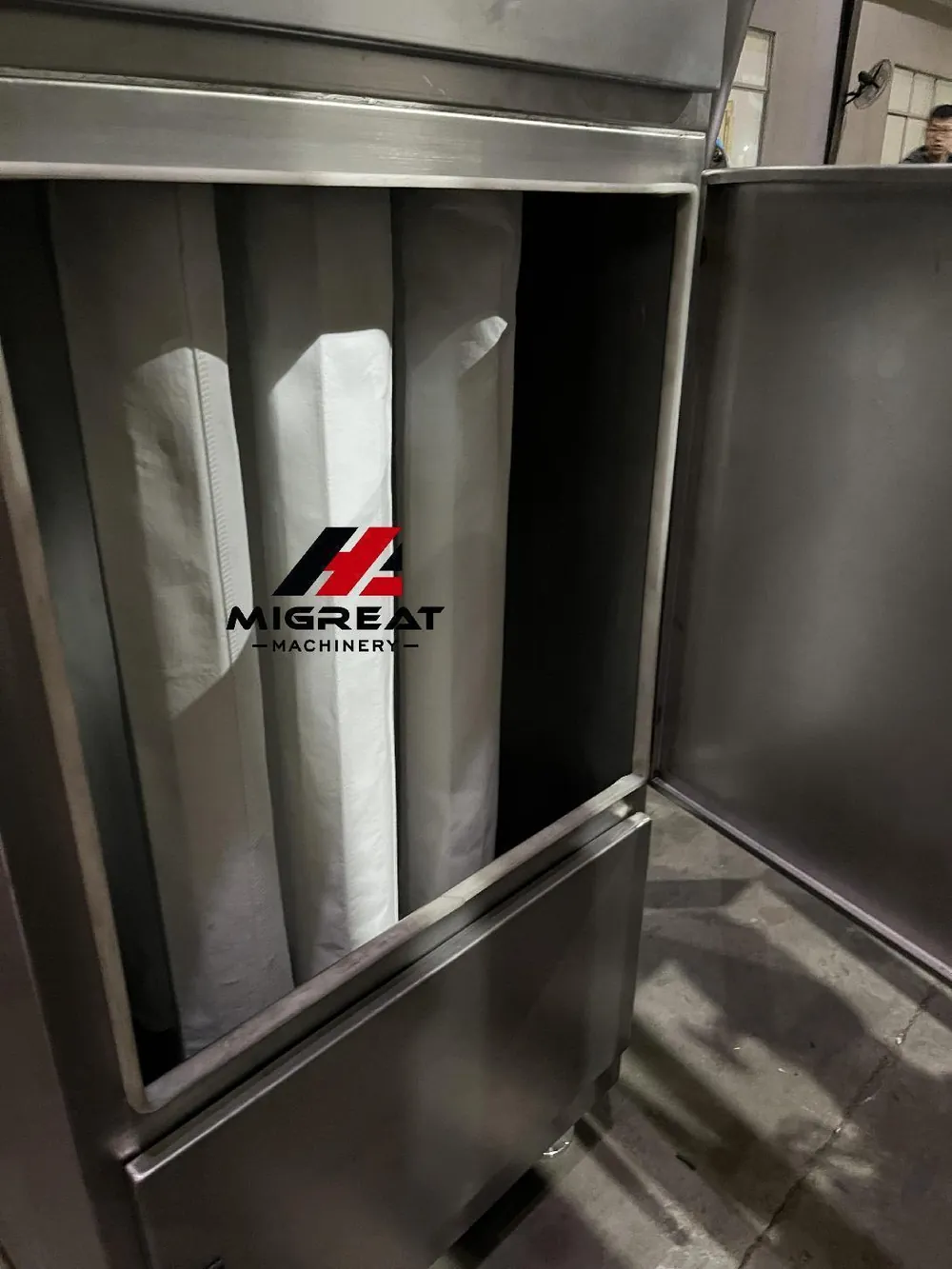

The cyclone discharges the powder. The pulse collector holds the dust.
The range in numbers
- 2Models
GFS-80 and GFS-200
- 10 to 300kg/h
Capacity range
- 5 to 100Mesh
Crush size
- 3Motors
Grinding, discharge and fan
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Clean air, continuous discharge
The set adds dust removal to the standard GFS hammer mill.
- 01
No dust in the air
The pulse collector and cyclone discharge stop dust from escaping while the mill works.
- 02
Continuous discharge
The cyclone discharges powder continuously.
- 03
Strong flavour materials
The dust removal system keeps stimulating dust out of the air.
- 04
Replaceable screens
Change the screen from 10 to 100 mesh for a different fineness.
- 05
Cooling option
Add a cold air fan for heat sensitive material.
- 06
Easy to clean
Simple structure, easy to install, take apart and clean.
Build it your way
Fineness
Screens of 10, 20, 40, 60, 80 and 100 mesh.
Cooling
Cold air fan for heat sensitive material.
Motors
Three motors: grinding, discharge and fan, set by model.
Contact material
SS304.
Size
Two models, GFS-80 and GFS-200.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Both models carry three motors.

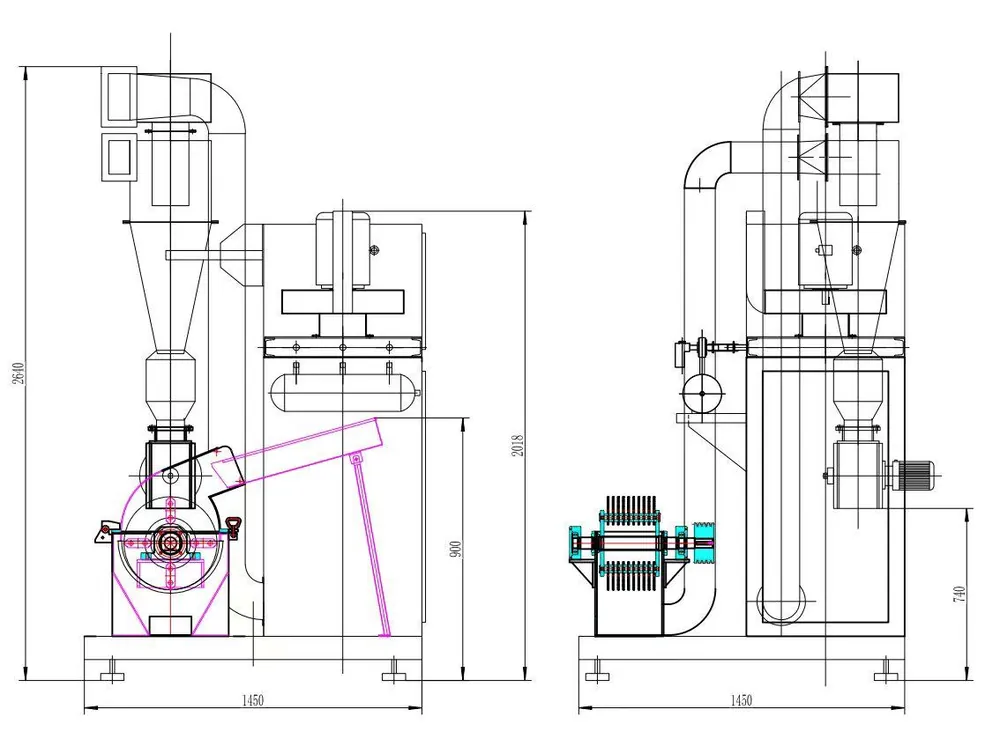

| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mesh) | Grinding motor (kW) | Discharge motor (kW) | Fan motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| GFS-80 | 10-100 | ≤25 | 5-100 | 4 | 0.75 | 2.2 | 4000 | 1400 x 1300 x 2000 | 400 |
| GFS-200 | 50-300 | ≤25 | 5-100 | 11 | 0.75 | 4 | 3800 | 1500 x 1400 x 2000 | 550 |
Showing 2 of 2 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It suits dusty and strongly flavoured spices and herbs.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What is different from the standard GFS hammer mill?
This version adds a pulse collector and a cyclone discharge part, so no dust gets into the air and discharge is continuous.
02Is it good for strong spices?
Yes. With stimulating flavours, the dust removal system effectively keeps dust out of the air.
03How do I set the fineness?
Replace the screen. Sizes range from 10 mesh to 100 mesh.
04Can I cool the chamber?
Yes. Connect a cold air fan for heat sensitive material.
05How many models are there?
Two: GFS-80 and GFS-200.
