01 / 05Grinding · GFS series

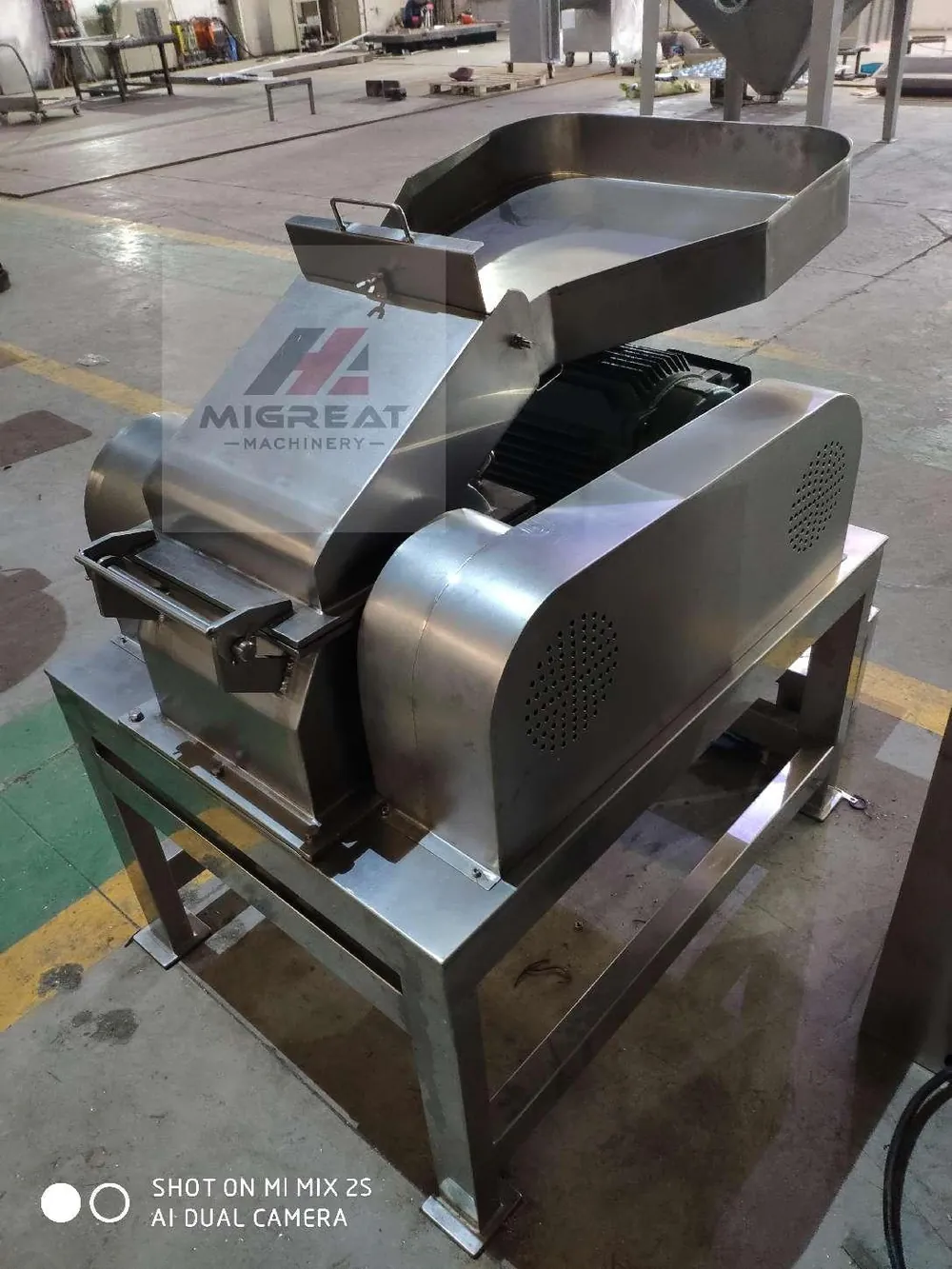

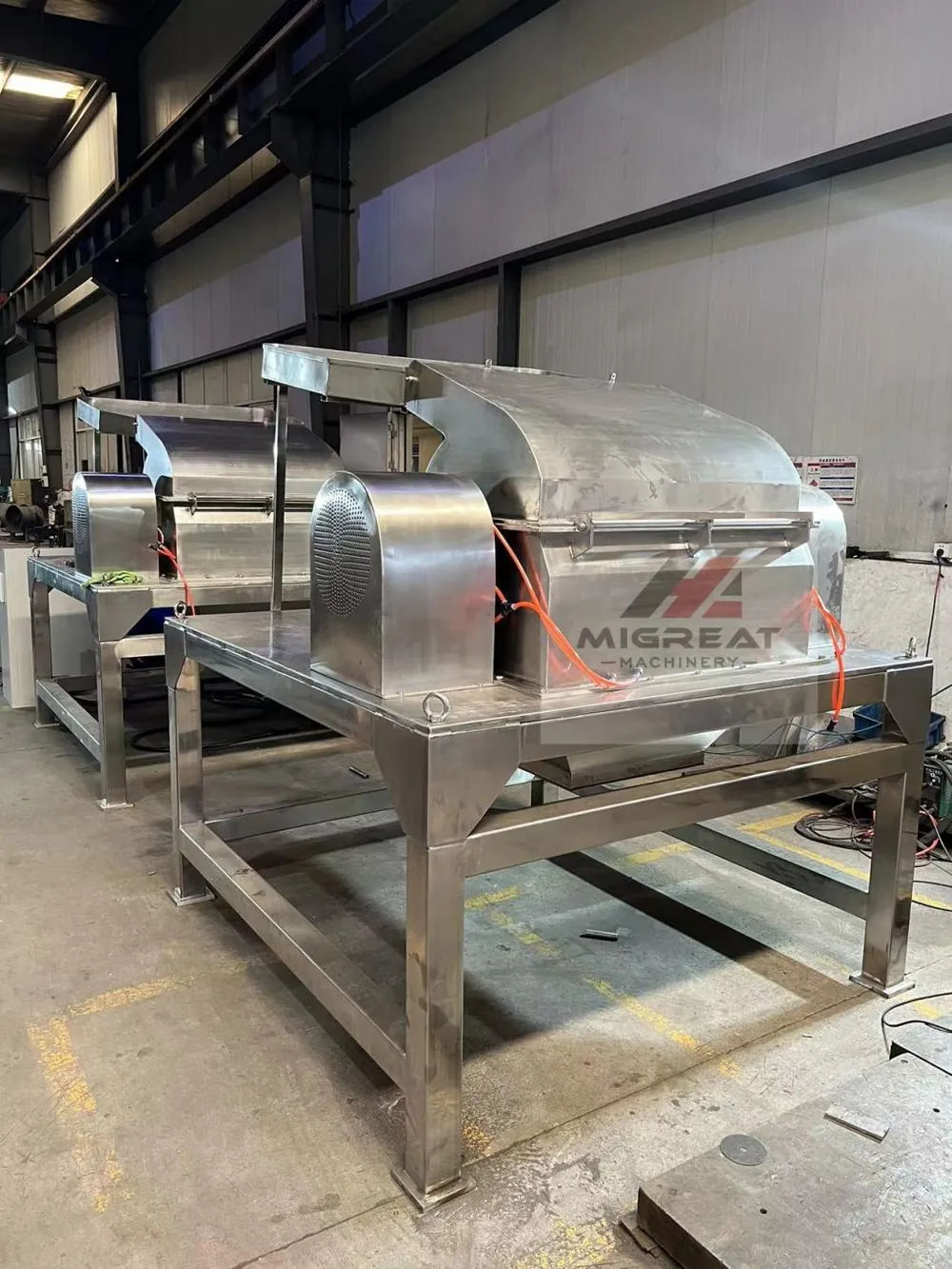

Hammer Mill
A hammer mill that cuts material at high speed and passes it through a screen. Change the screen to change the fineness.
- Capacity
- 10 to 1,000 kg/h, 5 models
- Crush size
- 5 to 100 mesh
- Motor
- 4 kW to 45 kW
- Contact material
- SS304
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview

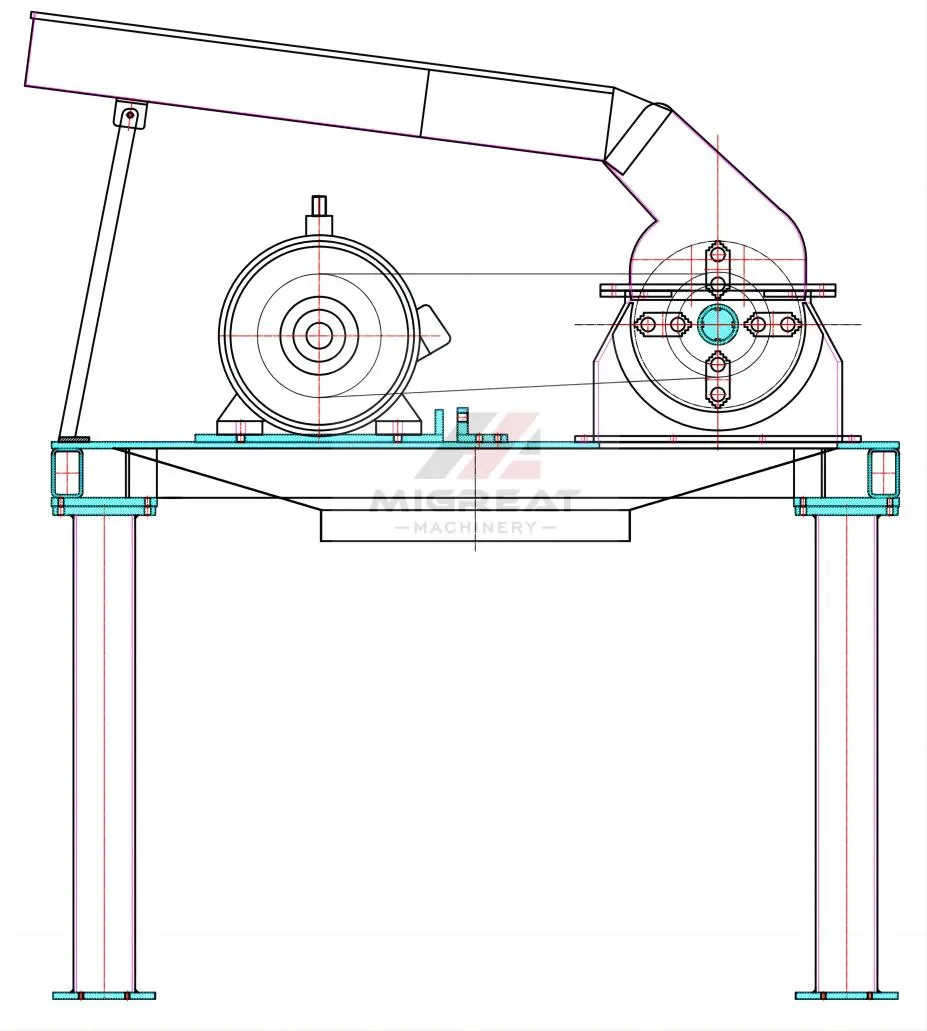

Hammer blades, screen sets the size
The GFS hammer mill crushes large pieces of material into powder in one step. It is used in the pharmaceutical, chemical and food trades, and suits spices, Himalayan salt and herbs.
The hammer blade cuts the raw material at high speed. The powder leaves through a screen, and the machine can run continuously.
Feed
Material enters the grinding chamber from the feed hopper.
Cut

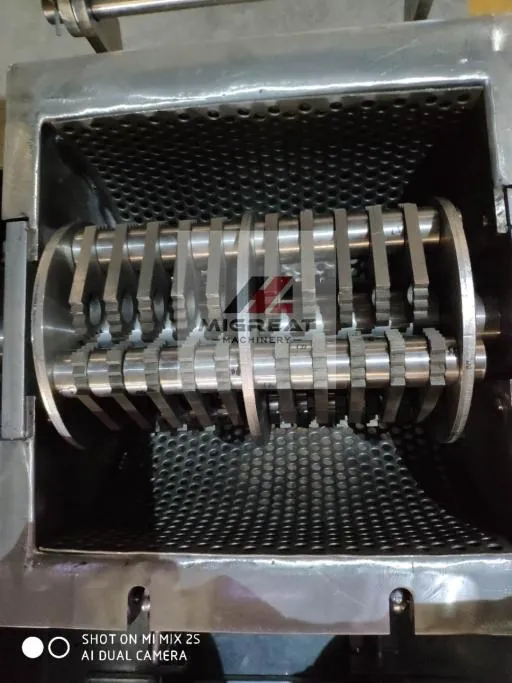

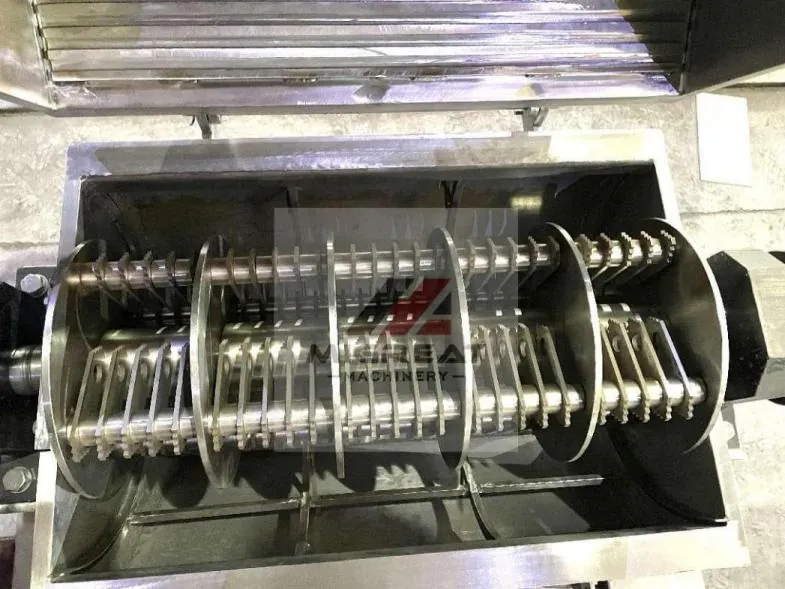

The hammer blades crush the material at high speed.
Discharge
Powder passes through the screen. Screen sizes run from 10 mesh to 100 mesh, so you choose the fineness.
The range in numbers
- 5Models
From GFS-80 to GFS-1000
- 10 to 1,000kg/h
Capacity range
- 5 to 100Mesh
Crush size
- 4 to 45kW
Motor power
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Simple, easy to clean
The structure is simple, so the mill is easy to install, take apart and clean.
- 01
Replaceable screens
Change the screen to get a different fineness, from 10 mesh to 100 mesh.
- 02
Continuous work
The machine works continuously, so it fits a production line.
- 03
Cooling for heat sensitive material
Connect a cold air fan so the temperature in the chamber does not rise.
- 04
Stable and quiet
Stable running, low noise and high grinding efficiency.
- 05
Easy to move
Convenient to move inside the workshop.
- 06
Stainless steel parts
Grinding chamber, cutterhead, blades and screen frame are SS304.
Build it your way
Fineness
Screens of 10, 20, 40, 60, 80 and 100 mesh.
Cooling
Add a cold air fan for heat sensitive material.
Size
Five models from GFS-80 to GFS-1000.
Dust control

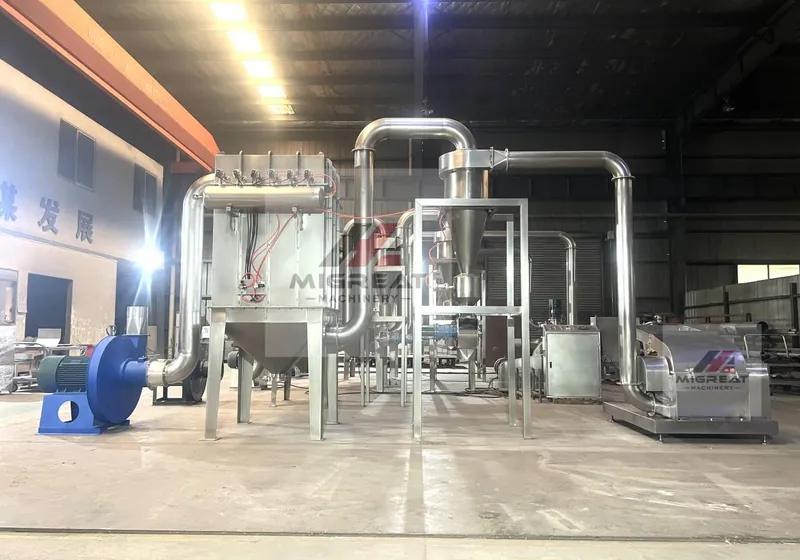

Choose the version with pulse dust collector and cyclone discharge.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Capacity depends on the material and the screen you fit.
| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mesh) | Motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GFS-80 | 10-100 | ≤25 | 5-100 | 4 | 4000 | 800 x 550 x 1250 | 200 |
| GFS-200 | 50-300 | ≤25 | 5-100 | 11 | 3800 | 900 x 660 x 1350 | 300 |
| GFS-400 | 100-500 | ≤50 | 5-100 | 18.5 | 3500 | 1000 x 800 x 1500 | 450 |
| GFS-630 | 200-600 | ≤50 | 5-100 | 30 | 2800 | 1450 x 1200 x 1700 | 580 |
| GFS-1000 | 300-1000 | ≤50 | 5-100 | 45 | 2200 | 1600 x 1500 x 1800 | 680 |
Showing 5 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It crushes spices, Himalayan salt and herbs, and is widely used for grinding in pharmaceutical, chemical and food plants.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What can the GFS hammer mill grind?
It crushes large pieces of material into powder. It is suited to spices, Himalayan salt and herbs.
02How do I change the fineness?
Replace the screen. Screen sizes range from 10 mesh to 100 mesh.
03Can it grind heat sensitive material?
Yes. Connect a cold air fan for cooling, so the temperature inside the chamber does not rise.
04Can it run continuously?
Yes. The machine works continuously.
05Is there a version with dust collection?

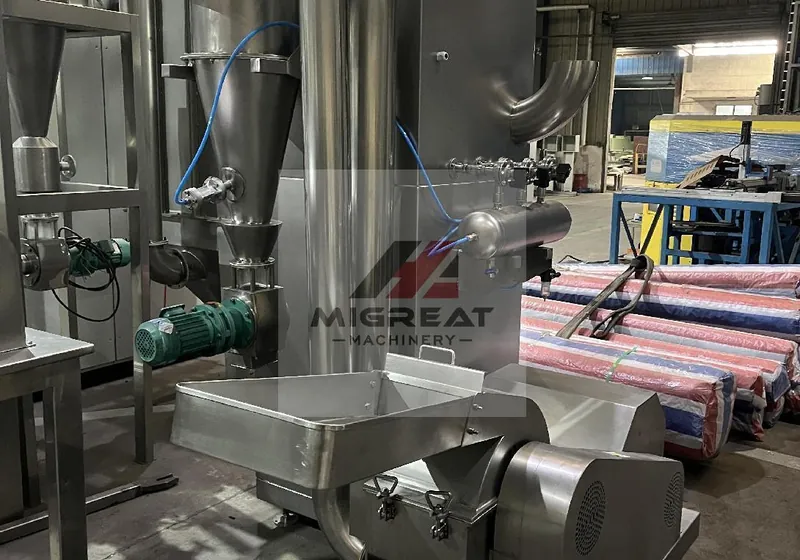

Yes. See the GFS hammer mill with pulse dust collector and cyclone discharge.
