01 / 03Grinding · MF series
Universal Grinder
A small universal grinder for dry material. Fineness is set by changing the screen.
- Capacity
- 5 to 20 kg/h
- Crush size
- 20 to 120 mesh
- Motor
- 2.2 kW
- Weight
- 85 kg
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Small batches, fast trials

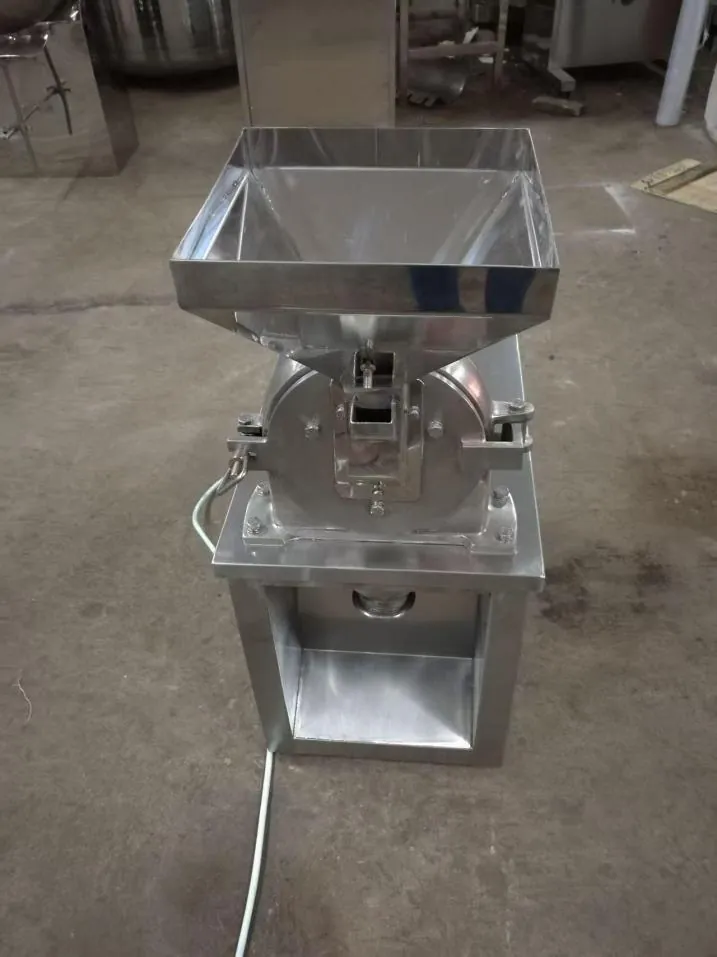

The MF universal grinder crushes dry material into powder directly. It is the smallest machine in the universal grinder range and suits small capacity work.
Fineness depends on the screen you fit: 20, 40, 60, 80, 100 or 120 mesh.
Feed
Dry material goes in through the feed port.
Crush
The toothed disc rotating knife and the fixed knife crush by impact and shear.
Discharge
The finished powder leaves through the screen and is caught in the bag.
The range in numbers
- 1Model
MF-180
- 5 to 20kg/h
Capacity
- 20 to 120Mesh
Crush size
- 85kg
Machine weight
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Small footprint, simple to use

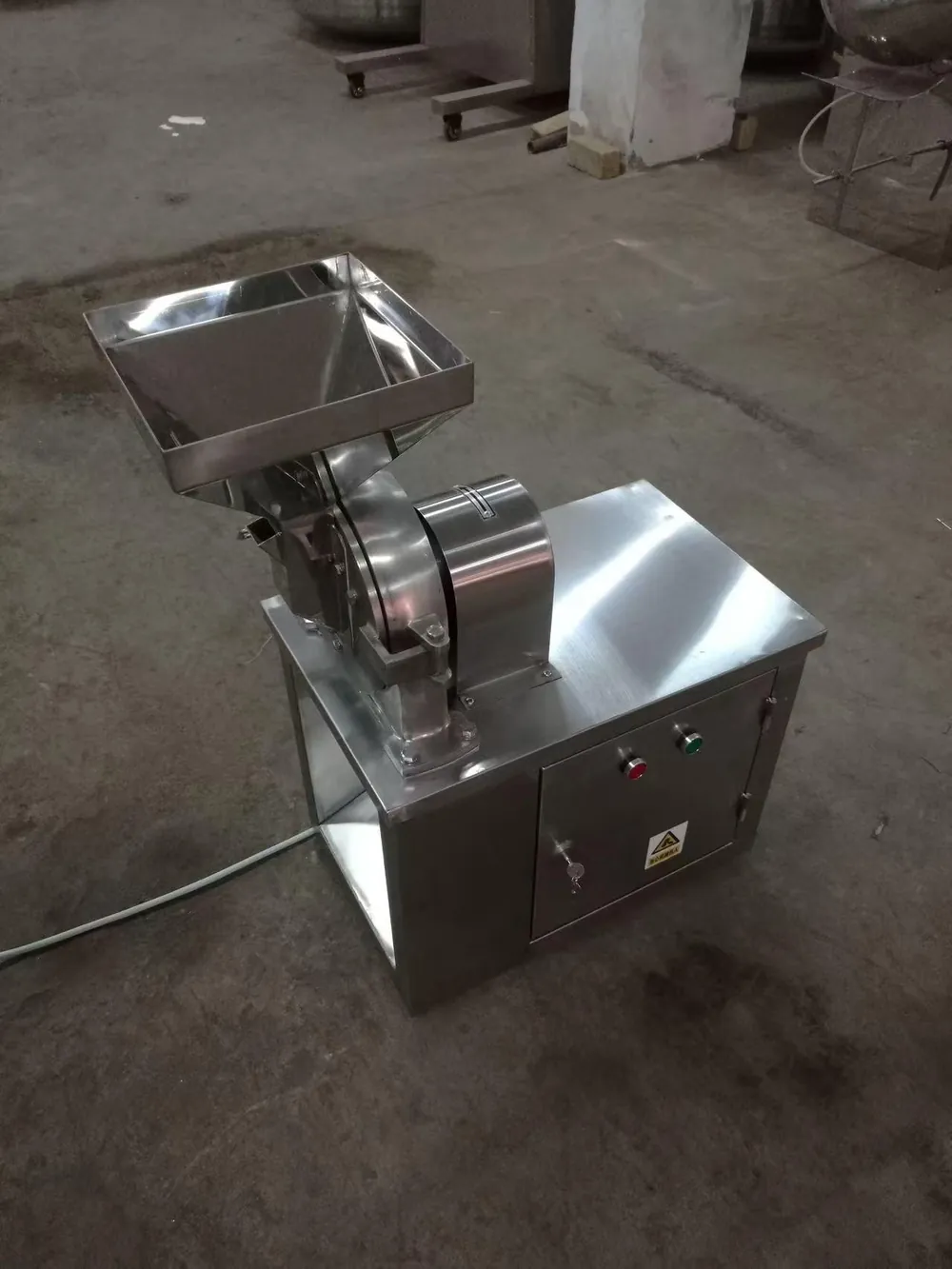

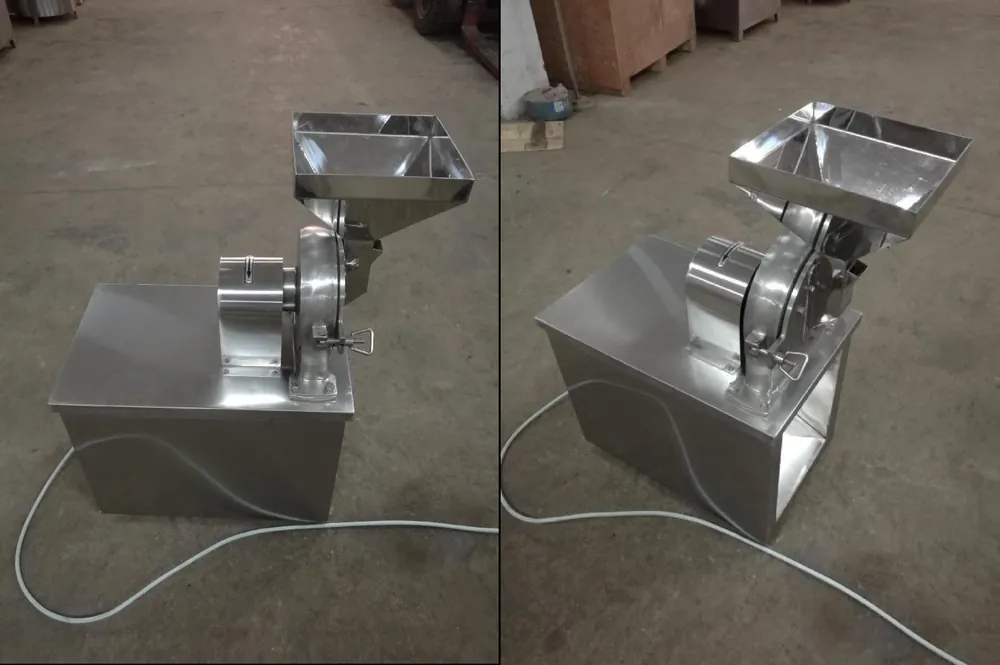

The machine is wholly made of stainless steel and designed to GMP standard.
- 01
Small floor space
Compact size of 600 x 700 x 800 mm.
- 02
Screen sets fineness
Replace the screen to change the powder size.
- 03
Different blades
It can match a pin blade, a turbine blade or other blades.
- 04
Water cooling
Bearing and grinding chamber water cooling jackets.
- 05
Magnet option
A magnetic device can be installed at the discharge port.
- 06
Dust options
It can match a general or pulse dust absorption system.
Build it your way
Fineness
Screens of 20 to 120 mesh.
Blades
Pin blade, turbine blade or others.
Cooling
Water cooling jackets.
Discharge
Optional magnetic device.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
One model, 5 to 20 kg/h
MF-180 is the one model in this series.
| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mesh) | Grinding motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| MF-180 | 5-20 | ≤10 | 20-120 | 2.2 | 4200 | 600 x 700 x 800 | 85 |
Showing 1 of 1 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It crushes dry material into powder, from oily and sugary food material to spices and grain.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01Who is the MF grinder for?
Small capacity work, trials and small batches. MF-180 handles 5 to 20 kg/h.
02Can it run continuously?
It has no dust collector and no cyclone discharge, so it suits small capacity processing.
03How do I change the fineness?
Replace the screen. Sizes are 20, 40, 60, 80, 100 and 120 mesh.
04What is it made of?
Stainless steel, to GMP standard.
05Is there a larger machine?
Yes. See the WF universal grinder, and the WMF and MXG series with dust collection.
