01 / 05Sieving · ZS series

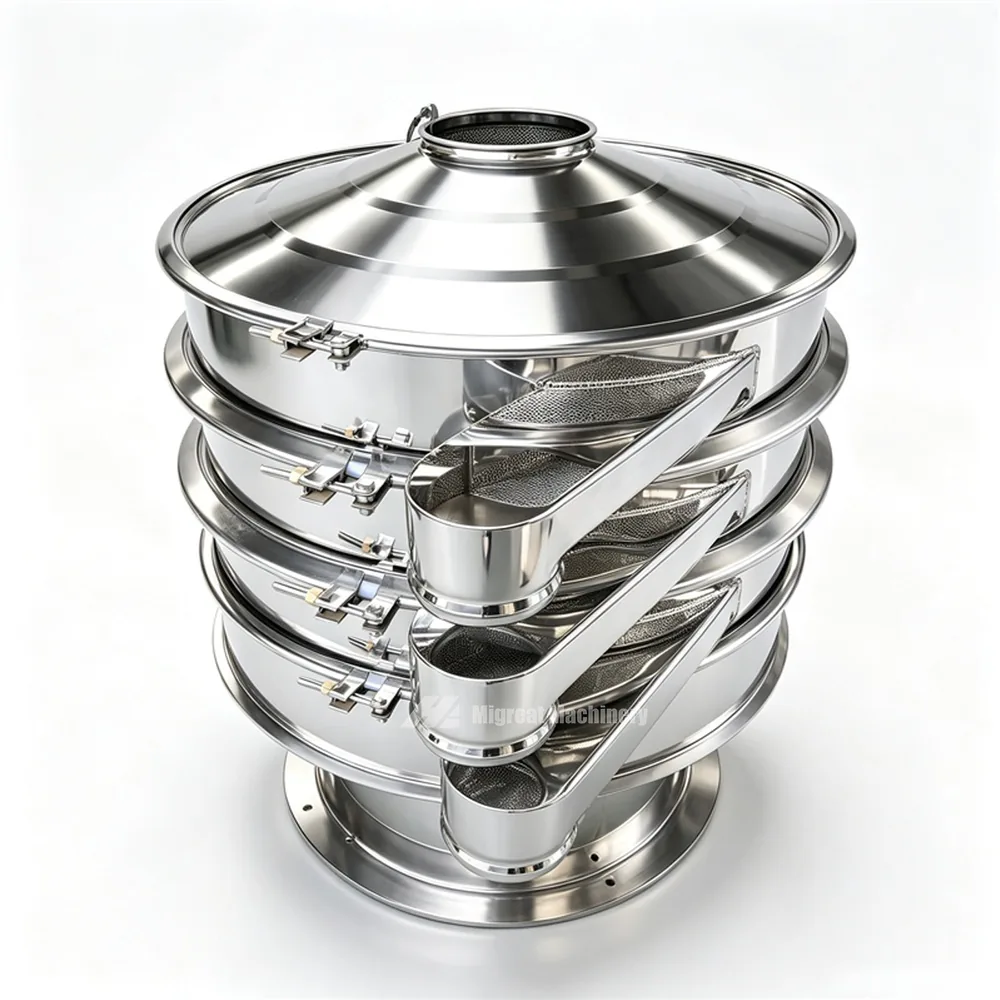

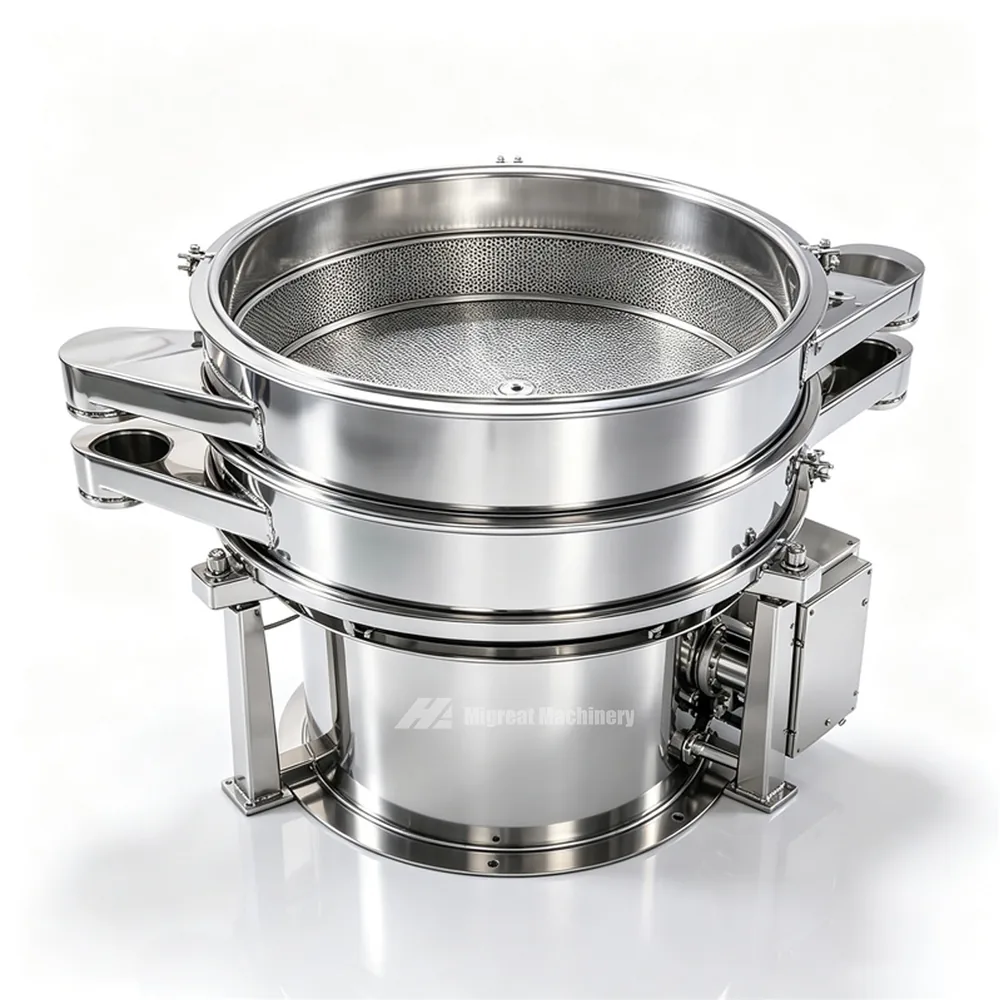

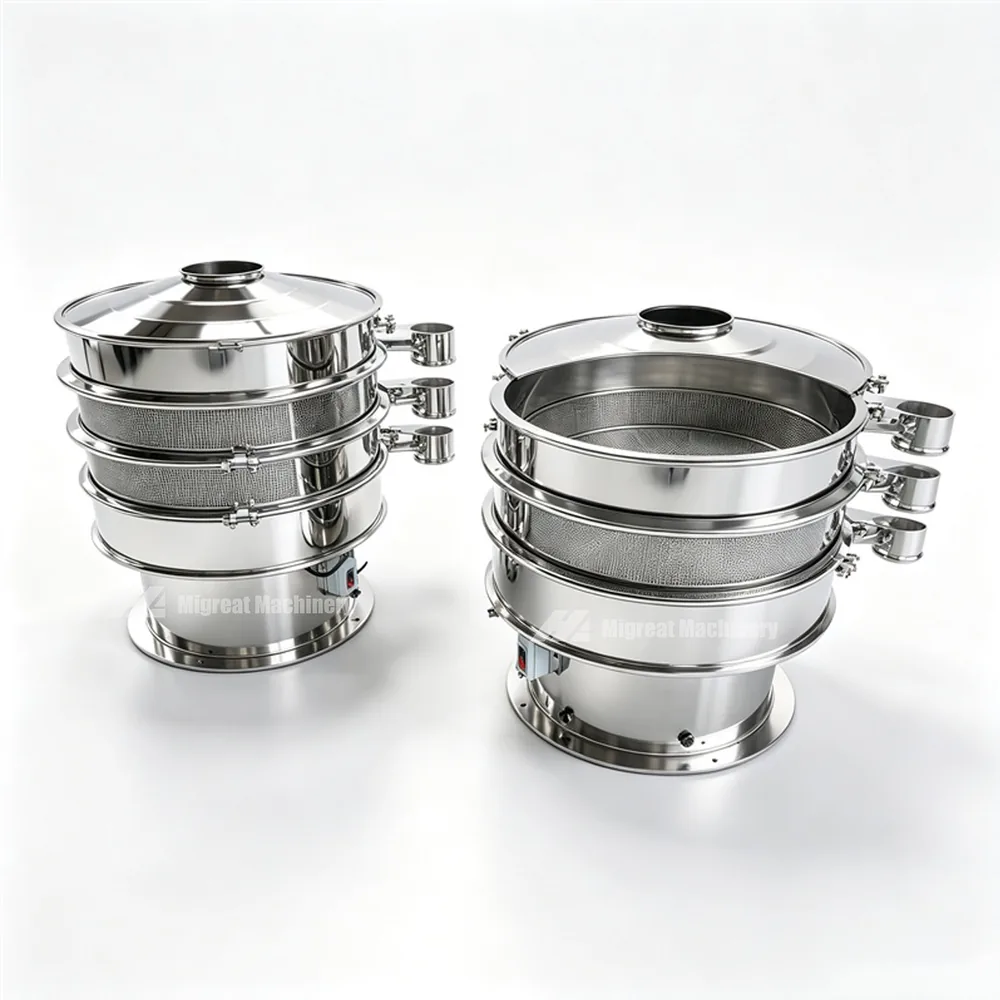

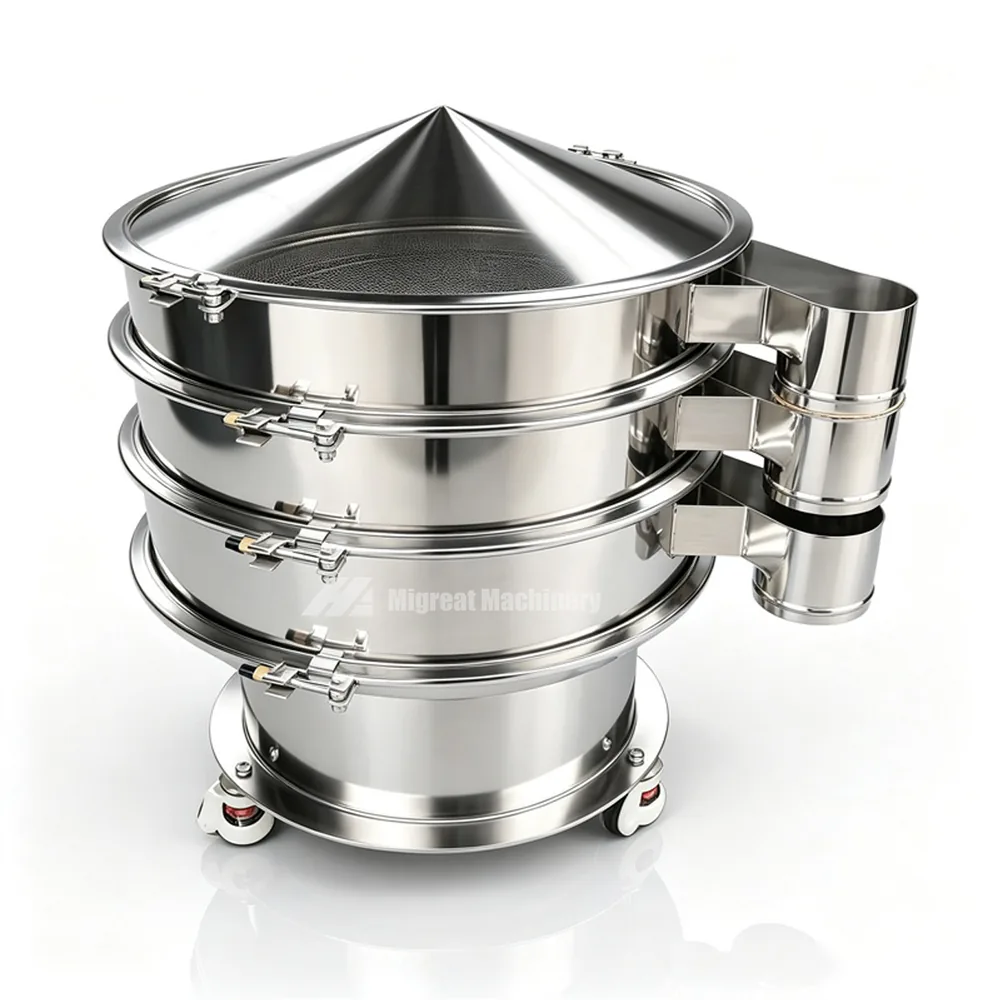

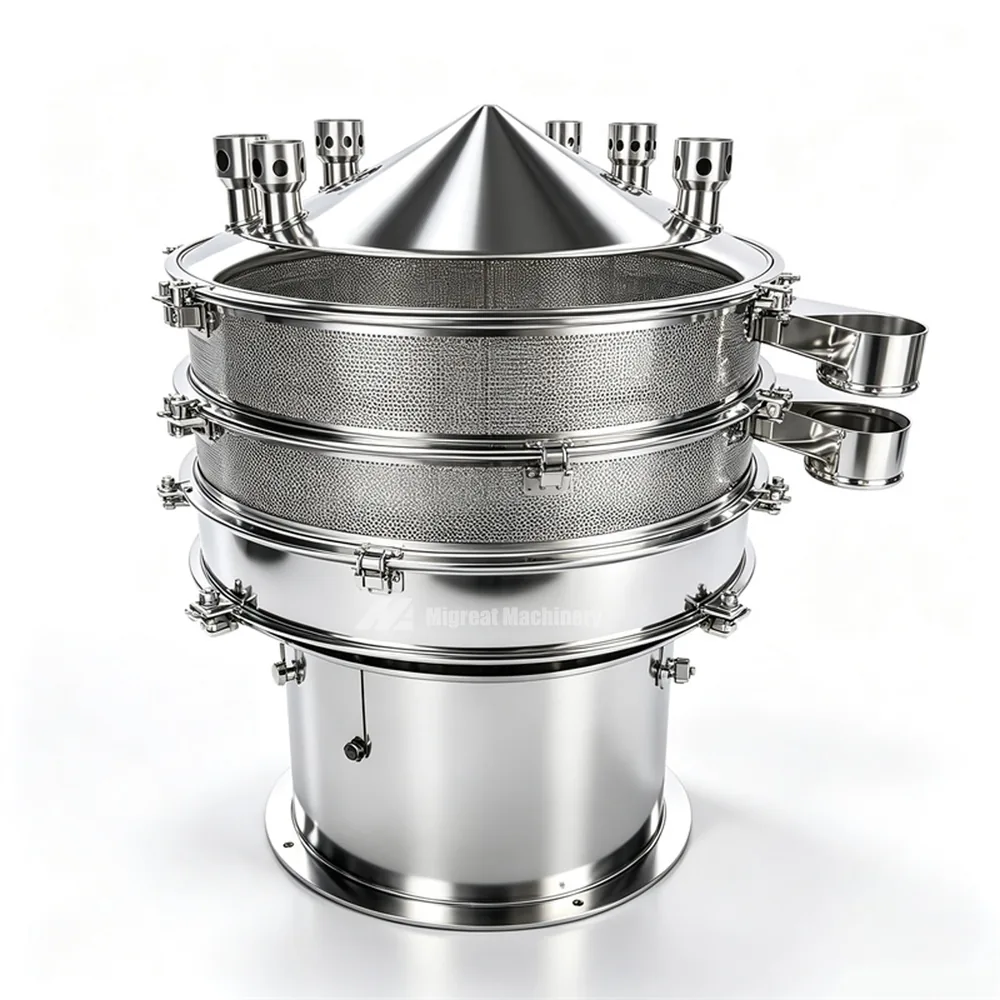

Vibrating Sifter
A round, fully enclosed vibrating sifter for fine powder. A bouncing ball under the screen cloth keeps the mesh from clogging.
- Diameter
- 400 mm to 2,000 mm, 8 models
- Decks
- 1 to 5
- Power
- 0.2 kW to 2.5 kW
- Max feed size
- 20 to 60 mm
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Fine powder, cleanly sieved
The vibrating sifter is a high precision fine powder separation machine. High screen efficiency and a new design are its main features.
A special cleaning device, a bouncing ball, jumps up and down while the screen cloth shakes, which effectively avoids clogging. The sealed, fully closed design keeps powder out of the environment, and installation is safe and convenient.
Vibrate
An upright motor with eccentric weights at both ends makes the screen move in three dimensions.
Sieve
The vibration moves the material over the screen surface and separates it by size.
Adjust
Changing the phase angle of the upper and lower weights changes the path of the material on the screen.
The range in numbers
- 8Models
From ZS-400 to ZS-2000
- 400 to 2,000mm
Diameter
- 1 to 5
Decks
- 0.2 to 2.5kW
Power
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Closed, adjustable and clog resistant
304 stainless steel, with a path that can be tuned.
- 01
Bouncing ball cleaning
A bouncing ball jumps under the screen cloth while it shakes and avoids clogging.
- 02
Fully closed
A sealed, all-closed structure avoids polluting the environment.
- 03
Stainless steel 304
High quality stainless steel 304 construction.
- 04
Adjustable path
Changing the position of the upper and lower weights changes how long the material stays on the screen.
- 05
Multi deck
One to five decks, by model, give several grades in one pass.
- 06
Easy installation
Installation is safe and convenient.
Build it your way
Size
Eight models from ZS-400 to ZS-2000.
Decks
One to five decks, by model.
Mesh
Screen mesh to your material.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by diameter
Pick the model from the diameter, deck count and largest feed size you need.
| Model | Diameter (mm) | Deck | Effective diameter (mm) | Power (kW) | Maximum material size (mm) |
|---|---|---|---|---|---|
| ZS-400 | 400 | 1-4 | 380 | 0.2 | 20 |
| ZS-600 | 600 | 1-4 | 600 | 0.4 | 20 |
| ZS-800 | 800 | 1-4 | 750 | 0.8 | 30 |
| ZS-1000 | 1000 | 1-5 | 900 | 1.1 | 30 |
| ZS-1200 | 1200 | 1-5 | 1100 | 1.5 | 30 |
| ZS-1500 | 1500 | 1-4 | 1450 | 2.2 | 50 |
| ZS-1800 | 1800 | 1-3 | 1750 | 2.5 | 50 |
| ZS-2000 | 2000 | 1-3 | 1950 | 2.5 | 60 |
Showing 7 of 8 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It sieves fine powders such as wheat flour and corn starch.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01How does the sifter avoid clogging?
A bouncing ball under the screen cloth jumps up and down while the screen shakes, which keeps the mesh clear.
02How does it move the material?
An upright motor with eccentric weights turns its rotation into horizontal, vertical and oblique motion on the screen surface.
03Can I change how long the material stays on the screen?
Yes. Adjusting the upper and lower weights changes the path and the dwell time.
04How many decks can it have?
One to five decks, depending on the model.
05Is it dusty?
No. The structure is sealed and fully closed.
