01 / 03Conveying · ZKS series

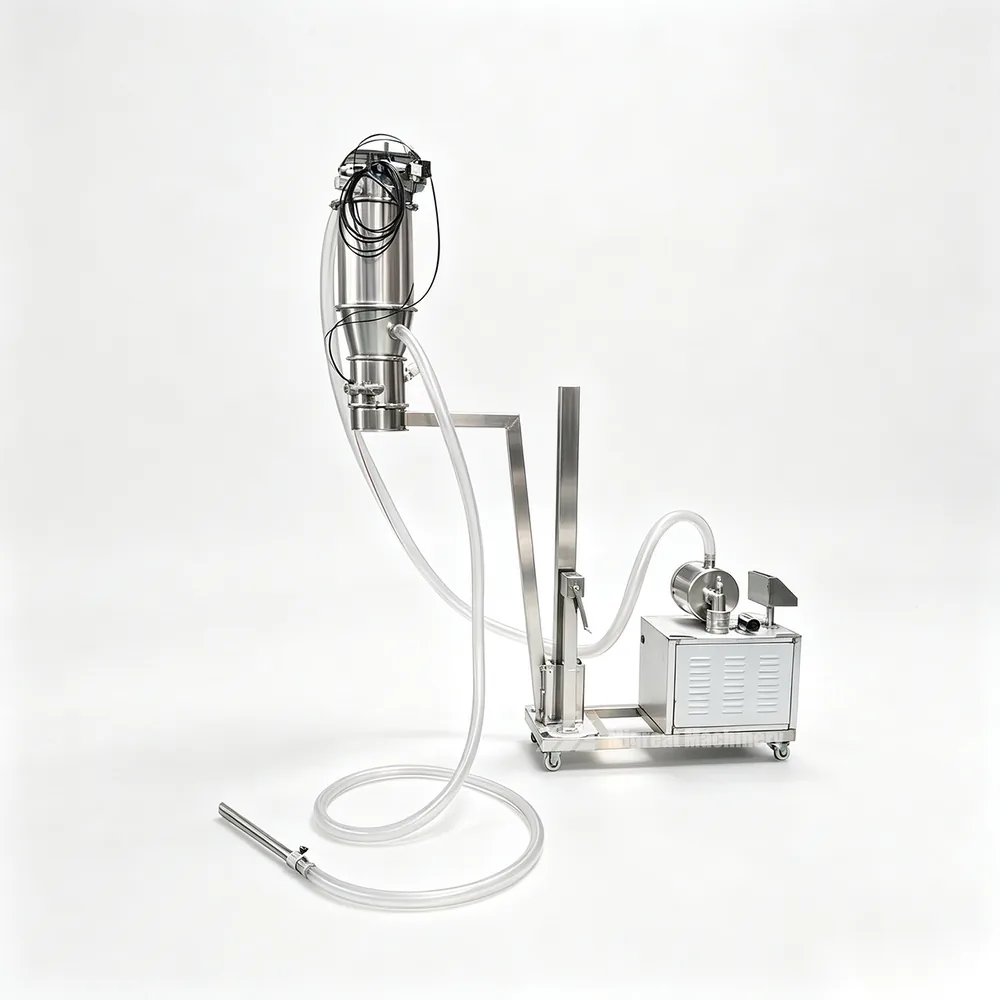

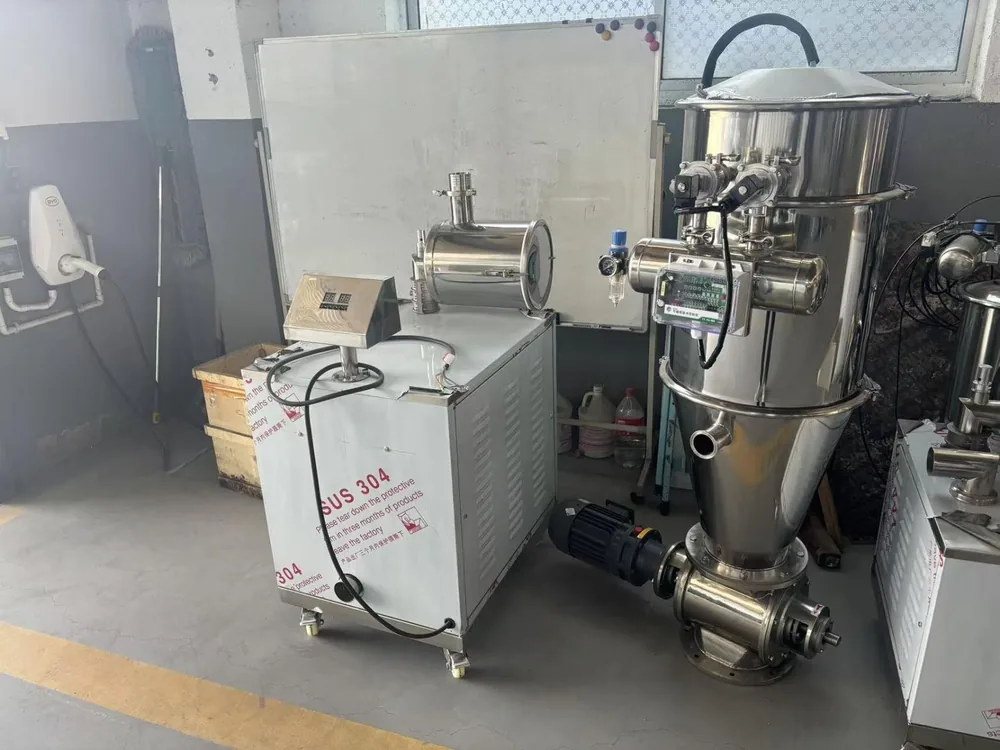

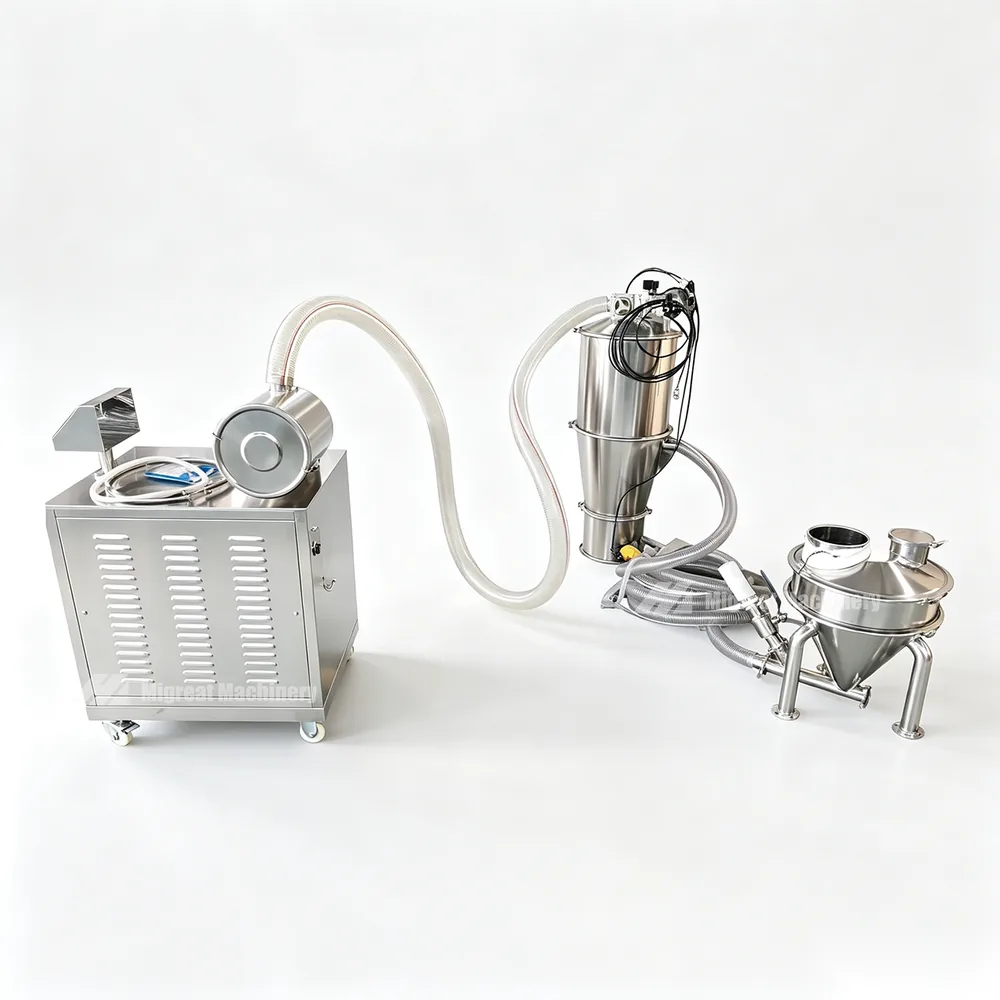

Vacuum Loader
A vacuum feeder that sucks powder through a pipe into a hopper and discharges it to the machine below, with automatic level control.
- Capacity
- 400 to 6,000 kg/h
- Power
- 1.5 kW to 11 kW
- Models
- 9 models, ZKS-1 to ZKS-20-5
- Conveying distance
- 5 m, up to 20 m
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Powder moves by vacuum
The ZKS vacuum feeder uses a vacuum pump to draw air, so the inlet of the suction nozzle and the whole system are under vacuum. Powder particles are sucked into the nozzle with the outside air, pass through the suction pipe and reach the hopper.
The separated material then enters the receiving equipment. Loading and discharging are done by a pneumatic three-way valve that opens and closes continuously, controlled from the control panel.
Suck
The vacuum pump draws powder and air into the suction nozzle and up the pipe.
Separate
Powder separates from the air in the hopper.
Discharge
The pneumatic three-way valve opens and the powder drops into the receiving equipment.
The range in numbers
- 9Models
From ZKS-1 to ZKS-20-5
- 400 to 6,000kg/h
Feeding capacity
- 1.5 to 11kW
Power
- 20m
Longest conveying distance
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Clean, automatic feeding
Compressed air cleans the filter on every discharge.
- 01
Dust-free feeding
Powder travels through a closed pipe by vacuum, with no open handling.
- 02
Filter backflush
On each discharge, a pulse of compressed air blows the powder off the filter, so suction stays normal.
- 03
Level control
A level controller stops feeding when the receiving machine is full and starts again when it runs low.
- 04
Automatic cycle
Suction, conveying and filter cleaning run in one fully automatic cycle.
- 05
Hopper options
The hopper can be fixed on the receiving equipment or on a hand-lifting trolley.
- 06
Nine models
From ZKS-1 to ZKS-20-5, including 10 m and 20 m conveying versions.
Build it your way
Size
Nine models from ZKS-1 to ZKS-20-5.
Distance
5 m standard, 10 m and 20 m models.
Hopper
Fixed to the receiver or on a lifting trolley.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by feeding capacity
Capacity is the maximum output, measured at a conveying distance of 5 m with powder. The longer the distance, the lower the capacity, and it also depends on the material. ZKS-10-6 is rated at a 10 m conveying distance and ZKS-20-5 at 20 m.
| Model | Power (kW) | Capacity (kg/h) |
|---|---|---|
| ZKS-1 | 1.5 | 400 |
| ZKS-2 | 2.2 | 600 |
| ZKS-3 | 3 | 1200 |
| ZKS-4 | 5.5 | 2500 |
| ZKS-5 | 5.5 | 3200 |
| ZKS-6 | 5.5 | 3200 |
| ZKS-7 | 7.5 | 6000 |
| ZKS-10-6 | 7.5 | 6000 |
| ZKS-20-5 | 11 | 5000 |
Showing 7 of 9 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It feeds powder into mixers, packing machines and other receiving equipment.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01How does the vacuum loader work?
A vacuum pump draws air through the suction nozzle. Powder travels with the air to the hopper, then a pneumatic three-way valve discharges it into the receiving equipment.
02How does it keep the filter clear?
A pulse of compressed air blows the filter on every discharge.
03How does it know when to stop?
A level controller stops feeding when the receiving hopper is full and restarts it when the level drops.
04What compressed air does it need?
Clean, dry compressed air at a working pressure of 0.4 to 0.6 MPa.
05Why is the capacity lower on a long run?
The listed capacity is the maximum, measured at 5 m. The longer the distance, the lower the capacity.
