01 / 05Conveying · MJ-S series
Screw Conveyor

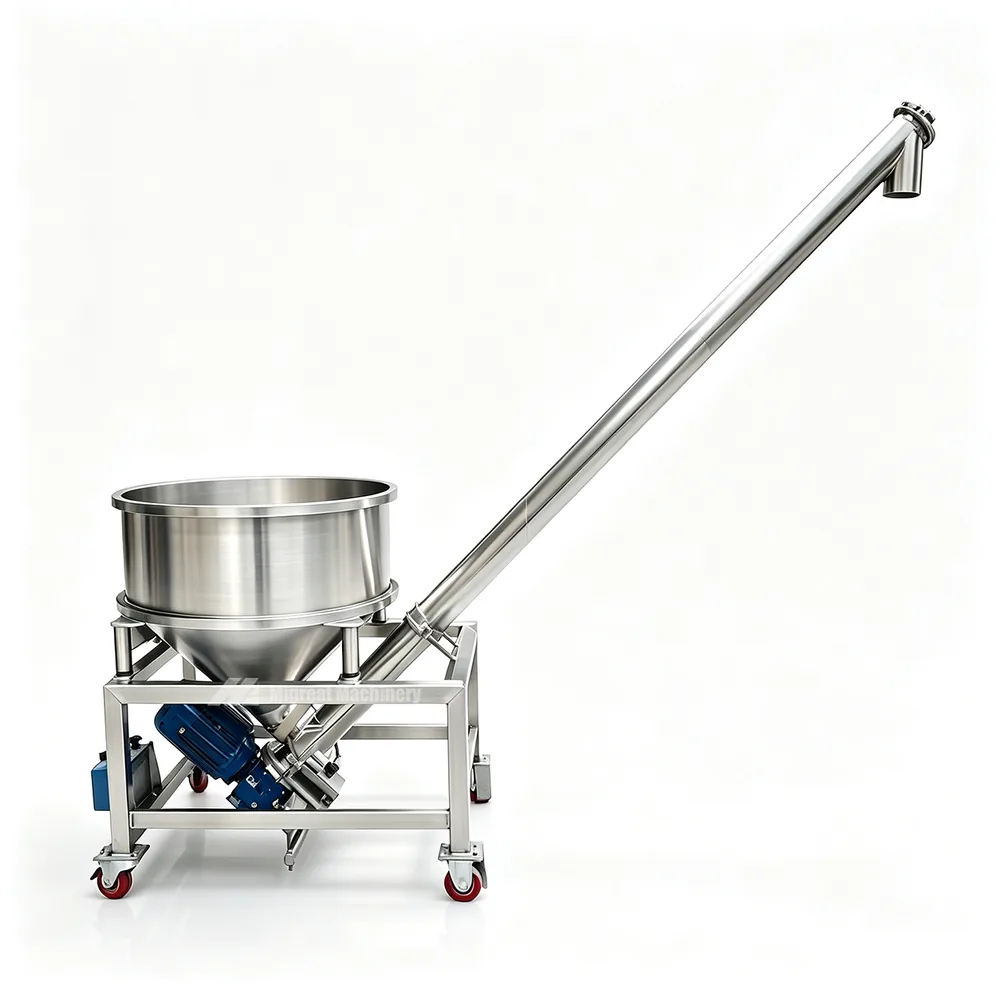

A screw conveyor, also called a screw feeder. It lifts powder and granules from a feed hopper up an incline.
- Size
- Φ89 mm to Φ219 mm, 6 models
- Conveying output
- 1 to 15 m³/h
- Power
- 0.75 kW to 3 kW
- Use
- Feeding mixers, packers and hoppers
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
A screw that lifts and feeds

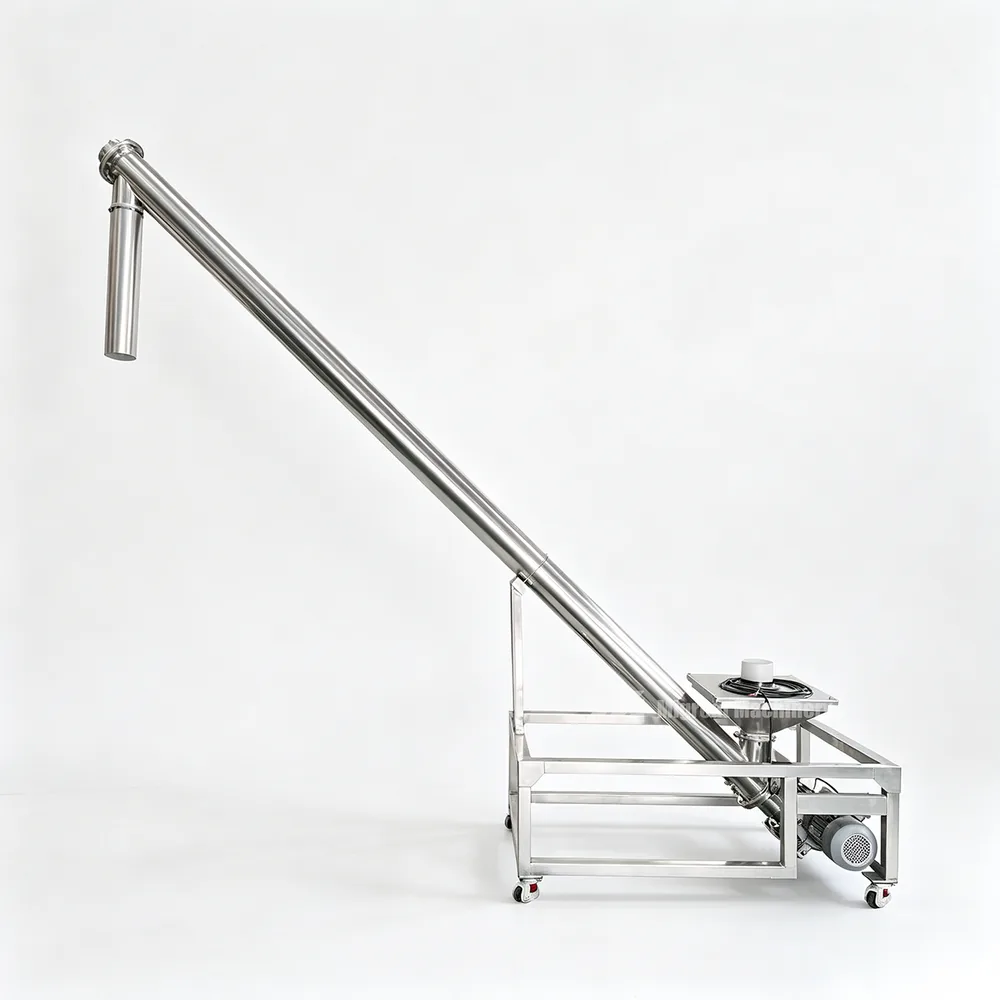

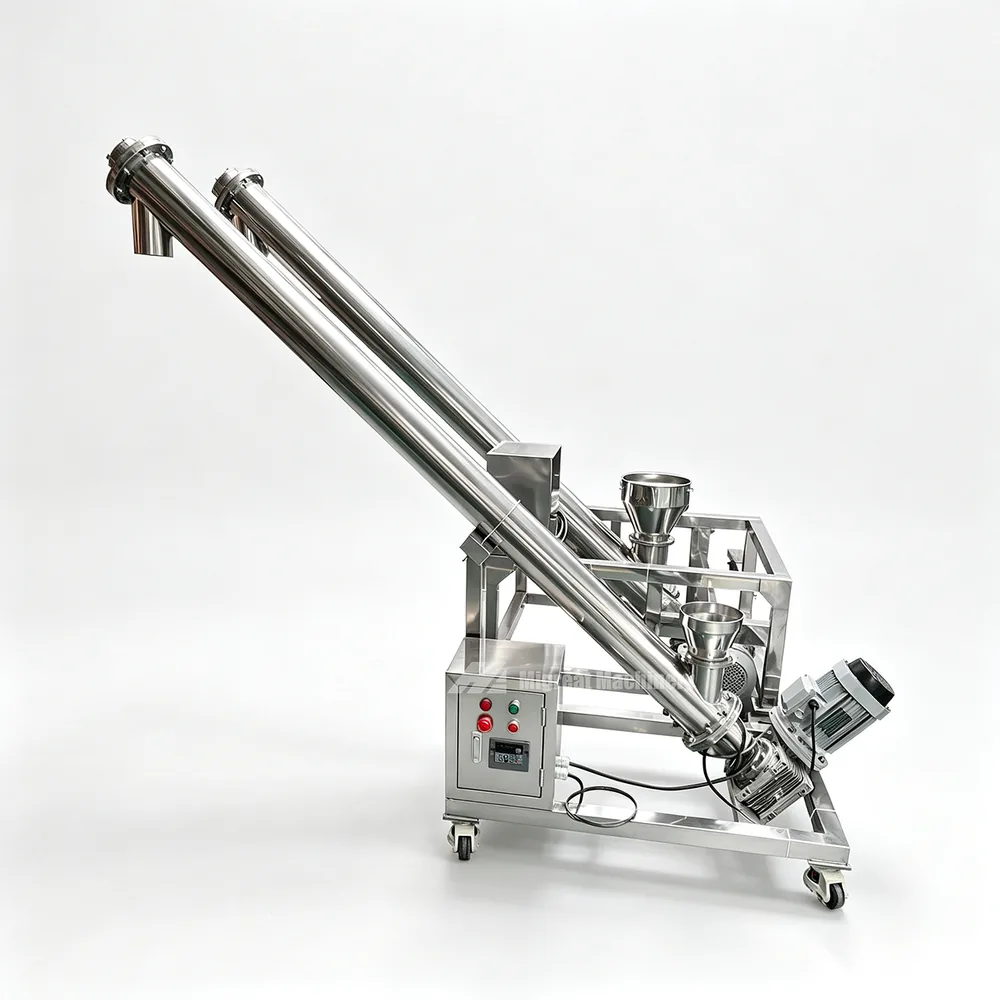

The MJ-S screw conveyor moves powder and granules along an inclined tube with a turning screw. The screw conveyor and the screw feeder are the same machine.

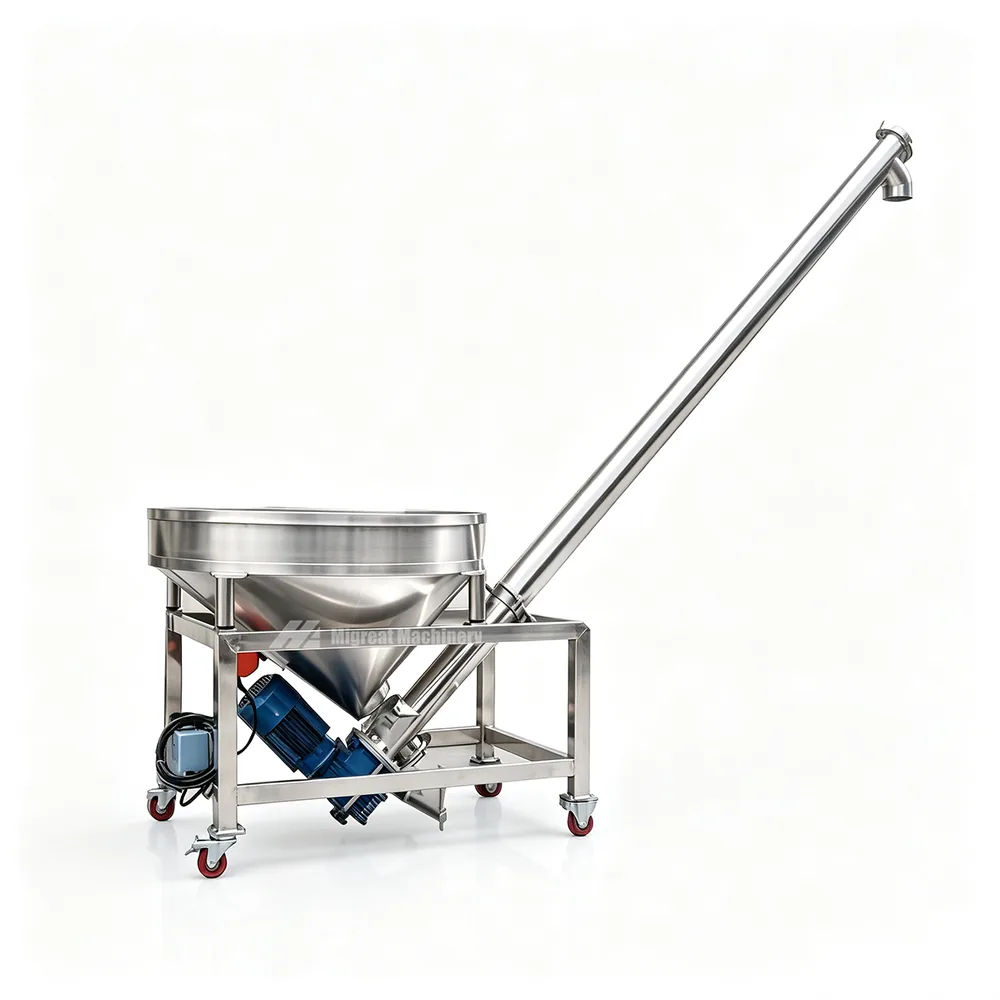

It is fitted with a feed hopper and runs on a mobile frame, so it can feed a mixer, a packing machine or a storage hopper.
Feed
Material goes into the feed hopper.
Convey
A turning screw carries it along the tube.
Discharge
It leaves at the top, into the next machine.
The range in numbers
- 6Models
From MJ-S1 to MJ-S9
- Φ89 to Φ219mm
Size
- 1 to 15m³/h
Conveying output
- 0.75 to 3kW
Power
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Simple and made to your line
Length, angle and hopper are set to your layout.
- 01
Six sizes
Tube sizes from Φ89 mm to Φ219 mm.
- 02
Output range
1 to 15 m³/h by model.
- 03
Feed hopper
A hopper at the foot takes material in.
- 04
Mobile frame
Fitted on a frame with casters, so it can be moved between machines.
- 05
Custom length
Length and height are set to your layout.
Build it your way
Size
Six models from MJ-S1 to MJ-S9.
Length and height
Set to your layout.
Hopper
A feed hopper at the foot.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by conveying output
Pick the model from the output you need.
| Model | Size (mm) | Power (kW) | Conveying output (m³/h) |
|---|---|---|---|
| MJ-S1 | Φ89 | 0.75 | 1-2 |
| MJ-S3 | Φ114 | 1.1 | 2-3 |
| MJ-S4 | Φ141 | 1.5 | 3-5 |
| MJ-S5 | Φ159 | 2.2 | 5-8 |
| MJ-S6 | Φ168 | 3 | 8-10 |
| MJ-S9 | Φ219 | 3 | 10-15 |
Showing 0 of 6 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It feeds powder and granules to the next machine in a line.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01Is a screw feeder different from a screw conveyor?
No. They are the same machine.
02What output does it have?
From 1 to 2 m³/h on MJ-S1 up to 10 to 15 m³/h on MJ-S9.

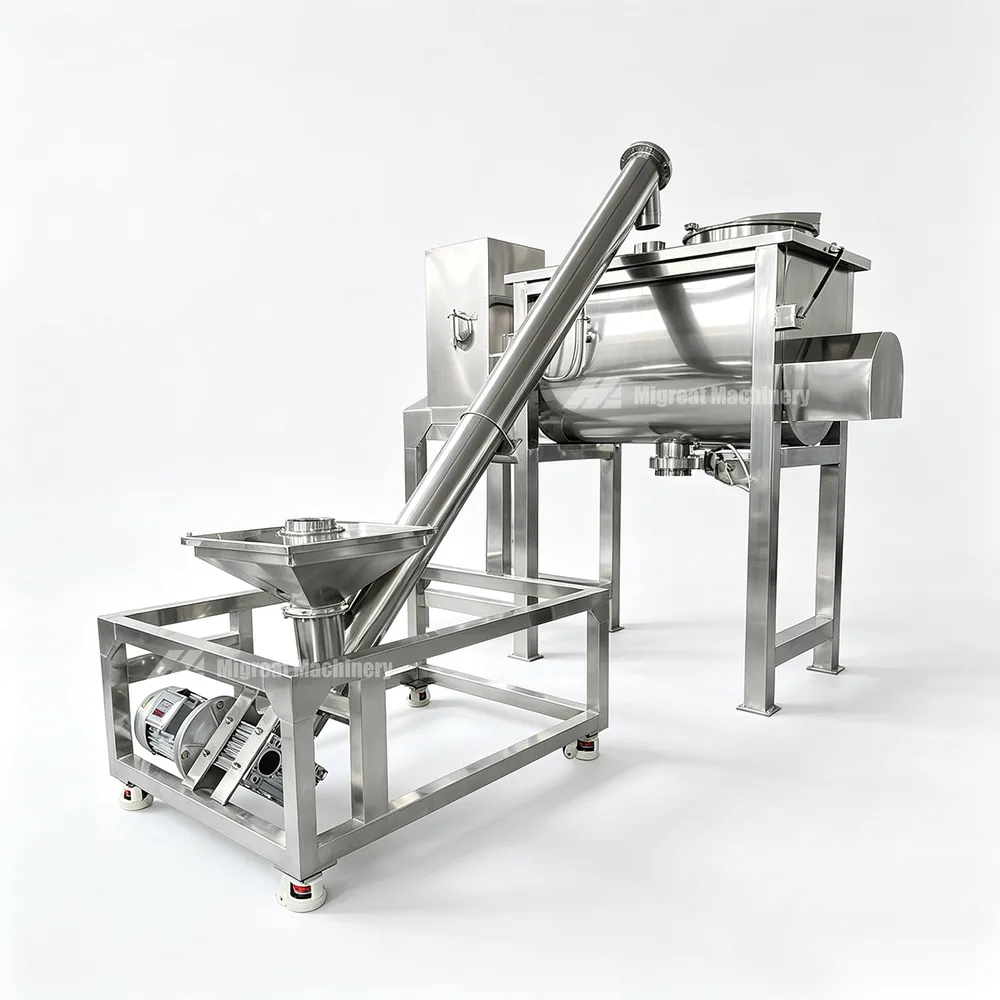

03Can it feed a mixer or packing machine?
Yes. It lifts material from the feed hopper into the machine above it.
04Can the length be changed?
Yes. Length and height are set to your layout.
05Which models are there?
Six models, MJ-S1, S3, S4, S5, S6 and S9.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Inquiry
Not sure which conveyor fits?
Tell us your material, distance and height. We reply with a suitable model.
