Linear Sieve

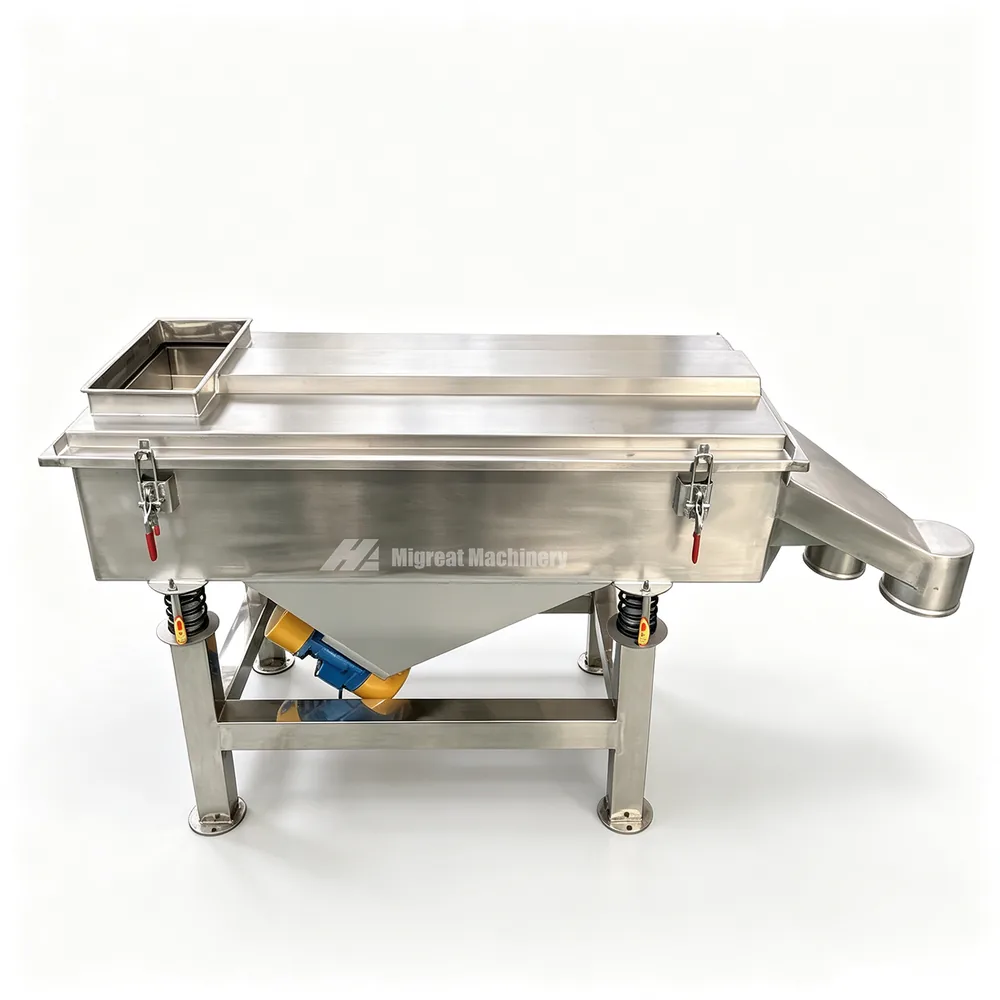

A linear vibrating screen. Two vibration motors turn in opposite directions and shake the screen box in a straight line.
- Effective size
- 500 x 2000 mm to 1600 x 5000 mm
- Particle size
- 0.074 to 60 mm
- Decks
- 1 to 4
- Speed
- 960 rpm
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Straight line vibration, several grades
The ZQ linear sieve has its vibration motors mounted at the bottom. Two motors turn in opposite directions, so the screen box vibrates along a straight line.
The material passes over multiple layers of mesh and is separated into different particle sizes.
Vibrate
Two motors turn in opposite directions at 960 rpm.
Travel
The screen box vibrates in a straight line, with amplitude 4 to 8 mm.
Grade
Up to four decks of mesh separate the material into different sizes.
The range in numbers
- 5Models
From ZQ-520 to ZQ-1650
- 0.074 to 60mm
Particle size
- 1 to 4
Decks
- 4 to 8mm
Amplitude
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Simple, multi grade screening
Straight line vibration over layered mesh.
- 01
Straight line motion
Two counter-rotating motors drive the screen box in a straight line.
- 02
Multi layer
One to four decks separate several particle sizes in one pass.
- 03
Fine to coarse
Handles particle sizes from 0.074 to 60 mm.
- 04
Fixed speed
960 rpm, with amplitude of 4 to 8 mm.
- 05
Five sizes
Five models from ZQ-520 to ZQ-1650.
Build it your way
Size
Five models from ZQ-520 to ZQ-1650.
Decks
One to four decks.
Mesh
Screen mesh to your material.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by effective size
Pick the model from the screen size and power you need.
| Model | Effective size (mm) | Particle size (mm) | Deck | Power (kW) | Speed (rpm) | Amplitude (mm) |
|---|---|---|---|---|---|---|
| ZQ-520 | 500 x 2000 | 0.074-60 | 1-4 | 2 x 0.75 | 960 | 4-8 |
| ZQ-840 | 800 x 4000 | 0.074-60 | 1-4 | 2 x 1.5 | 960 | 4-8 |
| ZQ-1030 | 1000 x 3000 | 0.074-60 | 1-4 | 2 x 1.9 | 960 | 4-8 |
| ZQ-1255 | 1200 x 5000 | 0.074-60 | 1-4 | 2 x 2.2 | 960 | 4-8 |
| ZQ-1650 | 1600 x 5000 | 0.074-60 | 1-4 | 2 x 3.0 | 960 | 4-8 |
Showing 0 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It grades powder and granules into different sizes.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01How does a linear sieve work?
Vibration motors at the bottom turn in opposite directions, so the screen box vibrates in a straight line and the material is separated by size through multiple layers of mesh.
02How many size grades can it give?
It has one to four decks.
03What particle sizes can it handle?
From 0.074 to 60 mm.
04How fast does it vibrate?
960 rpm, with an amplitude of 4 to 8 mm.
05Which models are there?
Five models, ZQ-520, ZQ-840, ZQ-1030, ZQ-1255 and ZQ-1650.
