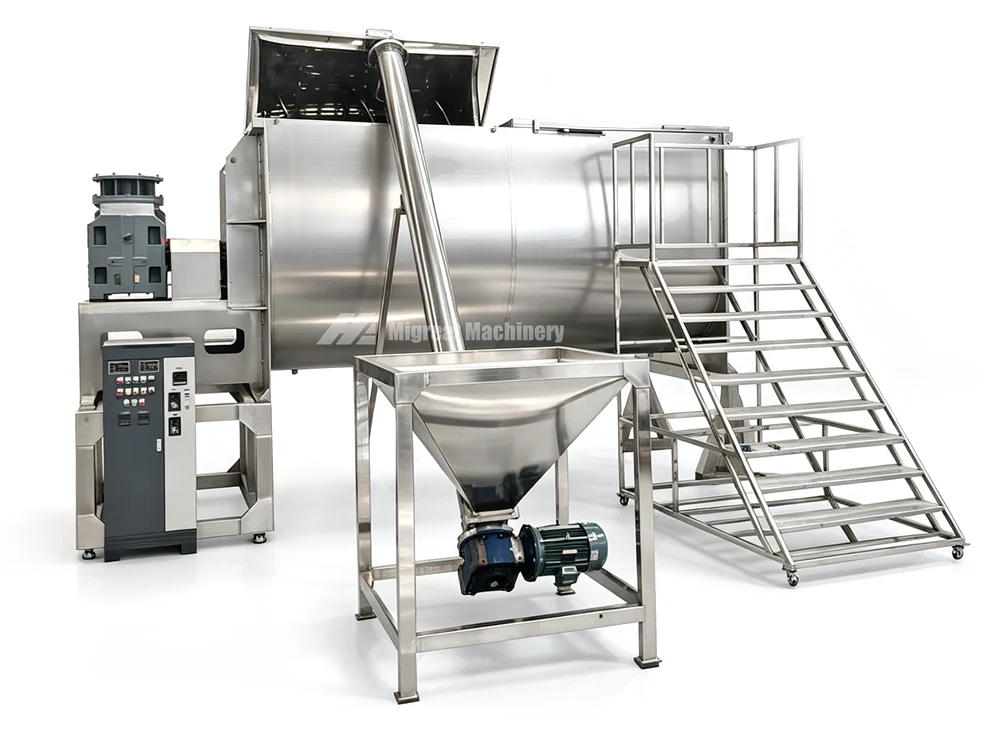

Ribbon Mixer
A horizontal double ribbon mixer for powder with powder, powder with liquid, and paste or thick material.
- Capacity
- 100 L to 15,000 L, 13 models
- Motor power
- 3 kW to 75 kW
- Contact material
- SUS304, 316L, carbon steel or manganese steel
- Discharge
- Manual or pneumatic butterfly valve
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview

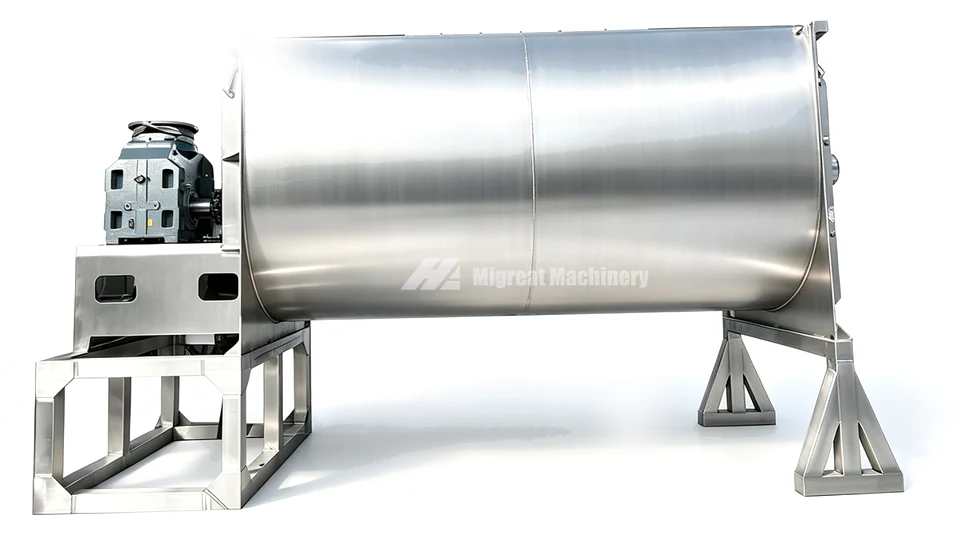

One trough, an even blend
The ribbon mixer is built for high homogeneity with little damage to fragile material. A motor and reducer turn the main shaft, and the spiral ribbons inside the trough move material in two directions until the batch is even.
Main parts are the motor, reducer, cover, trough, feed port, main shaft, ribbons, shaft seal and discharge valve.
Load

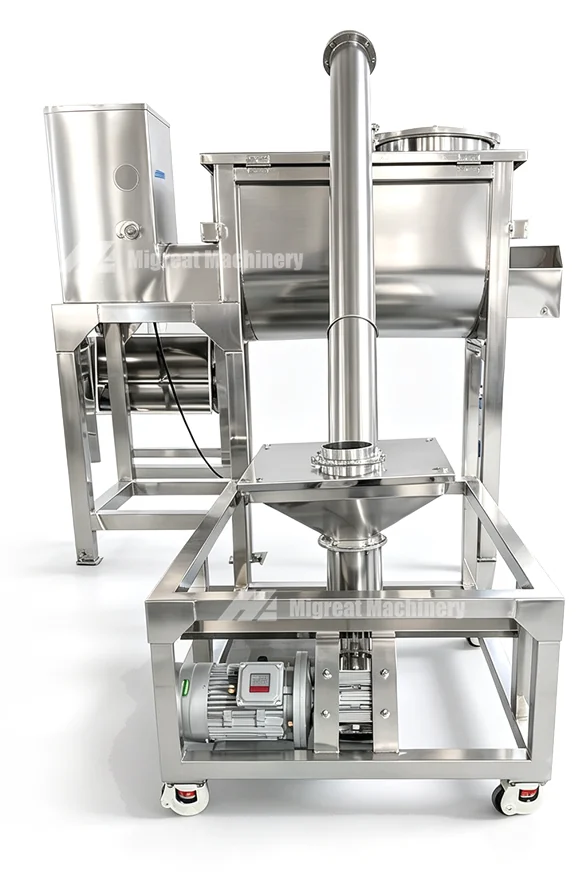

Material enters through the feed port into the U shaped trough.
Mix
Ribbons on the main shaft move material in two directions.
Discharge
A manual or pneumatic butterfly valve releases the batch.
The range in numbers
- 13Models
From WLDH-100 to WLDH-15000
- 100 to 15,000Litres
Total volume range
- 3 to 75kW
Motor power range
- 4Materials
Carbon steel, manganese steel, SUS304, 316L

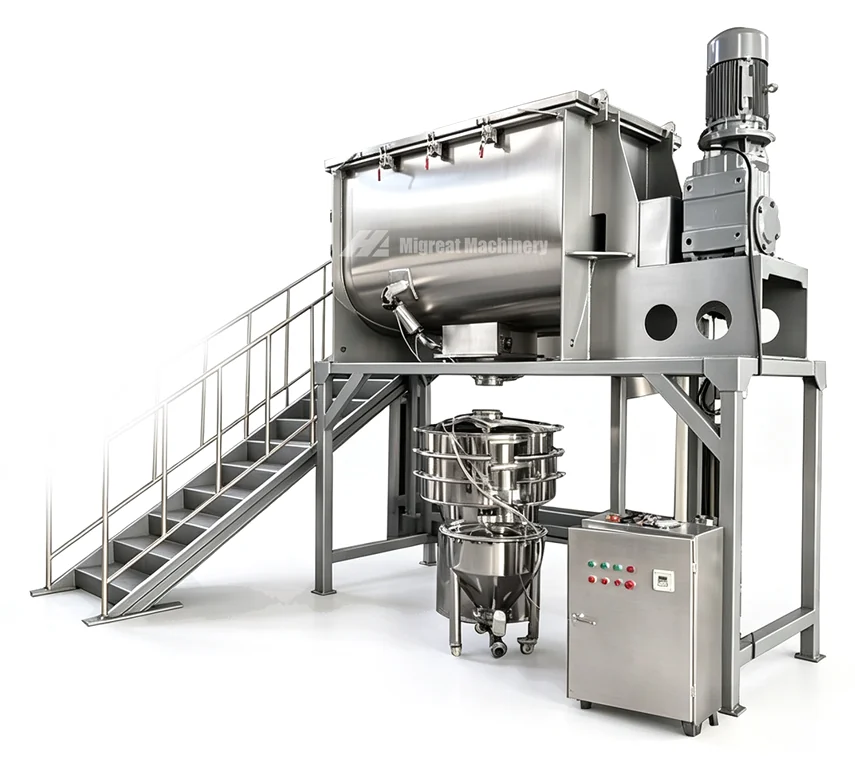

One mixer, many layouts
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Built around six key parts
Each part can be adjusted to your material, batch size and site.
- 01
Mixing agitator
Stainless steel ribbons that are sturdy, durable and easy to clean.
- 02

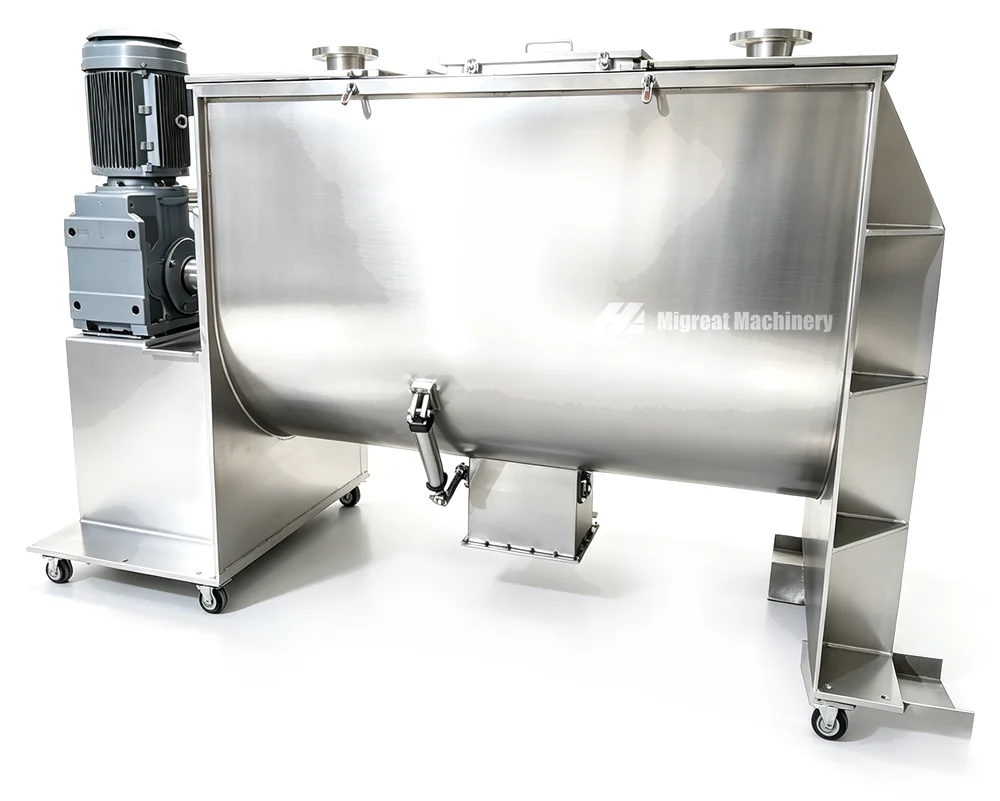

Mixing motor
Low noise and smooth running. Speed, power and voltage are adjustable to your site.
- 03

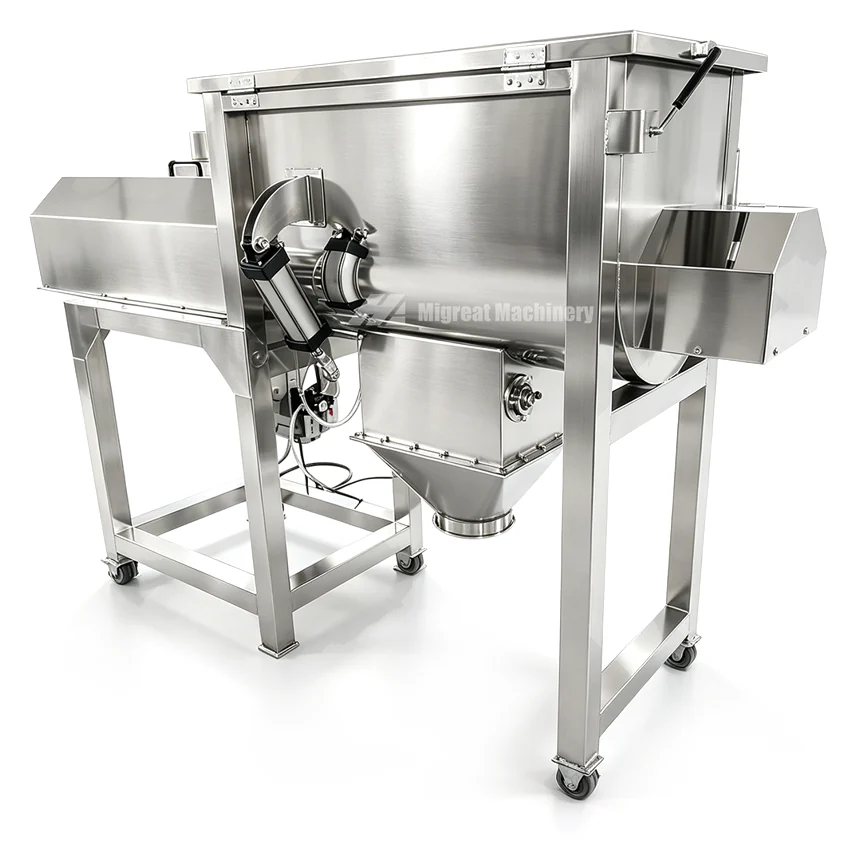

Material outlet
Manual or pneumatic butterfly valve, chosen to suit your line.
- 04

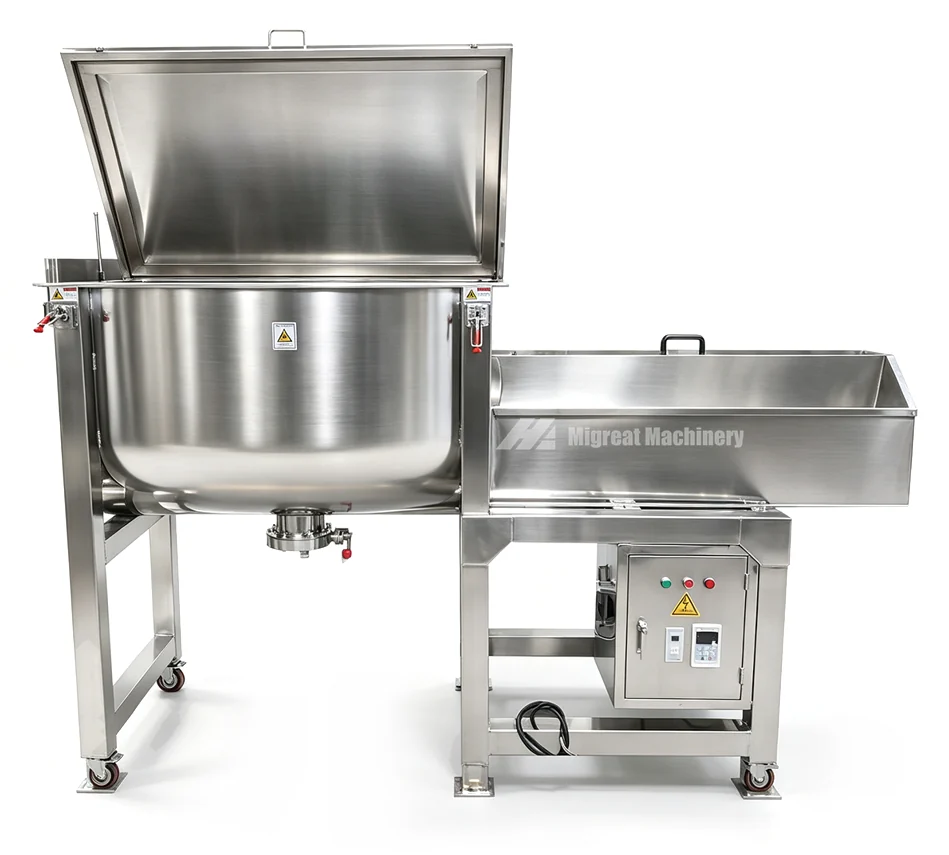

Controller box
Controls all circuits, simple to operate and safe to use.
- 05

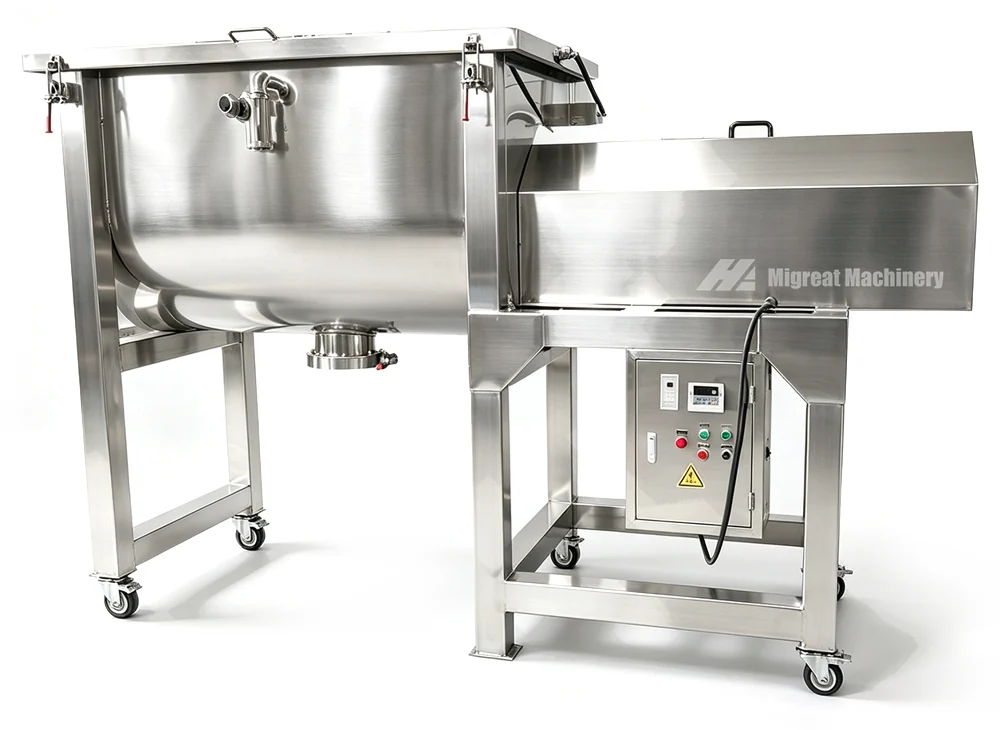

Movable wheels
PPS wheels turn in any direction, so the machine is easy to move.
- 06
Contact material
Carbon steel, manganese steel, SUS304 or 316L, or a combination.
Build it your way
Contact material
Carbon steel, manganese steel, SUS304 or 316L, or a combination.
Motor
Speed, power and voltage set to your site.
Discharge
Manual or pneumatic butterfly valve.
Mobility
Movable PPS wheels or a fixed frame.
Size
Total volume from 100 L up to 15,000 L, or a custom size.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by batch volume
Load coefficient is 0.4 to 0.8. Sizes are for reference and can be customised.
| Model | Total volume (L) | Power (kW) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| WLDH-100 | 100 | 3 | 2000 x 680 x 1650 | 300 |
| WLDH-300 | To confirm | 3 | 2330 x 700 x 1700 | 390 |
| WLDH-500 | 500 | 5.5 | 2700 x 960 x 1750 | 650 |
| WLDH-1000 | 1000 | 7.5 | 2900 x 1000 x 1800 | 1000 |
| WLDH-1500 | 1500 | 11 | 3100 x 1150 x 1800 | 1400 |
| WLDH-2000 | 2000 | 15 | 3500 x 1200 x 1800 | 2000 |
| WLDH-3000 | 3000 | 18.5 | 4200 x 1400 x 1820 | 2500 |
| WLDH-4000 | 4000 | 22 | 5000 x 1500 x 1900 | 2900 |
| WLDH-5000 | 5000 | 22 | 5100 x 1500 x 2100 | 3500 |
| WLDH-6000 | 6000 | 37 | 5300 x 1650 x 2000 | 4300 |
| WLDH-8000 | 8000 | 45 | 6300 x 2100 x 2000 | 6500 |
| WLDH-10000 | 10000 | 55 | 7200 x 2100 x 2100 | 8500 |
| WLDH-15000 | 15000 | 75 | 8000 x 2100 x 2100 | 13000 |
Showing 7 of 13 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
Powder with powder, powder with liquid, and paste or thick material.
01Milk powder, coffee powder, protein powder
02Spice, flavor and seasoning
03Supplement powder and additives
04Putty powder, gypsum, pigment and dyes
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What materials can the ribbon mixer handle?
Powder with powder, powder with liquid, and paste or thick material. Typical uses include spice, milk powder, coffee powder, protein powder, putty powder and pigments.
02What is the mixer made of?
Contact parts can be carbon steel, manganese steel, SUS304 or 316L, or a combination.
03Can speed, power and voltage be customised?
Yes. They can be set to your site.
04How is the batch discharged?
Through a manual or pneumatic butterfly valve.
05Can the machine be moved?
Yes. Movable PPS wheels turn in any direction.
