01 / 05Mixing · CH series

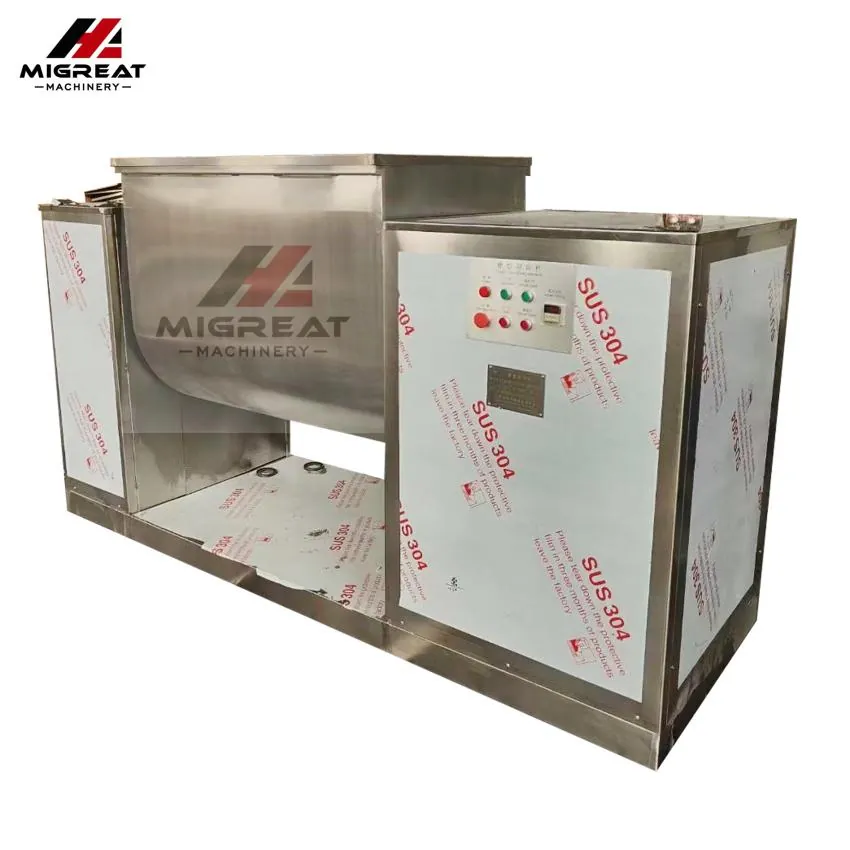

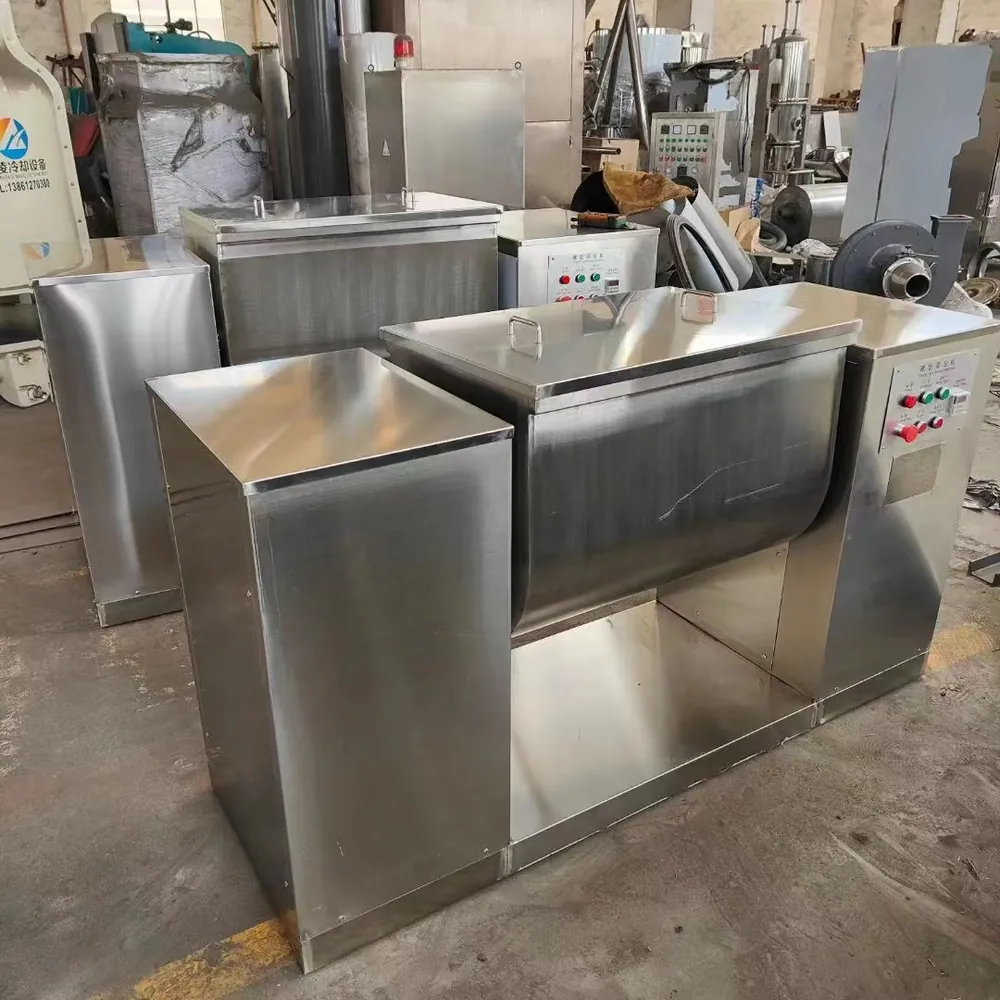

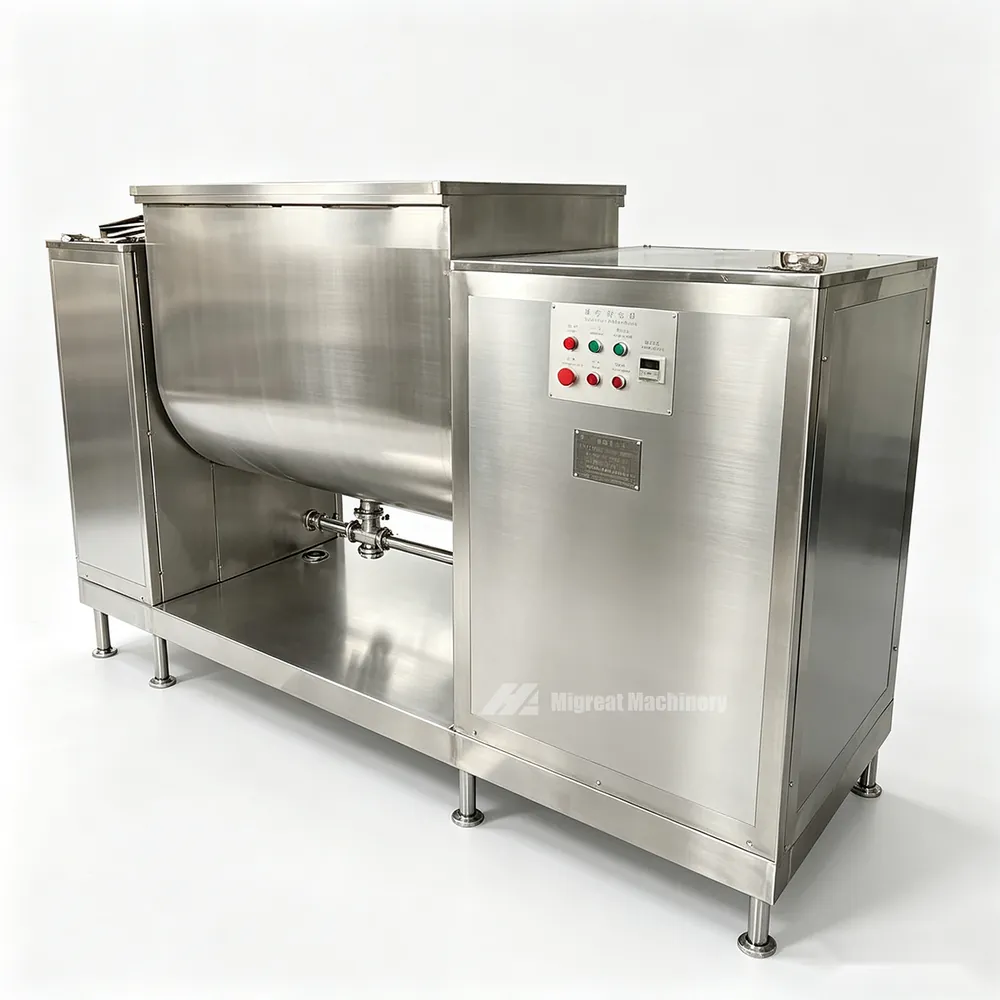

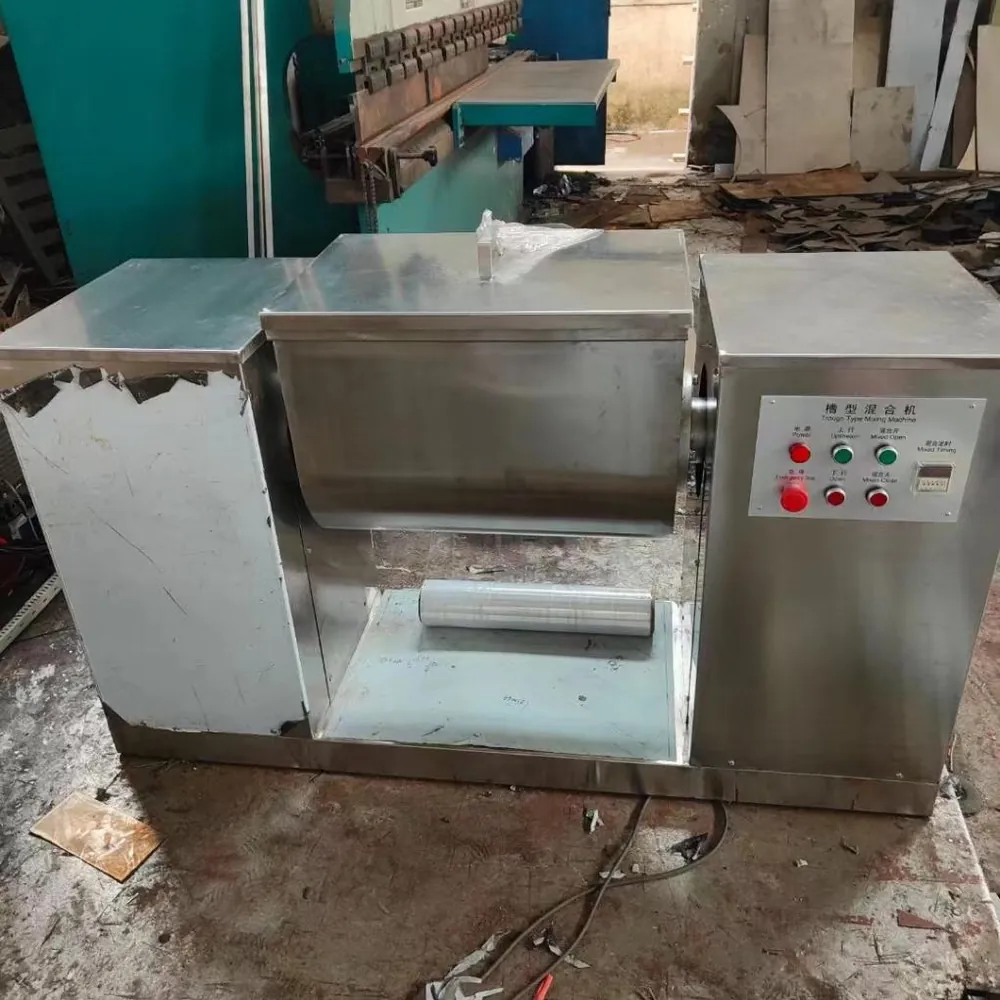

Tank Mixer
A horizontal trough mixer. An S-style paddle turns the material over for an even mix of powder or paste.
- Volume
- 50 L to 600 L, 8 models
- Paddle
- S-style single paddle
- Mixing speed
- 0 to 24 r/min
- Flip angle
- Under 105°
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
A trough that mixes and tips out

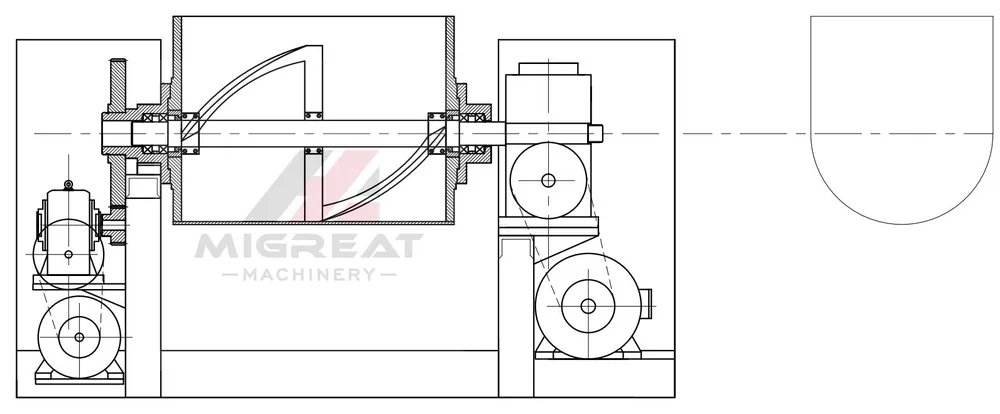

The CH tank mixer is a horizontal mixer for powder or paste material in the pharmaceutical, chemical, condiment and food industries. A mechanical drive turns the S-style agitator, which turns the material back and forth.
With the electric control you can set the mixing time, and the machine stops by itself, which keeps each batch consistent.
Mix
The S-style paddle turns the material back and forth for an even mix.
Time
Set the mixing time at the control. The machine stops on its own.
Flip
Mixing and flipping have separate power sources. The trough flips up to 105 degrees to discharge.
The range in numbers
- 8Models
From CH-50 to CH-600
- 50 to 600L
Total volume
- 0 to 24r/min
Mixing speed
- 1.5 to 11kW
Mixing power
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Clean, compact and easy to wash
The whole machine is stainless steel with a thick, densely welded trough.
- 01

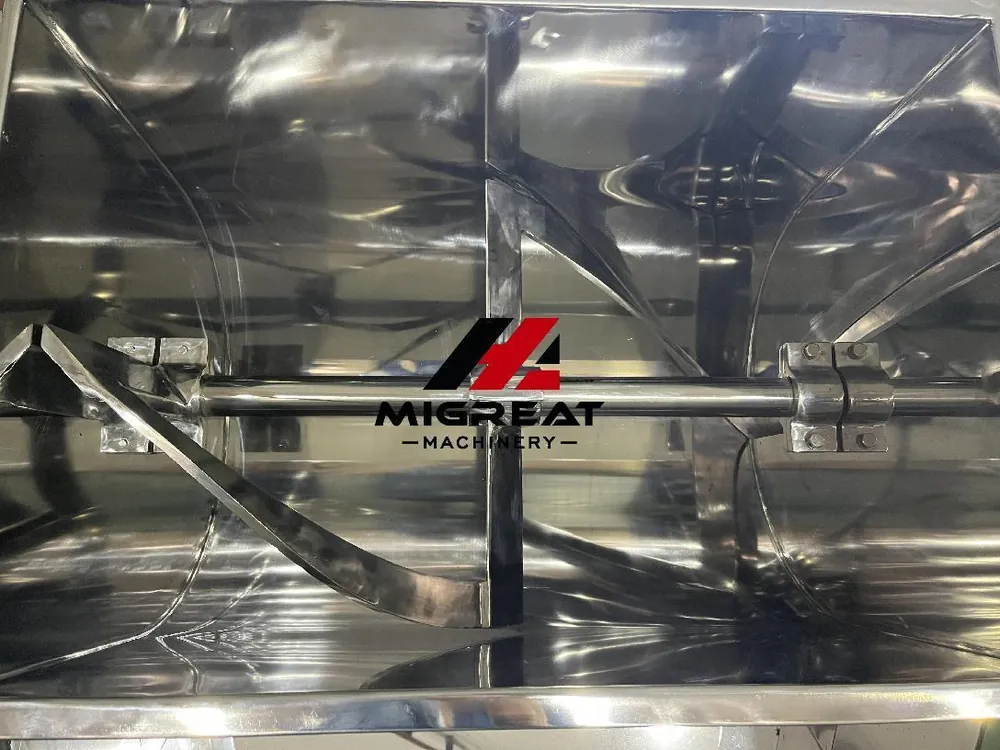

S-style paddle
Reciprocating flipping gives a uniform mix of powder or paste.
- 02
Timed mixing
Set the time at the control for a consistent batch.
- 03
Safe flipping
An automatic positioning safety device holds the trough in the flip, which stays within 105 degrees.
- 04
Sealed shaft ends
Sealing pieces at both ends of the shaft keep the material clean.
- 05
Compact
Small floor area, convenient to clean.
- 06
Stainless steel
The machine is stainless steel with a SUS304-2B cover on the frame.
Build it your way
Size
Eight models from 50 L to 600 L.
Discharge valve
SUS316L discharge valve.
Trough
SUS304L, 3 mm.
Control
Timed mixing.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by volume
All models use an S-style single paddle, 0 to 24 r/min mixing speed and a flip angle under 105 degrees.
| Model | Total volume (L) | Mixing power (kW) | Discharge motor (kW) | Overall size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CH-50 | 50 | 1.5 | 0.37 | 1200 x 500 x 950 | 280 |
| CH-100 | 100 | 2.2 | 0.55 | 1400 x 580 x 1000 | 350 |
| CH-150 | 150 | 3 | 0.55 | 1800 x 600 x 1150 | 410 |
| CH-200 | 200 | 4 | 0.75 | 2000 x 650 x 1200 | 450 |
| CH-300 | 300 | 5.5 | 1.1 | 2200 x 700 x 1250 | 520 |
| CH-400 | 400 | 5.5 | 1.1 | 2280 x 750 x 1250 | 580 |
| CH-500 | 500 | 7.5 | 1.5 | 2350 x 800 x 1300 | 680 |
| CH-600 | 600 | 11 | 2.2 | 2400 x 850 x 1350 | 750 |
Showing 7 of 8 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes powder or paste in pharmaceutical, chemical, condiment and food industries.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does the tank mixer mix?
Powder or paste material in pharmaceutical, chemical, condiment, food and other industries.
02How does it discharge?
The trough flips by its own motor, up to 105 degrees.
03Can I set the mixing time?
Yes. With the electric control the machine stops automatically at the time you set.
04What is the speed?
0 to 24 r/min on all models.
05How is it sealed?
There are sealing pieces at both ends of the agitating shaft.
