01 / 05Mixing · SHJ series

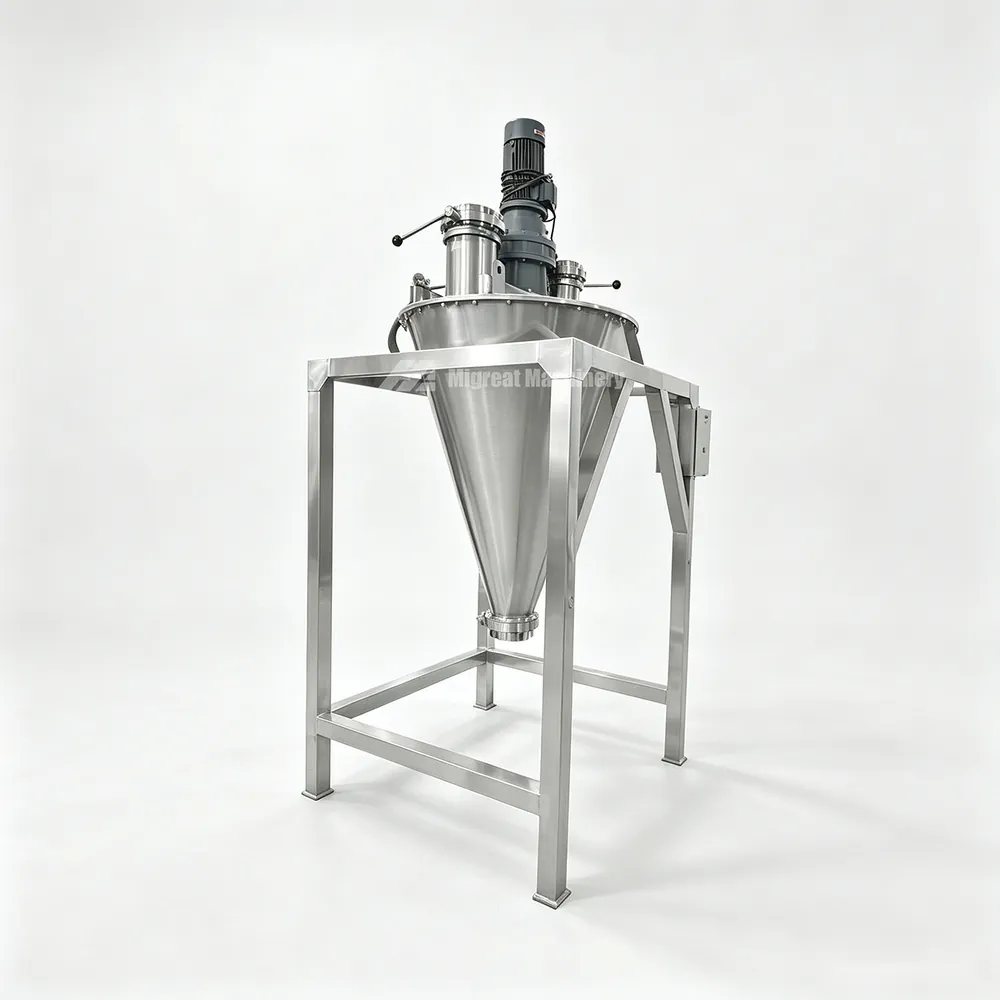

Double Screw Conical Mixer
A conical mixer with two spiral screws that orbit while they turn. It mixes powder and granule gently and quickly.
- Volume
- 300 L to 30,000 L, 11 models
- Effective loading
- 120 L to 18,000 L
- Uniformity
- Up to 98%
- Power
- 3 kW to 45 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Orbiting screws in a conical tank
The SHJ double screw conical mixer has spiral cone screws that both revolve around the tank and rotate on their own axis. Material is lifted from the bottom, thrown out and mixed in every direction.
Homogeneity can reach 98 percent. An optional spray nozzle adds liquid during mixing.
Lift
The screws lift material from the bottom of the cone.
Mix
Revolving and rotating screws spread material in all directions.

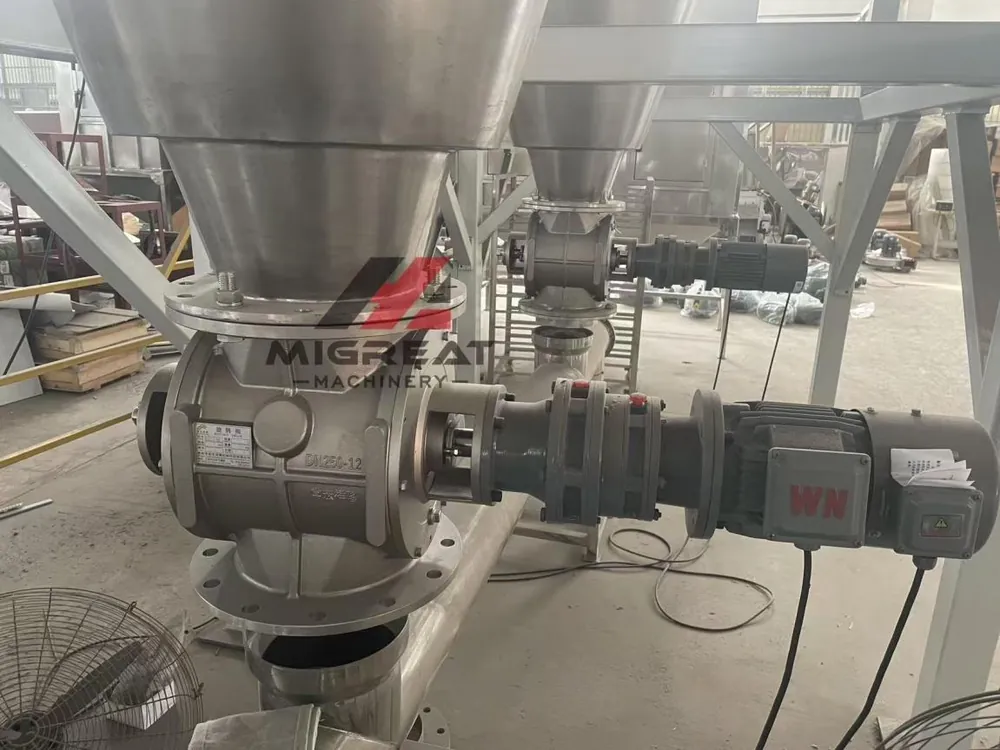

Discharge
The valve at the bottom of the cone discharges the batch.
The range in numbers
- 11Models
From SHJ-300 to SHJ-30000
- 300 to 30,000L
Full volume
- Up to 98%Uniformity
Mixing result
- 3 to 45kW
Power
More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Sealed against dust and leaks
The shaft has Teflon packing and an air-tight shaft seal.
- 01

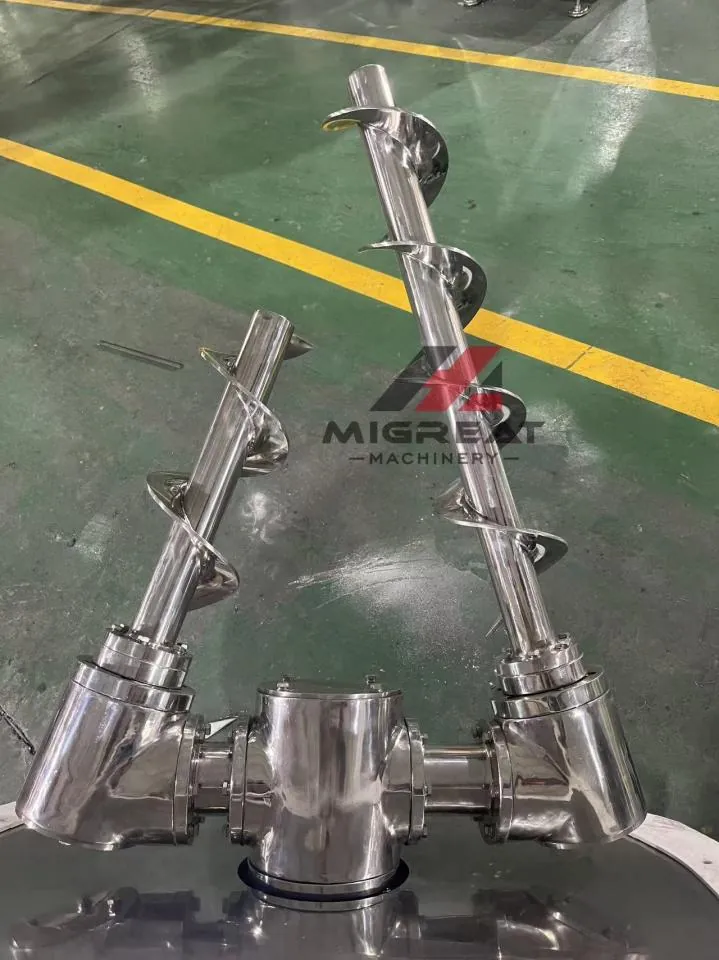

Revolving and rotating screws
Material is mixed in all directions with little damage to it.
- 02
Up to 98% homogeneity
High uniformity for powder and granule.
- 03
Spray option
An optional spray nozzle adds liquid.
- 04
Sealed shaft
Teflon packing and an air-tight shaft seal keep the product clean.
- 05
Wide size range
From 300 L to 30,000 L.
- 06

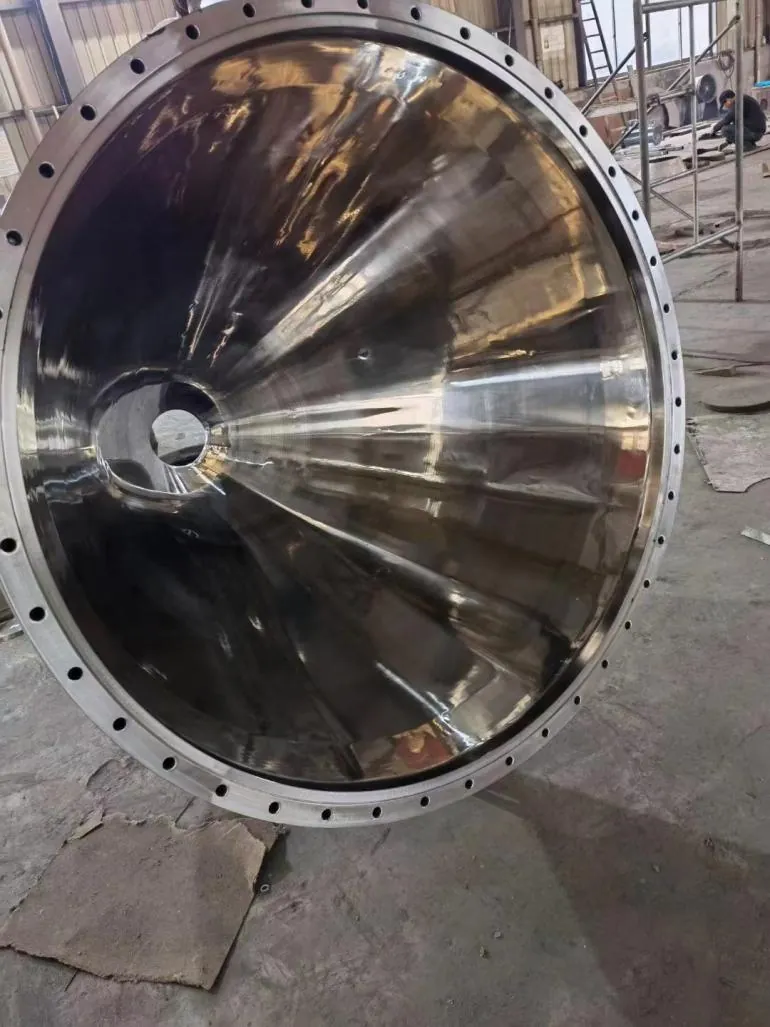

Cone design
The cone discharges cleanly.
Build it your way
Size
Eleven models from 300 L to 30,000 L.
Spray
Optional spray nozzle.
Material
Stainless steel build.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by volume
Rotate speed is shown as the screw rotation speed over the revolution speed, in r/min.
| Model | Full volume (L) | Effective loading volume (L) | Rotate speed (r/min) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| SHJ-300 | 300 | 120-180 | 2/68 | 3 | 400 |
| SHJ-500 | 500 | 200-300 | 2/68 | 3 | 550 |
| SHJ-1000 | 1000 | 400-600 | 2/57 | 4 | 1200 |
| SHJ-2000 | 2000 | 800-1200 | 2/57 | 5.5 | 1500 |
| SHJ-3000 | 3000 | 1200-1800 | 2/57 | 7.5 | 2300 |
| SHJ-4000 | 4000 | 1600-2400 | 2/57 | 11 | 2800 |
| SHJ-6000 | 6000 | 2400-3600 | 2/57 | 15 | 3600 |
| SHJ-10000 | 10000 | 4000-6000 | 2/57 | 18.5 | 4200 |
| SHJ-15000 | 15000 | 6000-9000 | 2/57 | 22 | 4900 |
| SHJ-20000 | 20000 | 8000-12000 | 2/57 | 37 | 5800 |
| SHJ-30000 | 30000 | 12000-18000 | 2/57 | 45 | 7000 |
Showing 7 of 11 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes powder and granule in chemical, food, pharmaceutical and other industries.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01How does the double screw conical mixer mix?
Two spiral screws revolve around the cone and rotate on their own axis. They lift material from the bottom and spread it in every direction.
02How uniform is the result?
Homogeneity can reach 98 percent.
03Can I add liquid?
Yes. A spray nozzle is optional.
04How is the shaft sealed?
With Teflon packing and an air-tight shaft seal.
05Which size should I choose?
Effective loading volume is 40 to 60 percent of the full volume. Tell us your batch size.
