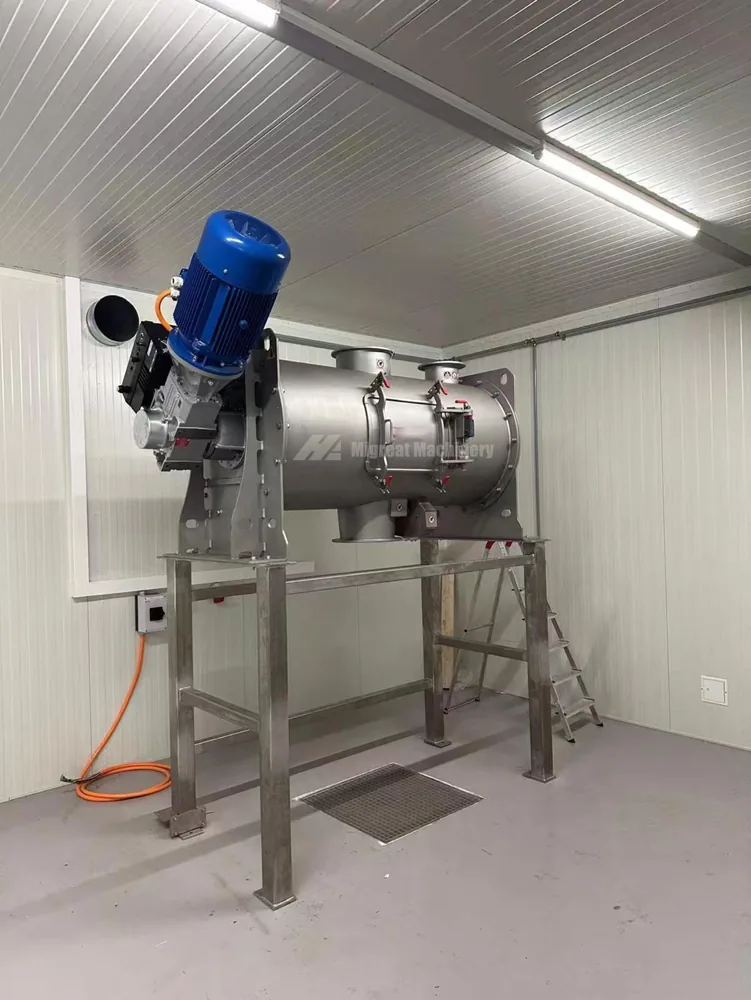

Plough Mixer
A single shaft forced mixer. Plough shears set on the main shaft throw material through the drum for fast, even mixing.
- Total volume
- 100 L to 15,000 L, 13 models
- Load coefficient
- 0.4 to 0.8
- Power
- 3 kW to 75 kW
- Choppers
- Optional high speed choppers
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Plough shears, no dead zone

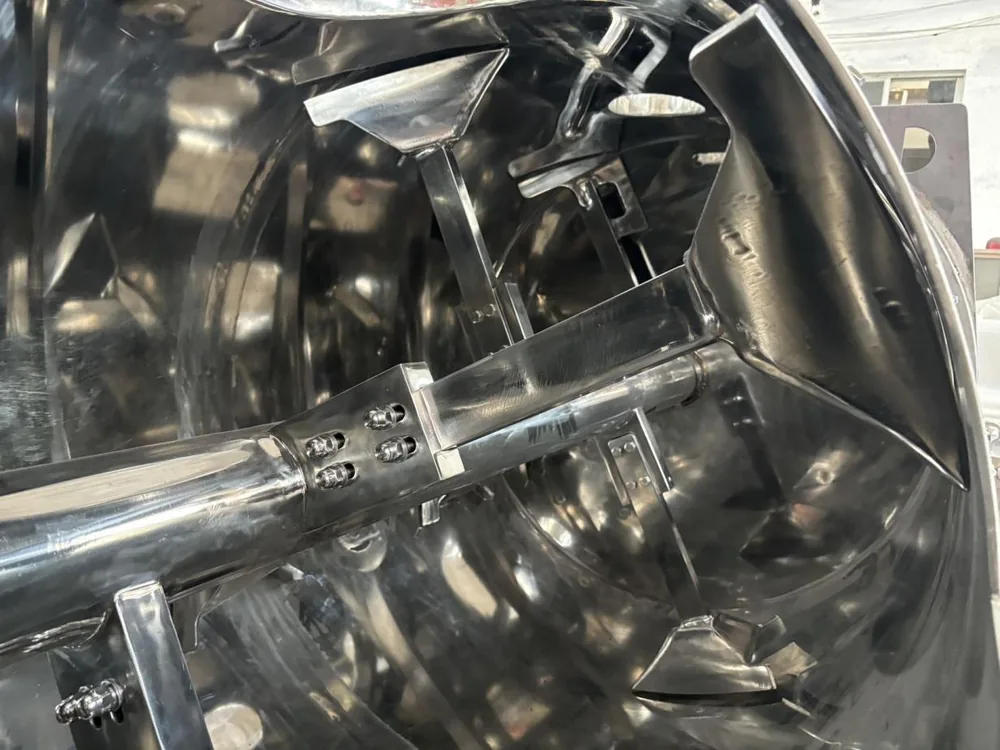

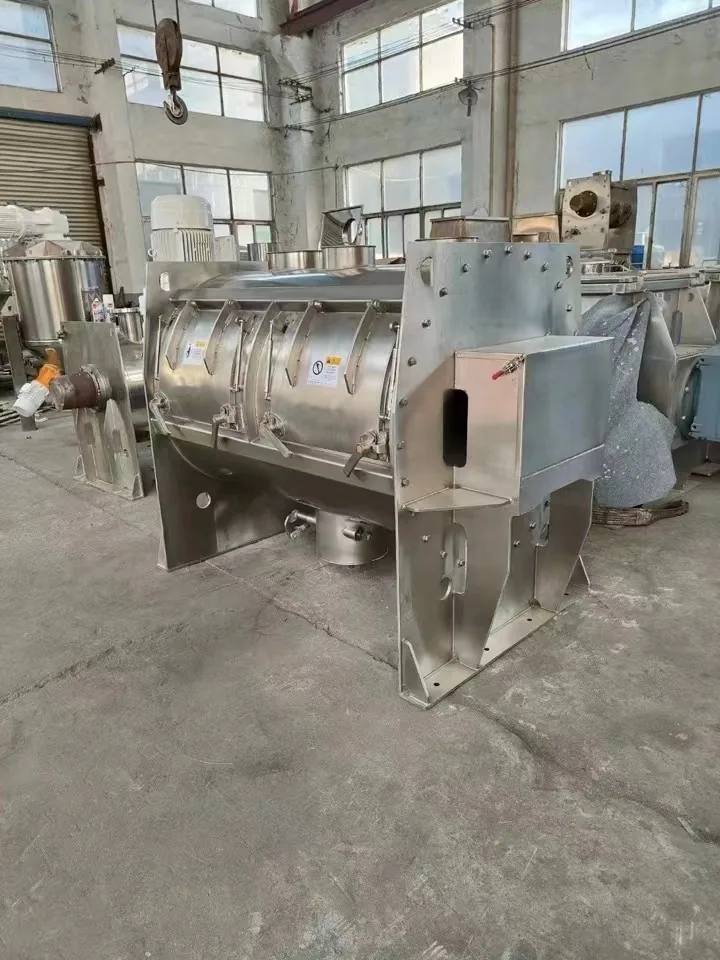

The plough shear mixer is a single shaft forced mixing machine. Several sets of plough shears are fitted on the main shaft in staggered, continuous positions, which avoids a mixing dead zone.
In operation the material moves with the continuous vortex and centrifugal force of the plough shears, so it scatters, disperses and mixes quickly. For fibre or damp, lumpy material a high speed chopper can be added.
Plough
Staggered plough shears on the main shaft throw material into a continuous vortex.
Chop

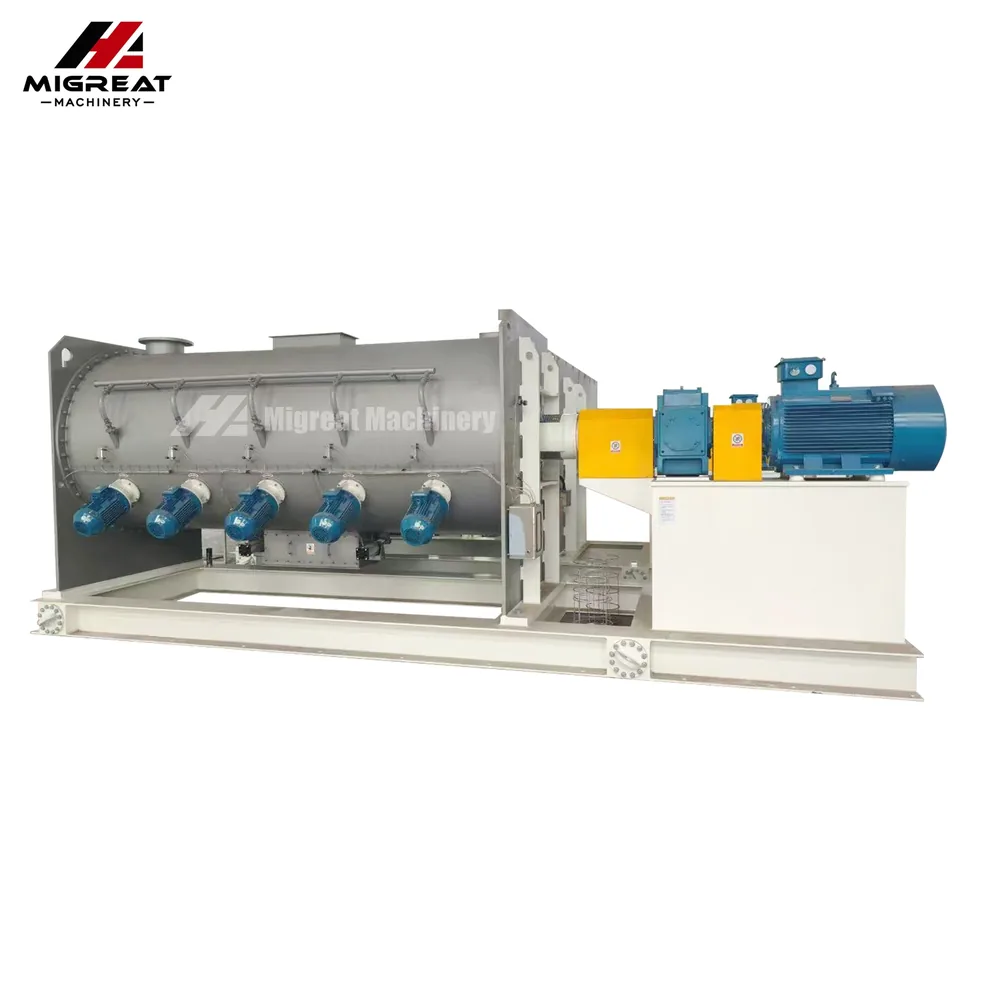

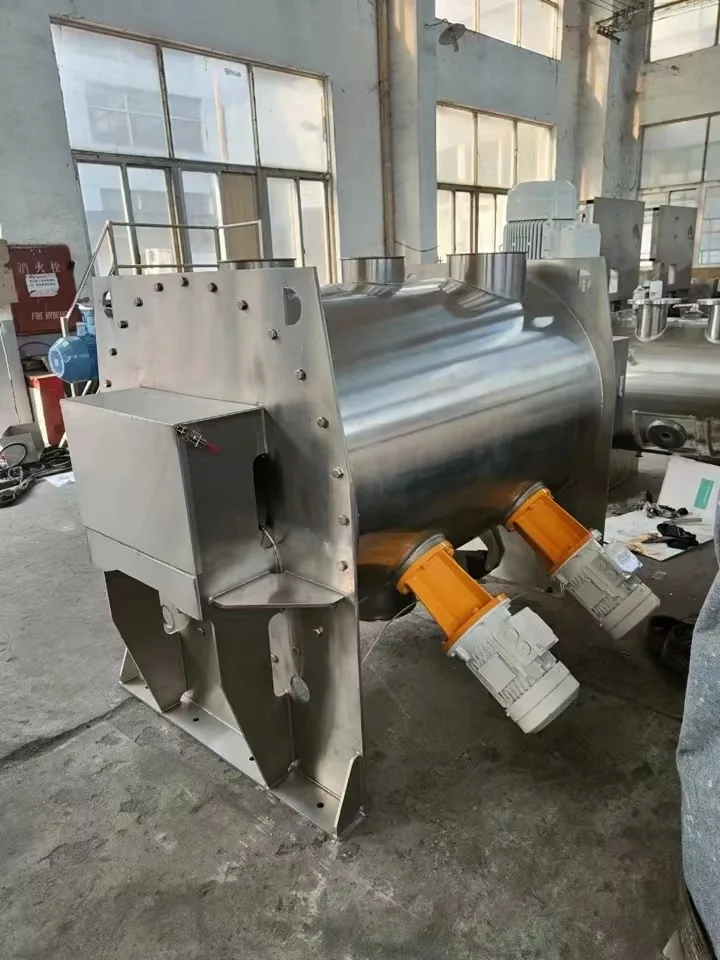

High speed choppers on the barrel side, at 45° downward, shear lumps and fibre.
Discharge
A pneumatic flat flap valve closes flush with the barrel, so no dead zone is left.
The range in numbers
- 13Models
From MTS-100 to MTS-15000
- 100 to 15,000L
Total volume
- 0.4 to 0.8
Load coefficient
- 3 to 75kW
Power
