01 / 05Coating · BY series

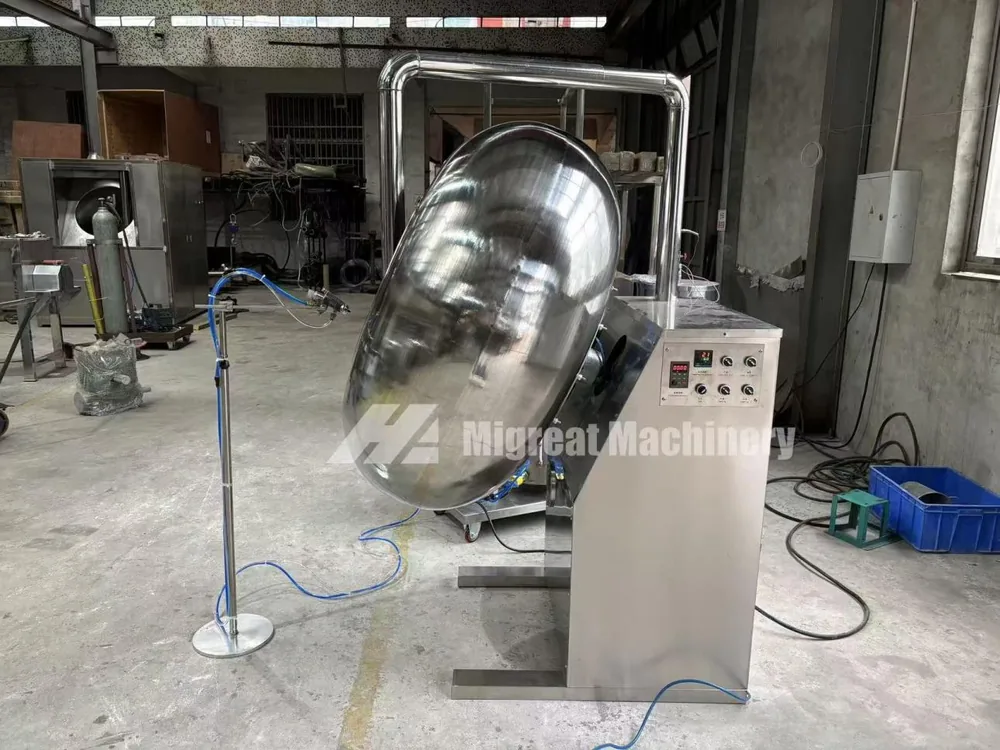

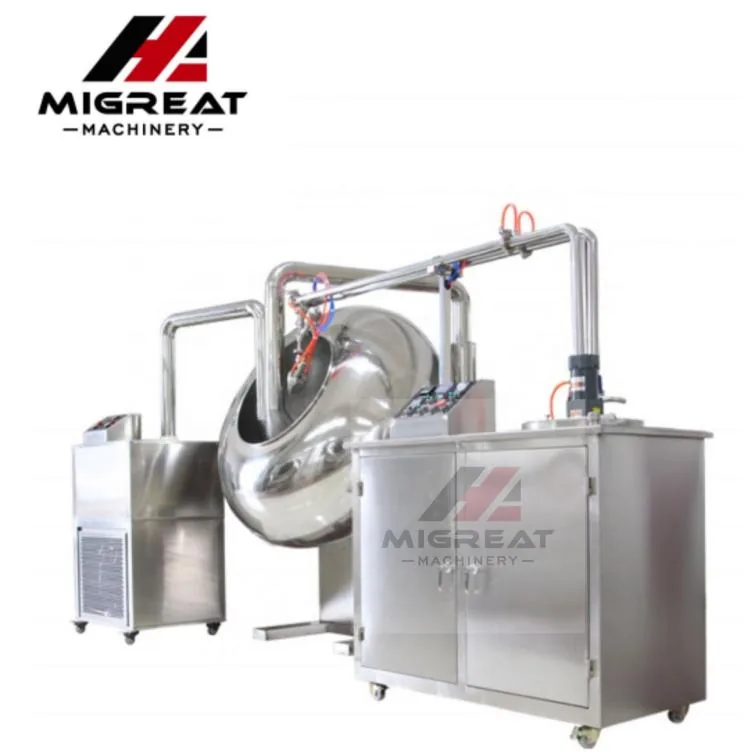

Coating Machine
A coating pan for sugar coating and film coating of pills and tablets, and for rolling, mixing and polishing round and granular material.
- Drum diameter
- 200 mm to 1,500 mm, 8 models
- Capacity
- 1 to 400 kg per batch
- Rotation speed
- 26 to 46 r/min
- Heating power
- 1.2 kW to 6 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Rolling, coating and polishing
The BY coating machine is mainly used for sugar coating and film coating of traditional Chinese medicine pills and tablets in the pharmaceutical industry. It can also roll, mix and polish round or granular material in the food, light industry and chemical industries.
A motor turns the pan through a triangular belt and a worm gear. Under centrifugal force the material rolls and rubs up and down in the pan, which gives the coating, pill making and polishing effect.
Roll
Under centrifugal force the material rolls and rubs up and down in the pan.
Coat
Sugar coating and film coating of pills and tablets.
Polish
Rolling and polishing of round and granular material.
The range in numbers
- 8Models
From BY200 to BY1500
- 200 to 1,500mm
Drum diameter
- 1 to 400kg
Capacity per batch
- 26 to 46r/min
Rotation speed
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Simple build, eight sizes
A body, worm gear box, pan, heating device, fan and electrical parts.
- 01
Worm gear drive
A motor turns a worm gear and the pan through a triangular belt.
- 02
Heating
A heating device warms the batch. Heating power is 1.2 to 6 kW by model.
- 03
Fan
A fan is part of the machine. Fan power is 0.06 to 0.37 kW by model.
- 04

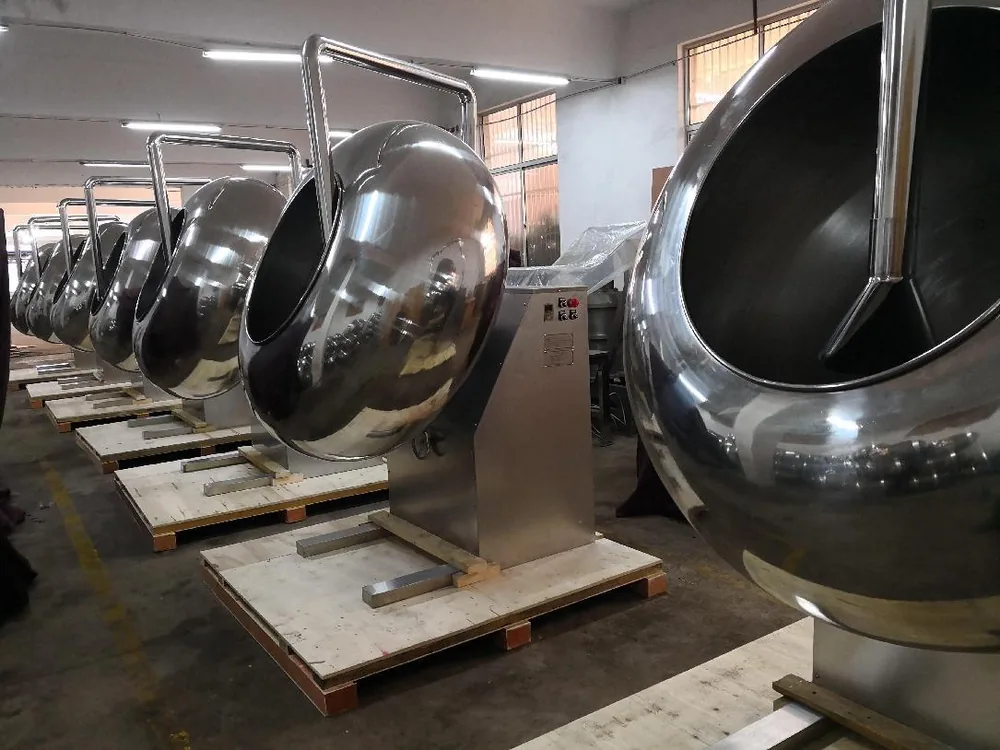

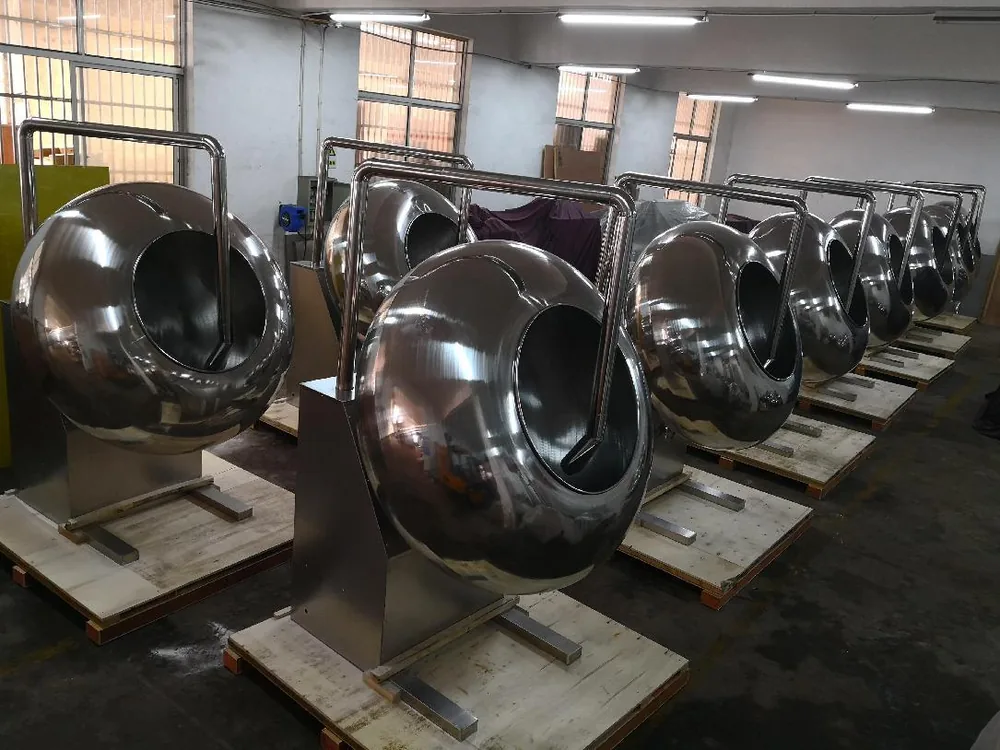

Eight sizes
Drum diameters from 200 mm to 1,500 mm, from lab batches to 300–400 kg.
- 05

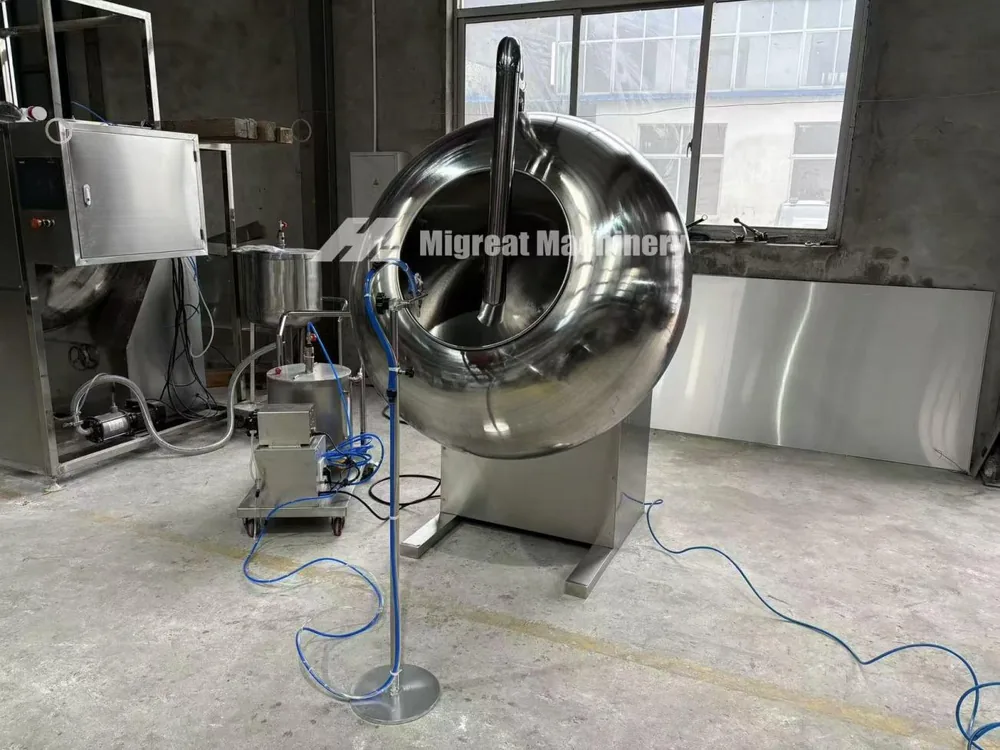

Spray system option
A spray gun and liquid tank can be fitted to apply the coating liquid.
- 06
Many products
Pills, tablets, chocolate, nuts and other round or granular material.
Build it your way
Size
Eight models from BY200 to BY1500.
Spray system
Add a spray gun and liquid tank.
Heating
Heating and fan power by model.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by drum diameter
Capacity is per batch.
| Model | Drum diameter (mm) | Capacity (kg/time) | Rotation speed (r/min) | Motor (kW) | Fan (kW) | Heating (kW) | Overall size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| BY200 | 200 | 1 | 46 | 0.37 | 0.06 | 1.2 | 500 x 350 x 700 | 36 |
| BY300 | 300 | 2 | 46 | 0.37 | 0.06 | 1.2 | 500 x 350 x 700 | 37 |
| BY400 | 400 | 5 | 46 | 0.37 | 0.06 | 1.2 | 550 x 400 x 800 | 38 |
| BY600 | 600 | 15 | 36 | 0.75 | 0.06 | 2 | 800 x 600 x 900 | 85 |
| BY800 | 800 | 30-50 | 36 | 1.5 | 0.15 | 2.2 | 1000 x 800 x 1430 | 205 |
| BY1000 | 1000 | 50-70 | 32 | 1.5 | 0.15 | 3 | 1100 x 1000 x 1560 | 220 |
| BY1250 | 1250 | 80-150 | 28 | 3 | 0.2 | 4 | 1250 x 1200 x 1820 | 350 |
| BY1500 | 1500 | 300-400 | 26 | 5.5 | 0.37 | 6 | 1500 x 1500 x 1980 | 600 |
Showing 7 of 8 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It coats, rolls, mixes and polishes round and granular material.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does the coating machine coat?
Pills and tablets, including traditional Chinese medicine pills, with sugar coating or film coating. It also rolls, mixes and polishes round and granular material.
02How does it work?
A motor turns the pan through a triangular belt and worm gear. Centrifugal force makes the material roll and rub up and down in the pan.
03How much does one batch hold?
From 1 kg on BY200 up to 300–400 kg on BY1500.
04Can it polish?
Yes. Rolling and polishing are part of what the machine does, for example chocolate polishing.
05Can I add a spray system?
Yes. A spray system with a spray gun and liquid tank can be fitted to the coating machine.
