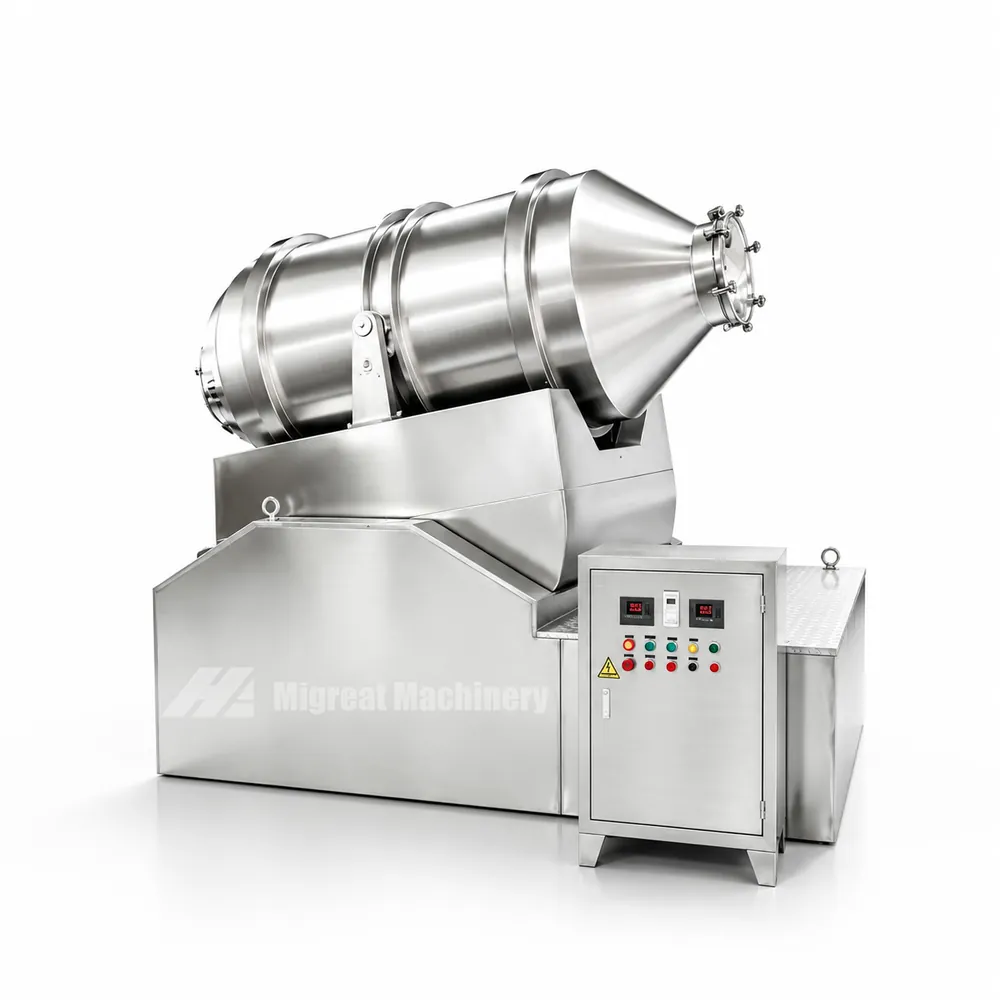

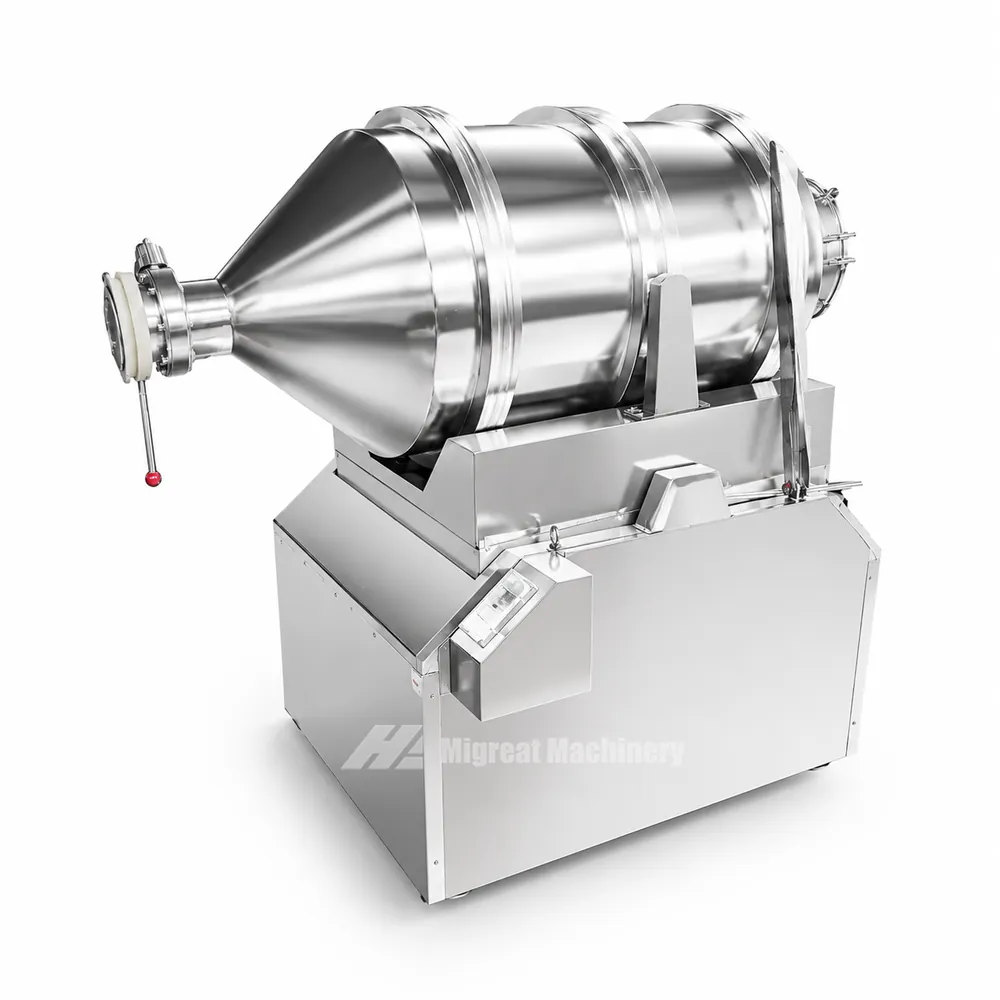

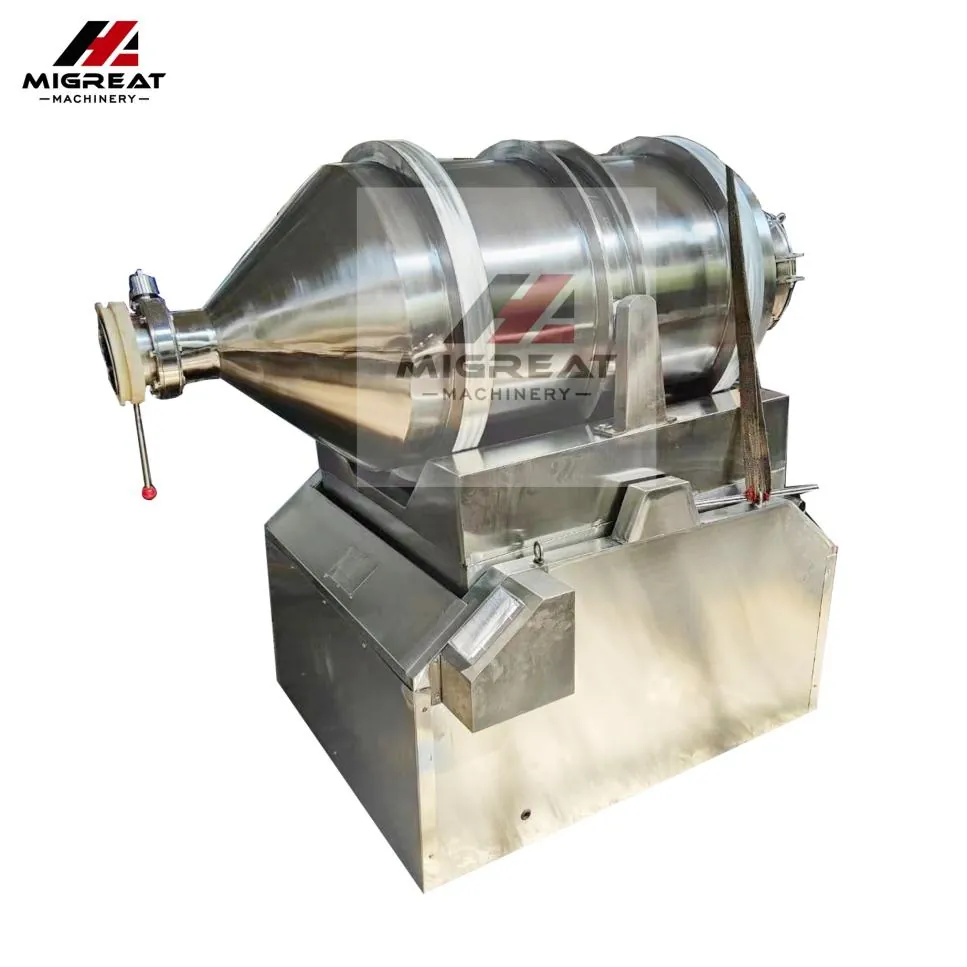

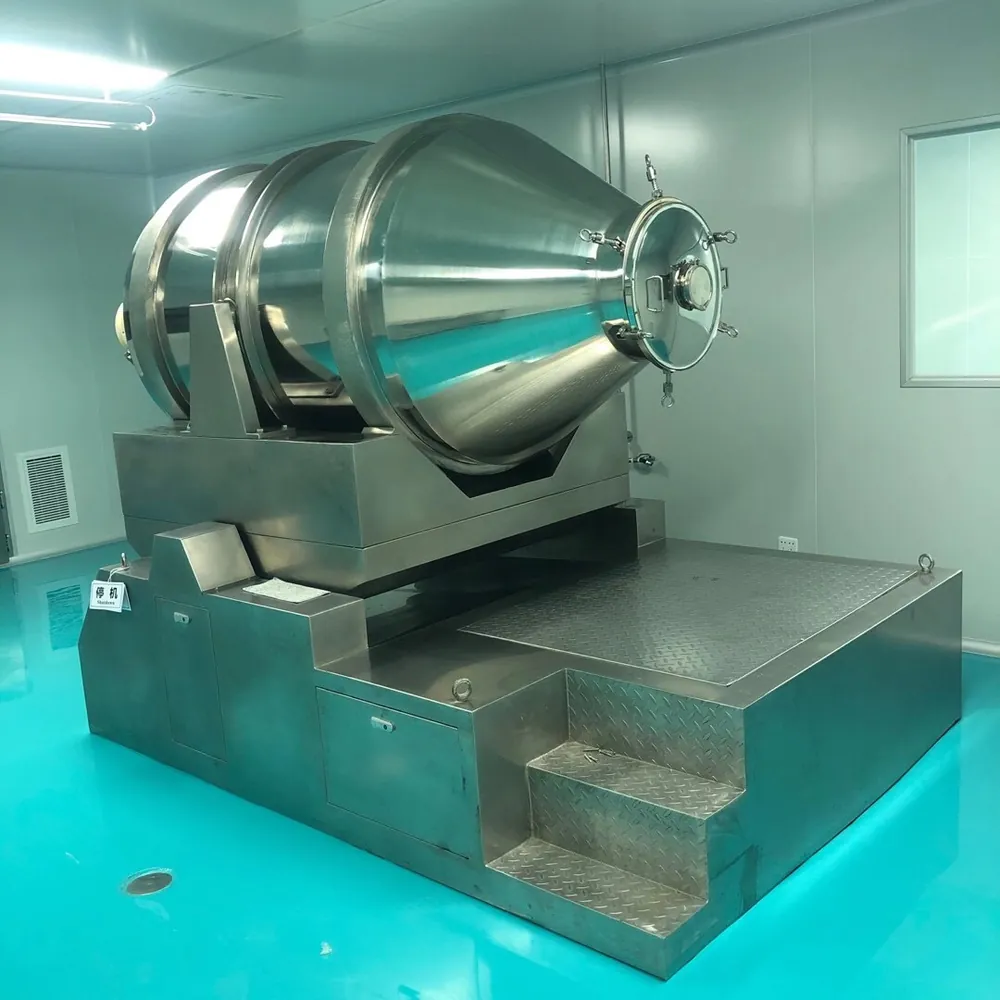

2D Mixer
A two-dimensional motion mixer. The drum rotates and swings together, so powder and granule mix fully in a short time.
- Volume
- 300 L to 5,000 L, 6 models
- Working volume
- 150 L to 2,500 L
- Rotation speed
- 3 to 12 rpm (2 to 8 on EYH-5000)
- Contact material
- SUS304
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Two motions, short mixing time

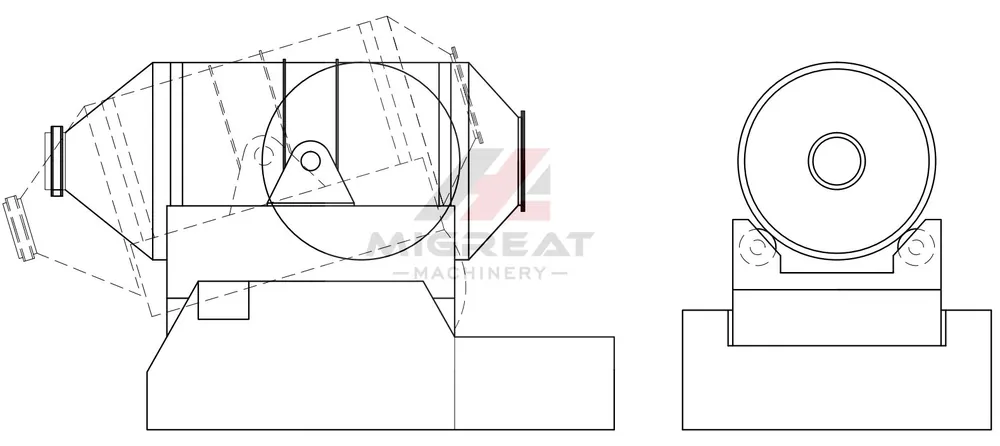

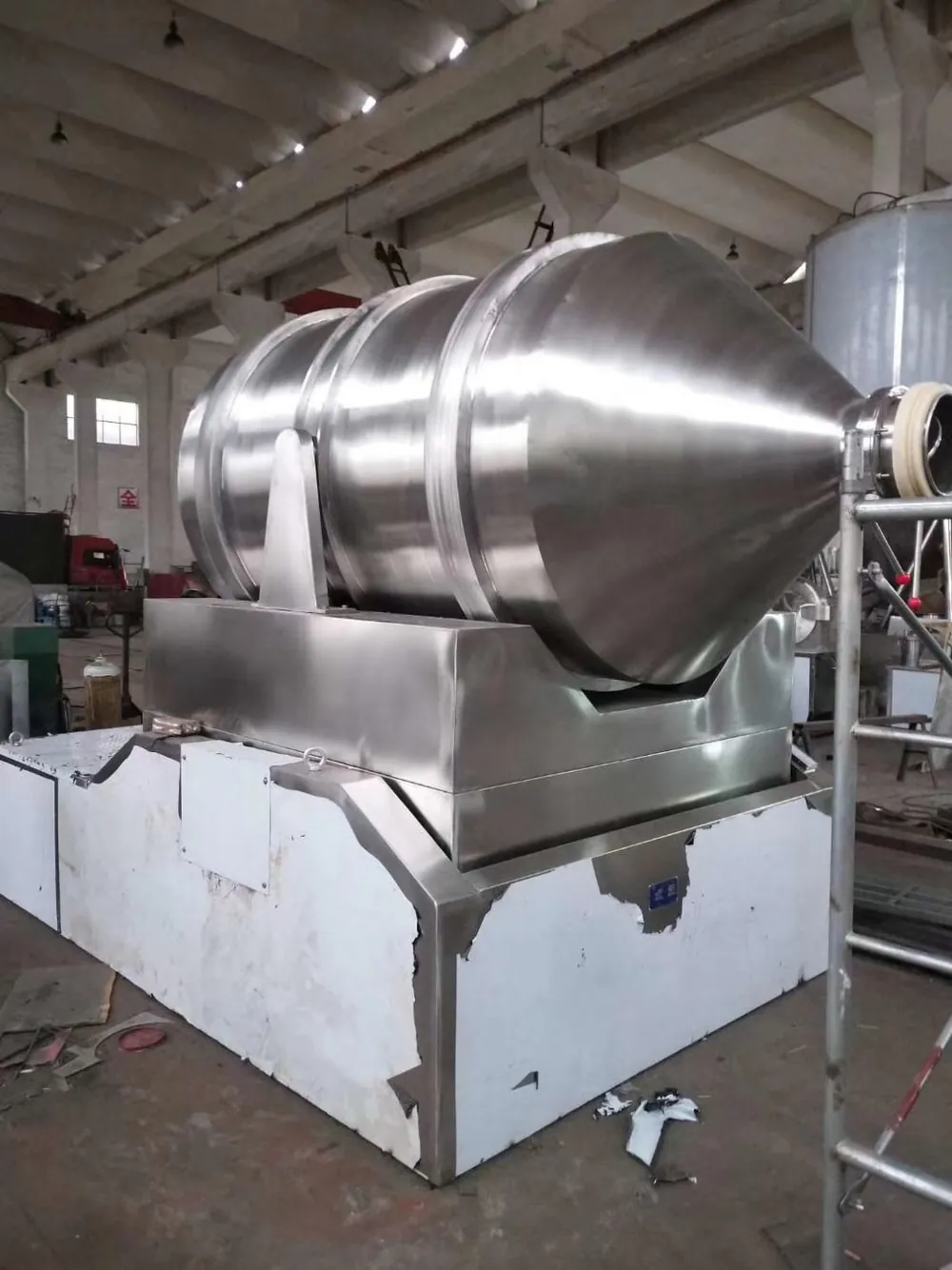

The tank of the EYH two-dimensional mixer does two motions at once: it rotates, and it swings with the swing frame. Material is turned over by the rotation and mixed left and right by the swing.
It suits all powder and granule materials.
Rotate
The drum, held on four rollers, is rotated by two driven rollers.
Swing
A crank swing rod mechanism swings the frame.
Mix
Together the two motions mix the material fully in a short time.
The range in numbers
- 6Models
From EYH-300 to EYH-5000
- 300 to 5,000L
Volume
- 50%Working volume
Of total volume
- 3 to 12rpm
Rotation speed
