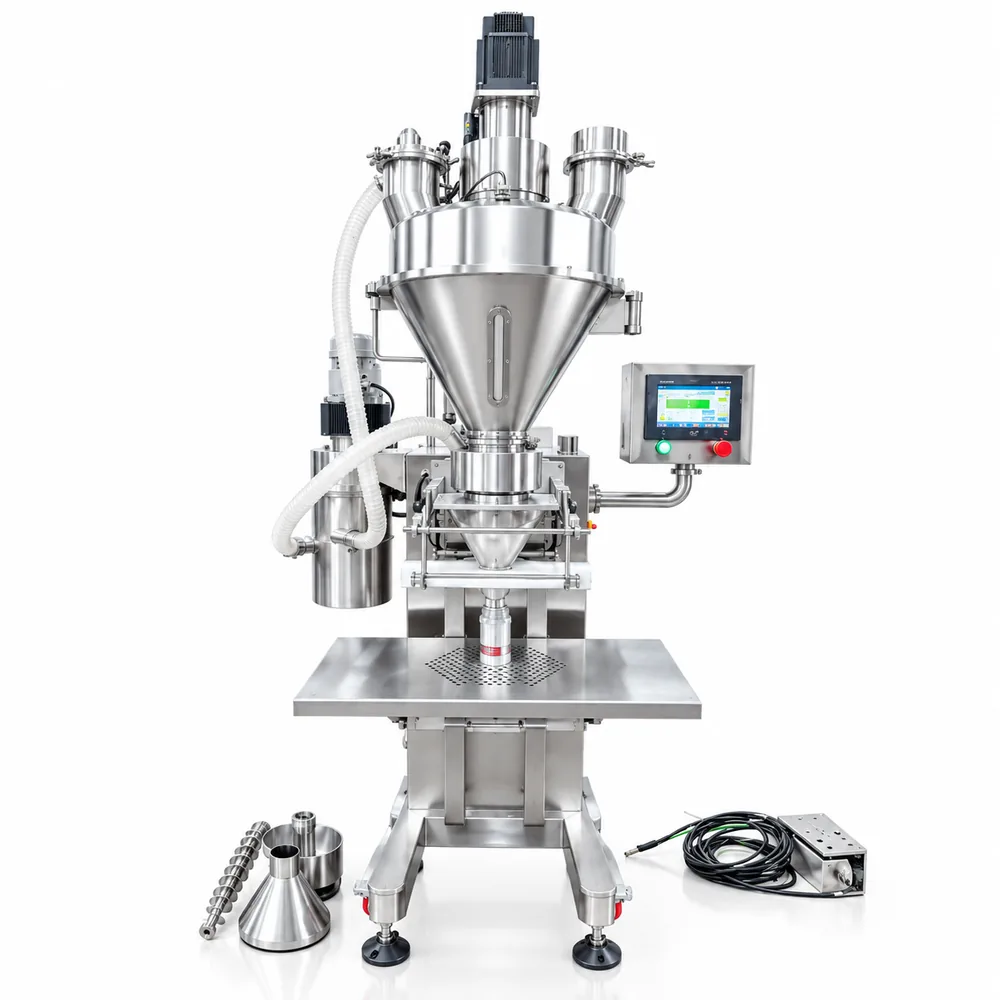

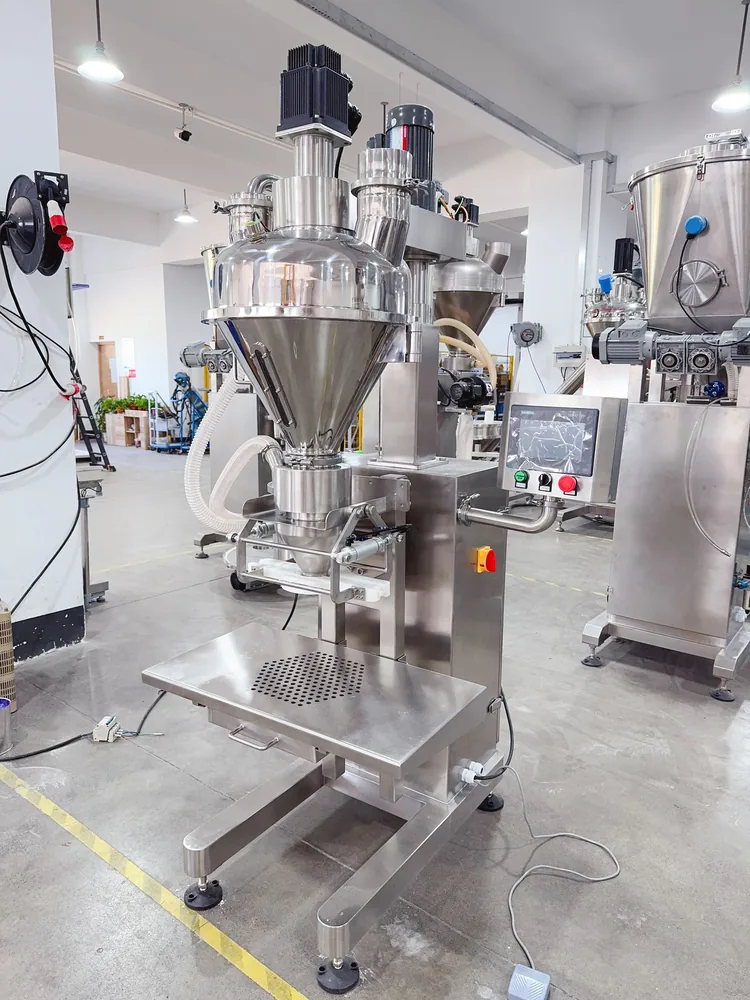

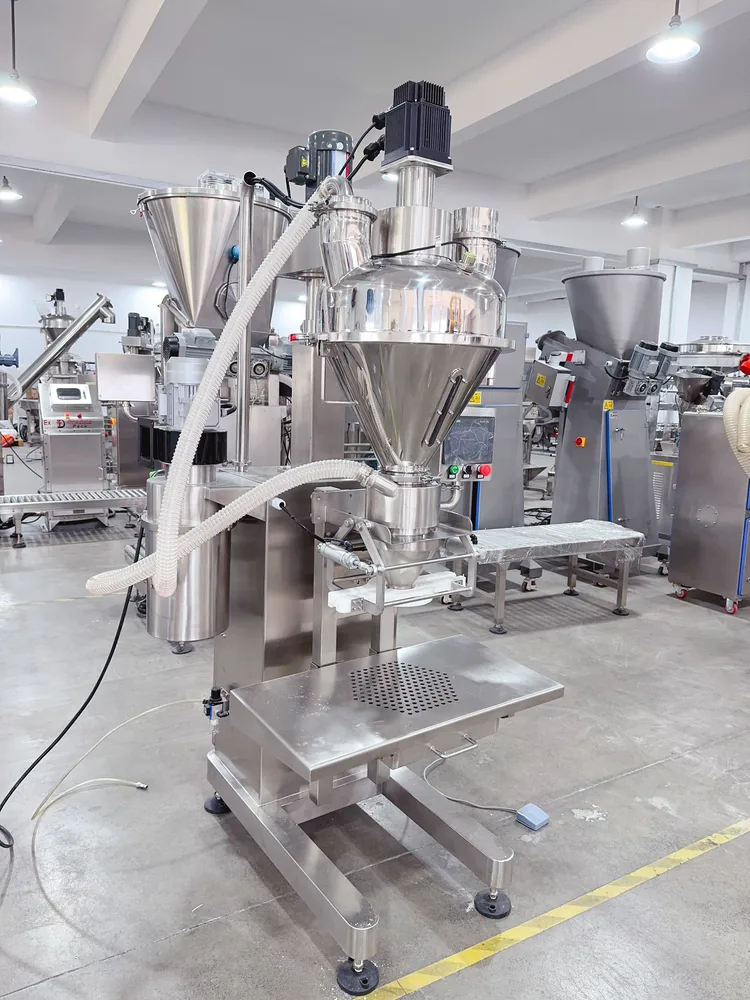

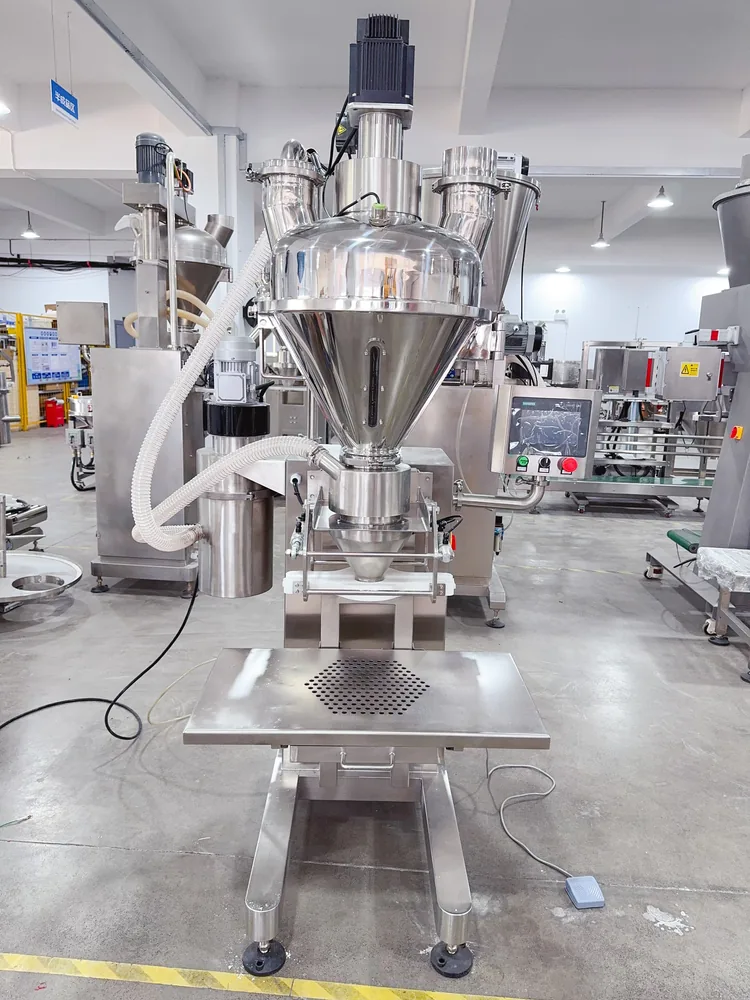

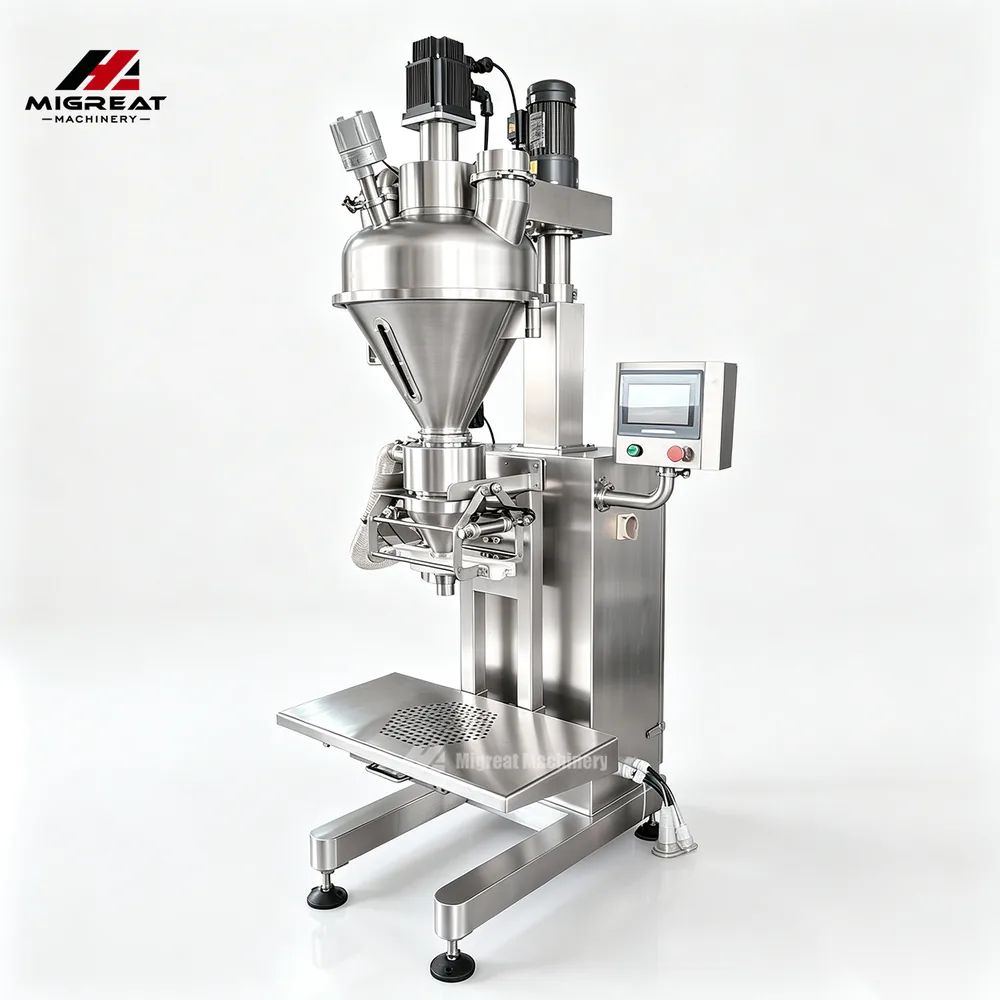

MJ-1B3+50W Packing Machine
A semi-automatic auger powder filler for bags of 1 to 10 kg.
- Package weight
- 1 to 10 kg
- Speed
- 1 to 5 bags/min
- Hopper
- 50 L side-opening
- Power
- 1.8 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Auger filling for mid size bags
The MJ-1B3+50W semi-automatic powder filling machine fills powdery and granular materials such as milk powder, feed powder, rice flour, coffee powder, monosodium glutamate, solid beverages, glucose and solid medicines.
It has dust collection, an adjustable working table and recipe memory for different materials and target weights.
Feed
Powder or granules go into the hopper. An agitator keeps them feeding into the auger.
Fill
A servo-driven auger doses the material, with weight feedback.
Pack
The filled weight goes into the bag, bottle or container.
The range in numbers
- 1Model
Semi-automatic
- 1 to 10kg
Package weight
- 1 to 5bags/min
Packaging speed
- 50L
Hopper volume
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Accurate filling, easy cleaning
Stainless steel construction and a side-opening hopper.
- 01
304 stainless steel
A 304 stainless steel build with a 50 L side-opening hopper for easy access, cleaning and maintenance.
- 02
Typical filling range
It suits filling powdery materials into bags with target weights from 1 to 10 kg (typical filling range).
- 03
Servo-driven auger
A precision-machined auger driven by a servo motor fills accurately and suits different target weights.
- 04
Hopper agitator
An integrated agitator keeps powder feeding steadily into the auger.
- 05
PLC and touch screen
PLC control with a colour touch screen in Chinese, English and customized languages.
- 06
Weight feedback
Weight feedback and proportional tracking help keep filling weight consistent across materials.
Build it your way
Auger
Change the auger attachment to change the package weight.
Language
Chinese, English or customized.
Voltage
380V / 220V, 50-60Hz.
Hopper
50 L side-opening hopper.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Key parameters
Package weight is the range you can change by changing the auger attachment.
| Item | MJ-1B3+50W |
|---|---|
| Metering model | Auger filling, electronic-sensing weighing feedback |
| Package weight | 1-10kg (changeable by changing auger attachment) |
| Package accuracy | ±0.2-1% (according to material proportion and pack weight) |
| Packaging speed | 1-5 bags/min (according to people speed and pack weight) |
| Power supply | 380V / 220V 50-60Hz |
| Total power | 1.8 kW |
| Total weight | 180 kg |
| Overall dimensions | 910 x 850 x 2250 |
| Hopper volume | 50 L |
| Operational style | PLC control system, 5.7 inch colorful touch screen |
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It fills powdery and granular materials.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
01What does it fill?
Powdery and granular materials such as milk powder, feed powder, rice flour, coffee powder, monosodium glutamate, solid beverages, glucose and solid medicines.
02How does it dose?
A servo-driven auger fills the material, and electronic-sensing weighing feedback keeps the weight consistent.
03What package weight can it fill?
1-10kg. The range is changed by changing the auger attachment. It suits filling powdery materials into bags with target weights from 1 to 10 kg (typical filling range).
04Can it store settings?
Yes. Recipe memory stores up to 10 sets of filling parameters.
05How does it handle dust?
A built-in vacuum cleaner collects airborne powder and simplifies cleaning.
